Description

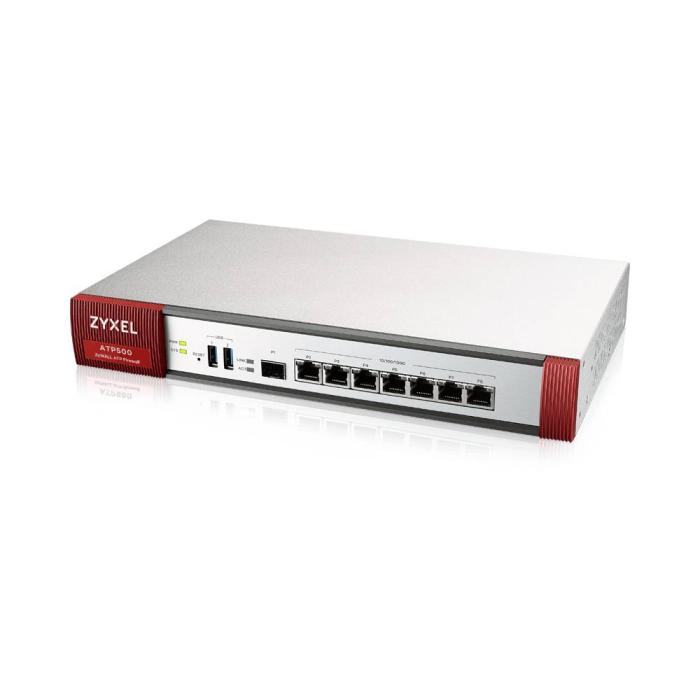

The Zyxel ATP500 desktop form factor firewall delivers firewall throughput of 2.6 Gbit/s and VPN throughput of 0.9 Gbit/s, with a maximum power consumption of 24.1 W. It features 7 Ethernet LAN ports at 10/100/1000 Mbit/s, 2 USB 3.2 Gen 1 ports, and supports up to 64 VLANs and 1,000,000 active TCP connections. Its design allows for rack mounting or desktop use, with heat dissipation of 82.23 BTU/h and an MTBF of 529,688.2 hours. It includes content filtering and FCC, CE, and C-Tick certifications, operating in a humidity range of 10% to 90% and storage temperatures between -30 and 70 °C.
Specifications
Data transmission
Performance
- Heat dissipation: 82.23 BTU/h
- Mean time between failures (MTBF): 529688.2 h
Network
- Number of VLANs: 64
- Active TCP connections (max): 1000000
Security
- Content filtering: 1
Ports & interfaces
- Connectivity technology: Wired
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 7
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Design
- Rack mounting: Yes
- Form factor: Desktop
Power
- Input current: 4.17 A
- Power consumption (max): 24.1 W
Certificates
- Certification: FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI, LVD (EN60950-1), BSMI
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Dimensions (WxDxH): 300 x 188 x 44 mm
- Weight: 1.65 kg
Packaging data
- Package width: 351 mm
- Package height: 245 mm
- Package depth: 152 mm
- Package weight: 2.83 kg
Other features
- Firewall throughput: 2600 Mbit/s
- VPN throughput: 900 Mbit/s
Logistics data
- Harmonized System (HS) code: 85176990
