Description

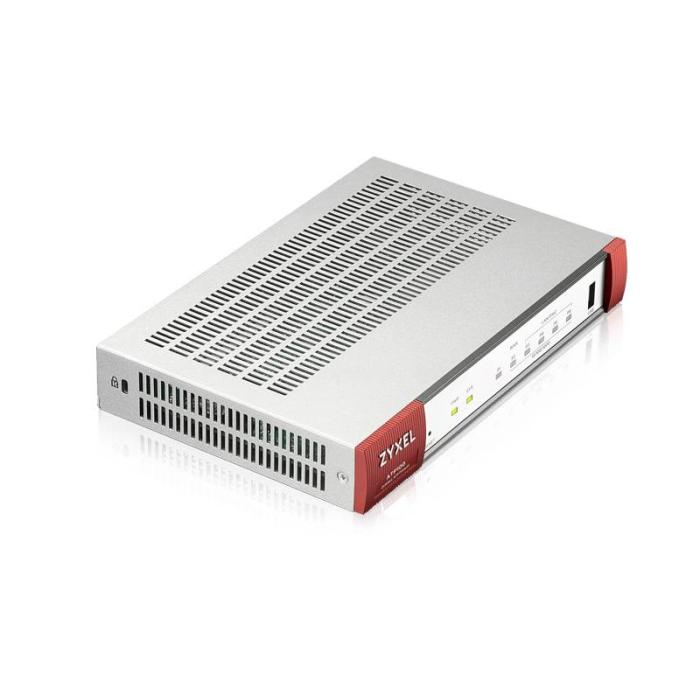

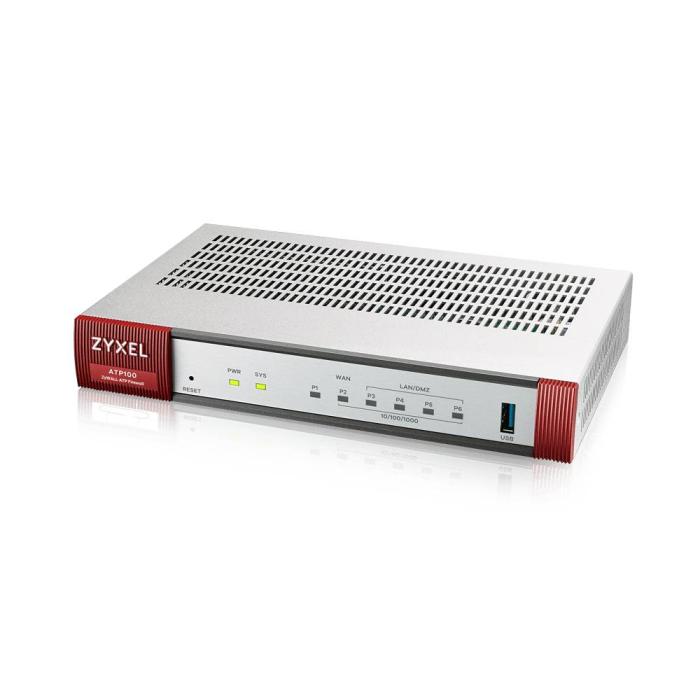

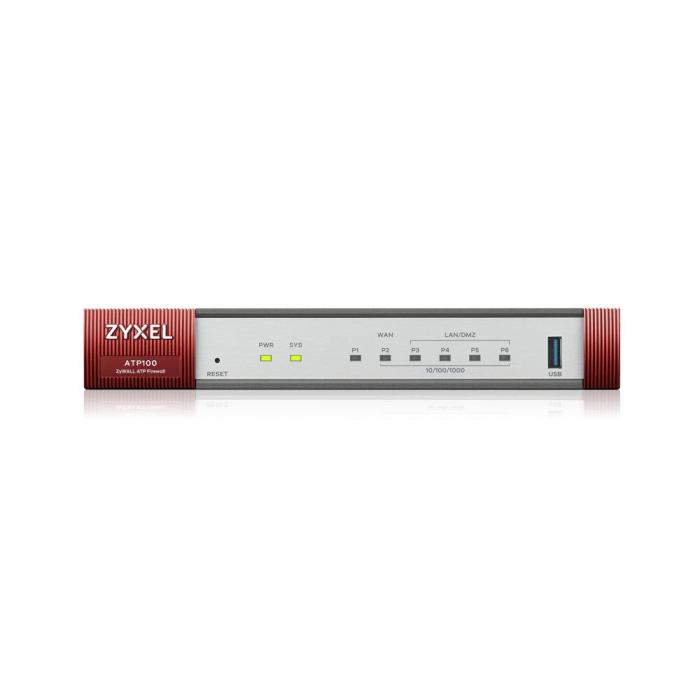

Zyxel ATP100 hardware firewall with 1 Gbit/s firewall throughput and a maximum transfer rate of 1 Gbit/s, designed to manage up to 300,000 concurrent connections and 10 simultaneous users. Includes HTTPS encryption, VPN support with IPSec, SSL, IKEv2 and L2TP/IPSec protocols, plus 40 VPN tunnels and 0.3 Gbit/s VPN throughput. Incorporates a stateful firewall with content filtering, 8 VLANs and IPSec and SSL/TLS security algorithms, with a heat dissipation of 42.65 BTU/h and a mean time between failures of 989,810.8 hours. This unit offers an IPSec VPN transfer speed of 40 Gbit/s and capacity for 1,000 maximum SPI connections.
Specifications
Data transmission
- IPSec VPN throughput: 40 Gbit/s
- SSL performance: 10 transactions/sec
- Maximum connections (SPI): 1000
- HTTPS encryption: Yes
Performance
- Heat dissipation: 42.65 BTU/h
- Concurrent connections: 300000
- Concurrent users: 10 user(s)
- Mean time between failures (MTBF): 989810.8 h
Network
- VPN tunnels quantity: 40
- Number of VLANs: 8
- Active TCP connections (max): 300000
Security
- Security algorithms: IPSec, SSL/TLS
- Stateful Packet Inspection (SPI): Yes
- Content filtering: 1
- VPN support: IKEv2, IPSec, SSL, L2TP/IPSec

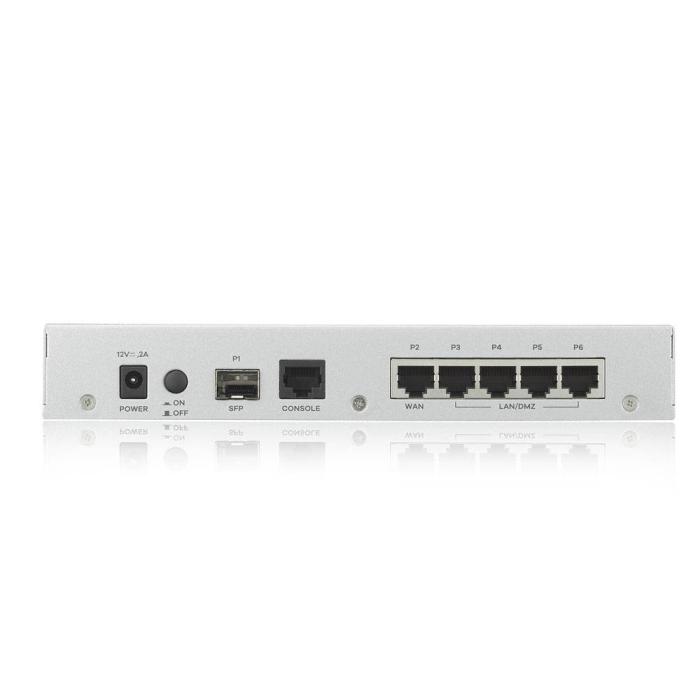

Ports & interfaces
- Connectivity technology: Wired
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- Ethernet LAN (RJ-45) ports: 4
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Console port: RJ-45
- Number of console ports: 1
- WAN connection: Ethernet (RJ-45)
- Ethernet DMZ ports quantity: 1
- SFP module slots quantity: 1
Design
- Built-in fan: Yes
Power
- Input current: 2 A
- Power consumption (typical): 12.5 W
- Power consumption (max): 12.5 W
Certificates
- Certification: FCC Part 15 (Class B), CE (Class B), RCM (Class B), BSMI, LVD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Dimensions (WxDxH): 216 x 143 x 33 mm
- Weight: 850 g
Packaging data
- Package width: 284 mm
- Package height: 190 mm
- Package depth: 100 mm
- Package weight: 1.4 kg
Packaging content
- Cables included: LAN (RJ-45), RS-232
Other features
- Maximum data transfer rate: 1000 Mbit/s
- Firewall throughput: 1000 Mbit/s
- VPN throughput: 300 Mbit/s
Logistics data
- Harmonized System (HS) code: 85176990
