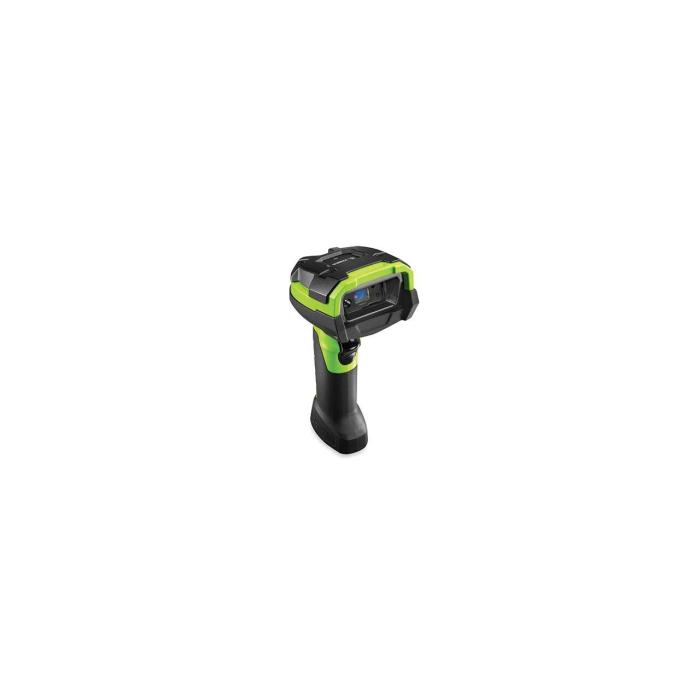

Zebra DS3678-ER Handheld bar code reader 1D/2D Laser Black,Green

Not avaliable

Zebra DS3678-ER, Handheld bar code reader, 1D/2D, Laser, Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C., Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR..., 655 nm.   More info

Brand: ZEBRA
SKU: 78134 PRC: 145713 EAN: 5711783221296 PN: DS3678-ER2F003VZWW

Description

Zebra DS3678-ER, Handheld bar code reader, 1D/2D, Laser, Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C., Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR..., 655 nm

Specifications

Scanning

  • Type: Handheld bar code reader
  • Optical sensor resolution: 1280 pixels
  • Scanner type: 1D/2D
  • Sensor type: Laser
  • Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C.
  • 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
  • Wavelength: 655 nm
  • Tilt reading angle: -65 - 65°
  • Pitch reading angle: -65 - 65°
  • Yaw reading angle: -45 - 45°

Ports & interfaces

  • Connectivity technology: Wired & Wireless
  • Standard interfaces: RS-232,USB,Keyboard wedge
  • Wireless range: 100 m
  • Bluetooth version: 4.0 LE
  • Ethernet LAN: Yes

Performance

  • Programming function: Yes

Design

  • International Protection (IP) code: IP67
  • Protection features: Dust resistant,Shock resistant,Water resistant
  • LED indicators: Yes
  • Product colour: Black,Green
  • RoHS compliance: Yes

Power

  • Power source type: Battery
  • Battery technology: Lithium-Ion (Li-Ion)
  • Battery capacity: 3100 mAh
  • Number of reads per charge: 70000

Weight & dimensions

  • Width: 142 mm
  • Depth: 76 mm
  • Height: 185 mm
  • Weight: 436 g

Operational conditions

  • Operating temperature (T-T): -20 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%
