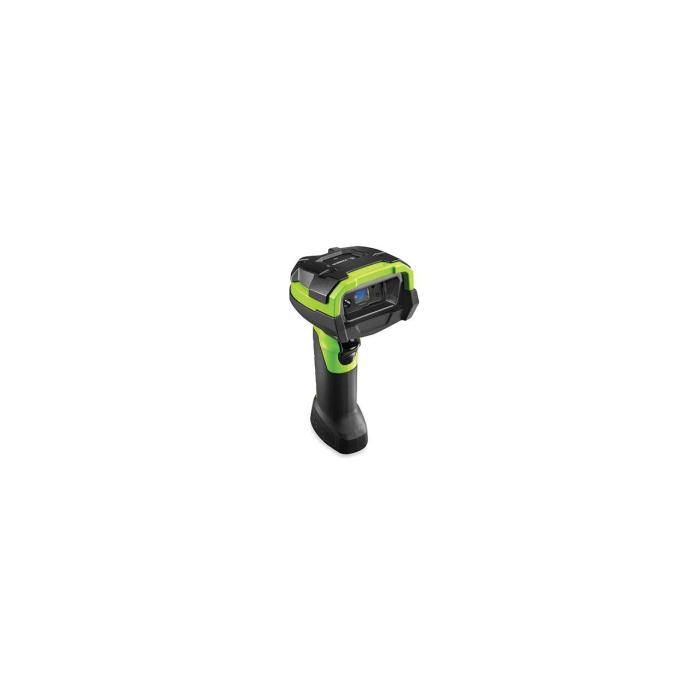

Zebra DS3678-ER Handheld 1D/2D Black,Green
Zebra DS3678-ER, 1D/2D, Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C., Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR..., 1280 pixels, 660 nm, -65 - 65°.
More infoBrand: ZEBRA
1,315.00 €Stock available: 0 units.
Unavailable
SKU:
78381
PRC:
149589
EAN:
5711783783947
PN:
DS3678-ER3U4602FVW
Description
CRADLE USB CURR CABLE IN
Specifications
Scanning
- Optical sensor resolution: 1280 pixels
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C.
- Wavelength: 660 nm
- Tilt reading angle: -65 - 65°
- Pitch reading angle: -65 - 65°
- Yaw reading angle: -45 - 45°
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Interface: RS-232 + USB + Keyboard Wedge
- Wireless range: 100 m
- Bluetooth version: 4.0 LE
Design
- Type: Handheld bar code reader
- International Protection (IP) code: IP67
- Protection features: Dust resistant, Shock resistant, Water resistant
- LED indicators: Yes
- Colour of product: Black, Green
- RoHS compliance: Yes
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 3100 mAh
- Number of reads per charge: 70000
Technical details
- Programming function: Yes
Operational conditions
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): -20 - 50 °C
Weight & dimensions
- Width: 142 mm
- Depth: 76 mm
- Height: 185 mm
- Weight: 436 g
