Name: Viewsonic TD2230 computer monitor 54.6 cm (21.5'') 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Brand: VIEWSONIC
Availability: OutOfStock

Viewsonic TD2230 computer monitor 54.6 cm (21.5'') 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black

Not avaliable

Viewsonic TD2230 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black. More info

Amount

Brand: VIEWSONIC

SKU: 81786 PRC: 243626 EAN: 766907842418 PN: TD2230

Description

Specifications

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Display technology: LCD
Panel type: ADS
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 19
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Maximum refresh rate: 76 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.24825 x 0.24825 mm
Horizontal scan range: 24 - 82 kHz
Vertical scan range: 50 - 76 Hz
Display diagonal (metric): 54.6 cm

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android

Multimedia

Number of speakers: 2
RMS rated power: 6 W
Built-in speaker(s): Yes
Built-in microphone: No
Built-in camera: No

Design

Product colour: Black

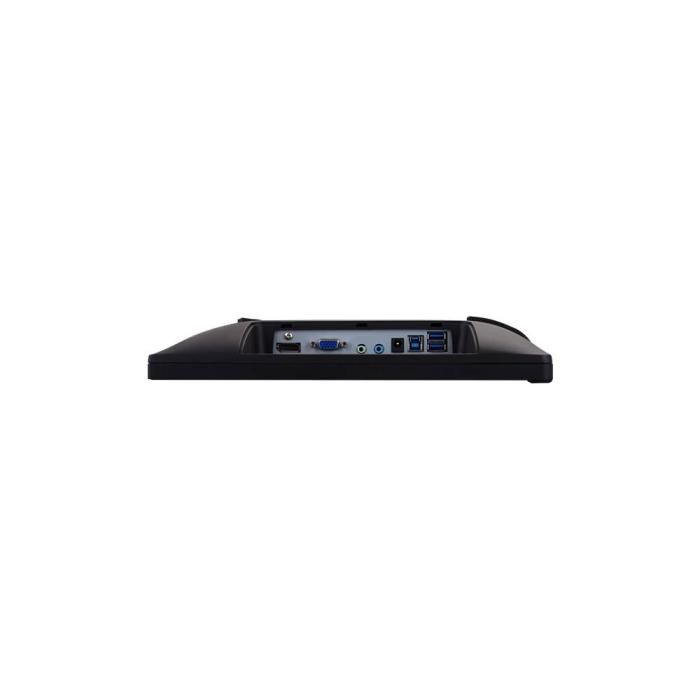

Ports & interfaces

Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Audio input: 1
Audio output: 1

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
Tilt adjustment: Yes
Tilt angle range: 20 - 70°
On Screen Display (OSD): Yes
Number of OSD languages: 12

Power

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 25 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power supply type: AC
European Product Registry for Energy Labelling (EPREL) code: 389769

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width (with stand): 490 mm
Depth (with stand): 47 mm
Height (with stand): 299 mm
Weight (with stand): 3.58 kg

Packaging data

Package width: 550 mm
Package depth: 114 mm
Package height: 371 mm
Package weight: 4.7 kg

Packaging content

Cables included: AC, Audio (3.5mm), HDMI, USB

Sustainability

Sustainability certificates: EPEAT Bronze, ErP

Other features

Display viewable area (HxV): 476.64 x 268.11 mm
Compliance certificates: CE, REACH, RoHS
Certification: cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, U
