Description

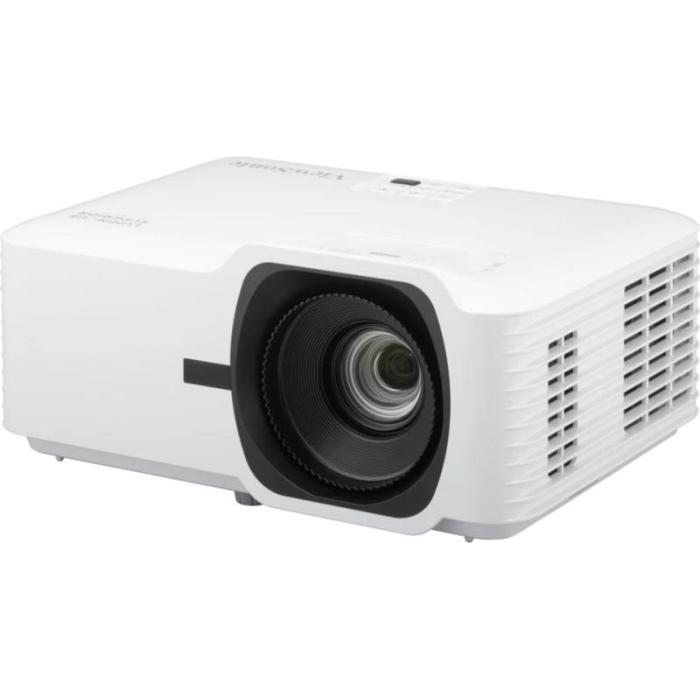

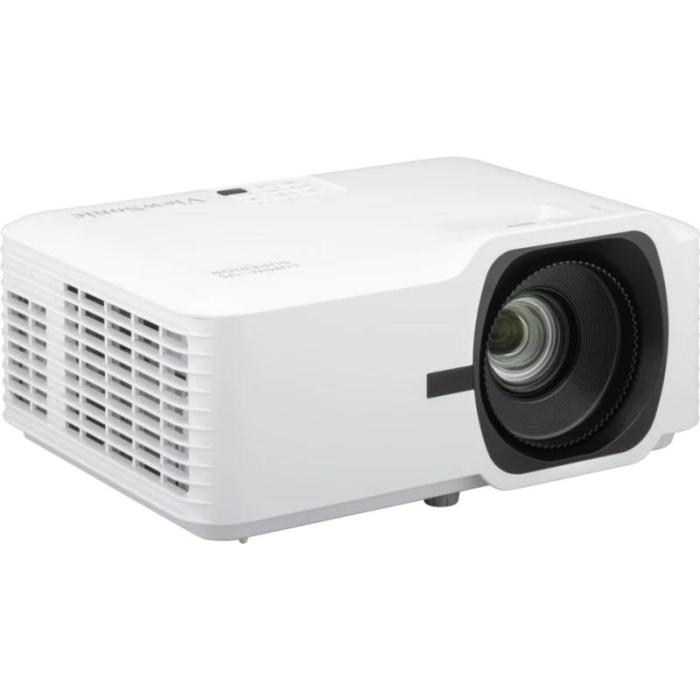

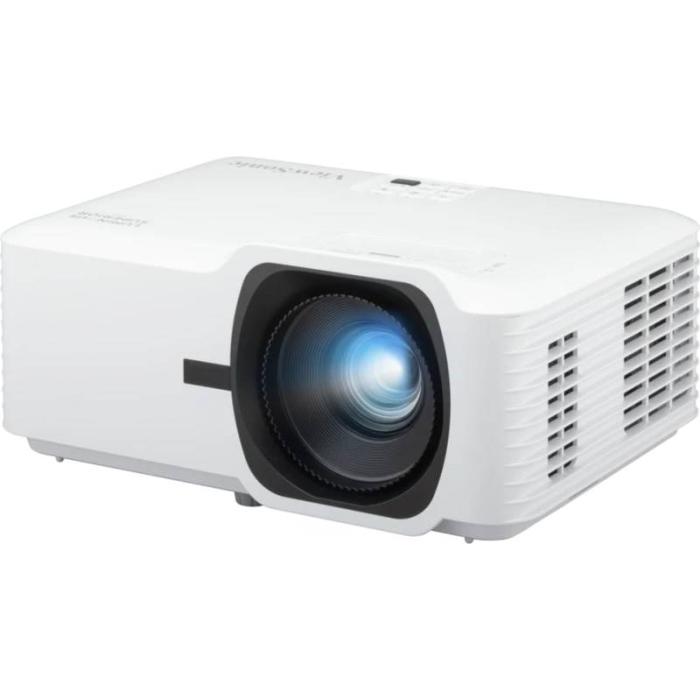

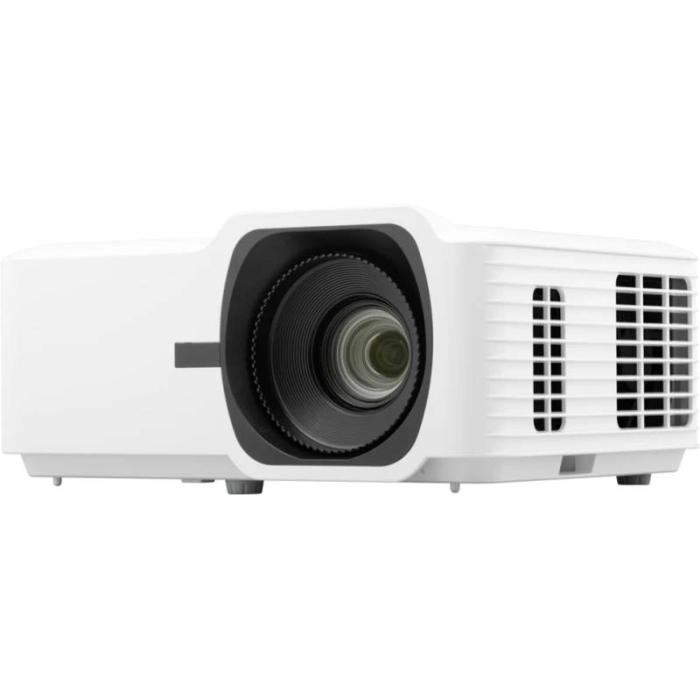

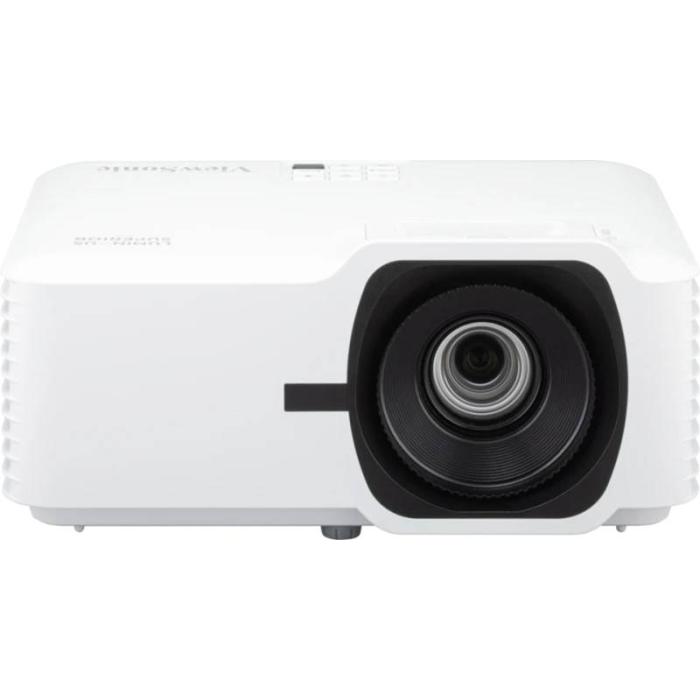

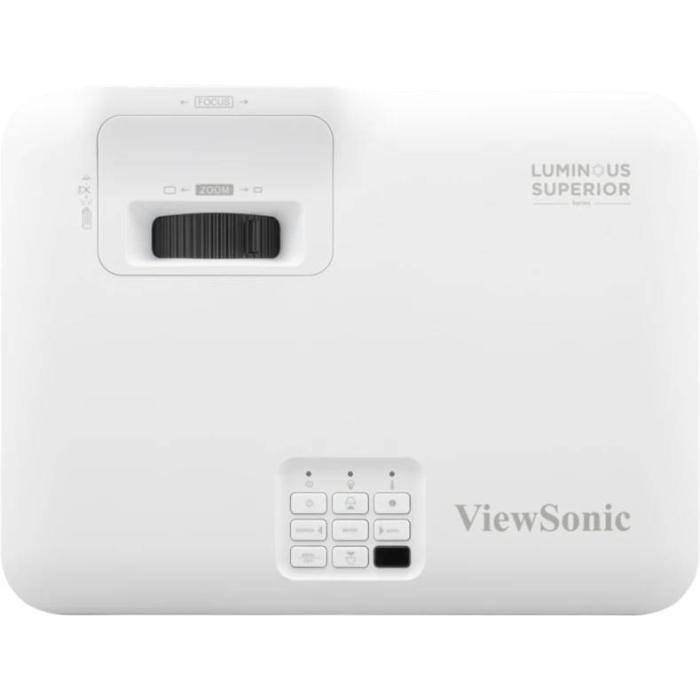

Viewsonic LSD500HD standard throw projector with 5500 ANSI lumens, 1080p (1920x1080) resolution and 2 full-size HDMI 2.0 ports. Its light source is laser type, with a typical contrast ratio of 3000000:1 and a noise level of 32 dB that drops to 27 dB in eco mode. It supports screens from 762 to 7620 mm (30 to 300") and projection distances from 0,75 to 9,76 m, with a focal length range of 16,9 to 21,61 mm. It is compatible with video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2160p, and with graphics resolutions of 1280 x 720, 640 x 480, 1920 x 1080 and 3840 x 2160. It includes an RJ-45 Ethernet LAN port, an RS-232 port and HDCP, with an estimated RMS power of 15 W.
Specifications
Projector
- Screen size compatibility: 762 - 7620 mm (30 - 300")
- Projection distance: 0.75 - 9.76 m
- Projector brightness: 5500 ANSI lumens
- Projector native resolution: 1080p (1920x1080)
- Contrast ratio (typical): 3000000:1
- Number of colours: 1.07 billion colours
- Horizontal scan range: 15 - 135 kHz
- Vertical scan range: 24 - 120 Hz
- Keystone correction, horizontal: -30 - 30°
- Keystone correction, vertical: -30 - 30°
Light source
- Light source type: Laser
- Service life of light source: 20000 h
- Service life of light source (economic mode): 30000 h

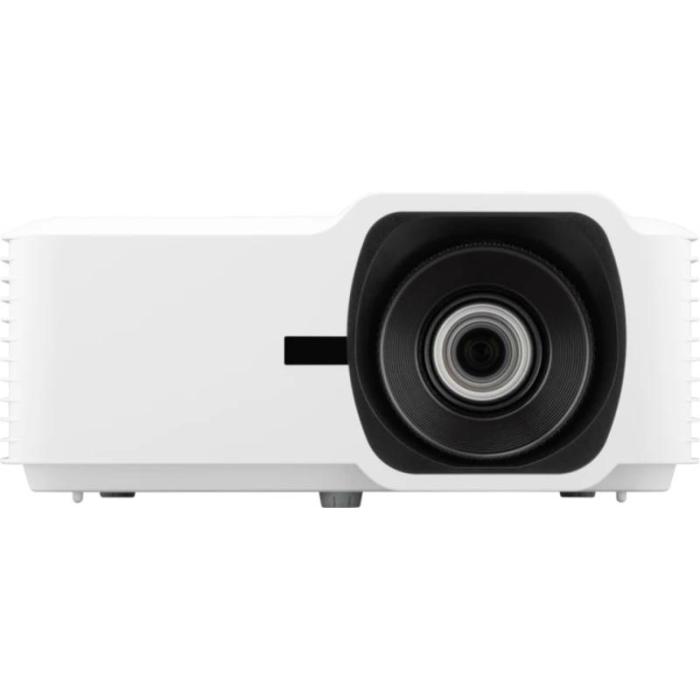

Lens system
- Focal length range: 16.9 - 21.61 mm
- Aperture range (F-F): 2.43 - 2.78
- Digital zoom: 2x
- Optical zoom: 1.3x
- Throw ratio: 1.13 - 1.47
- Offset: 132%
Video
- Full HD: Yes
- Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 3840 x 2160
- Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

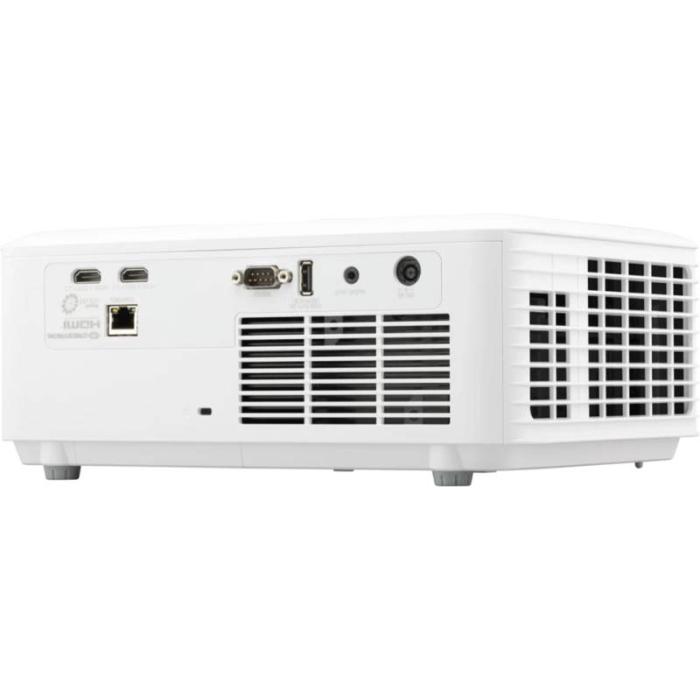

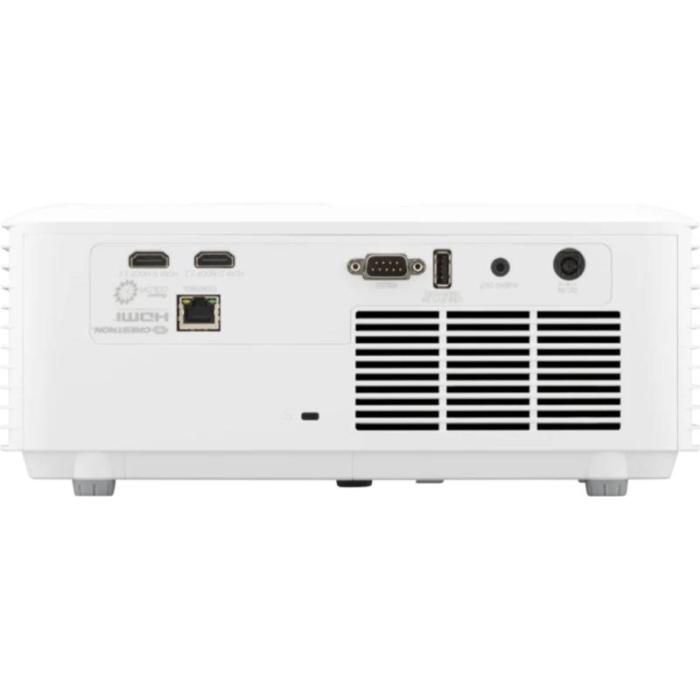

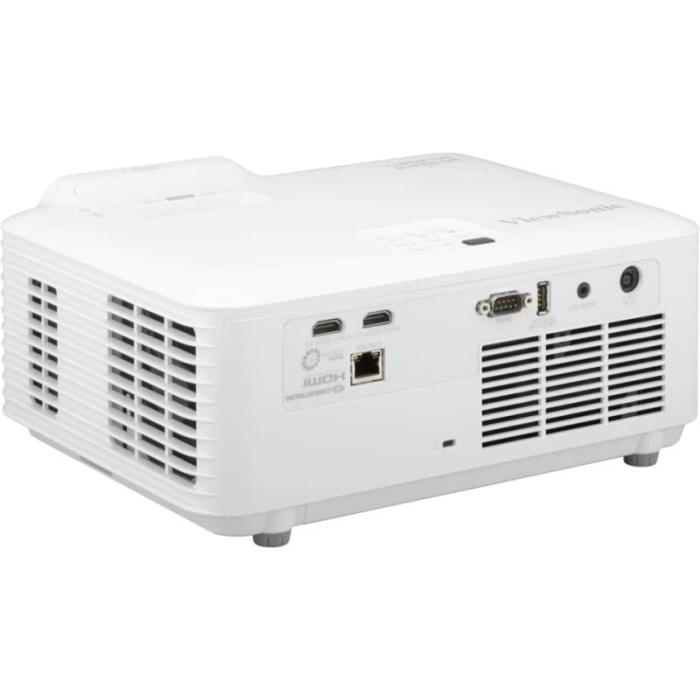

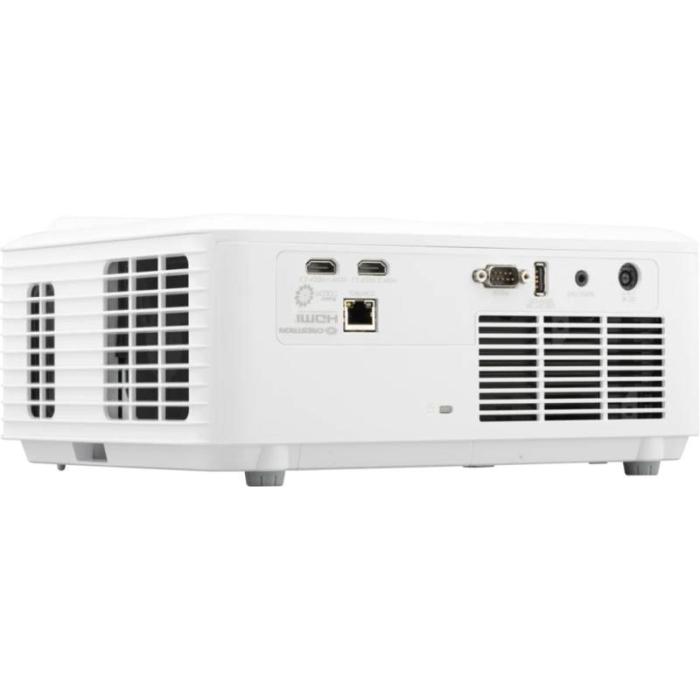

Ports & interfaces
- HDMI connector type: Full-size
- HDMI version: 2.0
- Headphone outputs: 1
- Serial interface type: RJ-45, RS-232
- HDMI ports quantity: 2
- USB connector type: USB Type-A
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
Features
- Noise level (economic mode): 27 dB
- HDCP: Yes
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: English, Simplified Chinese, Traditional Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portug
- Noise level: 32 dB
Multimedia
- Built-in speaker(s): Yes
- RMS rated power: 15 W
Design
- Market positioning: Home cinema
- Product type: Standard throw projector
- Product colour: White
Power
- Power source: DC
- Power consumption (typical): 165 W
- Power consumption (standby): 0.5 W
- AC input voltage: 100 - 240 V
- AC adapter output voltage: 19.5 V
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 286 mm
- Depth: 216 mm
- Height: 129 mm
- Weight: 2.9 kg
- Package width: 400 mm
- Package depth: 280 mm
- Package height: 155 mm
- Package weight: 4.6 kg
Packaging content

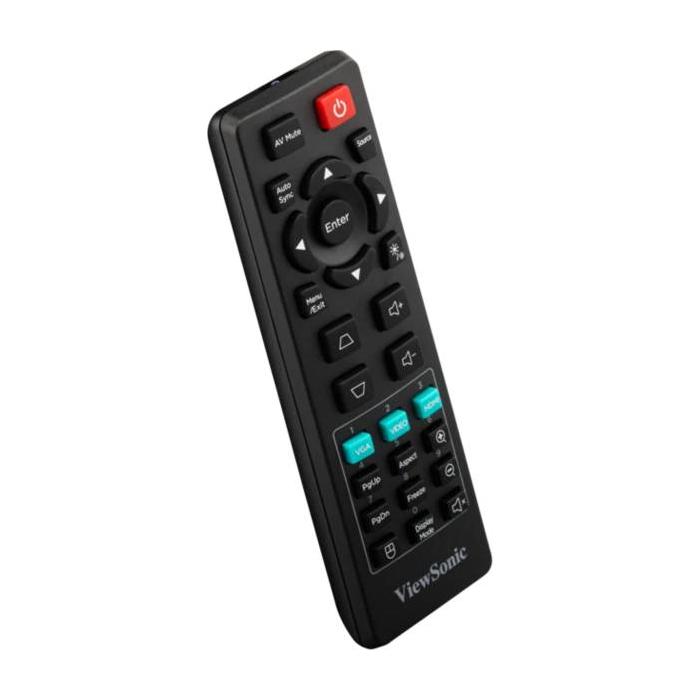

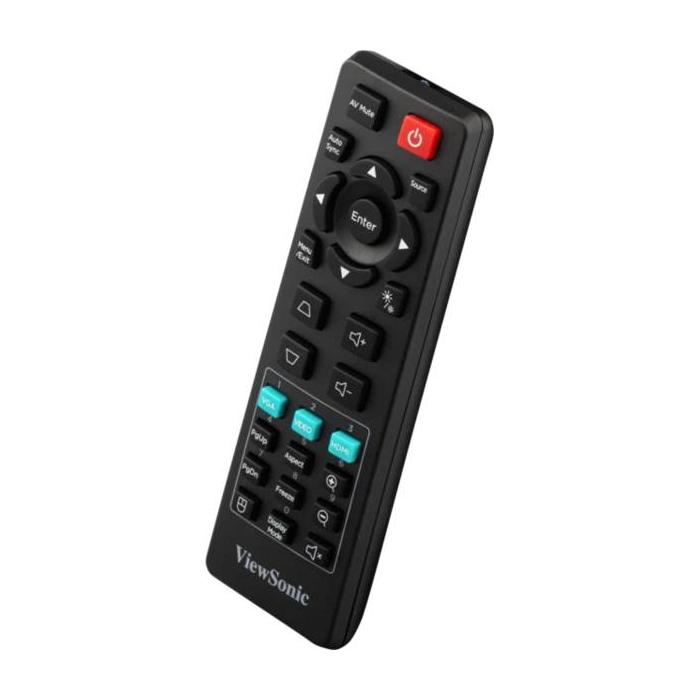

- Remote control included: Yes
- Cables included: AC
- Manual: Yes
- Warranty card: Yes
- Packaging content: Power Cord: 1 Remote Control: 1 QSG: Yes Warranty Card: Yes (CN Only)
Other features
- RS-232 ports: 1
