Description

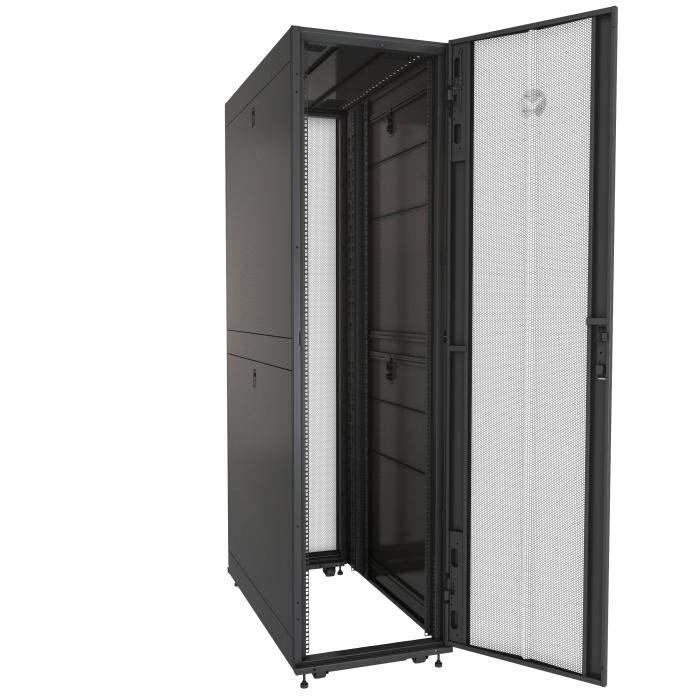

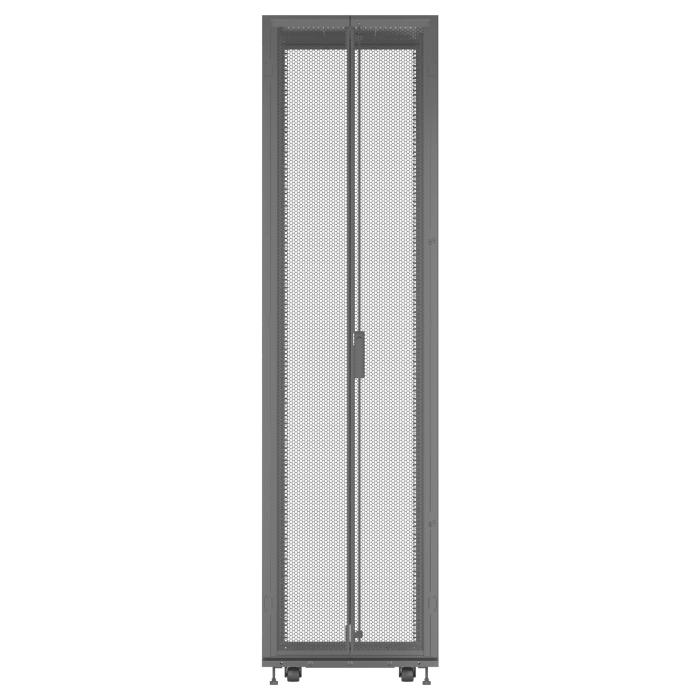

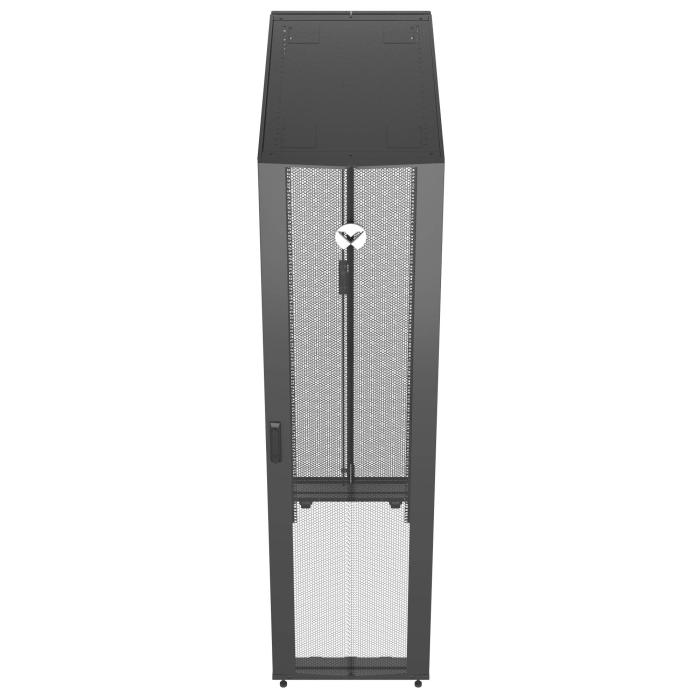

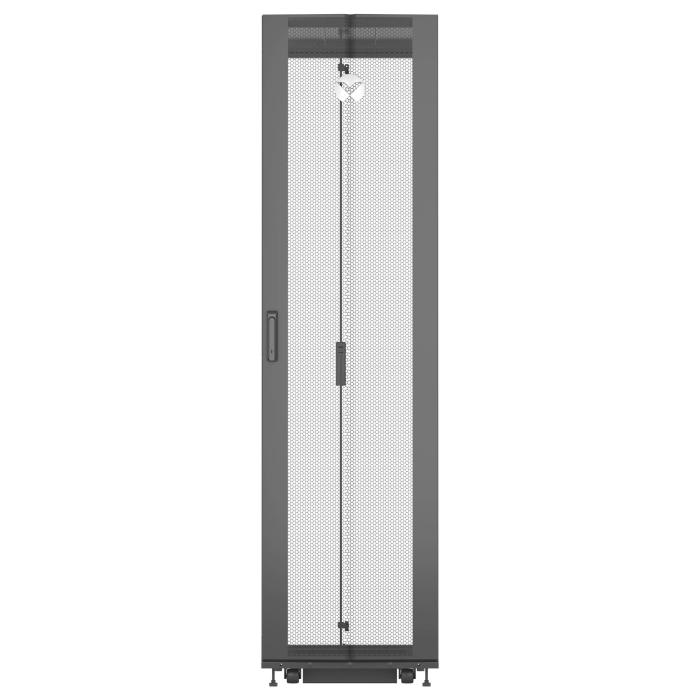

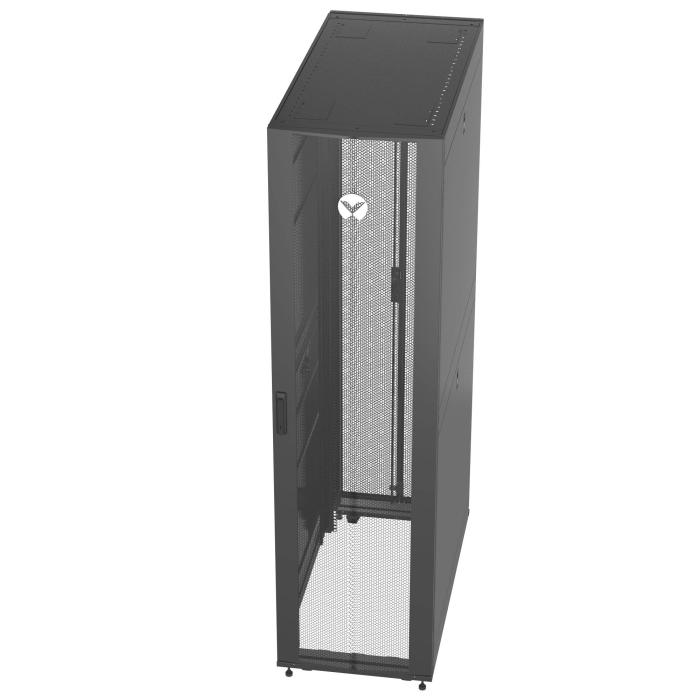

The Vertiv VR3307 rack cabinet is a freestanding black and transparent frame with a capacity of 48U, designed to house equipment in installations that demand order and security. Its dimensions are 600 x 2265 x 1200 mm (width x height x depth) and it reaches a weight of 166 kg. The metal structure incorporates a front door, rear door and side panels made of steel, all of which are removable to facilitate access during assembly and maintenance. The front door and side panels have a lock, which helps to protect the contents against tampering. It supports a maximum weight capacity of 1361 kg, while the maximum moving load capacity stands at 1022 kg. The adjustable feet allow the assembly to be levelled and have an adjustment of 5.4 cm. It is certified in accordance with EIA 310E, UL2416 and REACH, so it complies with the requirements applicable to this type of frame.
Specifications
Features
- Rack capacity: 48U
- Type: Freestanding rack
- Maximum weight capacity: 1361 kg
- Maximum weight capacity (rolling): 1022 kg
- Product colour: Black, Transparent
- Material: Metal
- Back door construction: Steel
- Front door construction: Steel
- Side panel construction: Steel
- Removable back door: Yes
- Removable front door: Yes
- Removable side panels: Yes
- Side panels included: Yes
- Key lock: Yes
- Back door key lock: Yes
- Front door key lock: Yes
- Side panel key lock: Yes
- Adjustable feet: Yes
- Feet adjustment: 5.4 cm
- Cable management: Yes
- Mounting hole shape: Square
- Certification: EIA 310E, UL2416, REACH
Weight & dimensions
- Size (imperial): 48.3 cm (19")
- Width: 600 mm
- Depth: 1200 mm
- Height: 2265 mm
- Weight: 166 kg
Packaging data
- Nuts included: Yes
- Number of nuts: 50
- Screws included: Yes
- Number of screws: 50
- Mounting kit: Yes
- Mounting hardware included in set: 50 each M6 cage nuts and screws, Cage nut installation tool, edge protection for top panel cable entry, T30 extension driver and
- Package width: 724 mm
- Package depth: 1385 mm
- Package height: 2413 mm
- Package volume: 2419611 cm³
- Package weight: 203 kg
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85381000
