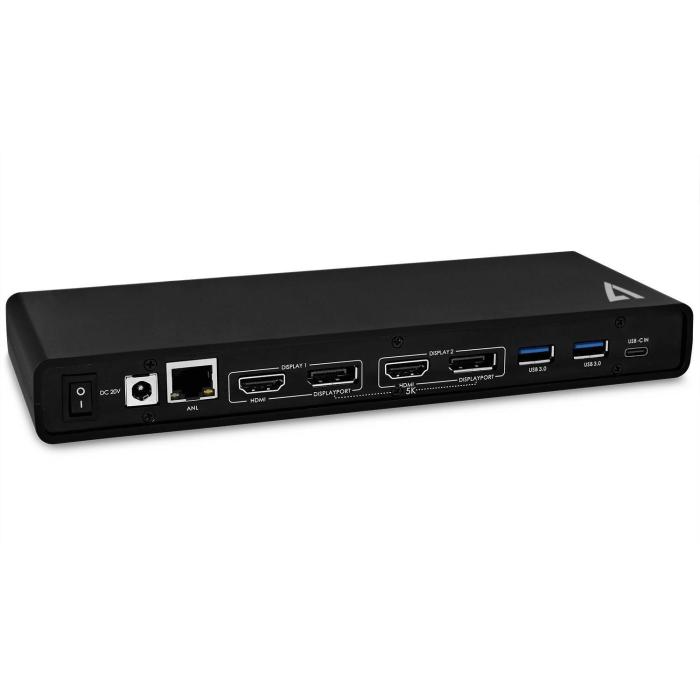

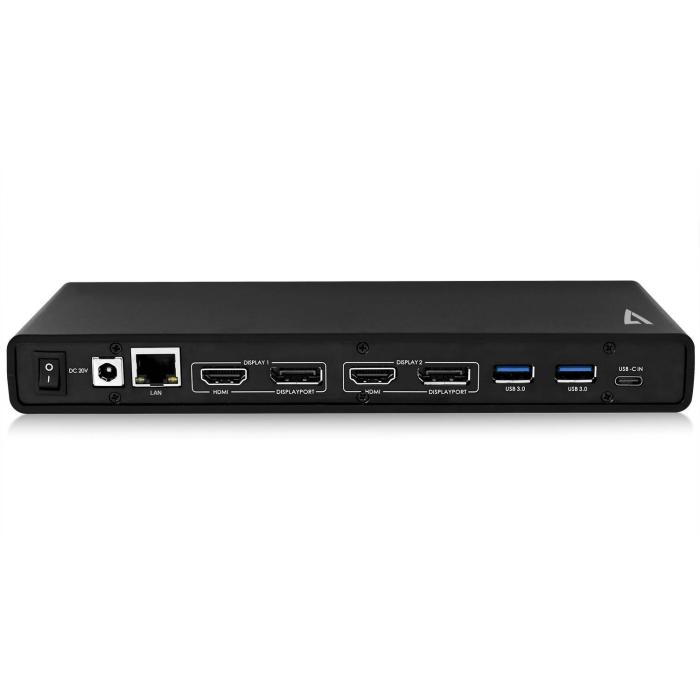

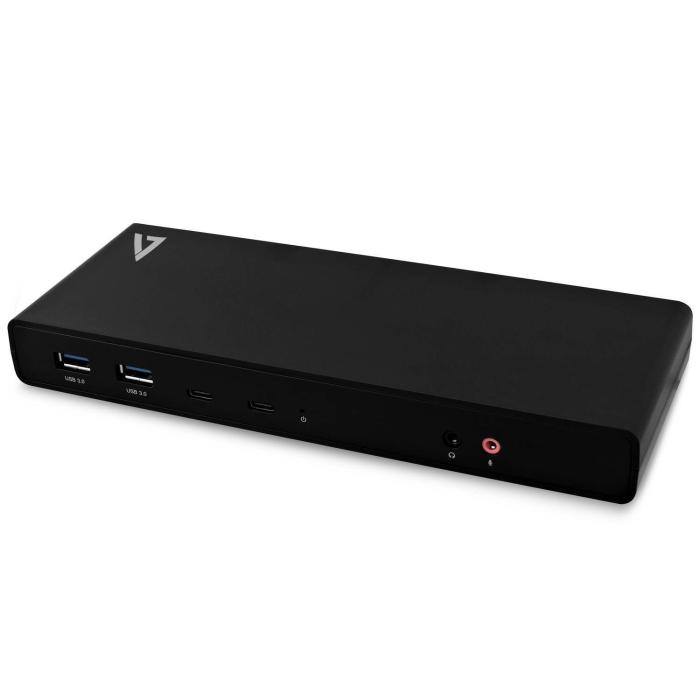

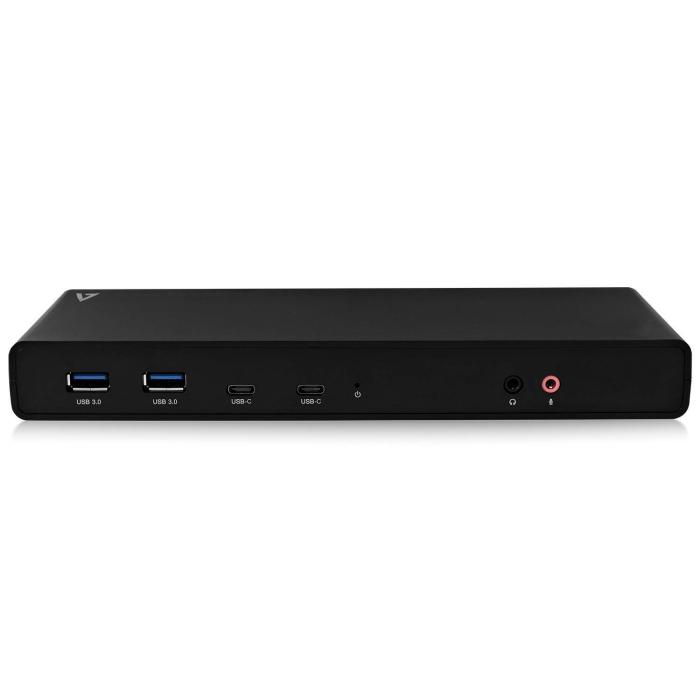

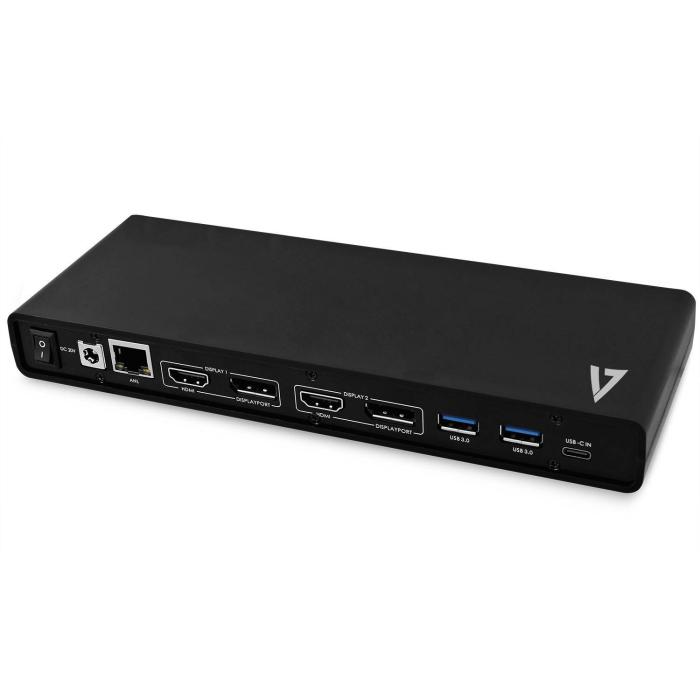

V7 Universal USB-C w/ Power Delivery, Dual Monitor 4K, HDMI Displayport, Displaylink Docking Station up to 65W

V7 Universal USB-C w/ Power Delivery, Dual Monitor 4K, HDMI Displayport, Displaylink Docking Station up to 65W

V7 Universal USB-C w/ Power Delivery, Dual Monitor 4K, HDMI Displayport, Displaylink Docking Station up to 65W — image 2 of 5

V7 Universal USB-C w/ Power Delivery, Dual Monitor 4K, HDMI Displayport, Displaylink Docking Station up to 65W — image 3 of 5

V7 Universal USB-C w/ Power Delivery, Dual Monitor 4K, HDMI Displayport, Displaylink Docking Station up to 65W

More info

Brand: V7

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 130192 PRC: 226731 EAN: 662919100822 PN: UCDDS-1E

Description

V7 universal USB-C docking station, in black, expands your laptop with a single cable connection. It features two HDMI ports and two DisplayPorts for dual monitor working at resolutions up to 4K, and reaches a maximum digital resolution of 5120 x 2880 pixels. It adds four USB Type-A 3.2 Gen 1 ports, four USB Type-A 3.2 Gen 2 and three USB Type-C 3.2 Gen 1, plus an RJ-45 Ethernet port with speeds of 10, 100 and 1000 Mbit/s. It has a DC power input, charging function of up to 60 W and a 3.5 mm headphone jack alongside a microphone input. The host interface is USB 3.2 Gen 1 Type-C and supports USB Type-A and Type-C connectors. Measuring 225 x 85 x 25 mm and weighing 362 g, it is a compact dock for your workstation.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 2
DisplayPorts quantity: 2
Microphone in: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
USB connector type: USB Type-A, USB Type-C
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100, 1000 Mbit/s

Performance

Card reader integrated: No
Optical drive included: No
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 5120 x 2880 pixels
Number of displays supported: 2
Product colour: Black
On/off switch: Yes
Charging function: Yes
Country of origin: China
Brand compatibility: Any brand
Certification: CE, FCC

Audio

Built-in speaker(s): No

Power

Power source type: AC
Output voltage: 19 V
Output current: 3.42 A
Power consumption (max): 65 W

Software

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Li
