Description

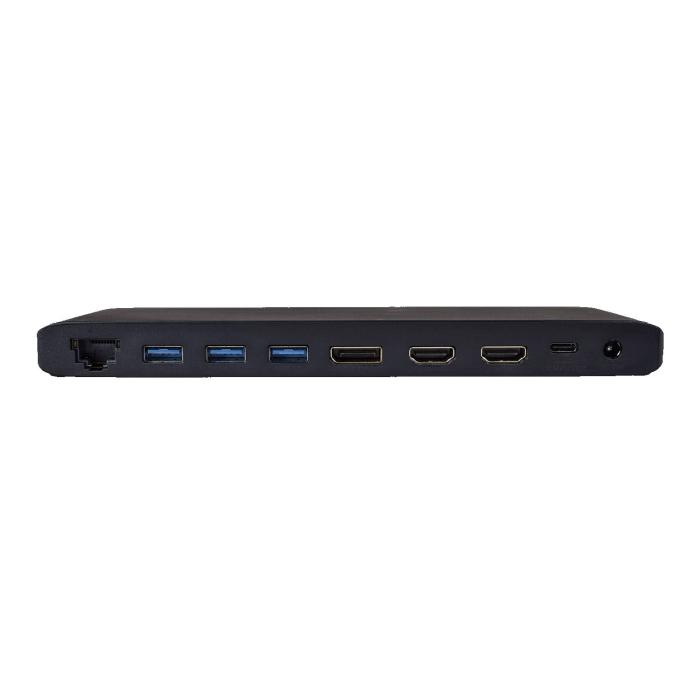

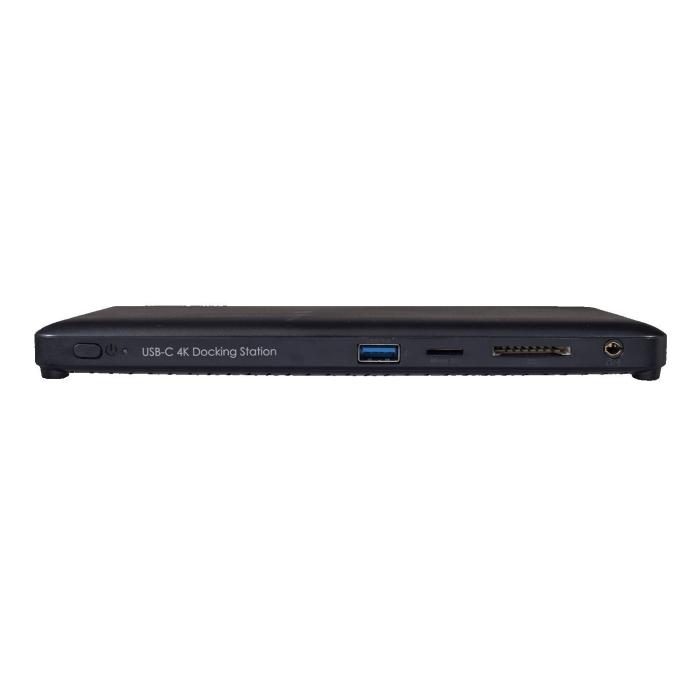

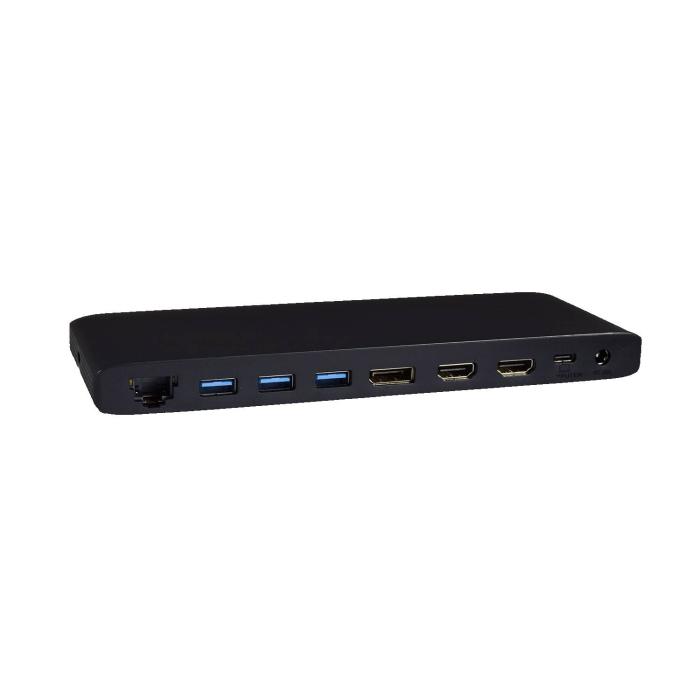

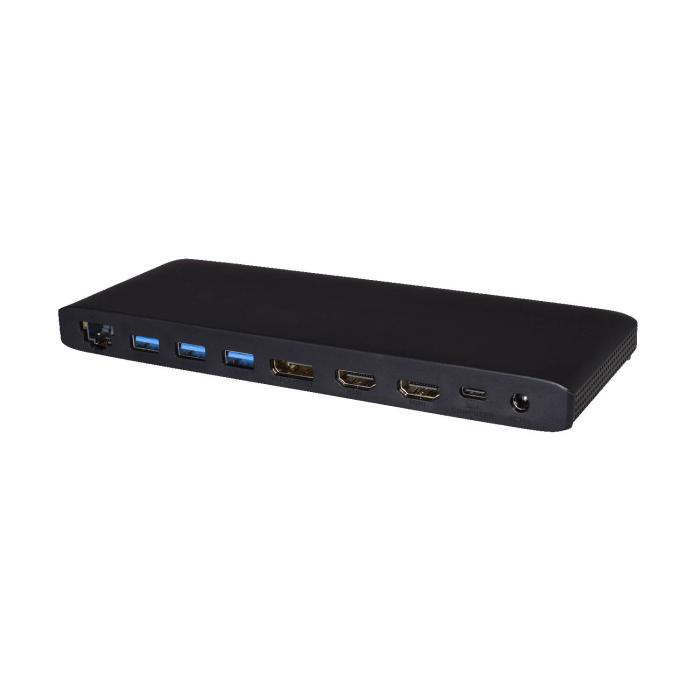

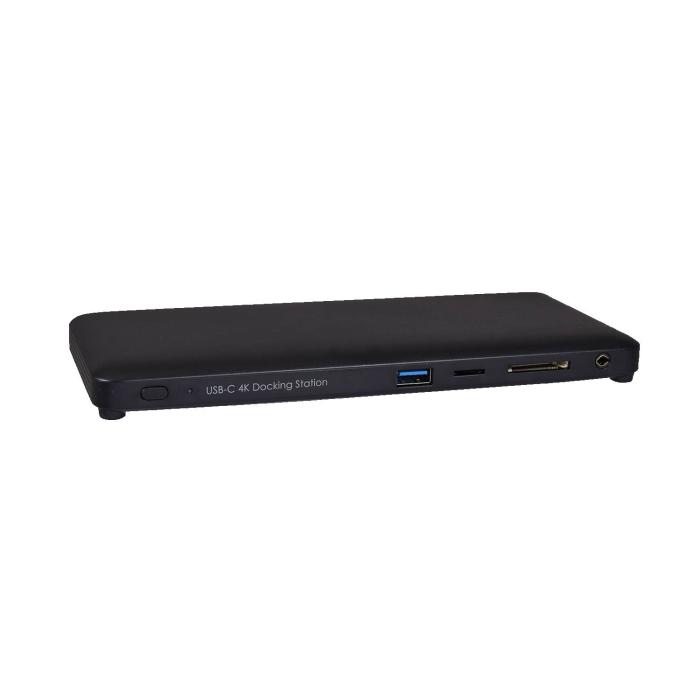

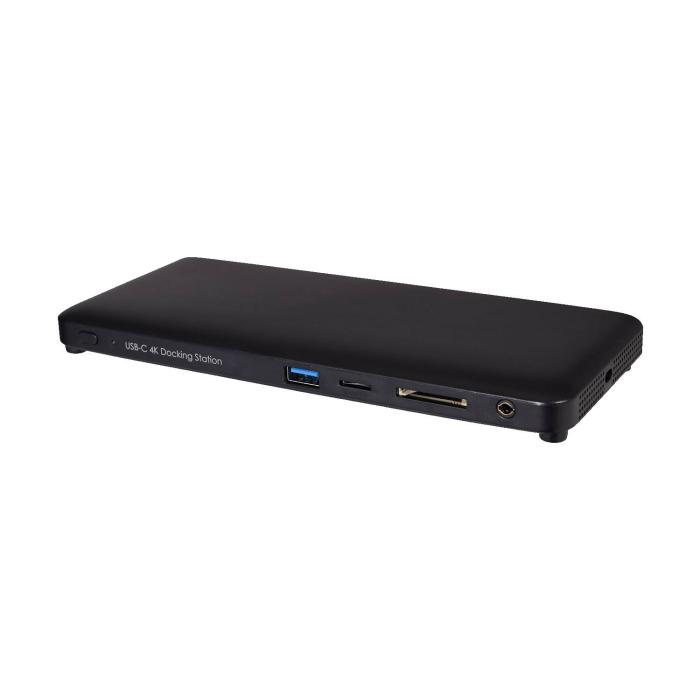

Turn your laptop into a complete workstation with the V7 DOCKUCPT3D dock, a black port replicator that connects via USB 3.2 Gen 2 (3.1 Gen 2) Type-C cable. It adds two HDMI ports and one DisplayPort to expand your screen, plus four USB Type-A 3.2 Gen 1 ports and one USB Type-C 3.2 Gen 2 port. It includes an RJ-45 Ethernet port with speeds of 10, 100 and 1000 Mbit/s for a stable network connection. It features a 3.5 mm microphone input and headphone output, with a combined headphone and microphone output, and supports power supply with USB Power Delivery of up to 100 W. It also includes a card reader and a security cable slot, with LED indicators to show the operating status. Its dimensions are 83 x 19 x 207 mm (width x height x depth) and its weight is 320 g, a compact format to carry with you.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 2
- DisplayPorts quantity: 1
- Microphone in: Yes
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Performance
- Country of origin: China
- Certification: CE,FCC,RoHS,UKCA
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), SD
- HD type: 4K Ultra HD

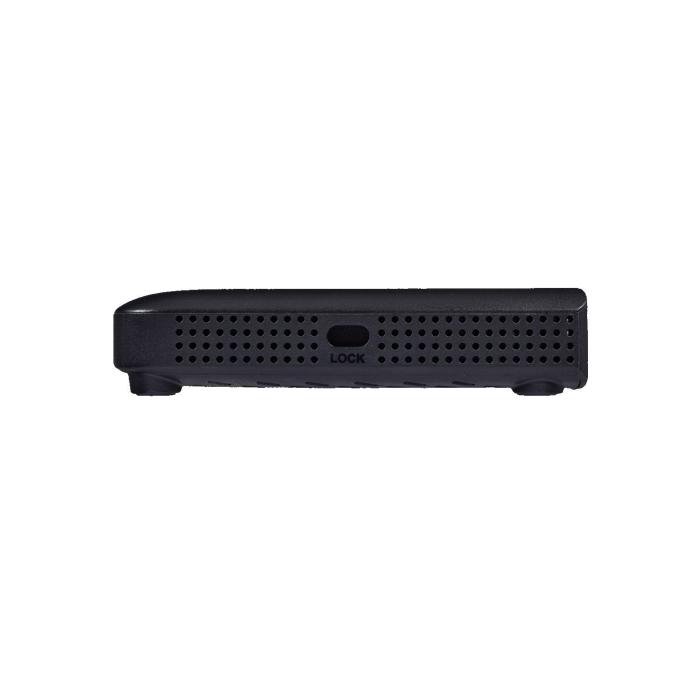

- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Black
- On/off switch: Yes
- LED indicators: Yes
- Housing material: Acrylonitrile butadiene styrene (ABS)
Power
- Power source type: DC
- AC input voltage: 100 - 240 V
- Output voltage: 20 V
- Output current: 6.5 A
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -10 - 70 °C
Weight & dimensions
- Width: 83 mm
- Depth: 207 mm
- Height: 19 mm
- Weight: 320 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 190 mm
- Package depth: 245 mm
- Package height: 655 mm
- Package weight: 1.37 kg
Packaging content
- Cables included: DC, USB Type-C
- AC adapter included: Yes
- Quick start guide: Yes
- Manual: Yes
