Description

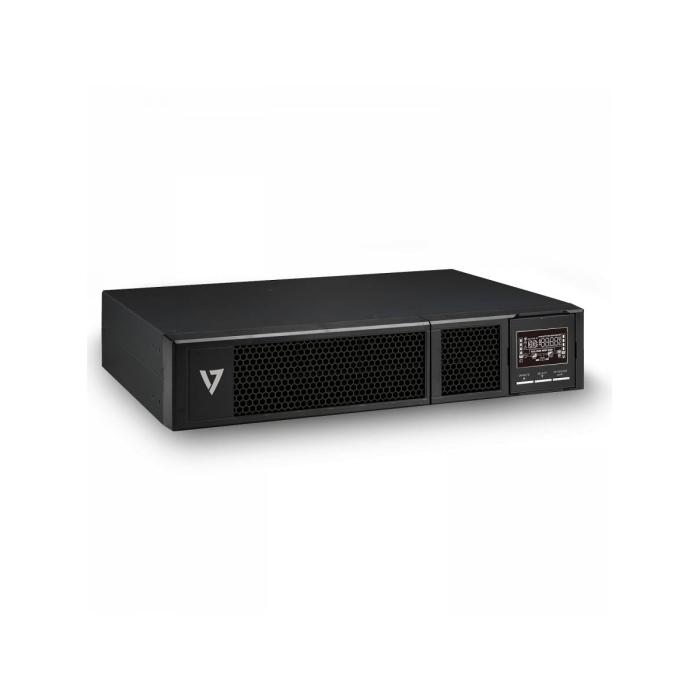

V7 UPS 1.5 kVA and 1500 W output power, with sine waveform, 2U rack mount and LCD display, in black. It incorporates eight BS 1363 AC outlets, one C13 coupler connector, one RS-232 port and one RJ-11 modem port. The battery is Sealed Lead Acid (VRLA) technology, with 12 V voltage and 9 Ah capacity, and offers a typical backup time of 2.9 minutes at full load and 10 minutes at half load. It operates with an input voltage of between 200 V and 240 V and an input frequency of 40/70 Hz. Its dimensions are 410 x 88 x 438 mm (width x height x depth) and it has a weight of 15.5 kg. It includes a 3.05 m cable.
Specifications
Features
- Output power capacity: 1.5 kVA
- Output power: 1500 W
- Waveform: Sine
- Input operation voltage (min): 200 V
- Input operation voltage (max): 240 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Surge energy rating: 720 J
- Response time: 0 ms
- Efficiency (On-line mode): 88%
- Efficiency (ECO mode): 96%
- ECO mode: Yes
- Noise level: 50 dB
- Surge protection: Yes
- Surge protection features: Modem
- Power protection features: Overload
- Audible alarm(s): Yes
- Audible alarm modes: Low battery alarm, Overload alarm
Ports & interfaces

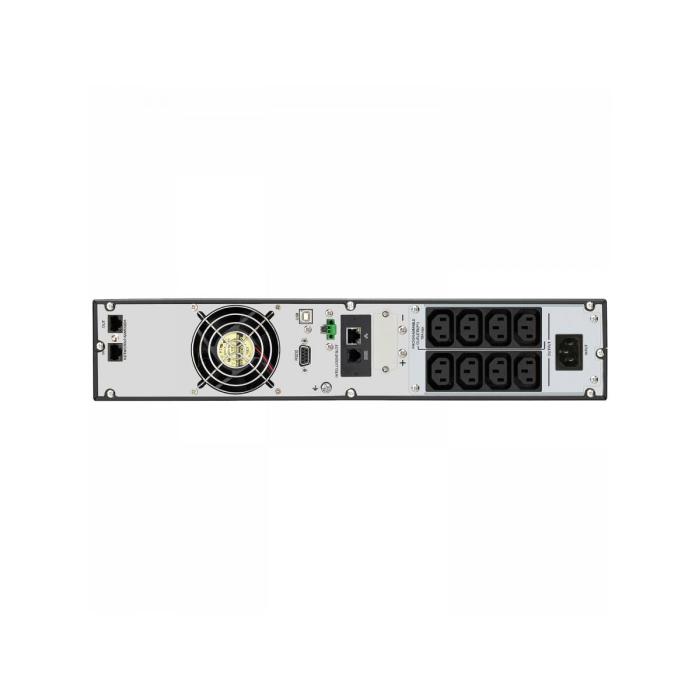

- AC outlet types: BS 1363
- Power plug: C13 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- RS-232 ports: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 2
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Typical backup time at full load: 2.9 min
- Typical backup time at half load: 10 min
- Battery recharge time: 3 h
Design
- Form factor: Compact
- Rack capacity: 2U
- Cable length: 3.05 m
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE, RoHS, REACH
Packaging content
- Cables included: Power load cable, USB cable
- Manual: Yes
Weight & dimensions
- Width: 410 mm
- Depth: 438 mm
- Height: 88 mm
- Weight: 15.5 kg
Packaging data
- Package width: 600 mm
- Package depth: 500 mm
- Package height: 240 mm
- Package weight: 17 kg
Logistics data
- Harmonized System (HS) code: 85078000
- Country of origin: China
