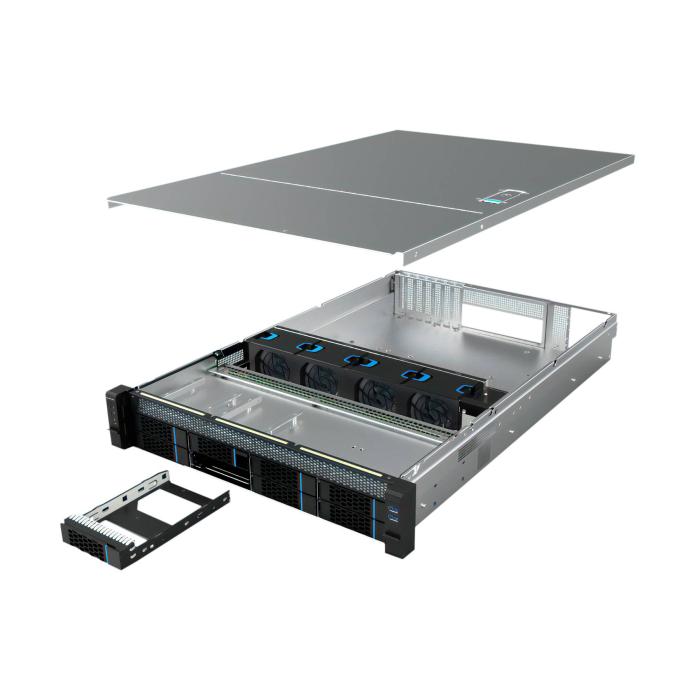

UNYKAch Server Rack Hot Swap 2U HSW4208 G3 12 GB Backplane

Not avaliable

More info

Brand: UNYKACH
SKU: 113970 PRC: 588368 EAN: 6974560221011 PN: UK80.20.08G3

Description

Server Rack Hot Swap 2U HSW4208 G3 12 GB Backplane

Specifications

Design

  • Material: SGCC
  • Form factor: Rack
  • Type: Server
  • Product colour: Black, Silver
  • Supported motherboard form factors: ATX, CEB, EEB
  • Number of 3.5" bays: 8
  • Number of internal 3.5" bays: 8

Power supply

  • Power supply included: No
  • Power supply location: Rear
  • Redundant power supply (RPS) support: Yes

Ports & interfaces

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Storage

  • Supported HDD sizes: 2.5, 3.5"
  • HDD/SSD combo cage: Yes
  • Number of HDDs supported: 8
  • Hot-swap: Yes

Technical details

  • Compliance certificates: CE, RoHS

Weight & dimensions

  • Width: 435 mm
  • Depth: 685 mm
  • Height: 87.8 mm
  • Weight: 9.7 kg
  • Material thickness: 1.2 mm

Packaging data

  • Package width: 577 mm
  • Package depth: 836 mm
  • Package height: 204 mm
  • Package weight: 13.5 kg

Other features

  • Supported HDD interfaces: Mini SAS
  • Peripheral (Molex) power connectors (4-pin): 4
