Description

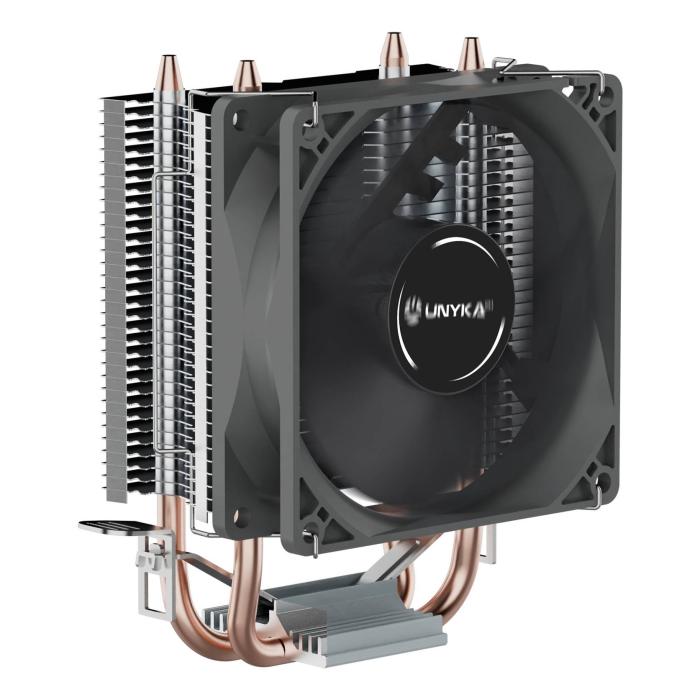

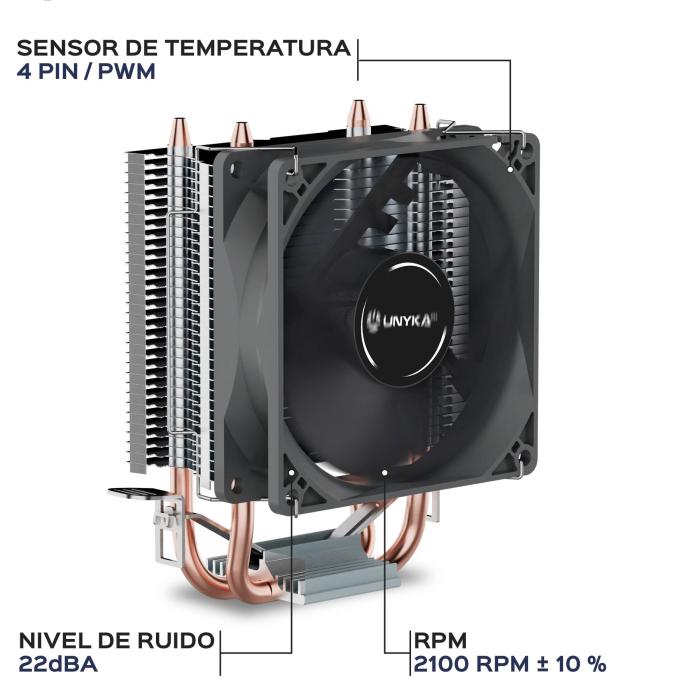

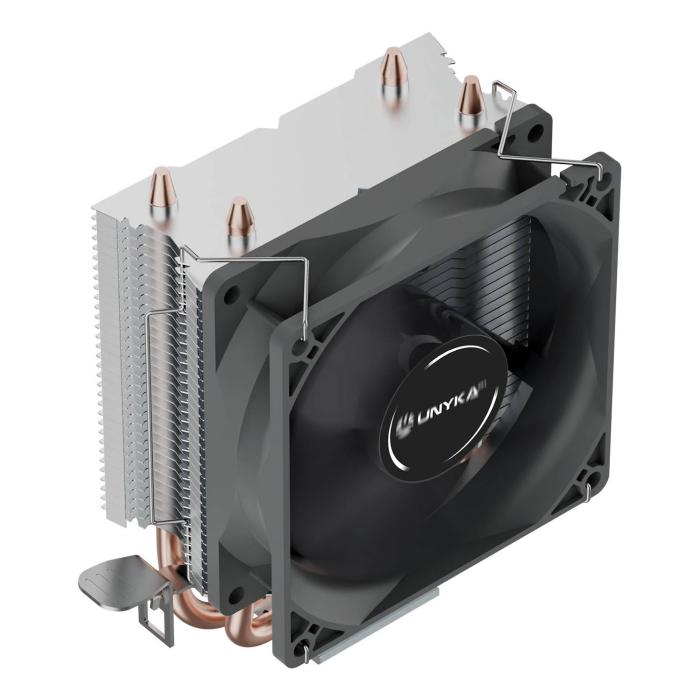

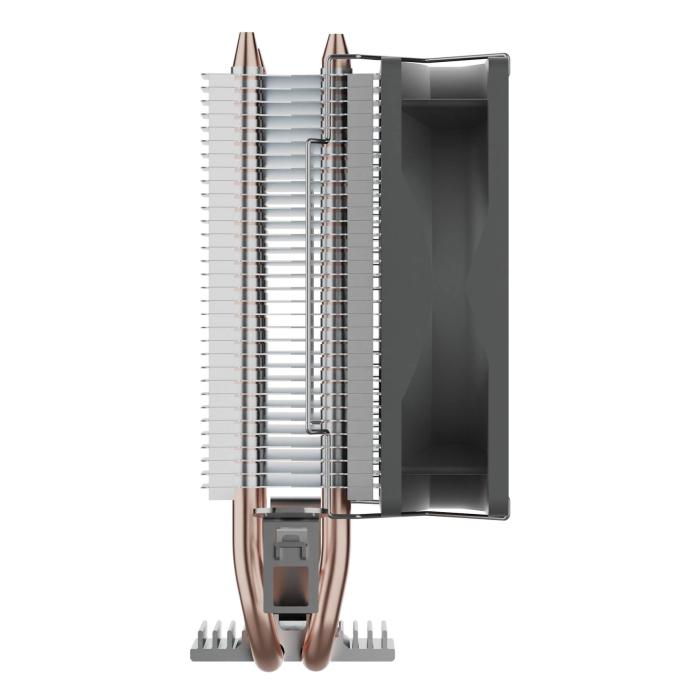

The UNYKAch UNYCOOL H20 CPU cooler is an air cooler for processors, in grey and weighing 210 g, with dimensions of 128 x 75 x 112 mm. It incorporates a 9 cm fan with seven blades, capable of reaching 2100 RPM and generating a maximum airflow of 58 cfm, with a noise level not exceeding 22 dB. It is compatible with pulse-width modulation, so that the speed adjusts according to the processor load, and its 4-pin connector facilitates this regulation. The bearing system is hydraulic, with a mean time between failures of 30000 h, and it starts up at a voltage of 12 V. In terms of design, the fins are aluminium and the radiator is copper, supported by two heat pipes that distribute the temperature throughout the unit.
Specifications
Performance
- Suitable location: Processor
- Type: Air cooler
- Fan diameter: 9 cm

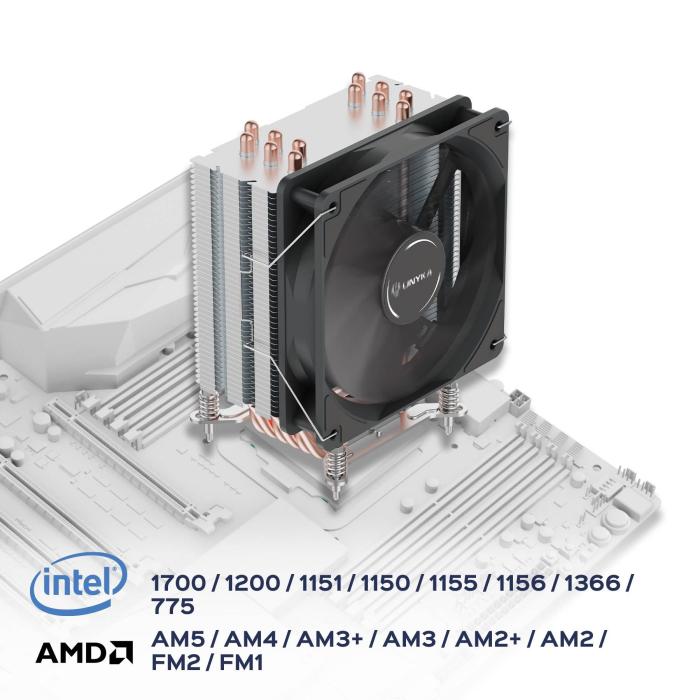

- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B)
- Maximum airflow: 58 cfm
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Hydraulic
- Fan noise level (max): 22 dB
- Quantity per pack: 1 pc(s)
- Fan speed (max): 2100 RPM
- Mean time between failures (MTBF): 30000 h
Design
- Product colour: Grey
- Radiator material: Copper
- Number of fans: 1 fan(s)
- Number of fan blades: 7
- Fins material: Aluminium
- Number of heat pipes: 2
- Fan connector: 4-pin
Power
- Starting voltage: 12 V

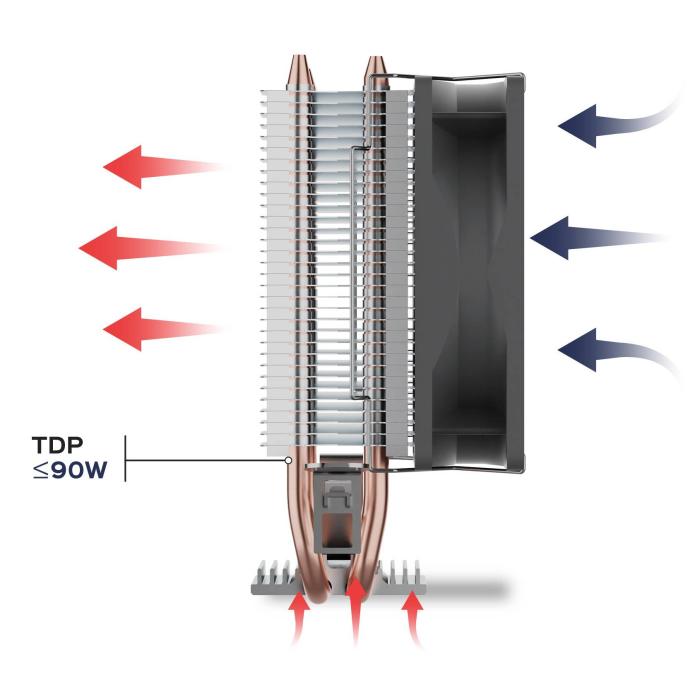

- Thermal Design Power (TDP): 90 W
Weight & dimensions
- Width: 128 mm
- Radiator width: 12.8 cm
- Radiator depth: 11.2 cm
- Radiator height: 4.2 cm
- Depth: 112 mm
- Height: 75 mm
- Weight: 210 g
- Fan dimensions (W x D x H): 90 x 90 x 25 mm
- Package width: 120 mm
- Package depth: 142 mm
- Package height: 76 mm
- Package weight: 260 g
Packaging content
- Mounting kit: Yes
- Screws included: Yes
- Thermal pad included: Yes
Logistics data
- Master (outer) case width: 460 mm
- Master (outer) case length: 625 mm
- Master (outer) case height: 375 mm
- Master (outer) case gross weight: 16 kg
- Products per master (outer) case: 60 pc(s)
