Description

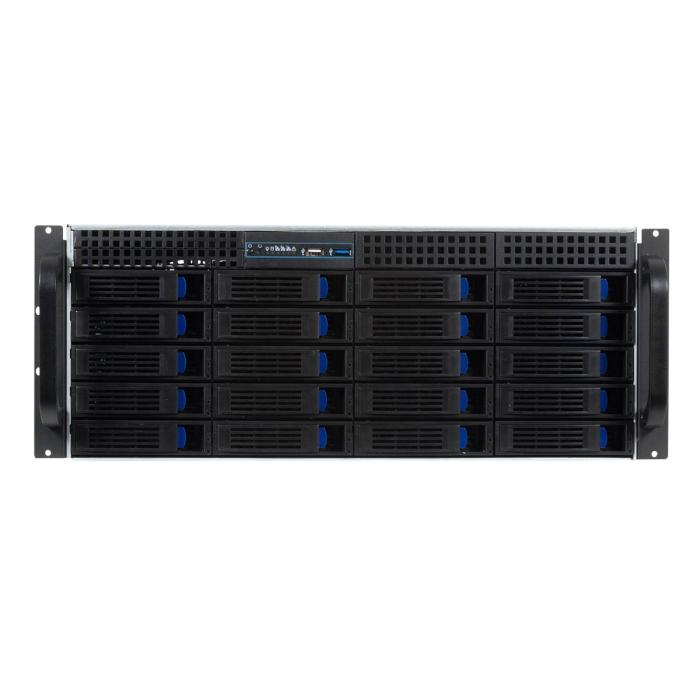

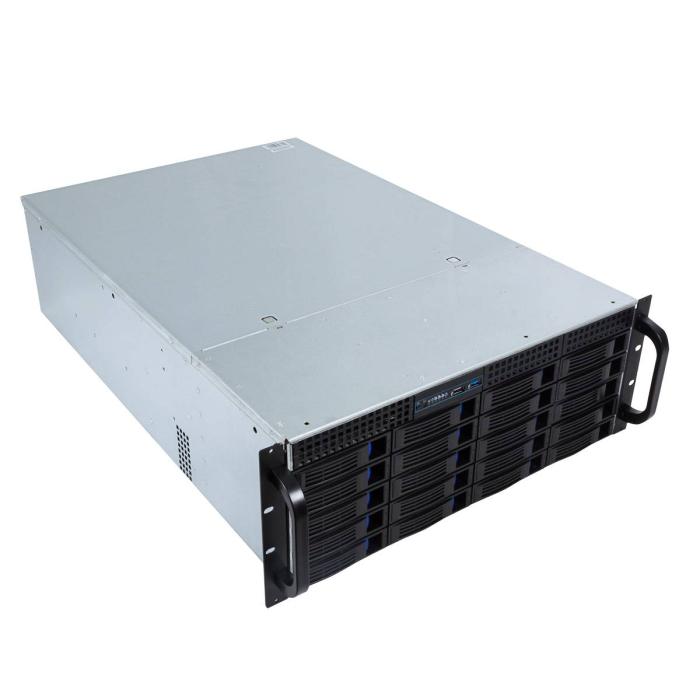

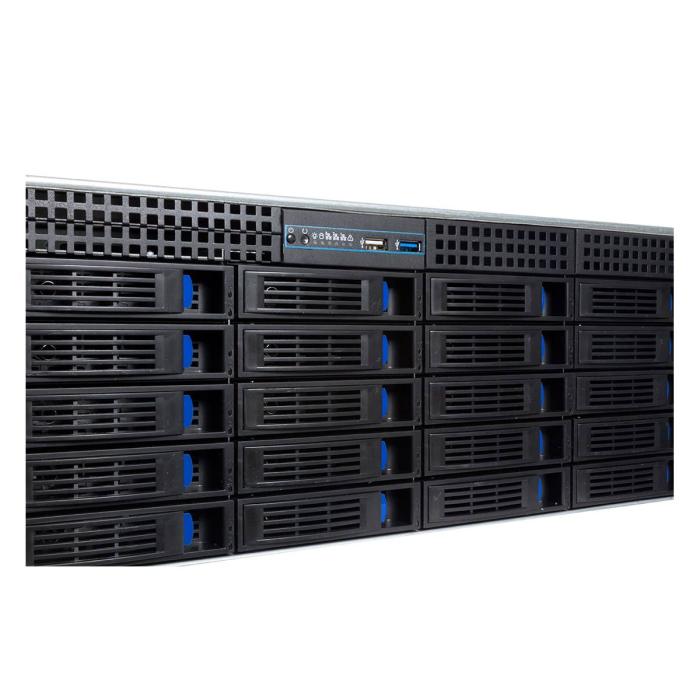

UNYKAch 4U HSW4520 server rack shelf in black and silver, measuring 430 x 176 x 650 mm (width x height x depth) and weighing 21 kg. It is designed for rack mounting with 4U capacity and supports ATX, CEB, EEB and micro ATX motherboards, as well as ATX format power supplies. It incorporates twenty internal 3.5-inch bays, allowing a good number of storage drives to be housed in the same chassis. Its construction in SGCC material gives it resistance for continuous use as a server. It features a USB 3.2 Gen 1 Type-A port and a USB 2.0 port on the front panel to connect external devices conveniently. It has CE and ROSH certification, and offers support for redundant power supply (RPS), a useful option when continuity of operation is sought.
Specifications
Design
- Material: SGCC
- Form factor: Rack
- Type: Server
- Product colour: Black, Silver
- Supported motherboard form factors: ATX, CEB, EEB, micro ATX
- Number of 3.5" bays: 20
- Number of internal 3.5" bays: 20
- Rack mounting: Yes
- Rack capacity: 4U
- Side window: No
- Certification: CE / ROSH
Power supply
- Power supply included: No
- Redundant power supply (RPS) support: Yes
- Supported power supply form factors: ATX
Ports & interfaces
- Audio input: No
- Audio output: No
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Storage
- Supported HDD sizes: 3.5"
- Number of HDDs supported: 20

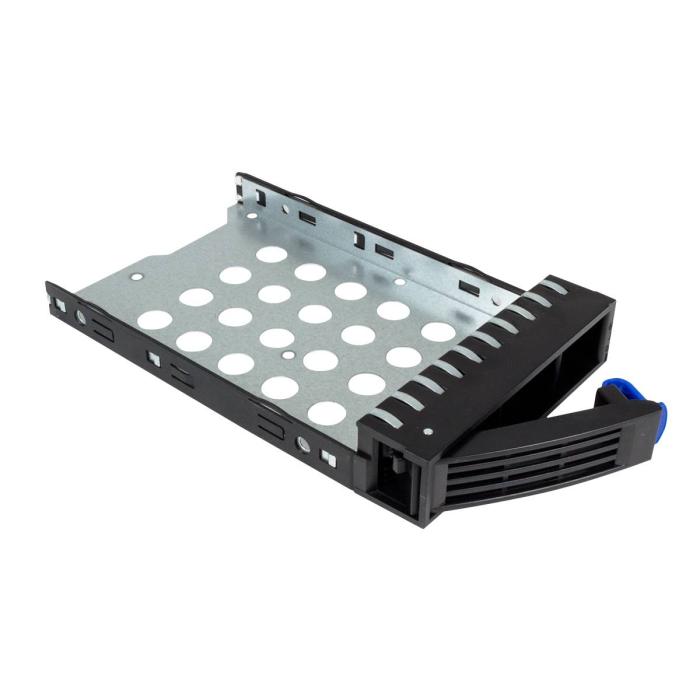

- Hot-swap: Yes
Weight & dimensions
- Width: 430 mm
- Depth: 650 mm
- Height: 176 mm
- Weight: 21 kg
- Material thickness: 1.2 mm
Packaging data
- Package width: 555 mm
- Package depth: 830 mm
- Package height: 240 mm
- Package volume: 110500 cm³
- Package weight: 21 kg
Other features
- Screws included: Yes
- I/O ports: 5x Mini SAS

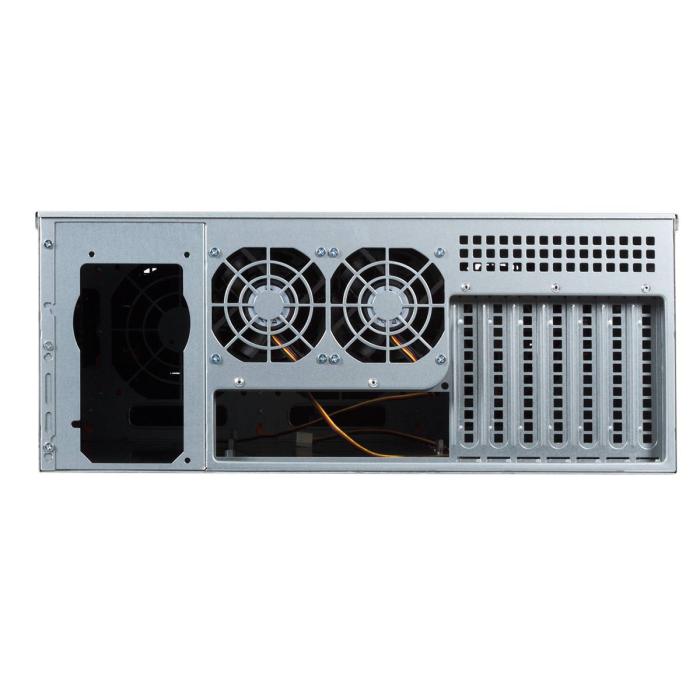

- Ventilation fan(s): 12025 mm x 3 Double ball / 8025 mm x 2 Double ball
- Peripheral (Molex) power connectors (4-pin): 5
