Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Product 7 image

Product 8 image

Product 9 image

Product 10 image

Product 11 image

Product 12 image

Product 13 image

Product 14 image

Product 15 image

Product 16 image

Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)

Not avaliable

Amount

Brand: UBIQUITI NETWORKS

SKU: 118407 PRC: 598372 EAN: 810084698754 PN: u7-iw

Description

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 4300 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4300 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Coverage area: 115 m²
Number of users: 200 user(s)
MIMO: Yes
MIMO type: Multi User MIMO
Spatial streams: 4
Fit AP mode features: Hotspot 2.0
Fast roaming: Yes
VLAN support: Yes
Wireless meshing: Yes
Band steering: Yes
Maximum Tx power (2.4 GHz): 23 dBmW
Maximum Tx power (5 GHz): 24 dBmW

Security

Security algorithms: PPSK

Management features

Access point management: Wi-Fi schedule

Ports & interfaces

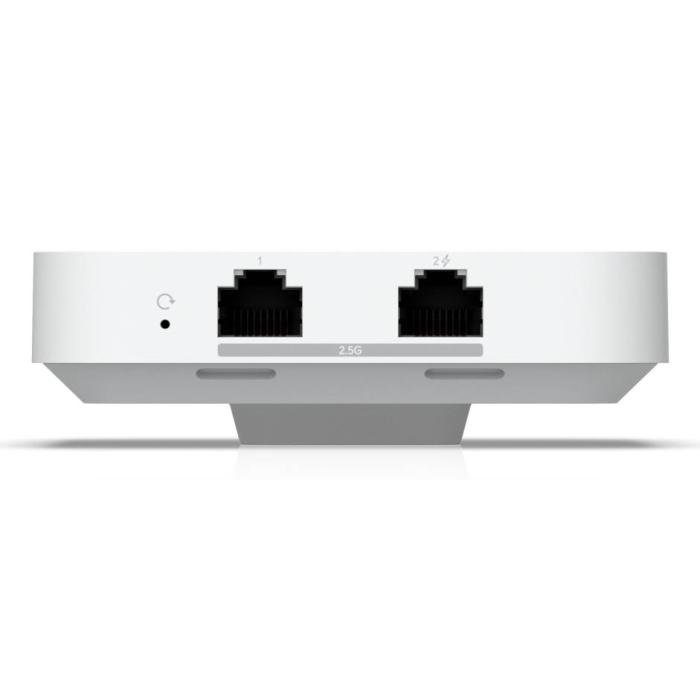

Ethernet LAN (RJ-45) ports: 3

Power

Power over Ethernet (PoE): Yes
DC voltage range: 42.5 - 57 V
Power consumption (max): 13 W

Design

Placement: Wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
Reset button: Yes
LED indicators: Status

Antenna

Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 8 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 98.7 mm
Depth: 30.2 mm
Height: 137 mm
Weight: 400 g

Packaging content

Quantity per pack: 1 pc(s)

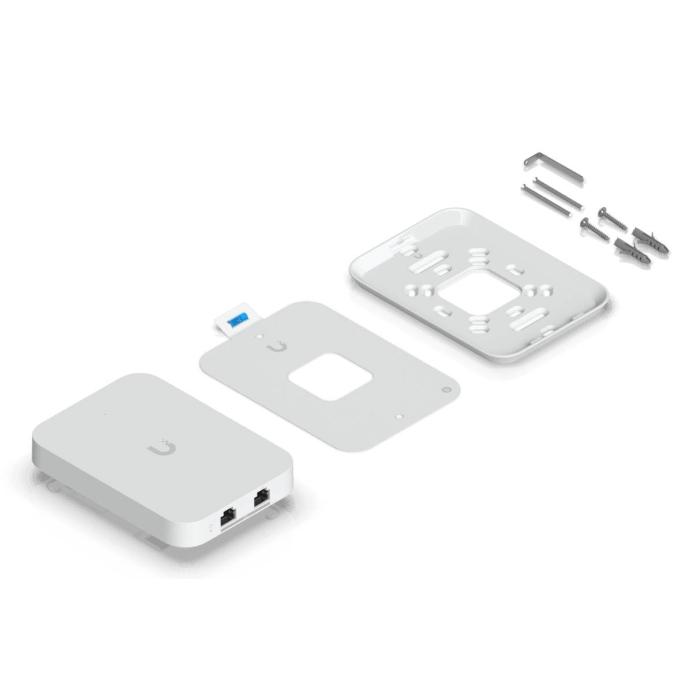

Mounting kit: Yes

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 40 °C
