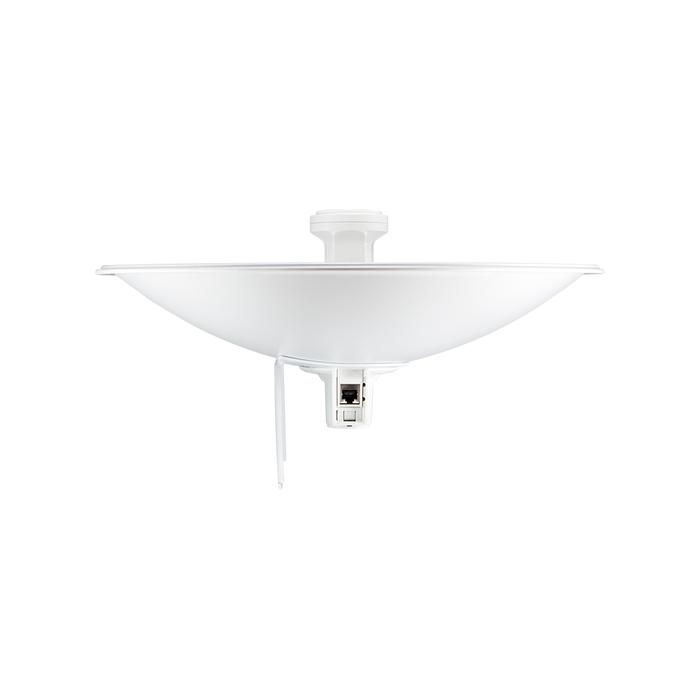

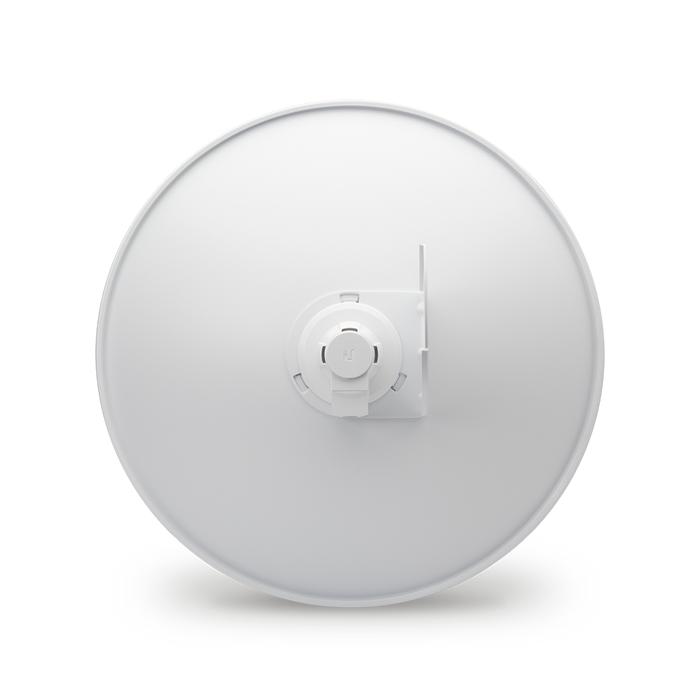

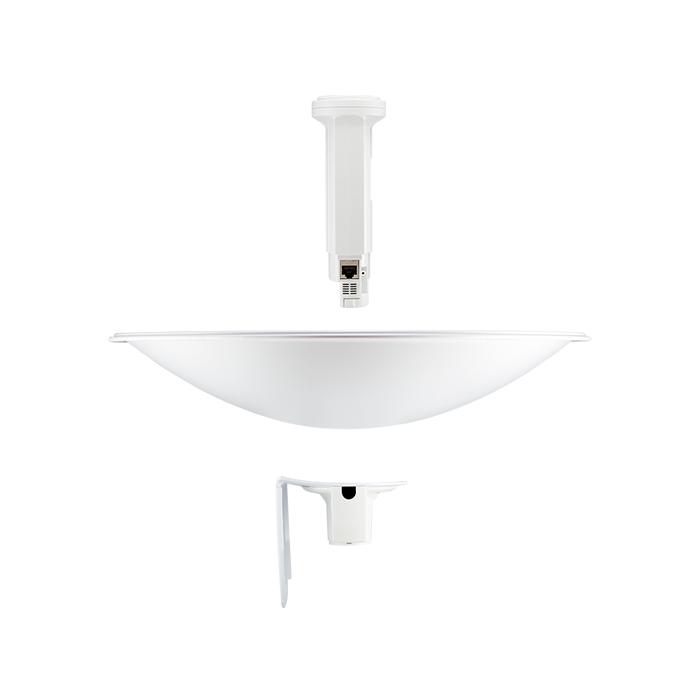

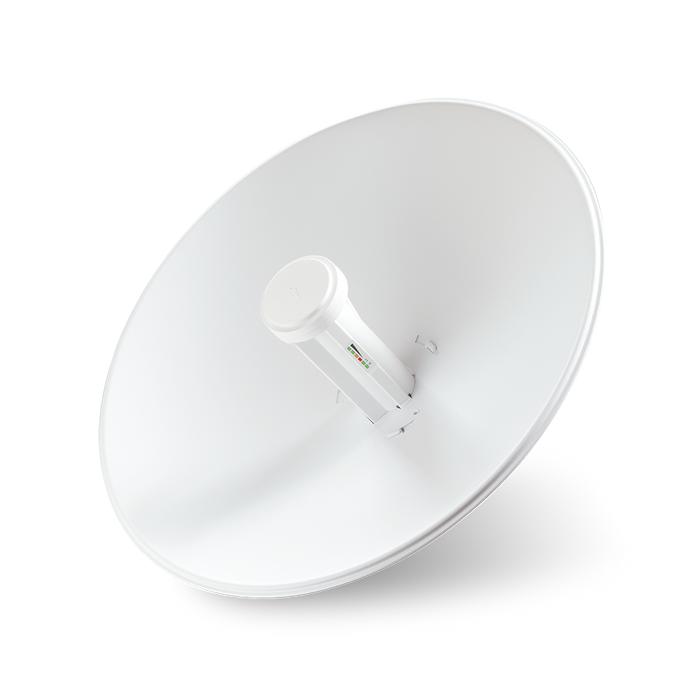

Ubiquiti PBE-M5-400 bridge/repeater Network bridge 1000 Mbit/s White
More info
Brand: UBIQUITI NETWORKS
100.94 €
83.42 €
without VAT
Stock available: 10 units.
Get it
on the
September 1
/
September 2
SKU:
73553
PRC:
51254
EAN:
810354021701
PN:
PBE-M5-400
Description
The Ubiquiti PBE-M5-400 repeater and transceiver in white works as a Wi-Fi bridge with a maximum data transfer rate of 1000 Mbit/s, operating in the 5 GHz band with an antenna gain of up to 25 dBi. This access point uses a Gigabit Ethernet connection with one RJ-45 port and one PoE+ power port, while its connectivity technology is exclusively wired. Its Atheros MIPS 74Kc processor at 560 MHz and 64 MB of DDR2 RAM manage network traffic, and the LED indicators for LAN, power and WLAN allow you to monitor the device status. Made of plastic and designed for mast mounting, this equipment is aimed at outdoor installations requiring reliable point-to-point links.
Specifications
Data transmission
- Maximum data transfer rate: 1000 Mbit/s
Antenna
- Antenna gain level (max): 25 dBi
Wireless LAN features
- Frequency band: 5 GHz
Network
- Ethernet LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet plus (PoE+) ports quantity: 1
Features
- Product type: Network bridge
- Material: Plastic
- Mounting type: Pole
- Product colour: White
- LED indicators: LAN, Power, WLAN
- Processor family: Atheros
- Processor model: MIPS 74Kc
- Processor frequency: 560 MHz
- Internal memory: 64 MB
- RAM type: DDR2
Power
- Power source type: PoE
- Power consumption (typical): 8 W
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) voltage: 24 V
- Power consumption (24V): 500 mA
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
Certificates
- Certification: FCC, IC, CE, RoHS
Weight & dimensions
- Antenna diameter: 42 cm
- Depth: 275 mm
- Weight: 1.75 kg
Packaging content
- Mounting bracket(s) included: Yes
Memory
- Flash memory: 8 MB
Logistics data
- Harmonized System (HS) code: 85176990
