Description

Specifications

WAN connection


  • Ethernet WAN: Yes
  • DSL WAN: No
  • SIM card slot: No
  • 3G/4G USB modem compatibility: No

Wireless LAN features


  • Wi-Fi band: Single-band (2.4 GHz)
  • Top Wi-Fi standard: Wi-Fi 4 (802.11n)
  • WLAN data transfer rate (max): 300 Mbit/s
  • Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • WLAN data transfer rate (first band): 300 Mbit/s

Network


  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Fast Ethernet
  • Ethernet LAN data rates: 10, 100 Mbit/s
  • Cabling technology: 10/100Base-T(X)
  • Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • VPN support: PPTP, L2TP, IPSec

Mobile network


  • 3G: No
  • 4G: No

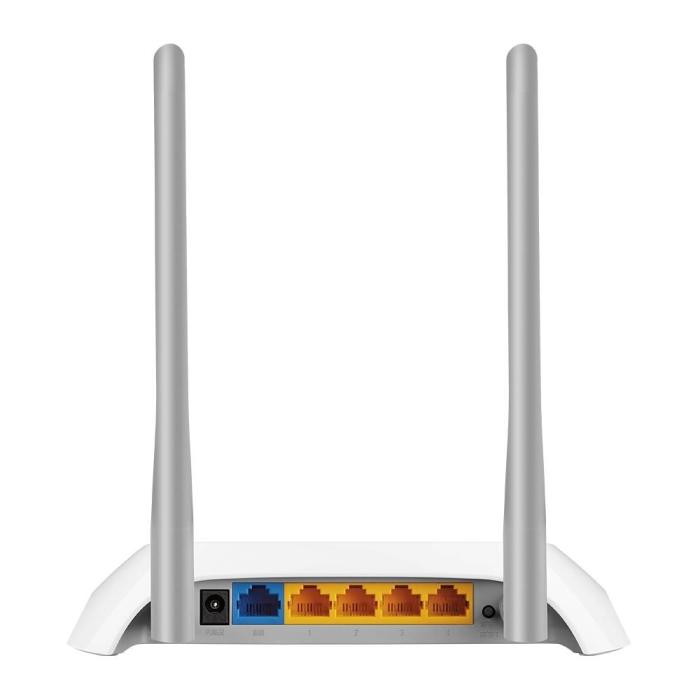

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 4
  • USB port: No
  • Memory card slot(s): No
  • DC-in jack: Yes

Management features


  • Web-based management: Yes
  • Quality of Service (QoS) support: Yes
  • Reset button: Yes
  • WPS push button: Yes

Security


  • Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Firewall: Yes
  • DoS attack prevention: Yes
  • Filtering: Yes
  • MAC address filtering: Yes
  • DMZ support: Yes

Protocols


  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Supported network protocols: IPv4, IPv6

Design


  • Product colour: Grey, White
  • LED indicators: LAN, Power, WLAN
  • Product type: Tabletop router

Certificates


  • Certification: FCC, CE, RoHS

Packaging content


  • Cables included: LAN (RJ-45)
  • AC adapter included: Yes
  • Quick installation guide: Yes

Antenna


  • Antenna design: External
  • Antennas quantity: 2

Power


  • Power source type: DC
  • Output voltage: 9 V
  • Output current: 0.6 A

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

System requirements


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Linux operating systems supported: Yes
  • Mac compatibility: Yes

Weight & dimensions


  • Width: 182 mm
  • Depth: 128 mm
  • Height: 35 mm
