Description

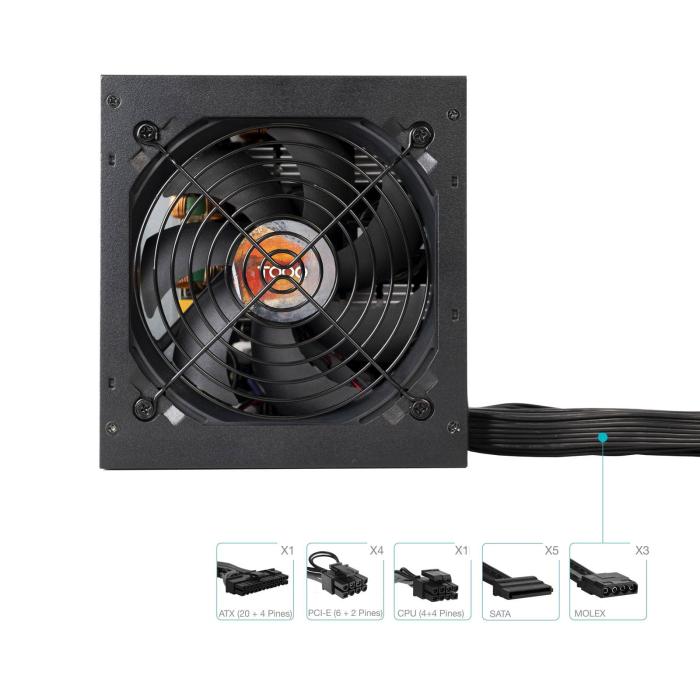

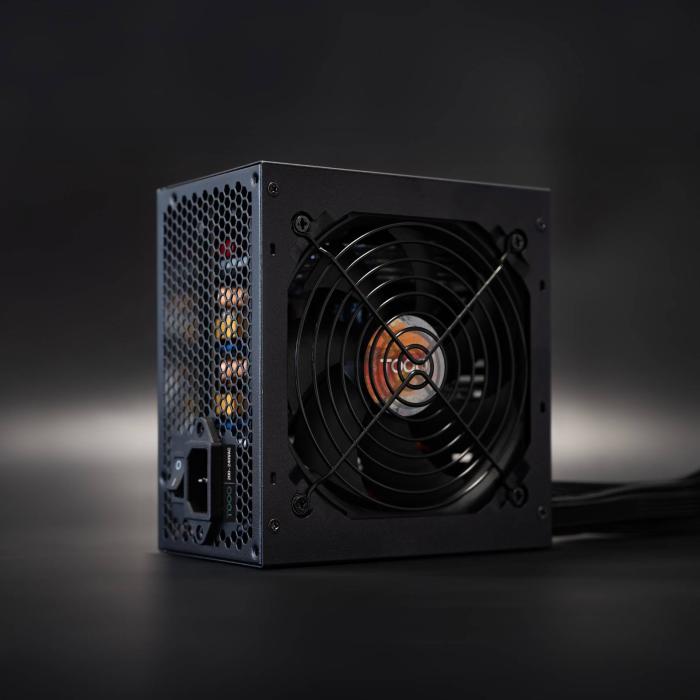

The TooQ ATX 750W APFC 80Plus Bronze is an ATX format power supply unit with 80 PLUS Bronze certification and 750 W of total power, in black and with dimensions of 150 x 85 x 140 mm (width x height x depth). It incorporates active power factor correction and supports an AC input voltage of 200 to 240 V, designed for PC builds. Its fan keeps the internal components cool during operation. As for connectivity, it offers a 24-pin ATX power connector for the motherboard, with a 55 cm cable, and a 4+4 pin CPU connector with a 60 cm cable. It also includes four 6+2 pin PCI Express connectors with a 70 cm cable, three Molex peripheral connectors and five SATA power connectors, whose cables reach lengths of 550, 700, 850 and 1000 mm. With all this, the TooQ ATX 750W covers the power supply of equipment with several drives and expansion cards.
Specifications
Power
- Total power: 750 W
- AC input voltage: 200 - 240 V
- Power Factor Correction (PFC) type: Active

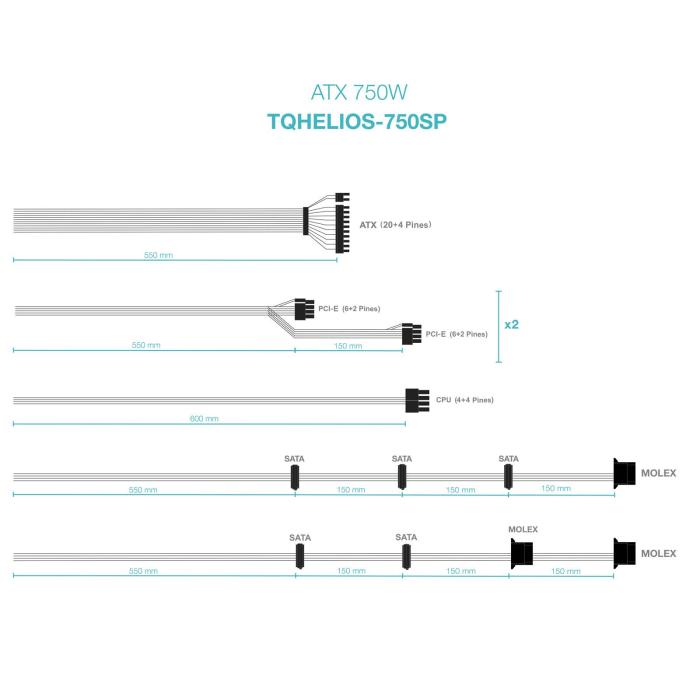

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 5
- SATA power cable length: 550, 700, 850, 1000 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 550, 700, 850, 1000 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 70 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- ATX Power connector (24-pin): Yes
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Certificates
- Compliance certificates: CE, RoHS

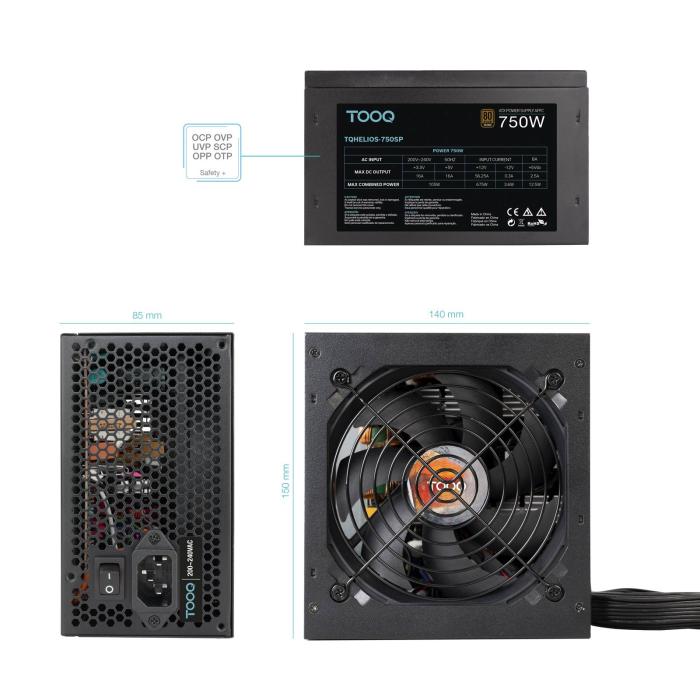

Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 85 mm
Packaging data
- Package width: 240 mm
- Package depth: 185 mm
- Package height: 98 mm
- Package type: Box
