StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD
More info
Brand: STARTECH.COM
208.74 €
172.51 €
without VAT
incl. 21 % VAT
Stock available: 23 units.
Get it
tomorrow
/
October 30
SKU:
107854
PRC:
544675
EAN:
65030902878
PN:
155UE-USB4-DOCK
Description

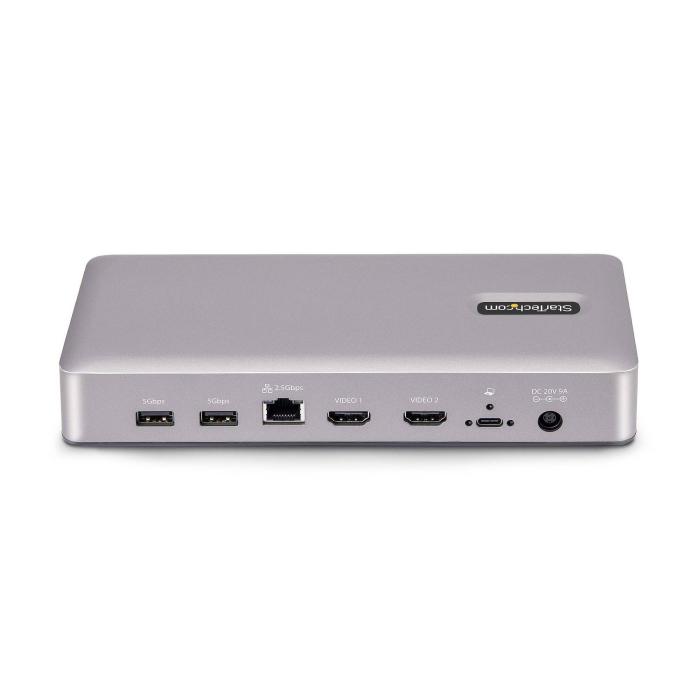

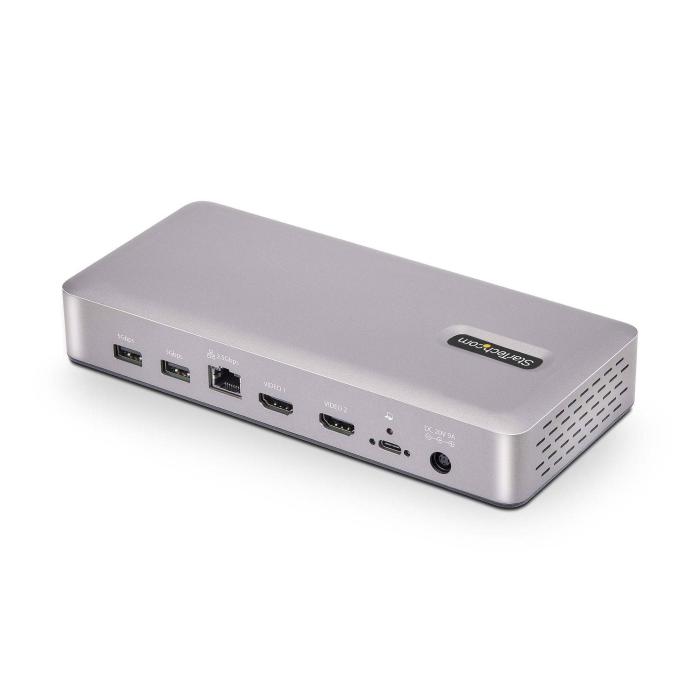

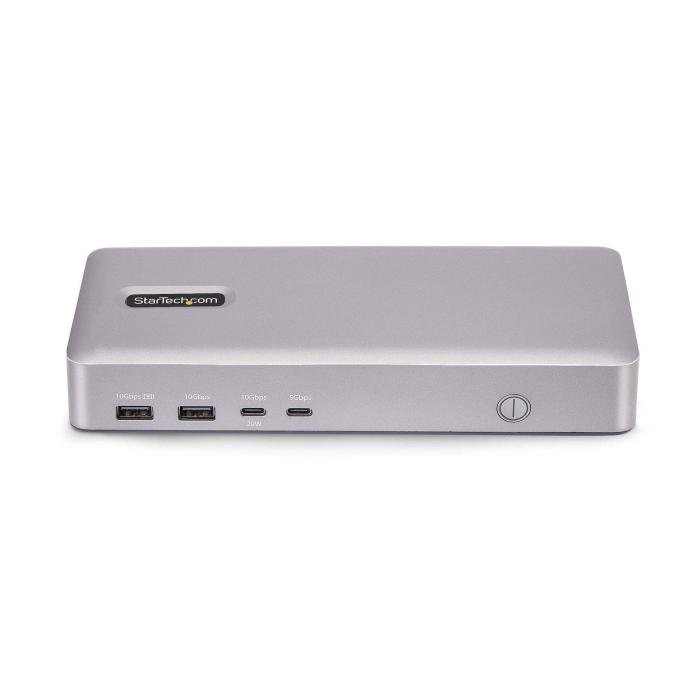

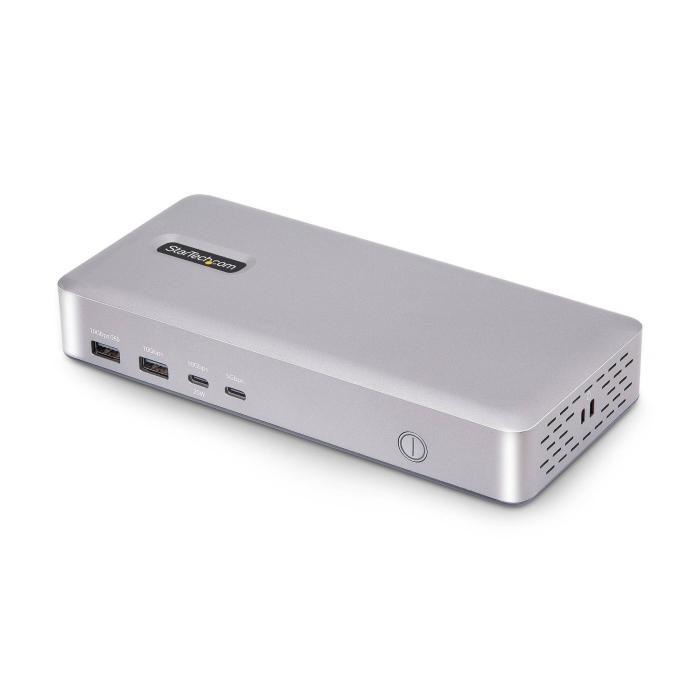

StarTech.com USB4 docking station with USB4 host interface and 40 Gbit/s data transfer speed, in silver. It features two HDMI ports with maximum digital resolution of 3840 x 2160 pixels and refresh rate of up to 120 Hz. It adds one USB Type-A USB 3.2 Gen 1 port, two USB Type-A USB 3.2 Gen 2 ports, one USB Type-C USB 3.2 Gen 1 port and one USB Type-C USB 3.2 Gen 2 port. It offers USB Power Delivery of up to 100 W and an Ethernet LAN RJ-45 port with speeds of 10 / 100 / 1000 / 2500 Mbit/s. Its chipset integrates VIA VL830, VIA VL163, Realtek RTD2188-VA-CG and Genesys Logic GL9901NE. It is compatible with Windows 10 in its different editions and with ChromeOS, and is powered by DC with AC input voltage of 100 - 240 V. It has a weight of 138.6 g and dimensions of 210 x 34 x 95 mm.
Specifications

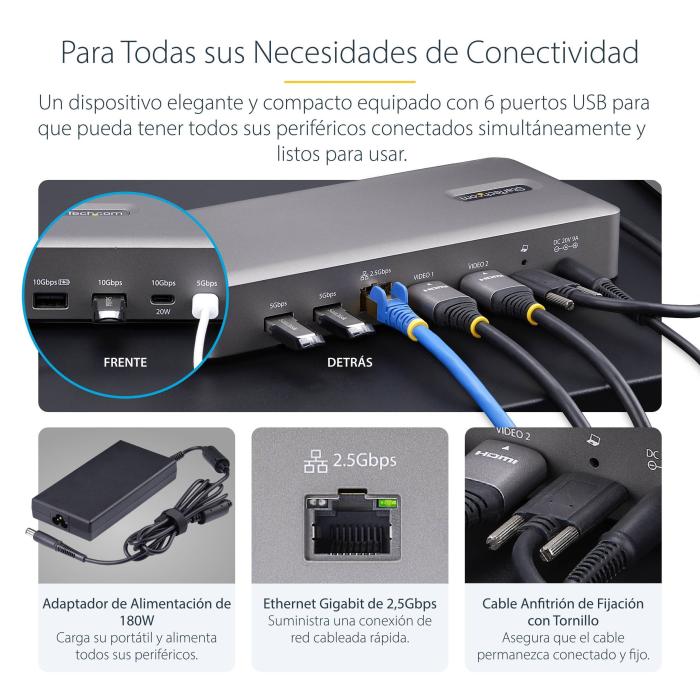

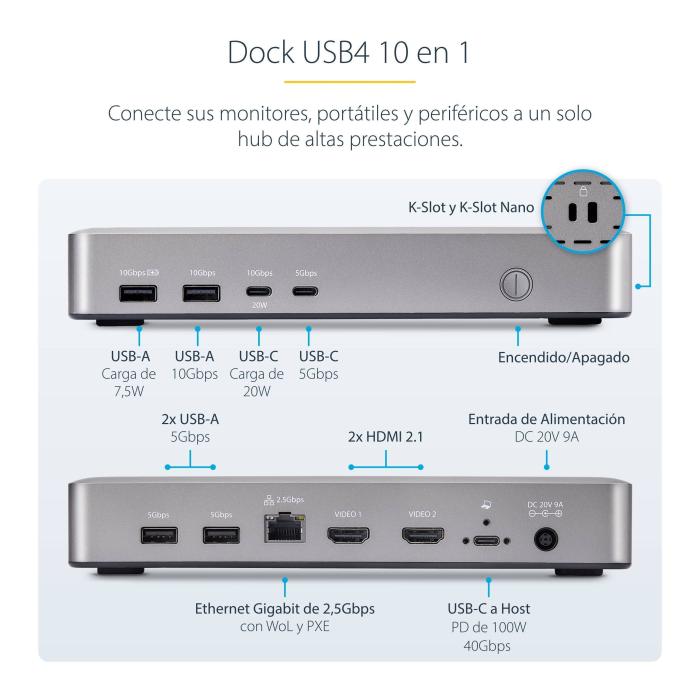

Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 2
- Microphone in: No
- DC-in jack: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Wake-on-LAN ready: Yes
- Full duplex: Yes
Performance
- Card reader integrated: No
- Data transfer rate: 40 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels

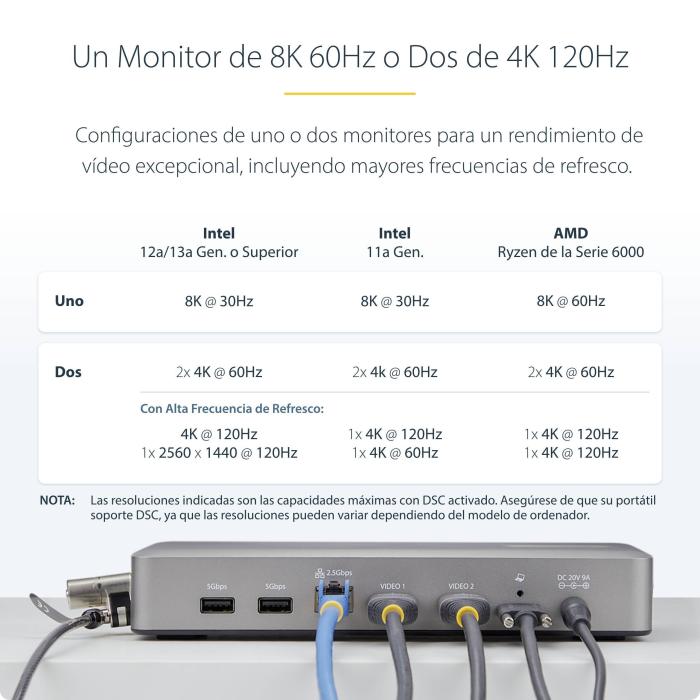

- Number of displays supported: 2
- Maximum refresh rate: 120 Hz

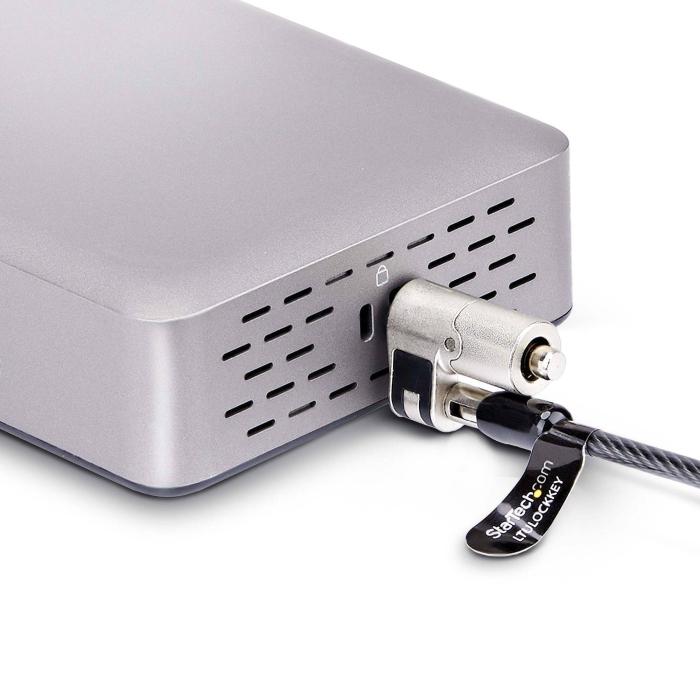

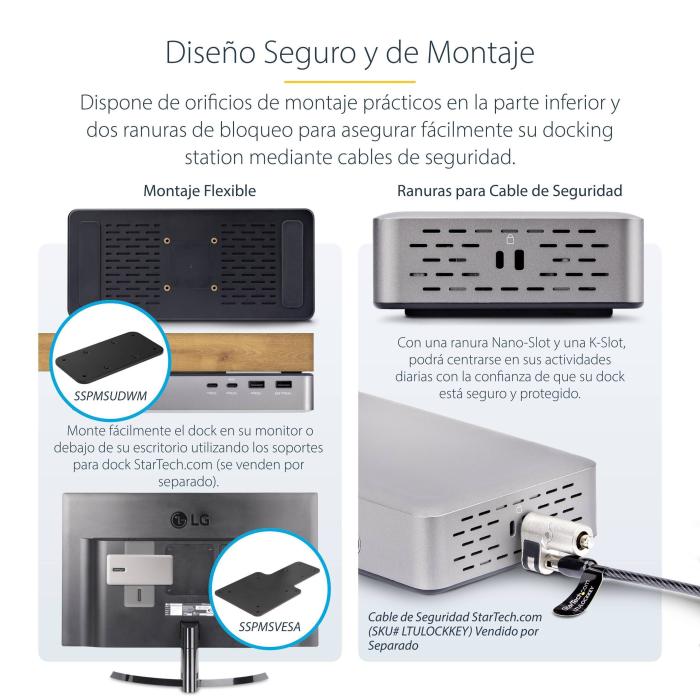

- Cable lock slot: Yes
- Cable lock slot type: Kensington, Nano
- Product colour: Silver
- On/off switch: Yes
- LED indicators: Yes
- UASP support: Yes
- Housing material: Plastic
Power
- Power source type: DC
- AC input voltage: 100 - 240 V
- Input current: 2.5 A
- Output voltage: 20 V
- Output current: 9 A
- Power consumption (typical): 165 W
- Power plug type: Type M
- Compatible power plug types: EU, UK
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Other operating systems supported: ChromeOS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 95%

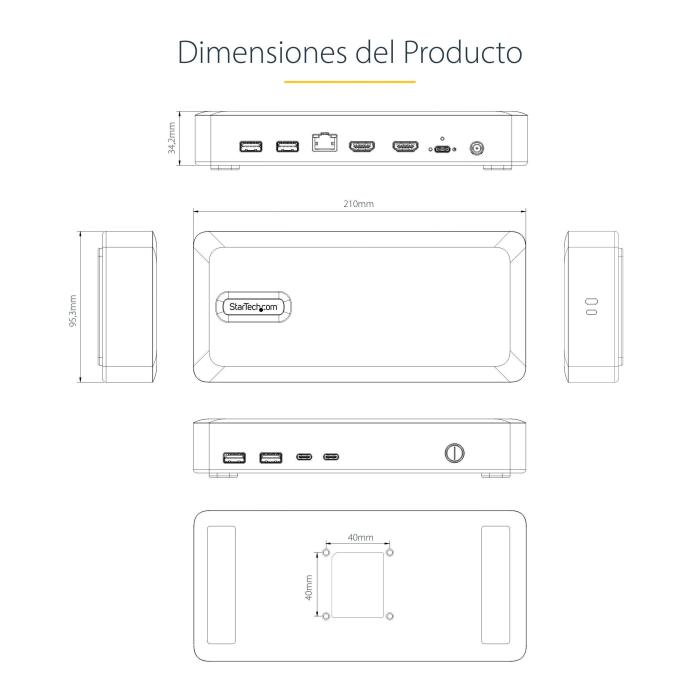

Weight & dimensions
- Width: 210 mm
- Depth: 95 mm
- Height: 34 mm
- Weight: 138.6 g
Packaging data
- Package width: 145 mm
- Package depth: 230 mm
- Package height: 89 mm
- Package weight: 1.3 kg

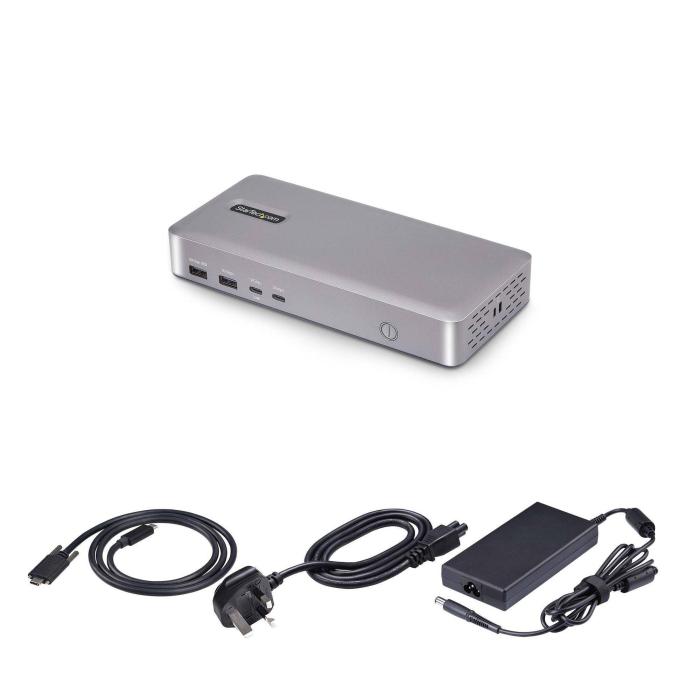

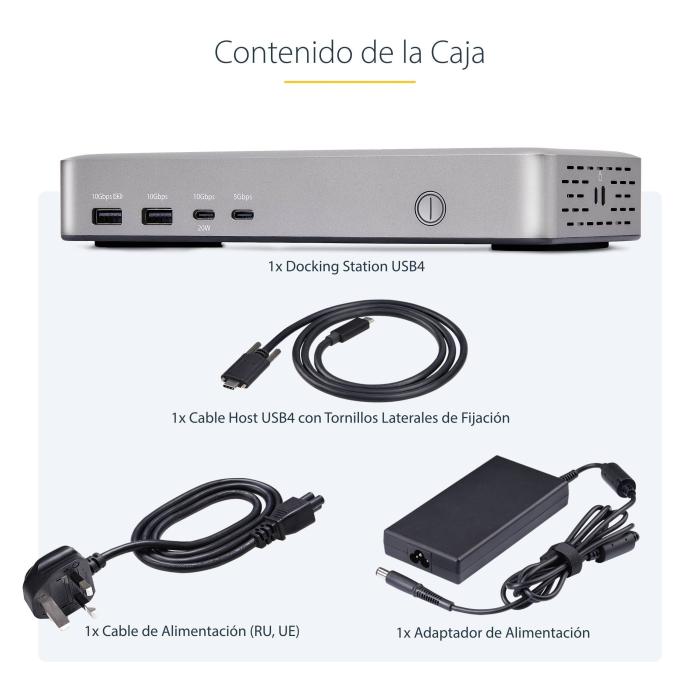

Packaging content
- Cables included: USB
- Quick start guide: Yes
Logistics data
- Products per master (outer) case: 8 pc(s)
- Master (outer) case width: 305 mm
- Master (outer) case length: 375 mm
- Master (outer) case height: 265 mm
Other features
- Chipset: VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
