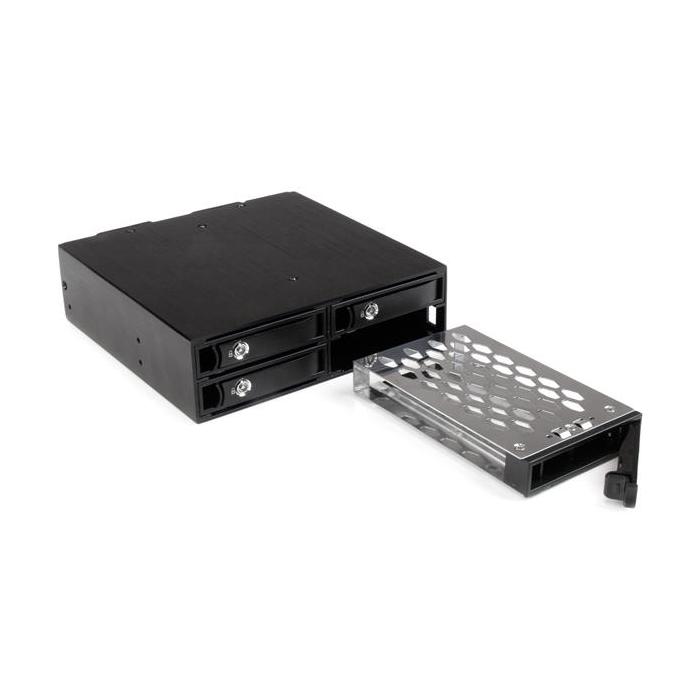

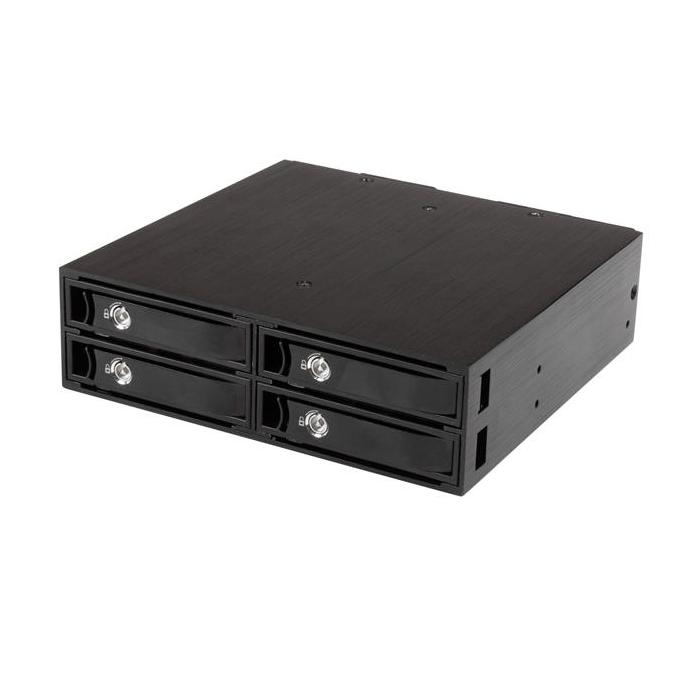

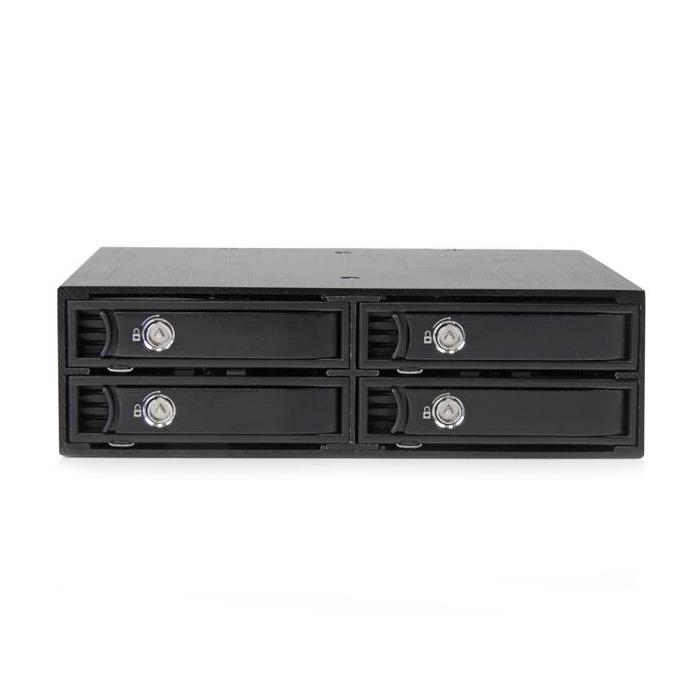

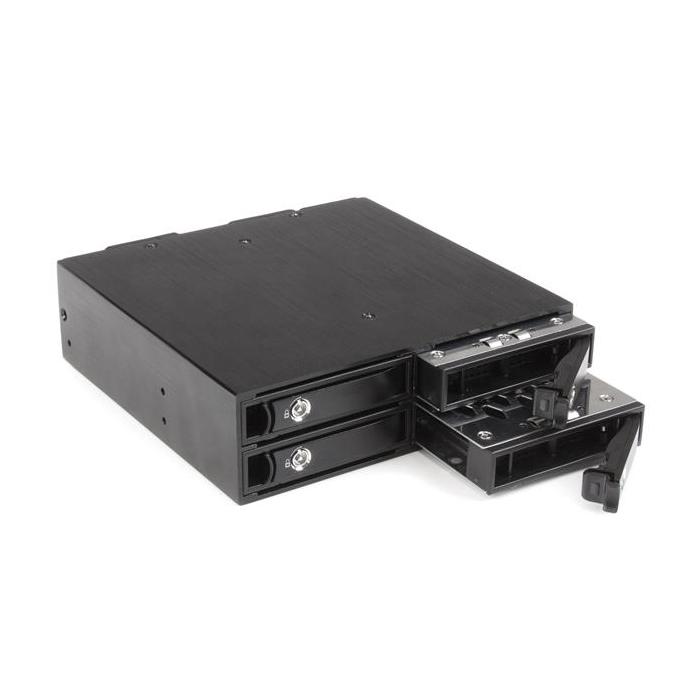

StarTech.com 4-bay mobile rack backplane for 2.5in SATA/SAS drives

102.00 €
84.30 € without VAT

StarTech.com 4-bay mobile rack backplane for 2.5in SATA/SAS drives.   More info

Brand: STARTECH.COM
SKU: 76610 PRC: 112265 EAN: 65030859837 PN: SATSASBP425

Description

Specifications

Features

  • Size (imperial): 13.3 cm (5.25")
  • Type: Storage drive tray
  • Product colour: Black
  • Number of HDDs supported: 4
  • Maximum HDD capacity: 2 TB
  • HDD size: 2.5"
  • HDD interface: Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
  • Material: Aluminium, Steel
  • Supported storage drive heights: 5, 9.5, 12.5, 15 mm
  • Hot-swap: Yes
  • Noise level: 20 dB

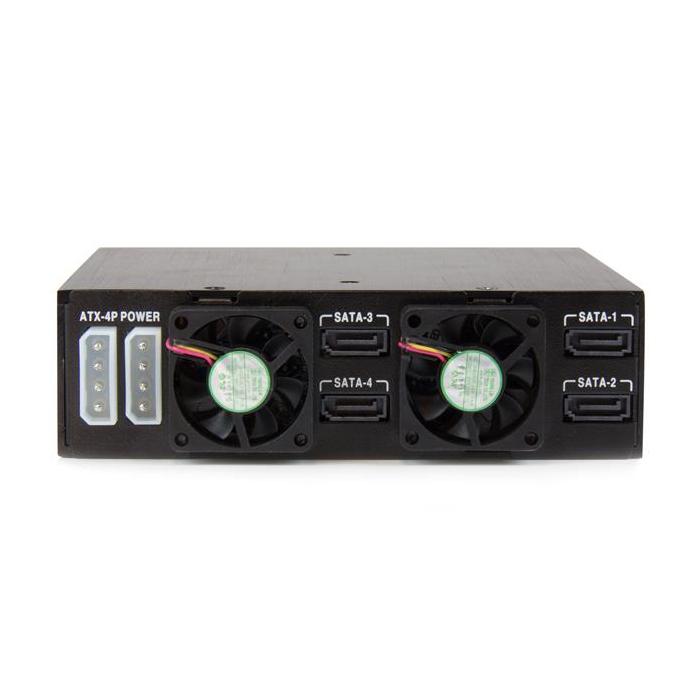

  • Number of fans: 2 fan(s)
  • Fan diameter: 4 cm
  • Data transfer rate: 6 Gbit/s
  • LED indicators: Activity, Power
  • Key lock: Yes
  • Bearing type: Sleeve bearing
  • Certification: CE, FCC

Ports & interfaces

  • Port multiplier: No

Weight & dimensions

  • Width: 146 mm
  • Depth: 152 mm
  • Height: 42 mm
  • Weight: 760 g

Packaging data

  • Package width: 194 mm
  • Package depth: 216 mm
  • Package height: 80 mm
  • Package weight: 1.04 kg

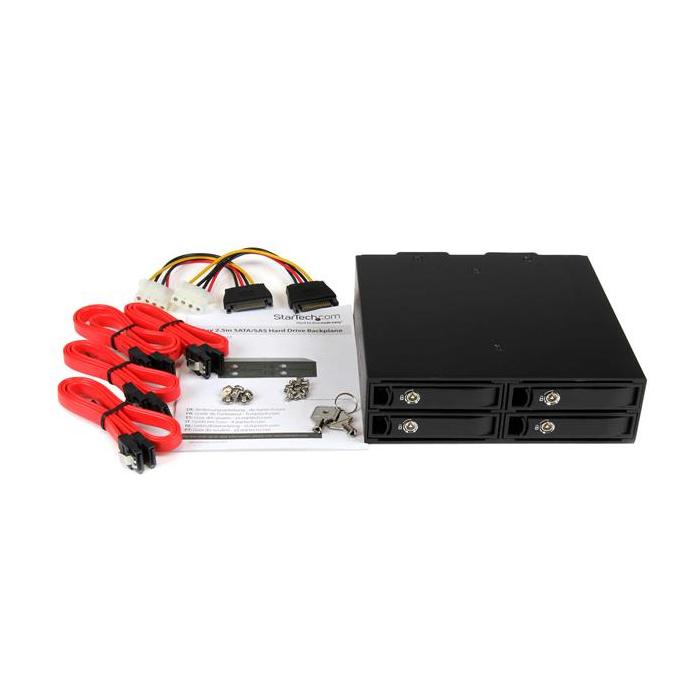

Packaging content

  • Cables included: SATA
  • Screws included: Yes
  • Number of lock keys included: 2 pc(s)
  • Number of screws: 24

Operational conditions

  • Storage temperature (T-T): -20 - 55 °C
  • Operating temperature (T-T): 0 - 55 °C
  • Operating relative humidity (H-H): 5 - 65%

Technical details

  • Compliance certificates: RoHS

Logistics data

  • Harmonized System (HS) code: 84733080
