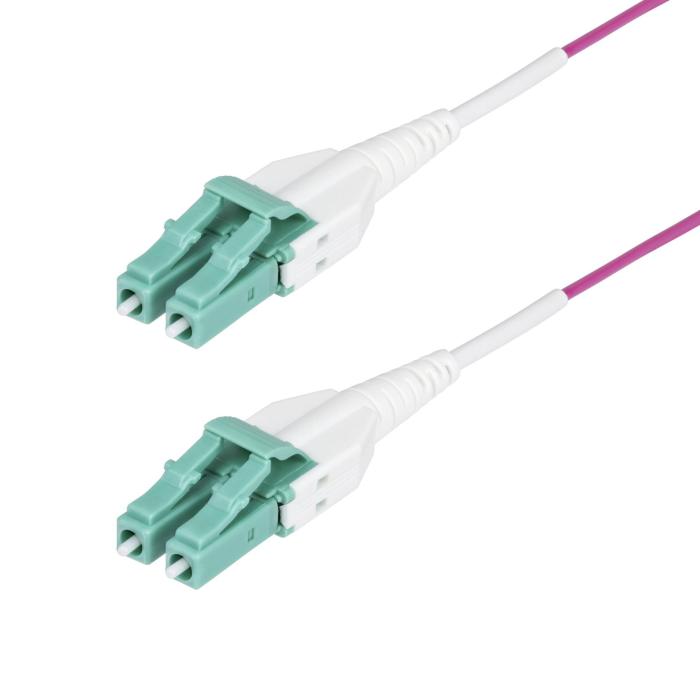

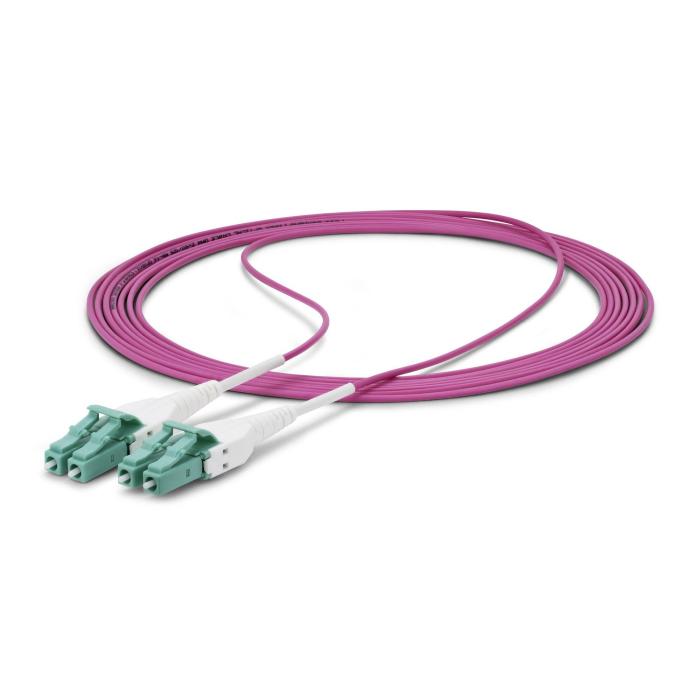

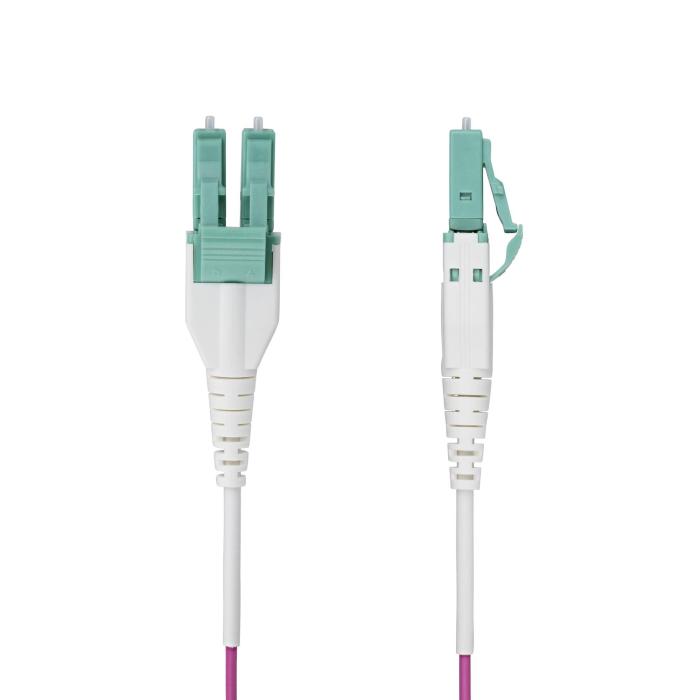

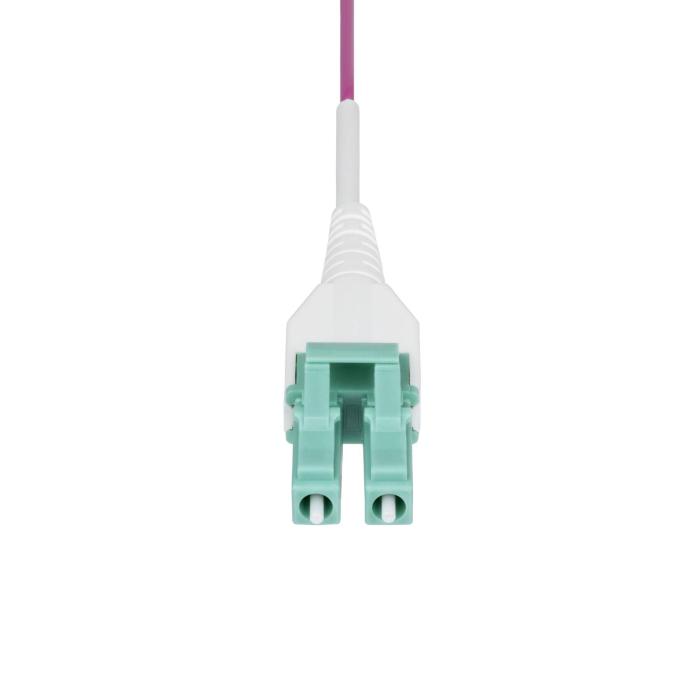

StarTech.com 30m (100ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125µm, 40G/100G, LOMMF/VCSEL, Uniboot Fiber Jumper Cord, OFNR Riser Rated
More info
Brand: STARTECH.COM
65.66 €
54.27 €
without VAT
Stock available: 8 units.
Get it
tomorrow
/
September 23
SKU:
128287
PRC:
608325
EAN:
65030920827
PN:
OM4RLCLC30M
Description
StarTech.com OM4 multimode fibre optic cable, in violet, connects LC to LC connector equipment and reaches a data transfer speed of 100 Gbit/s. It is a 30 m OFNR cable, round in shape with a polyvinyl chloride jacket, designed for installations where length is decisive. Its OM4 fibre has a 50 µm core and a 125 µm cladding diameter, and supports wavelengths of 850 and 1300 nm. The connector, with PC polishing and male gender at both ends, allows full bidirectional operation. With a weight of 148.4 g, it is manageable during assembly and laying of the run. It has RoHS and CE certificates of conformity, and withstands storage temperatures of between -20 and 60 °C.
Specifications
Features
- Cable length: 30 m
- Fibre optic type: OM4
- Cable shape: Round
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: PC
- Cable type: OFNR
- Product colour: Violet
- Full duplex: Yes
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Wavelengths supported: 1300,850 nm
- Data transfer rate: 100 Gbit/s
- Jacket material: Polyvinyl chloride (PVC)
Certificates
- Compliance certificates: RoHS, CE
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Cable diameter: 1.6 mm
- Weight: 148.4 g
- Bending radius: 7.5 mm
Packaging data
- Package width: 300 mm
- Package depth: 250 mm
- Package height: 20 mm
- Package weight: 148.4 g
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 420 mm
- Master (outer) case length: 420 mm
- Master (outer) case height: 270 mm
- Products per master (outer) case: 64 pc(s)
