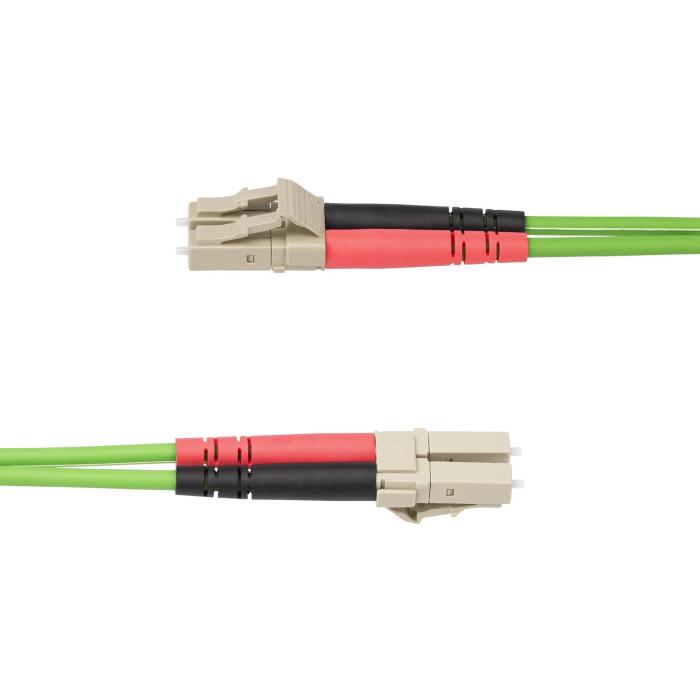

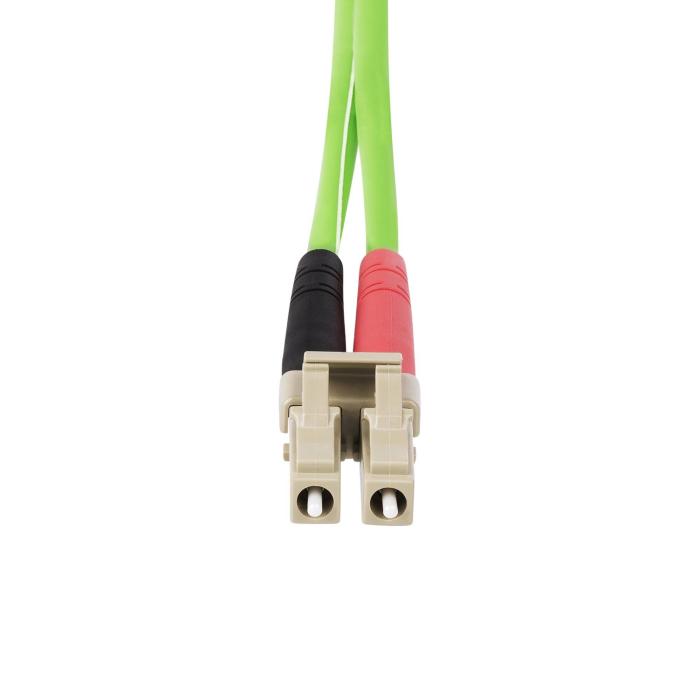

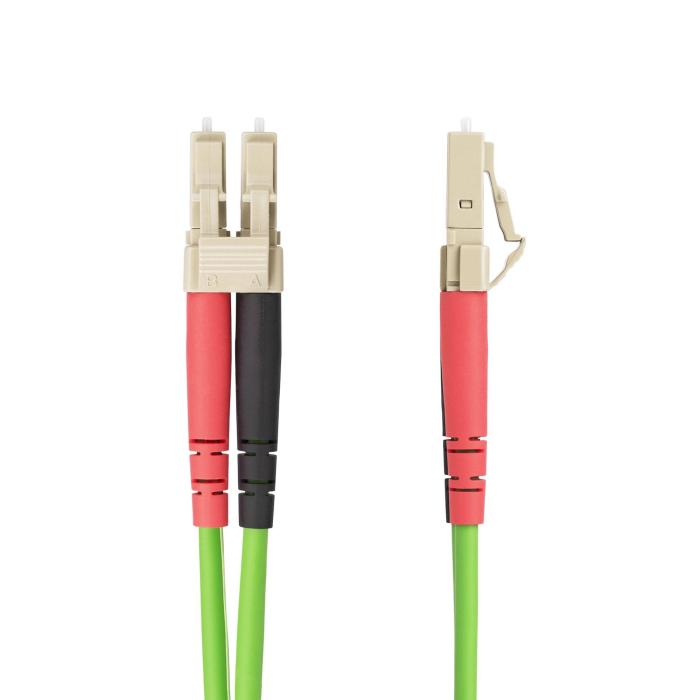

StarTech.com 1m (3.3ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex LOMMF Zipcord, VCSEL, 40G/100G, LSZH Fiber Jumper Cord
More info
Brand: STARTECH.COM
18.62 €
15.39 €
without VAT
Stock available: 1 ud.
Get it
on the
September 8
/
September 9
SKU:
103417
PRC:
469931
EAN:
65030900935
PN:
LCLCL-1M-OM5-FIBER
Description
StarTech.com 1 metre (3.3ft) fibre optic cable, in green, with LC male to LC male connectors and OM5 multimode duplex type 50/125 µm, designed for high-speed networks with data transfer of up to 100 Gbit/s. This cable, with LOMM rating and halogen-free LSZH jacket, supports wavelengths of 850, 953 and 1300 nm, offering a return loss of 30 dB and a full-duplex structure. Its multimode construction and low bend sensitivity make installation easier in confined spaces, complying with CE and RoHS certifications. Compatible with hubs and switches, this 1 metre model ensures a stable connection with low insertion loss in data centre environments.
Specifications
Features
- Cable length: 1 m
- Fibre optic type: OM5
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Cable type: LOMM
- Product colour: Green
- Full duplex: Yes
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Wavelengths supported: 850,953,1300 nm
- Data transfer rate: 100 Gbit/s
- Return loss: 30 dB
- Jacket material: Low smoke zero halogen (LSZH)
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, RoHS
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Cable diameter: 2.9 mm
- Bending radius: 6 cm
Packaging data
- Package width: 220 mm
- Package depth: 200 mm
- Package height: 5 mm
- Package weight: 18 g
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 450 mm
- Products per master (outer) case: 320 pc(s)
