Description

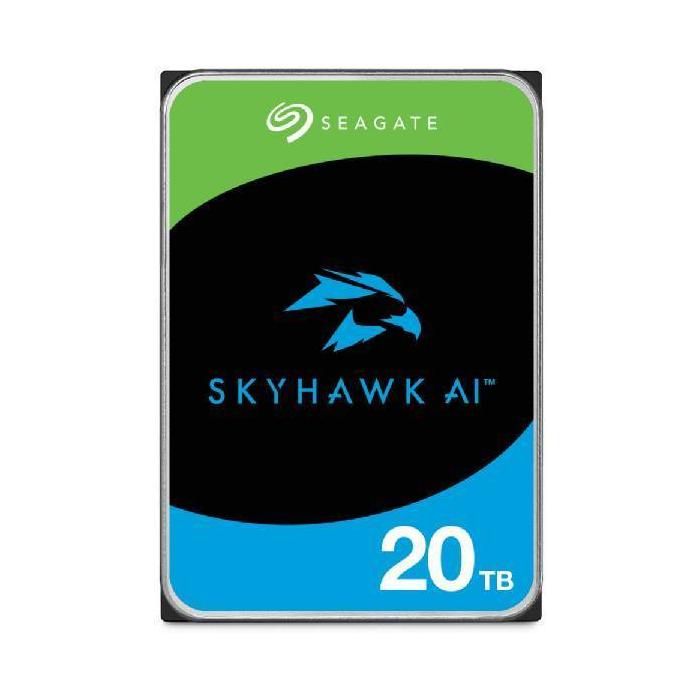

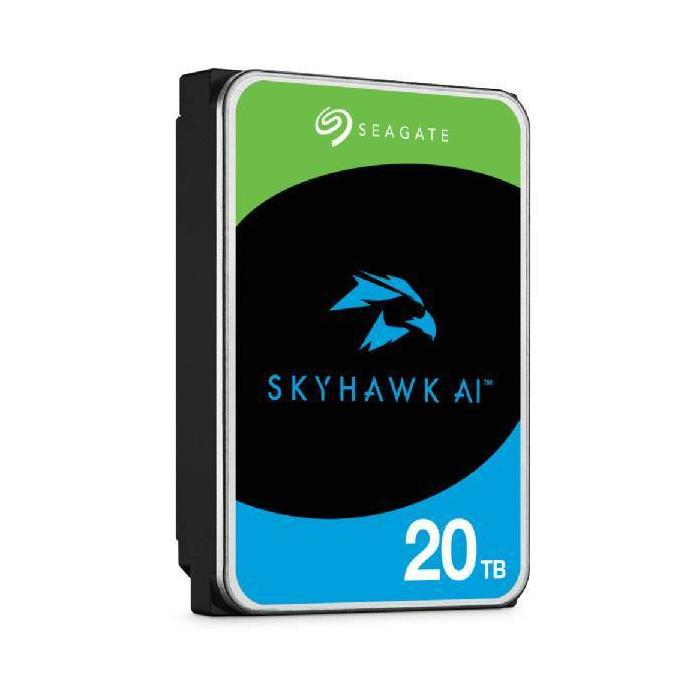

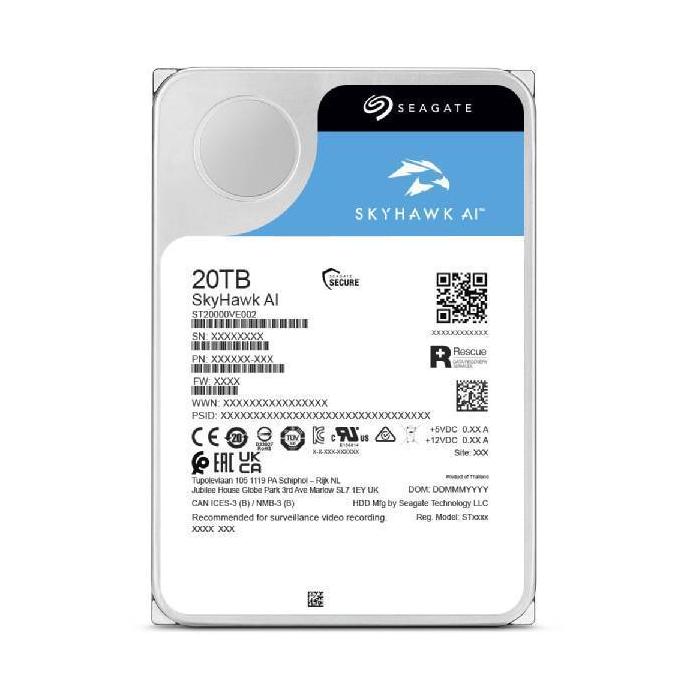

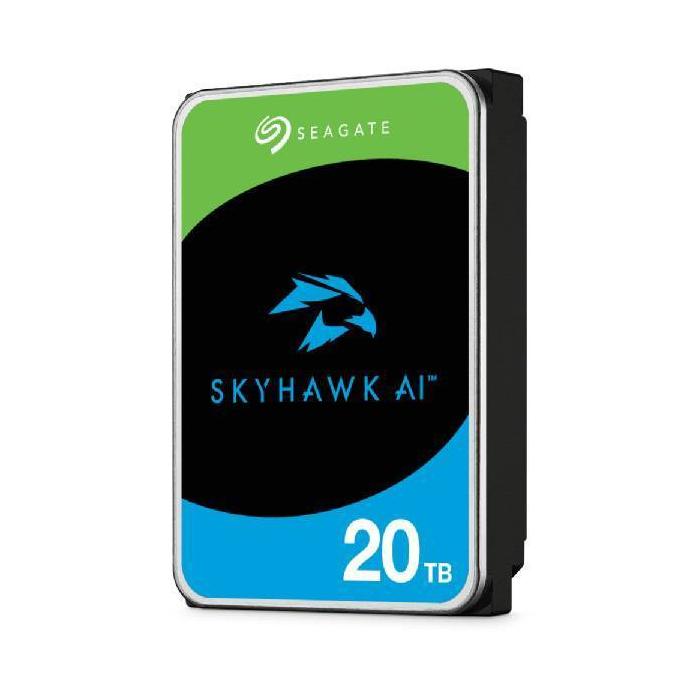

The Seagate SkyHawk AI is a 20 TB internal hard drive designed for surveillance systems, with a 3.5" format and Serial ATA III interface. It reaches a rotation speed of 7200 RPM and a sustained transfer rate of 260 MiB/s, with an interface transfer rate of 6 Gbit/s. It incorporates a 512 MB buffer and manages up to 32 AI channels, as well as featuring rotational vibration sensors. Its mean time between failures is 2000000 h and its uncorrectable bit error rate is less than 1 per 10^15 bits read. The start/stop cycle supports 600000 cycles. As for power consumption, it operates at 7.72 W in use, 3.5 W in standby and 1 W idle, with a start-up current of 2 A. It has a weight of 680 g and dimensions of 101.8 x 26.1 x 147 mm (width x height x depth).
Specifications
Features
- HDD capacity: 20 TB
- HDD speed: 7200 RPM
- Storage drive buffer size: 512 MB
- HDD size: 3.5"
- Interface: Serial ATA III
- Type: HDD
- Component for: Surveillance system
- HDD interface transfer rate: 6 Gbit/s
- HDD sustained transfer rate: 260 MiB/s
- Uncorrectable Bit Error Rate (UBER): < 1 per 10^15 bits read
- Rotational Vibration (RV) sensors: Yes
- Number of AI channels: 32
- Start/stop cycles: 600000
- Mean time between failures (MTBF): 2000000 h
Power
- Power consumption (typical): 7.72 W
- Power consumption (standby): 1 W
- Power consumption (idle): 3.5 W
- Operating voltage: 5 / 12 V
- Start-up current: 2 A
Operational conditions
- Operating temperature (T-T): 0 - 65 °C
Weight & dimensions
- Width: 101.8 mm
- Height: 26.1 mm
- Depth: 147 mm
- Weight: 680 g
Logistics data
- Products per pallet layer: 8 pc(s)
- Harmonized System (HS) code: 84717050
- Master (outer) cases per pallet: 40 pc(s)
- Products per master (outer) case: 20 pc(s)
Other features
- Maximum number of cameras supported: 64
