Samsung QB24C-T Digital signage flat panel 61 cm (24'') LED Wi-Fi 250 cd/m² Full HD Black Touchscreen Built-in processor Tizen 7.0 16/7

Name: Samsung QB24C-T Digital signage flat panel 61 cm (24'') LED Wi-Fi 250 cd/m² Full HD Black Touchscreen Built-in processor Tizen 7.0 16/7
Brand: SAMSUNG
Availability: OutOfStock

Not avaliable

Samsung QB24C-T Digital signage flat panel 61 cm (24") LED Wi-Fi 250 cd/m² Full HD Black Touchscreen Built-in processor Tizen 7.0 16/7. More info

Amount

Brand: SAMSUNG

SKU: 104947 PRC: 511999 EAN: 8806095303710 PN: LH24QBCTBGCXEN

Description

23.8'', ADS, FHD (1920 x 1080), Touch, 250 nit, 1000:1, 178/178, 14 ms, WiFi, Bluetooth, RJ-45, HDCP, HDMI, RS232, AC 100-240V, 50/60Hz, 547.9 x 334.4 x 34.6 mm, 4 kg

Specifications

Display

Panel type: ADS
Display diagonal: 61 cm (24")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Touchscreen: Yes
Touchscreen technology: Capacitive
Multi-touch: Yes
Response time: 14 ms
Contrast ratio (typical): 1000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.2745 x 0.2745 mm
Horizontal scan range: 56 - 84.5 kHz
Vertical scan range: 48 - 75 Hz
Haze rate: 25%
RGB colour space: NTSC
Colour gamut: 72%

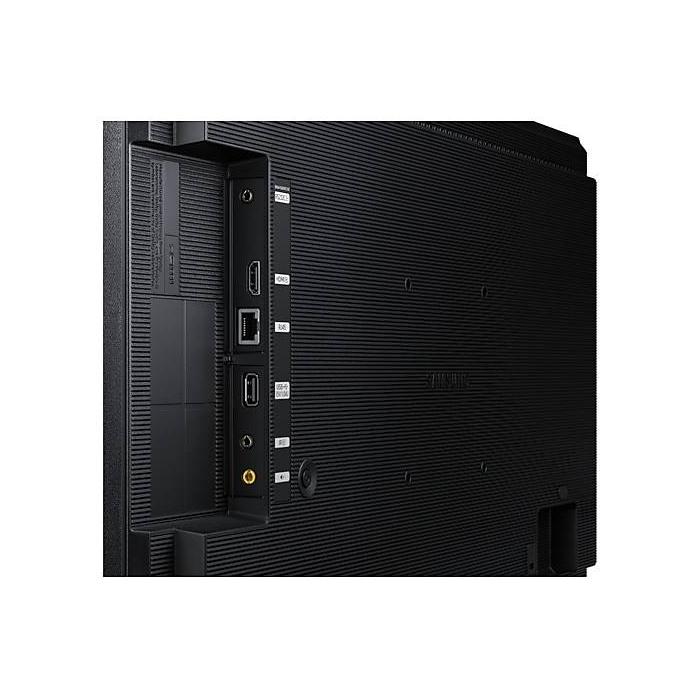

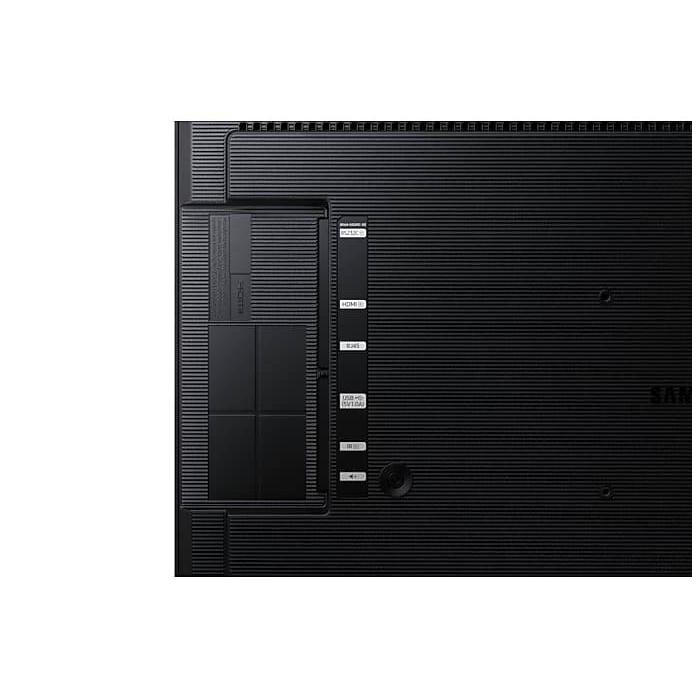

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
DVI port: No
USB port: Yes
USB ports quantity: 1
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Wi-Fi: Yes
RS-232 interface: Yes
Infrared data port: Yes
Remote (IR) input: 1

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

Performance

Purpose: Universal
Operating hours (hours/days): 16/7
HDCP: Yes
HDCP version: 2.2

Power

Power consumption (typical): 38.5 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Computer system: Yes
Computer system type: System on Chip (SoC)
Built-in processor: Yes
Operating system installed: Tizen 7.0

Weight & dimensions

Display width: 547.9 mm
Display depth: 34.6 mm
Display height: 334.4 mm
Display weight: 4 kg

Packaging data

Package width: 620 mm
Package depth: 122 mm
Package height: 419 mm
Package volume: 5200 cm³

Packaging content

Cables included: Power

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Technical details

Audio out (Mini jack): 1
Sustainability compliance: Yes
Sustainability certificates: EPEAT Bronze
Compliance certificates: CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoH
