Description

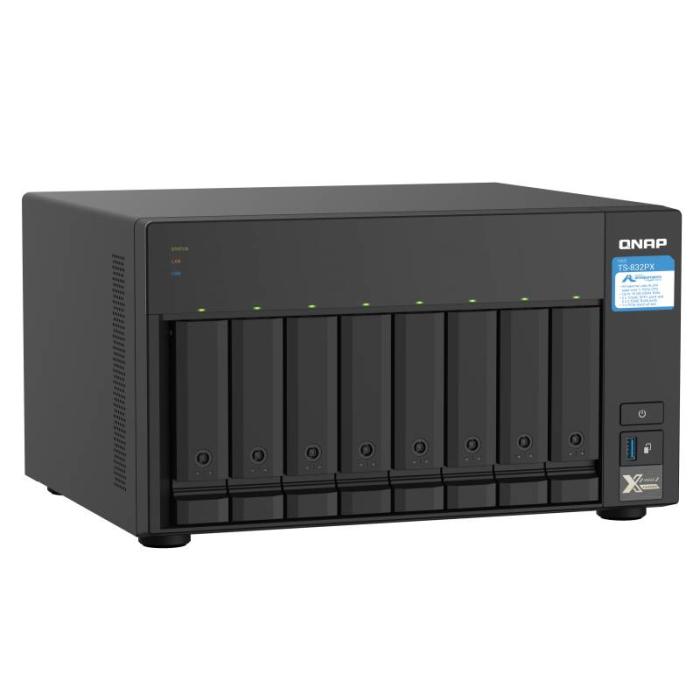

QNAP TS-832PX, NAS, Tower, Annapurna Labs, AL324, 4 GB, DDR4
Specifications
Storage
- Storage drive capacity: 0 GB
- Storage drive interface: Serial ATA III
- Supported storage drive interfaces: Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- RAID support: Yes
- RAID levels: 0, 1, 5+S, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD
- Online RAID migration: Yes
- Online RAID expansion: Yes
- RAID rebuild: Yes
- Hot-swap drive bays: Yes
- Supported file systems: FAT32, HFS+, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 8
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Bad block scan: Yes
- Disk roaming: Yes
Processor
- Processor frequency: 1.7 GHz
- Processor cores: 4
- Processor architecture: ARM Cortex-A57
- Number of processors supported: 1
- Processor manufacturer: Annapurna Labs
- Processor family: Annapurna Labs
- Processor model: AL324
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4
- Memory clock speed: 2400 MHz
- Maximum RAM supported: 16 GB
- Memory slots: 1
- Memory form factor: SO-DIMM
- Flash memory: 512 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500, 10000 Mbit/s
- DHCP client: Yes
- DHCP server: Yes
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Link aggregation: Yes
- Load balancing system: Yes
- Dynamic DNS (DDNS): Yes
- WLAN adapter supported: Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Fiber ports quantity: 2
- Fiber optic connector: SFP+
- Ethernet LAN (RJ-45) ports: 2
Design
- Chassis type: Tower
- Cooling type: Active
- Product colour: Aluminium, Black
- Number of fans: 3 fan(s)
- Fan diameter: 12 cm
- Fan diameter 2: 6 cm
- Drive bay locking: Yes
- LED indicators: HDD, LAN, Status, System, USB
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, USB drive, iSCSI LUN
- Buzzer: Yes
- Noise level: 19.6 dB
- Third-party support: Yes
- Snapshot: Yes
- Management protocols: SNMP
- Web-based management: Yes
- Share folder access right management: Yes
- Remote administration: 256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH
- Security algorithms: 256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in BitTorrent client: Yes
- Built-in FTP server: Yes
- Browser supported: Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
- System log: Yes
- Hot spare: Yes
- S.M.A.R.T. support: Yes
- Remotely operated: Yes
- Backup button: Yes
- Universal Plug and Play (UPnP): Yes
- USB copy function: Yes
Software
- Operating system installed: QNAP Turbo System
- Operating system version: 5.0.0
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: CentOS 7.0, Ubuntu 14.04
- Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 1
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Other operating systems supported: IBM AIX 7.1, IBM AIX 7.2, Solaris 10
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Number of power supply units: 1
- Power consumption (typical): 50.858 W
- Power consumption (sleep): 27.949 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Fan voltage: 12 V
- Output current: 3.5 A
Weight & dimensions
- Width: 329.3 mm
- Depth: 280.8 mm
- Height: 188.2 mm
- Weight: 6.38 kg
- Package width: 8610 mm
Packaging content
- Cables included: AC, LAN (RJ-45)
- Number of screws: 56
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Logistics data
- Harmonized System (HS) code: 84714100
