Description

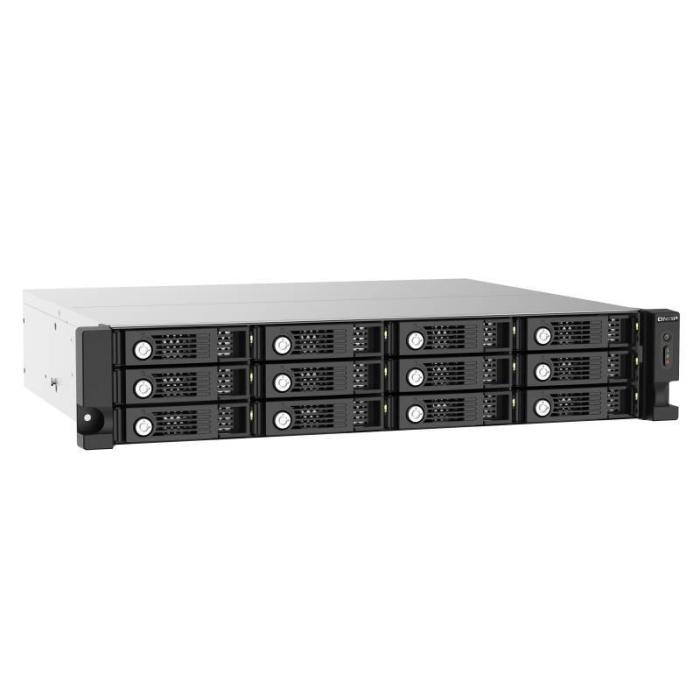

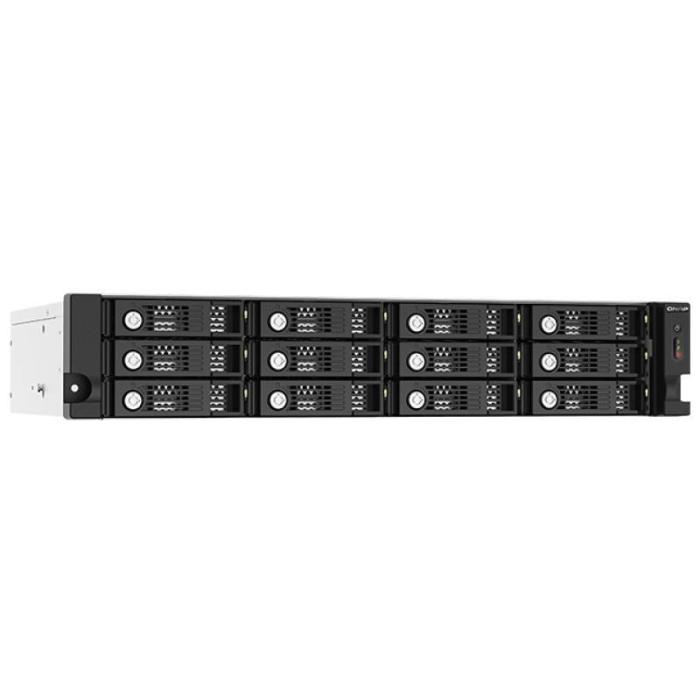

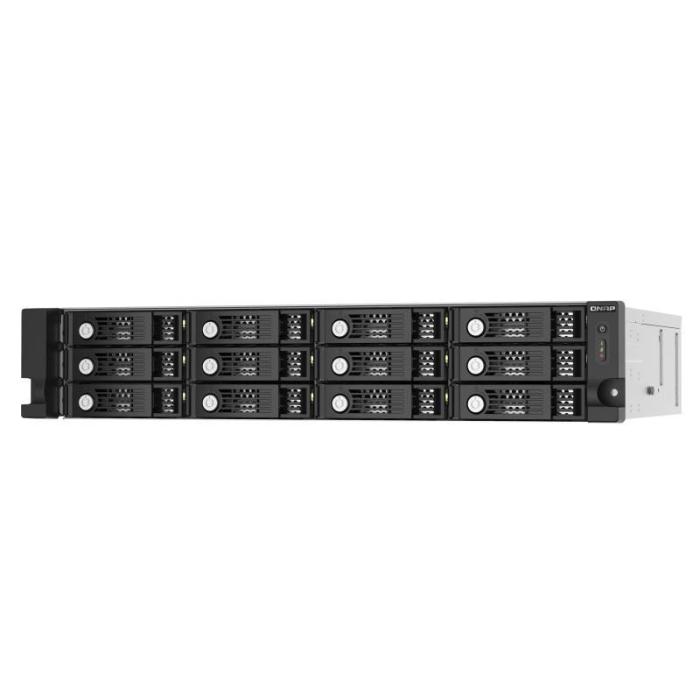

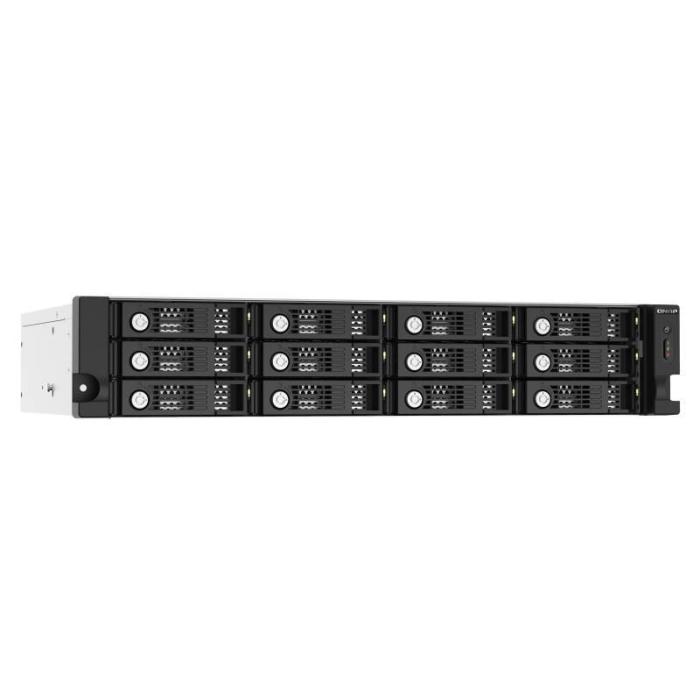

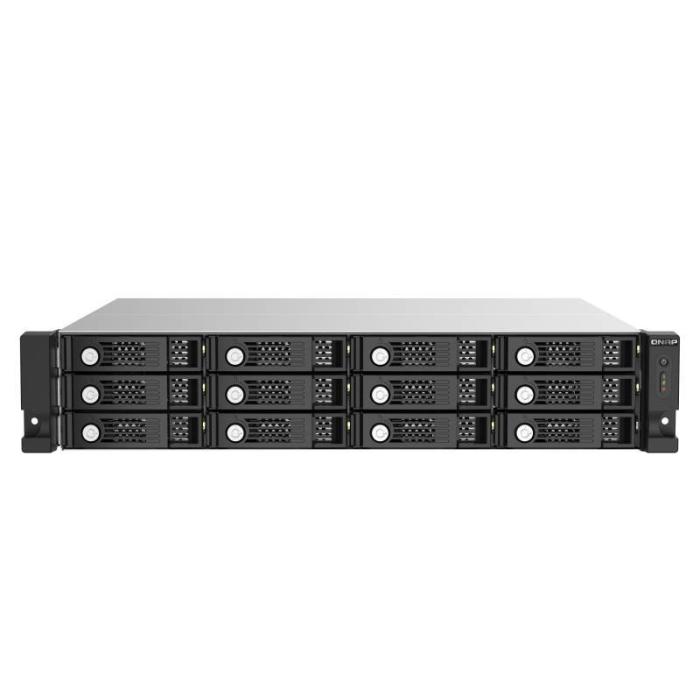

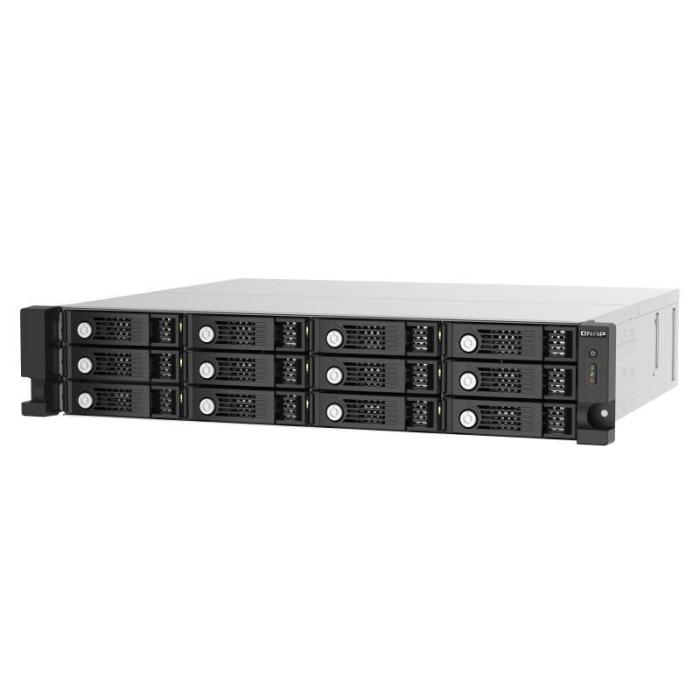

The QNAP TL-R1220Sep-RP HDD and SSD enclosure, in black and grey, is designed to house up to 12 2.5 and 3.5-inch storage drives. It supports SAS-3 and Serial ATA III, which makes it easy to integrate drives of different types in a single chassis. Its 2U rack-mount format makes the most of cabinet space with dimensions of 482.2 x 88.7 x 423.8 mm (width x height x depth) and a weight of 10.7 kg. It includes two 8 cm fans that help maintain drive temperature during operation. The data transfer speed reaches 12 Gbit/s, a relevant figure for environments that move large volumes of information. The hot-swap system allows drives to be replaced without stopping the equipment, while the LED indicators and the power on/off switch make it easy to monitor the status of the device. It also features a key lock to prevent accidental presses.
Specifications
Storage
- Number of storage drives supported: 12
- Storage drive size: 2.5/3.5"
- Supported storage drive interfaces: SAS-3, Serial ATA III
- Hot-swap: Yes
Ports & interfaces
- USB connectivity: No
Design
- Product type: HDD/SSD enclosure
- Product colour: Black, Grey
- LED indicators: Yes
- On/off switch: Yes
- Key lock: Yes
- Rack mounting: Yes
- Rack capacity: 2U

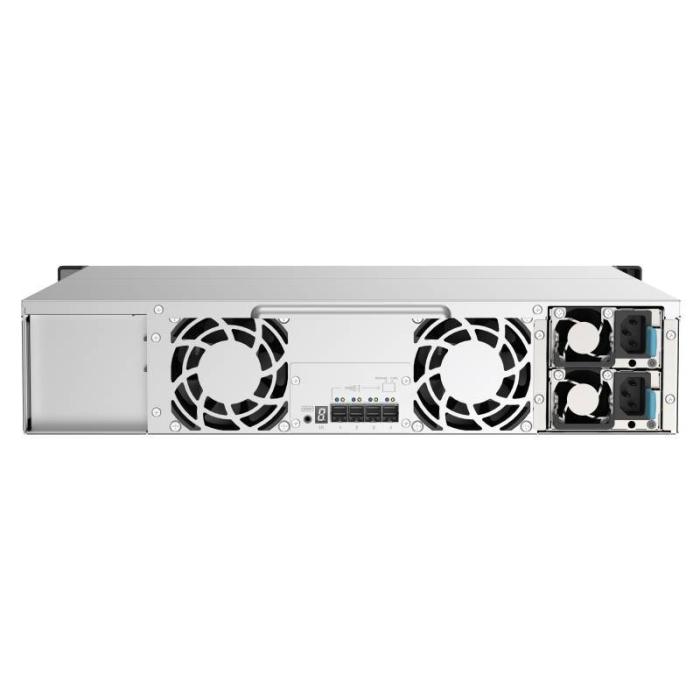

- Number of fans: 2 fan(s)
- Fan diameter: 8 cm
Performance
- Data transfer rate: 12 Gbit/s
- Noise level: 33.9 dB
- Country of origin: Taiwan
Power
- Power source type: AC
- AC adapter input voltage: 100-240 V
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 482.2 mm
- Depth: 423.8 mm
- Height: 88.7 mm
- Weight: 10.7 kg
- Package width: 595 mm
- Package depth: 600 mm
- Package height: 270 mm
- Package weight: 14 kg
Packaging content
- Number of keys included: 2 pc(s)

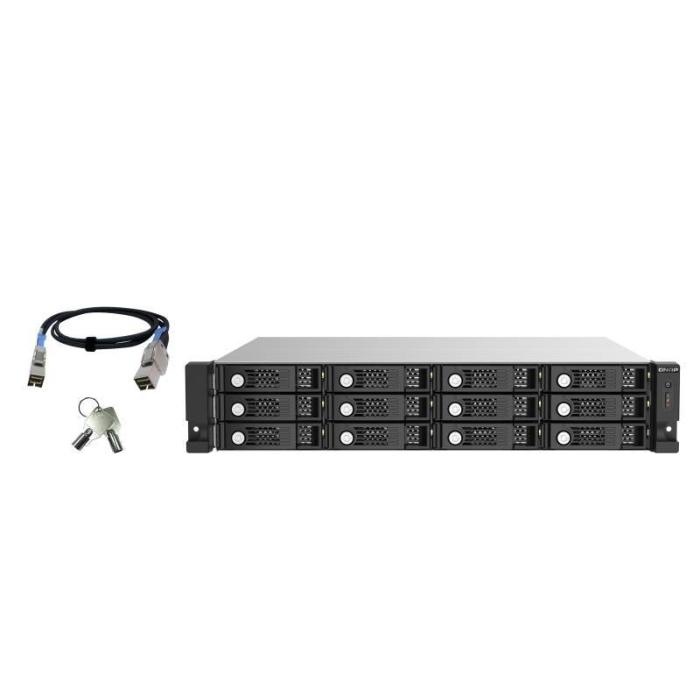

- Cables included: AC, MiniSAS
- Screws included: Yes
- Manual: Yes
Other features
- Host interface: 4 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644)
Logistics data
- Harmonized System (HS) code: 84733080
