Description

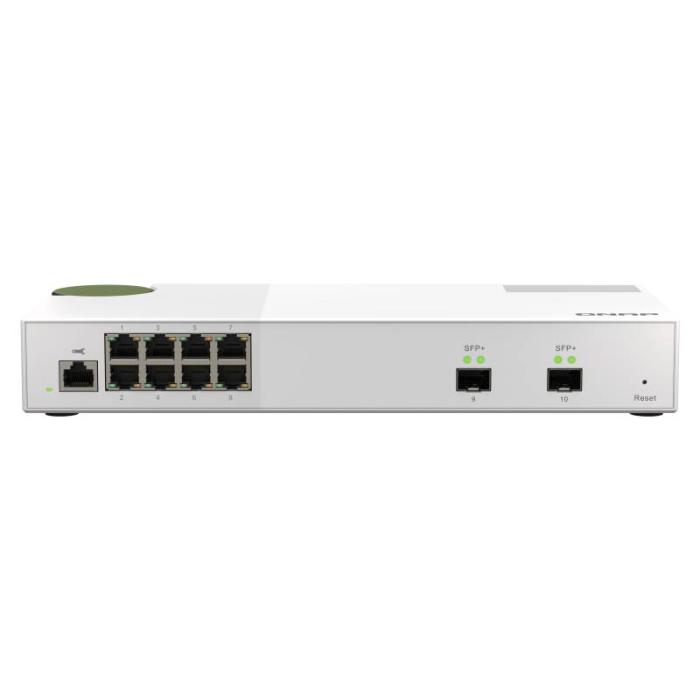

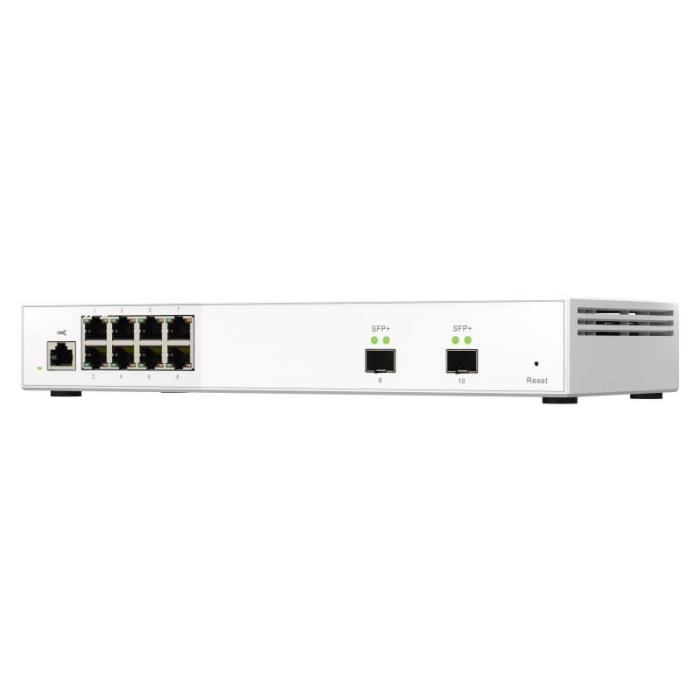

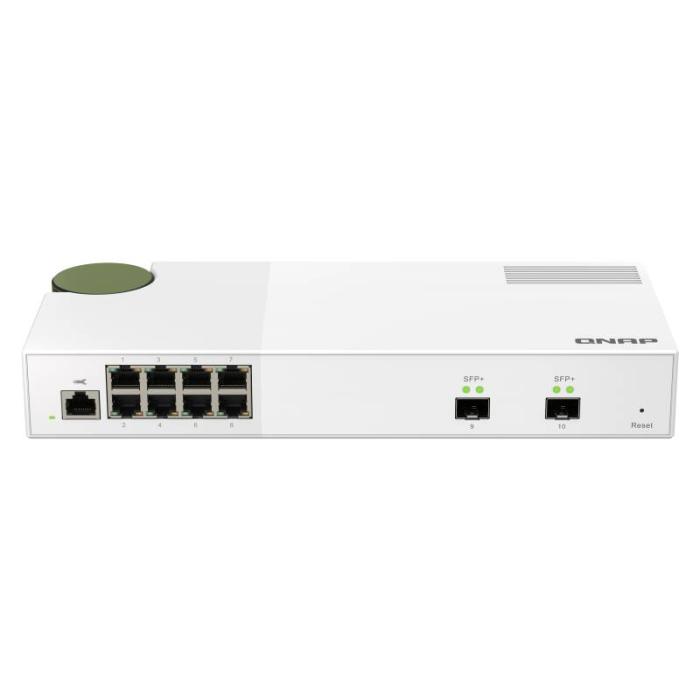

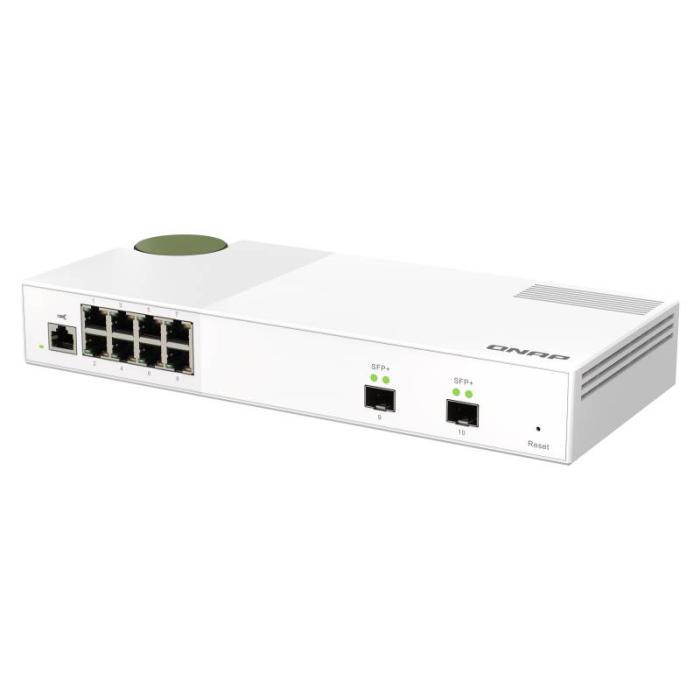

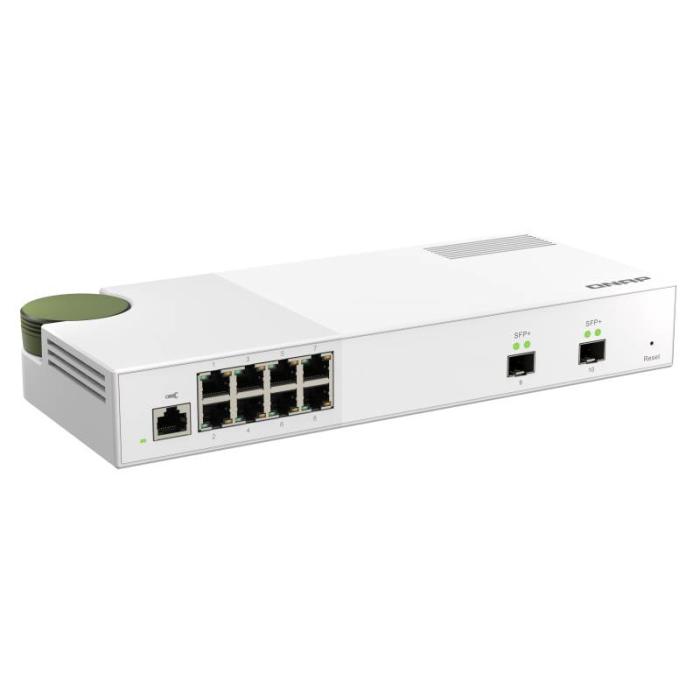

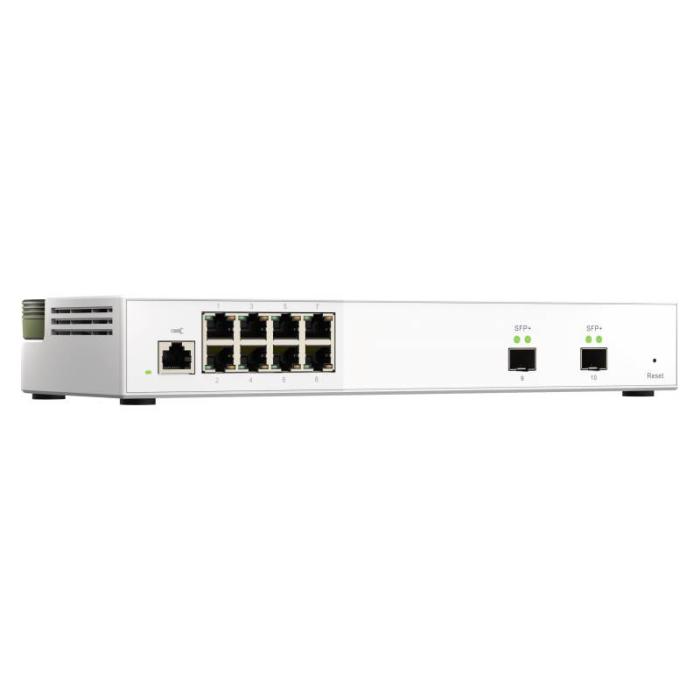

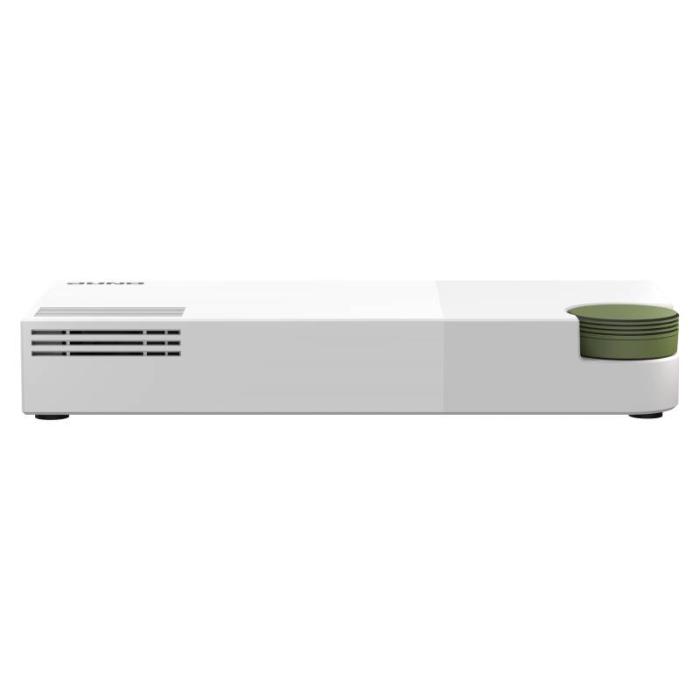

The QNAP QSW-M2108-2S is a managed Layer L2 switch in grey, measuring 290 x 42.5 x 127 mm and weighing 1.12 kg. It features eight 2.5G copper Ethernet ports with RJ-45 switching, compatible with speeds of 100, 1000 and 2500 Mbps, and adds two slots for SFP+ modules with 10G support. It also has an RJ-45 console port for configuration. Management is done via web and supports quality of service (QoS), tagged VLAN and spanning tree protocol. Flow control, auto-negotiation and full duplex mode facilitate traffic between connected devices, while copper cabling covers 100BASE-T and 1000BASE-T and fibre optics work with 1000BASE-LX and 1000BASE-SX. With this combination of multigigabit copper ports and fibre links, the device is aimed at expanding the network of an office or a small communications cabinet.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 8
- SFP+ module slots quantity: 2
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 80
- 10G support: Yes
- Copper ethernet cabling technology: 100BASE-T, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Spanning tree protocol: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
Optical fiber
- Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX
Data transmission
- Throughput: 40 Gbit/s
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Switching capacity: 80 Gbit/s
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Design
- Rack mounting: No
- Stackable: No
- Product colour: Grey
- Reset button: Yes
- LED indicators: Activity, Link, Power, Speed, Status
- Number of fans: 1 fan(s)
- Electromagnetic compatibility: CLASS A
Performance
- Firmware upgradeable: Yes
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 12 V
- Power consumption (max): 23 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 290 mm
- Depth: 127 mm
- Height: 42.5 mm
- Weight: 1.12 kg
Packaging content
- Quick start guide: Yes
Packaging data
- Package weight: 1.52 kg
Certificates
- Certification: CE, FCC, VCCI, BSMI
Logistics data
- Harmonized System (HS) code: 85176990
