Description

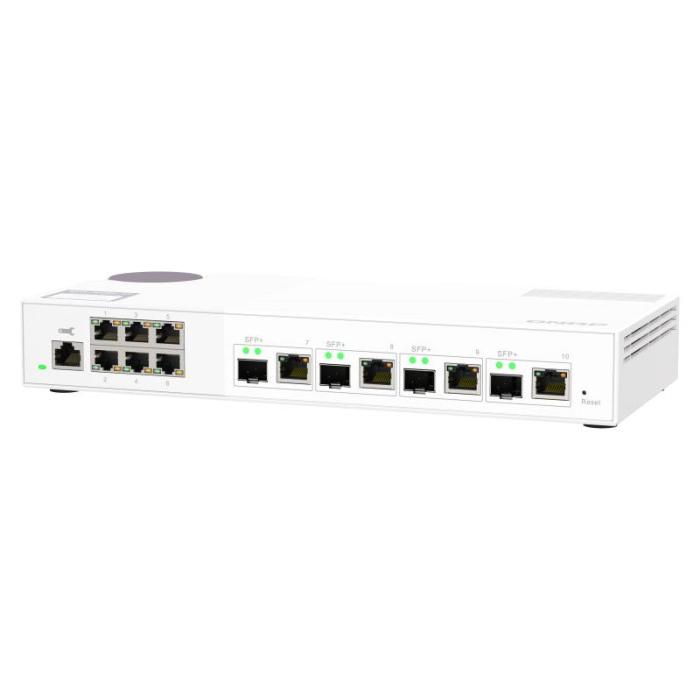

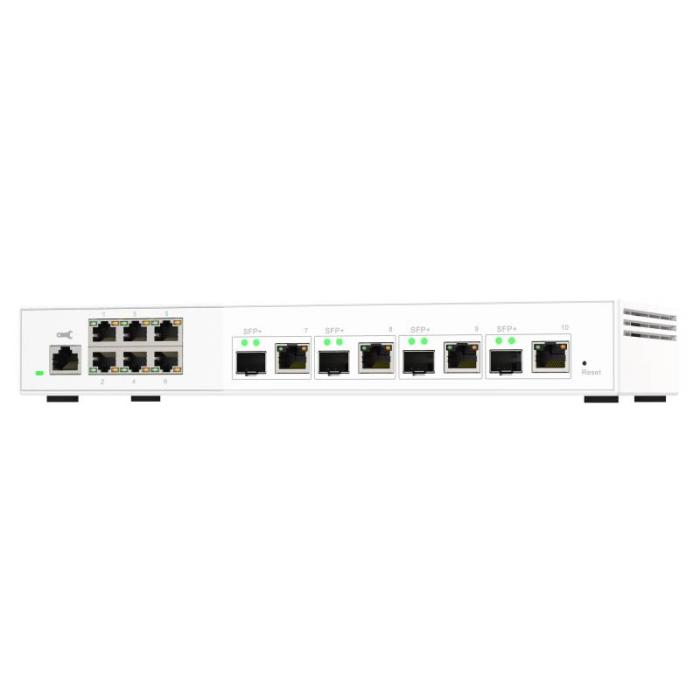

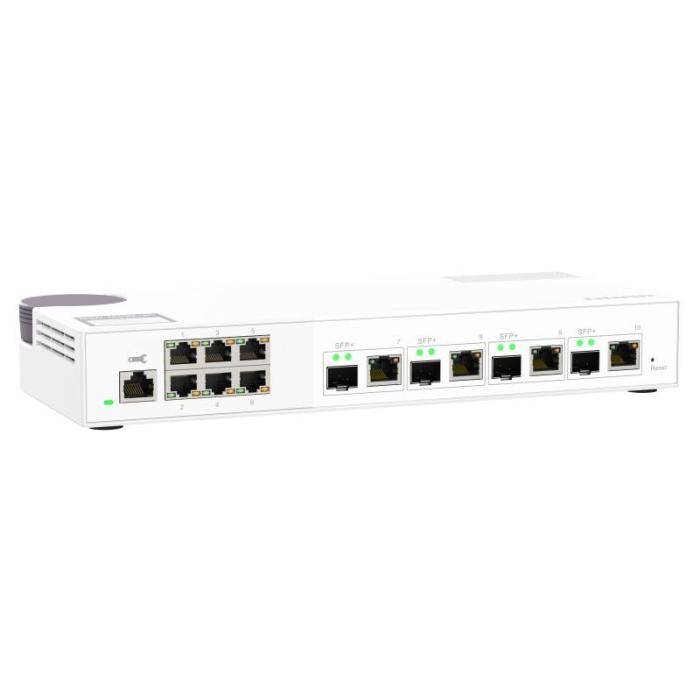

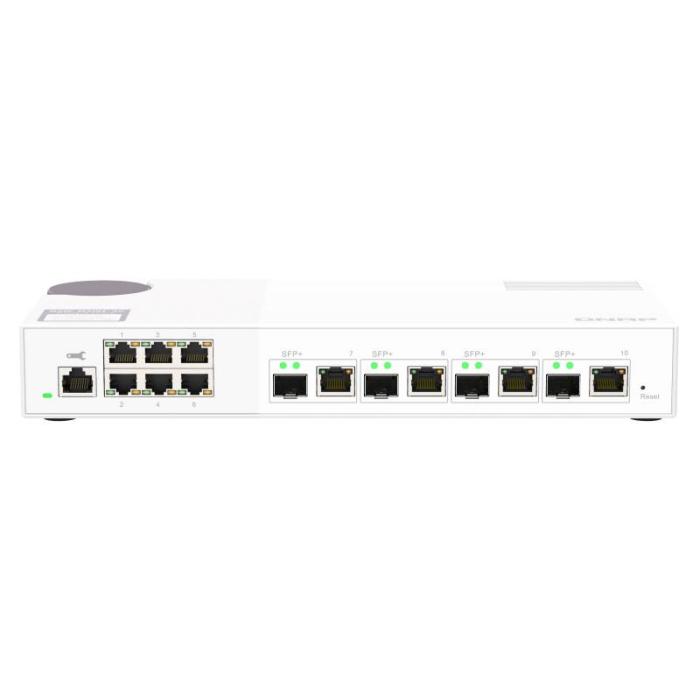

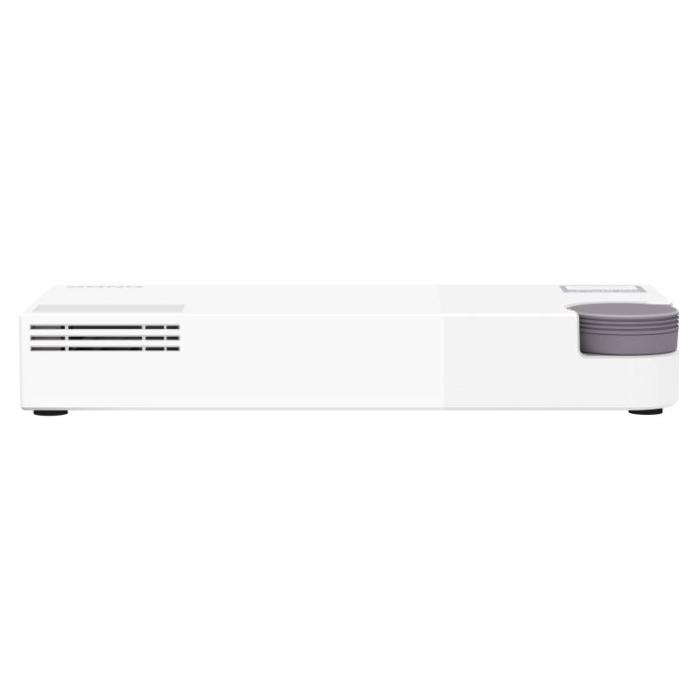

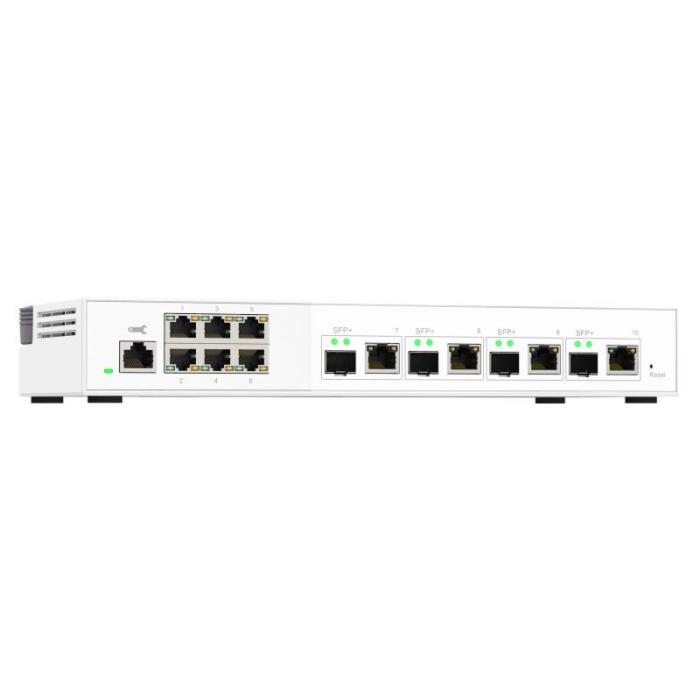

The QNAP QSW-M2106-4C is an L2 layer managed switch with web-based management and QoS support, designed to segment and prioritise traffic on a demanding network. It offers six 2.5G copper Ethernet ports with auto-negotiation and full duplex, compatible with 10BASE-T, 100BASE-T, 1000BASE-T and 2500BASE-T, plus four combo SFP ports with 10G support for 1000BASE-LX and 1000BASE-SX fibre optic links. It includes an RJ-45 console port for local management, as well as flow control and spanning tree protocol to maintain topology stability. As for segmentation, it supports VLAN and port-based VLAN and tagged VLAN virtual LAN functions. Its white chassis measures 290 x 42.5 x 127 mm (width x height x depth) and weighs 1.15 kg, a compact format that fits into desktop installations or communications cabinets.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 6
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 6
- Combo SFP ports quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 80
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Spanning tree protocol: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Tagged VLAN
Optical fiber
- Fiber ethernet cabling technology: 1000BASE-LX, 1000BASE-SX
Data transmission
- Switching capacity: 110 Gbit/s
- Throughput: 55 Gbit/s
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Design
- Rack mounting: No
- Product colour: White
- Reset button: Yes
- LED indicators: Activity, Link, Power, Speed, Status
- Number of fans: 1 fan(s)
- Electromagnetic compatibility: Class B
Performance
- Firmware upgradeable: Yes
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 12 V
- Input current: 3 A
- Power consumption (max): 36 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 290 mm
- Depth: 127 mm
- Height: 42.5 mm
- Weight: 1.15 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package weight: 1.75 kg
Certificates
- Certification: CE, FCC, VCCI, BSMI
