222B1TC LCD monitor with SmoothTouch

Specifications

Display


  • Display diagonal: 54.6 cm (21.5")
  • Display resolution: 1920 x 1080 pixels
  • HD type: Full HD
  • Native aspect ratio: 16:9
  • Display technology: LED
  • Panel type: IPS
  • Backlight type: W-LED
  • Touchscreen: Yes
  • Touchscreen technology: Capacitive
  • Touch technology: Multi-touch
  • Number of simultaneous touchpoints: 10
  • Display brightness (typical): 250 cd/m²
  • Display brightness: 250 cd/m²
  • Response time: 4 ms
  • Screen shape: Flat
  • Aspect ratio: 16:9
  • Contrast ratio (typical): 1000:1
  • Contrast ratio (dynamic): 50000000:1
  • Dynamic contrast ratio marketing name: SmartContrast
  • Maximum refresh rate: 75 Hz
  • Viewing angle, horizontal: 178°
  • Viewing angle, vertical: 178°
  • Display number of colours: 16.7 million colours
  • Pixel pitch: 0.24795 x 0.24795 mm
  • Pixel density: 102 ppi
  • Horizontal scan range: 30 - 85 kHz
  • Vertical scan range: 48 - 60 Hz
  • Viewable size, horizontal: 47.6 cm
  • Viewable size, vertical: 26.8 cm
  • Display diagonal (metric): 54.6 cm
  • DDC/CI: Yes
  • Surface hardness: 3H
  • sRGB coverage (typical): 102%
  • NTSC coverage (typical): 85%
  • Adobe RGB coverage: 84%
  • Display sRGB: Yes

Performance


  • NVIDIA G-SYNC: No
  • AMD FreeSync: No
  • Component video sync: Separate sync, Sync-on-green (SOG)
  • Flicker-free technology: Yes
  • Low Blue Light technology: Yes
  • Operating system installed: Windows 10
  • Windows operating systems supported: Windows 10

Multimedia


  • Number of speakers: 2
  • RMS rated power: 2 W
  • Built-in speaker(s): Yes
  • Built-in camera: No

Design


  • Product colour: Black
  • Front bezel colour: Black
  • Feet colour: Black

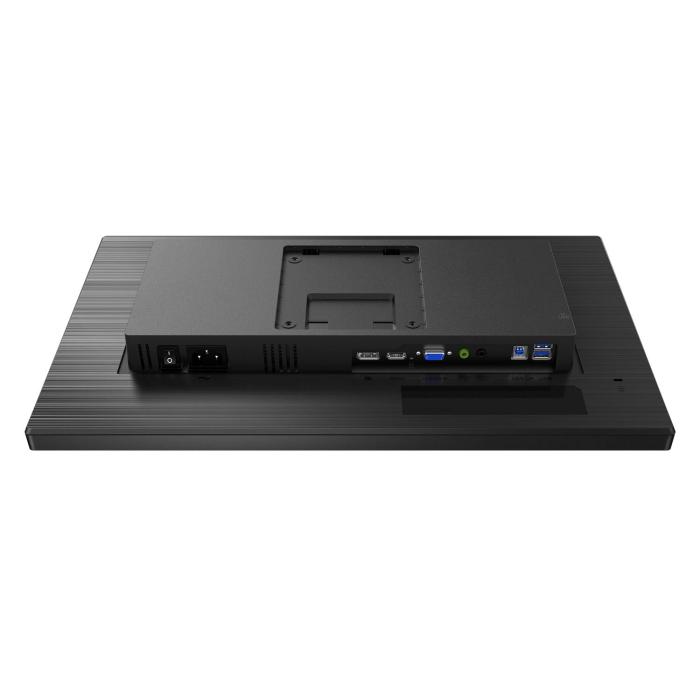

Ports & interfaces


  • Built-in USB hub: Yes
  • Number of upstream ports: 1
  • USB Touch port: Yes
  • VGA (D-Sub) ports quantity: 1
  • HDMI: Yes
  • HDMI ports quantity: 1
  • HDMI version: 1.4
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Audio output: PC audio-in, HeadphoneY
  • Headphone out: Yes
  • PC Audio in: Yes

Ergonomics


  • VESA mounting: Yes
  • Panel mounting interface: 100 x 100 mm
  • Wall mountable: Yes
  • Cable lock slot: Yes
  • Cable lock slot type: Kensington
  • Height adjustment: Yes
  • Adjustable height (max): 8.5 cm
  • Tilt adjustment: Yes
  • Tilt angle range: -5 - 90°
  • On Screen Display (OSD): Yes
  • On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Jap
  • Number of OSD languages: 21
  • Palm rejection area: 30 x 30 mm
  • Plug and Play: Yes
  • LED indicators: Operation, Stand-by

Power


  • Energy efficiency class (SDR): E
  • Energy consumption (SDR) per 1000 hours: 16 kWh
  • Power consumption (typical): 13.1 W
  • Power consumption (standby): 0.3 W
  • Power consumption (off): 0 W
  • Power consumption (PowerSave): 10.5 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power supply type: Internal
  • Energy efficiency scale: A to G
  • European Product Registry for Energy Labelling (EPREL) code: 471603

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Operating altitude: 0 - 3658 m
  • Non-operating altitude: 0 - 12192 m

Weight & dimensions


  • Width (with stand): 489 mm
  • Depth (with stand): 227 mm
  • Height (with stand): 384 mm
  • Weight (with stand): 6.13 kg
  • Width (without stand): 489 mm
  • Depth (without stand): 52 mm
  • Height (without stand): 294 mm
  • Weight (without stand): 2.79 kg

Packaging data


  • Package width: 585 mm
  • Package depth: 138 mm
  • Package height: 400 mm
  • Package weight: 8.27 kg

Packaging content


  • Stand included: Yes
  • Cables included: HDMI, DisplayPort, USB Type-A to USB Type-B, AC
  • Manual: Yes
  • Bundled software: SmartControl

Sustainability


  • Sustainability certificates: ENERGY STAR, TCO
  • Doesn't contain: PVC/BFR, Mercury

Other features


  • Display viewable area (HxV): 476.06 x 267.79 mm
  • Picture enhancement: SmartImage
  • Recyclable packaging material: 100%
  • Regulatory Approvals: CB; SEMKO; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; ICES-003; FCC Class B; TUV Eye Comfort certified
  • Heavy metals free: Hg (mercury)
  • Folding angle: 70°
  • Touch method: Finger
  • EasyRead mode: Yes
  • Compliance certificates: RoHS
  • Mean time between failures (MTBF): 70000 h
  • Certification: CB, SEMKO, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, ICES-003, FCC Class B, TUV Eye Comfort certified

Logistics data


  • Harmonized System (HS) code: 85285210
