Description

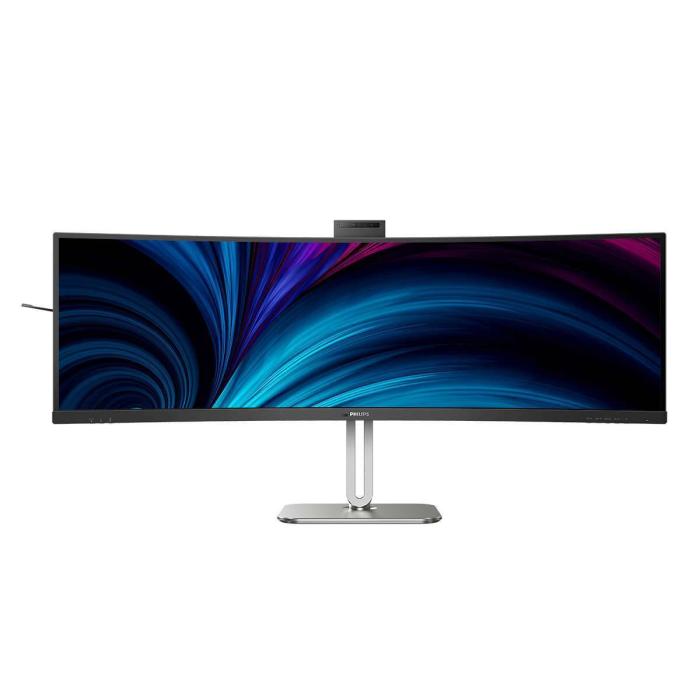

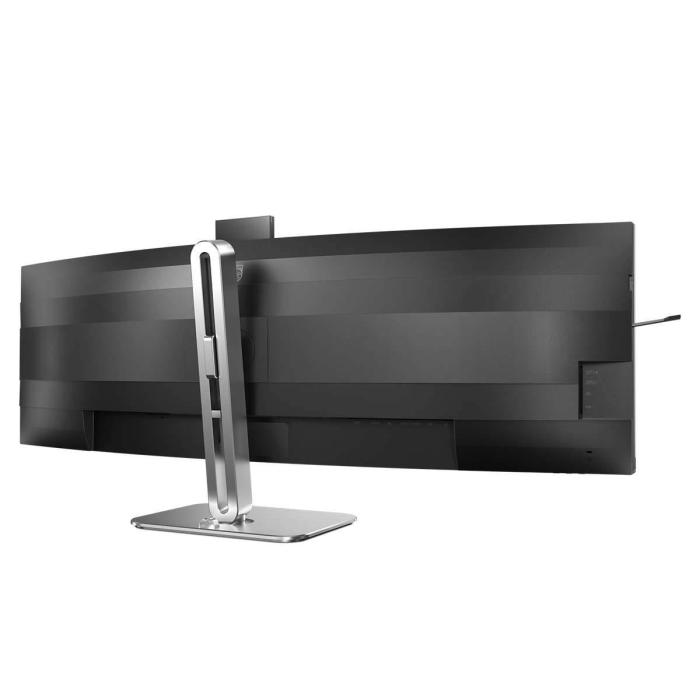

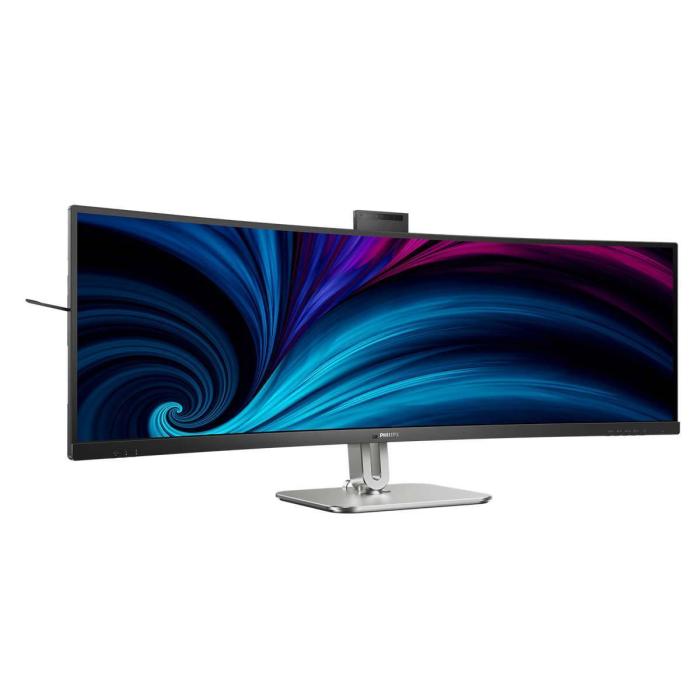

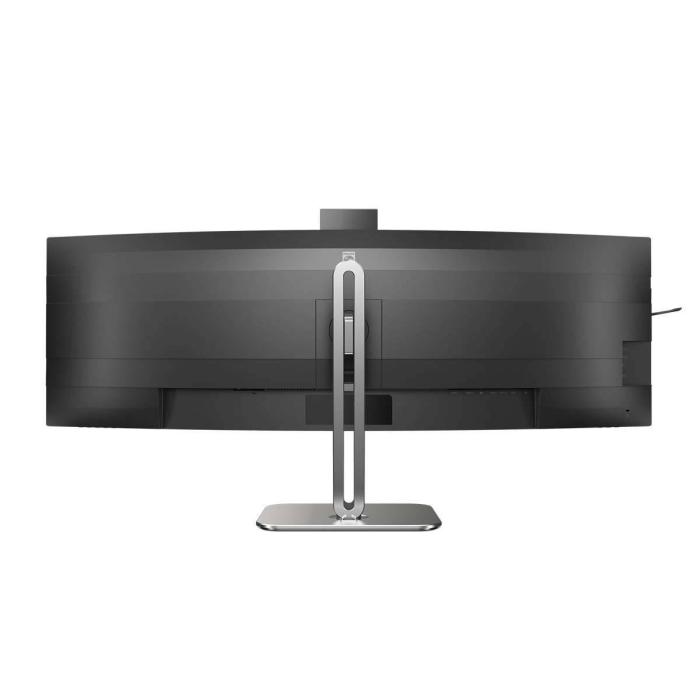

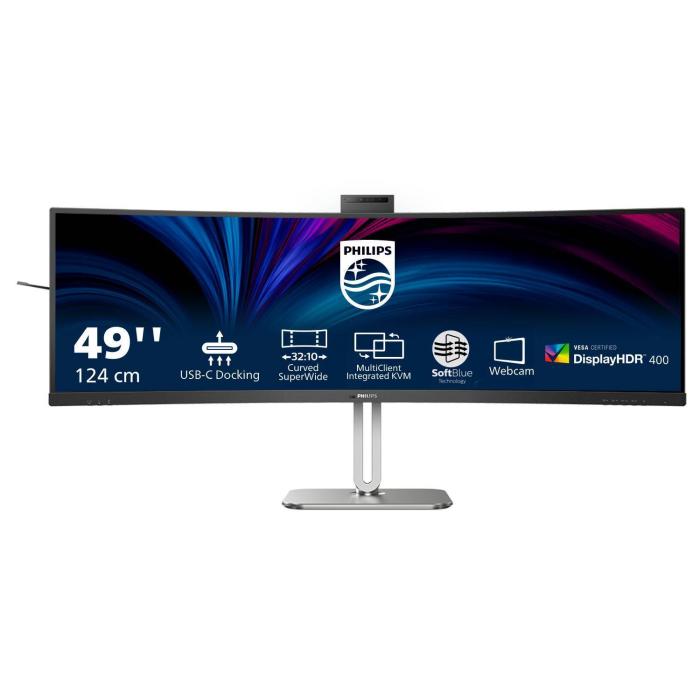

Curved Business Monitor 49B2U6900CH 32:9 SuperWide curved monitor with USB-C

Specifications

Display


  • Display diagonal: 124 cm (48.8")
  • Display resolution: 5120 x 1440 pixels
  • HD type: Dual QHD
  • Native aspect ratio: 32:9
  • Display technology: LCD
  • Panel type: VA
  • Backlight type: W-LED
  • Touchscreen: No
  • Display brightness (typical): 450 cd/m²
  • Response time: 4 ms
  • Anti-glare screen: Yes
  • Screen shape: Curved
  • Contrast ratio (typical): 3000:1
  • Contrast ratio (dynamic): 80000000:1
  • Maximum refresh rate: 75 Hz
  • Viewing angle, horizontal: 178°
  • Viewing angle, vertical: 178°
  • Display number of colours: 1.07 billion colours
  • Pixel pitch: 0.2328 x 0.2328 mm
  • Pixel density: 109 ppi
  • Horizontal scan range: 30 - 140 kHz
  • Vertical scan range: 48 - 75 Hz
  • Viewable size, horizontal: 119.2 cm
  • Viewable size, vertical: 33.5 cm
  • Display diagonal (metric): 124 cm
  • High Dynamic Range (HDR) supported: Yes
  • High Dynamic Range (HDR) technology: DisplayHDR 400
  • DDC/CI: Yes
  • Haze rate: 25%
  • Surface hardness: 3H
  • Colour depth: 8 bit
  • sRGB coverage (typical): 119%
  • NTSC coverage (typical): 97%
  • Display sRGB: Yes

Performance


  • VESA Adaptive Sync support: Yes
  • Component video sync: Separate sync
  • Flicker-free technology: Yes
  • Low Blue Light technology: Yes

Multimedia


  • Number of speakers: 2
  • RMS rated power: 10 W
  • Built-in speaker(s): Yes
  • Megapixel (approx.): 5 MP
  • Built-in microphone: Yes
  • Built-in camera: Yes

Design


  • Product colour: Black
  • Front bezel colour: Black
  • Feet colour: Black

Ports & interfaces


  • Built-in USB hub: Yes
  • USB hub version: 3.2 Gen 2 (3.1 Gen 2)
  • USB upstream port type: USB Type-C
  • Number of USB Type-C upstream ports quantity: 2
  • USB Type-A downstream ports quantity: 4
  • USB Type-C downstream ports quantity: 1
  • USB Type-C DisplayPort Alternate Mode: Yes
  • USB Power Delivery (USB PD): Yes
  • USB Power Delivery up to: 100 W
  • HDMI: Yes
  • HDMI ports quantity: 2
  • HDMI version: 2.0
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Audio output: Yes
  • Headphone out: Yes
  • Microphone in: Yes
  • Built-in KVM switch: Yes
  • HDCP: Yes
  • HDCP version: 1.4/2.2

Network


  • Ethernet LAN: Yes

Ergonomics

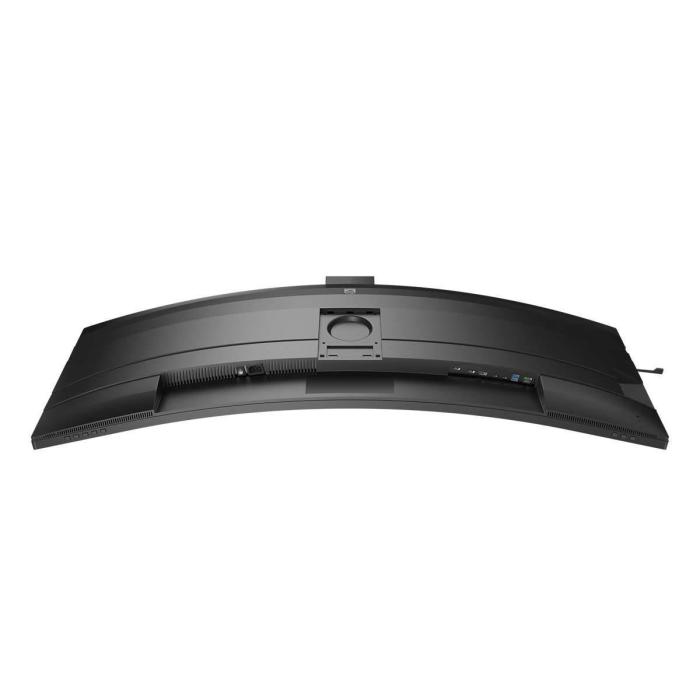

  • VESA mounting: Yes
  • Panel mounting interface: 100 x 100 mm
  • Cable lock slot: Yes
  • Cable lock slot type: Kensington
  • Height adjustment: Yes
  • Adjustable height (max): 15 cm
  • Swivelling: Yes
  • Swivel angle range: -30 - 30°
  • Tilt adjustment: Yes
  • Tilt angle range: -5 - 15°
  • Picture-in-Picture: Yes
  • On Screen Display (OSD): Yes
  • On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Jap
  • Number of OSD languages: 21
  • Plug and Play: Yes
  • LED indicators: Operation, Stand-by

Power


  • Energy efficiency class (SDR): F
  • Power consumption (typical): 48.1 W
  • Power consumption (standby): 0.3 W
  • Power consumption (PowerSave): 37.5 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power supply type: Internal

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Operating altitude: 0 - 3658 m
  • Non-operating altitude: 0 - 12192 m

Weight & dimensions


  • Width (with stand): 1193 mm
  • Depth (with stand): 268 mm
  • Height (with stand): 583 mm
  • Weight (with stand): 15.2 kg
  • Width (without stand): 1193 mm
  • Depth (without stand): 164 mm
  • Height (without stand): 373 mm
  • Weight (without stand): 11.6 kg

Packaging data


  • Package width: 1290 mm
  • Package depth: 475 mm
  • Package height: 300 mm
  • Package weight: 19.4 kg

Packaging content


  • Stand included: Yes
  • Manual: Yes
  • Bundled software: SmartControl

Sustainability


  • Doesn't contain: Mercury, PVC/BFR

Other features


  • HBR3 support: Yes
  • Picture-by-Picture (PbP): Yes
  • Exterior finish type: Textured
  • Picture enhancement: SmartImage
  • Recyclable packaging material: 100%
  • Regulatory Approvals: CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eyesafe certified; cETLus; EAC; MEPS; PSE; TCO Cert
  • Delta E: 2
  • LowBlue mode: Yes
  • Philips SmartUniformity: 93 - 105%
  • Mean time between failures (MTBF): 70000 h
  • Wake-on-LAN: Yes

Recycling data


  • Post-consumer recycled plastic: 85%
