Description

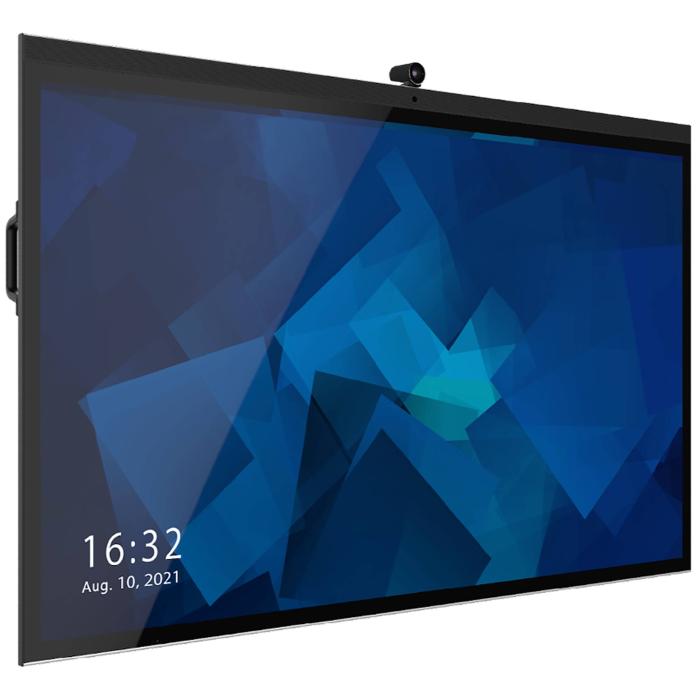

The Newline 65'' Z is a 165.1 cm interactive flat panel with LED technology and 4K Ultra HD resolution. Its touchscreen supports up to 20 simultaneous touch points, with a brightness of 400 cd/m² and a typical contrast ratio of 5000:1. It offers a horizontal viewing angle of 178°, a response time of 8 ms and displays 1.07 billion colours. It incorporates a processor with Android 11 and Wi-Fi connectivity, and includes LED backlighting with a lifespan of 50,000 hours. The surface achieves a hardness of 7H, with a transparency of 88% and a haze level of between 2% and 5%, in 16:9 format and a black colour finish.
Specifications
Display
- LED backlight: Yes
- Display diagonal: 165.1 cm (65")
- Display technology: LED
- Display resolution: 3840 x 2160 pixels
- Display brightness: 400 cd/m²
- HD type: 4K Ultra HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 20
- Native aspect ratio: 16:9
- Response time: 8 ms
- Contrast ratio (typical): 5000:1
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Display number of colours: 1.07 billion colours
- Active display area (W x H): 1427 x 805 mm
- Display diagonal (metric): 165 cm
- Panel life: 50000 h
- Transparency: 88%
- Haze rate: 2 - 5%
- Surface hardness: 7H
Ports & interfaces
- HDMI ports quantity: 4
- HDMI version: 2.0
- HDMI input ports quantity: 3
- HDMI output ports quantity: 1
- DVI port: No
- DisplayPorts quantity: 1
- USB port: Yes
- USB ports quantity: 9
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 2
- Wi-Fi: Yes
- Audio (L/R) out: 1
- Microphone in: Yes
- RS-232 interface: Yes
- OPS module slot: Yes
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 40 W
- Speaker impedance: 6 Ω
- Speaker frequency range: 180 - 20000 Hz
- Sound pressure level: -10 dB
Design
- Product design: Interactive flat panel
- Placement supported: Indoor
- Orientation: Horizontal
- Product colour: Black
- VESA mounting: Yes
- Panel mounting interface: 600 x 400 mm
- Anti-glare screen: Yes
- Positioning accuracy: 2 mm
Performance
- Purpose: Universal
- Firmware upgradeable: Yes
- Pen type: Passive pen
- Writing tools: Finger, Passive pen
- HID support: Yes
- Optical bonding: Yes
- Open Pluggable Specification (OPS): Yes
Power
- Power consumption (standby): 0.5 W
- Power consumption (max): 400 W
- AC input voltage: 100 - 240 V
Computer system
- Computer system: Yes
- Computer system type: System on Chip (SoC)
- Built-in processor: Yes
- Internal memory: 8 GB
- Internal storage capacity: 64 GB
- Operating system installed: Android 11
- Video formats supported: AVS, AVS+, H.263, H.264, HEVC/H.265, M-JPEG, MPEG1, MPEG2, MPEG4, MVC, RV30, RV40, Sorenson H.263, VC-1, VP8, VP9, WMV3
- Audio formats supported: AAC-LC, COOK, EAC3, FLAC, G.711 A-law, G.711 μ-law, HE-AAC, IMA-ADPCM, LBR, LPCM, MS-ADPCM, Vorbis
- Image formats supported: BMP, JPEG, PNG
Weight & dimensions
- Width: 1496 mm
- Depth: 83 mm
- Height: 919 mm
- Weight: 36 kg
- Display width: 1496 mm
- Display depth: 83 mm
- Display height: 919 mm
- Display weight: 36 kg
Packaging data
- Package width: 1640 mm
- Package depth: 205 mm
- Package height: 1036 mm
- Package weight: 46.5 kg
Operational conditions
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 0 - 90%
Technical details
- I/O ports: SPDIF x1
