Description

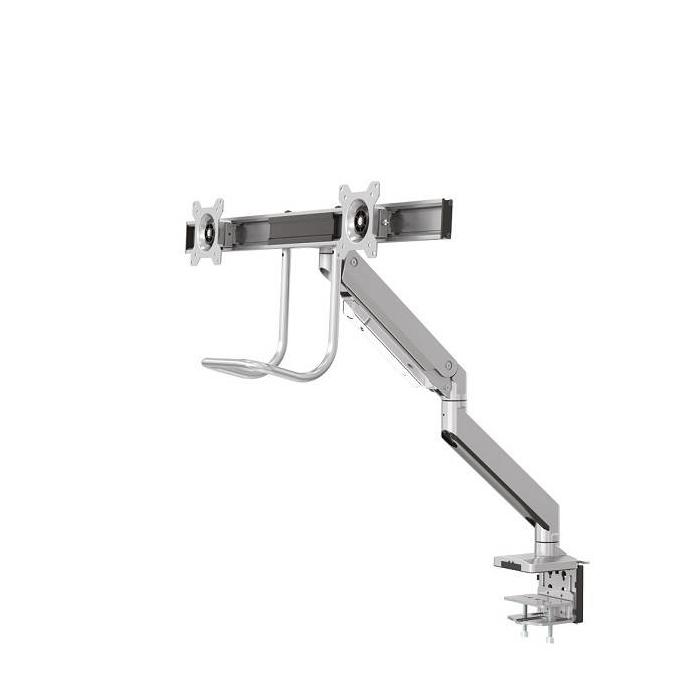

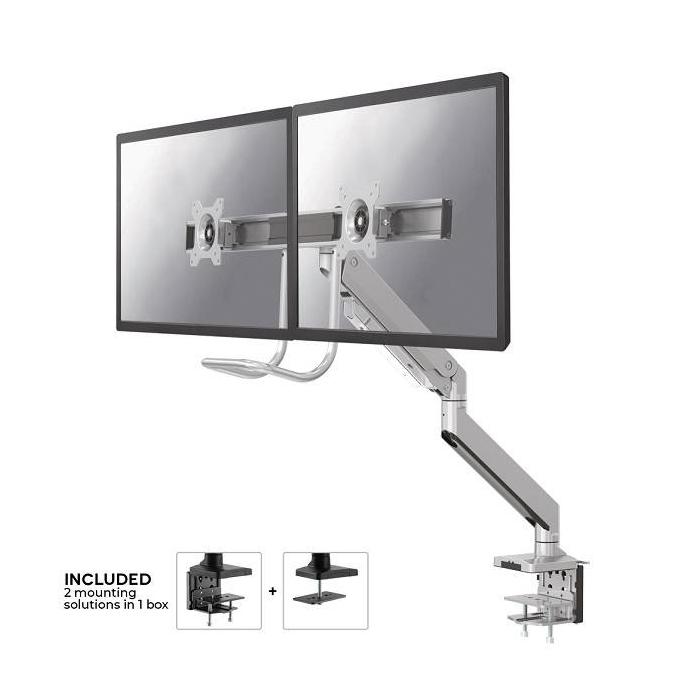

Newstar Neomounts NM-D775DXSILVER desktop monitor arm for two screens between 25.4 cm (10") and 81.3 cm (32"), with a maximum weight of 8 kg per display. It is fixed by clamp or screw to surfaces between 1 cm and 4.5 cm thick and supports 75 x 75 mm and 100 x 100 mm mounting interfaces. Its gas spring allows the height to be adjusted between 270 and 600 mm and the depth between 0 and 630 mm, as well as tilting, swivelling and rotating each screen. It includes cable management to keep the wiring tidy. The arm weighs 5.92 kg and its silver colour matches the rest of the equipment.
Specifications
Mounting
- Maximum weight capacity (per display): 8 kg
- Minimum screen size: 25.4 cm (10")
- Number of displays supported: 2
- Maximum screen size: 81.3 cm (32")
- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 4.5 cm
Ergonomics
- Height adjustment: Yes
- Height adjustment type: Gas spring
- Height adjustment range: 270 - 600 mm
- Depth adjustment range: 0 - 630 mm
- Tilt adjustment: Yes
- Tilt angle range: -10 - 10°
- Swivelling: Yes
- Swivel angle: 360°
- Swivel angle range: -90 - 90°
- Rotating: Yes
- Angle of rotation: 360°
- Cable management: Yes
- Pivot angle: -180 - 180°
Design
- Housing material: Steel
- Product colour: Silver
Weight & dimensions
- Height: 600 mm
- Weight: 5.92 kg
Packaging data
- Package width: 225 mm
- Package depth: 150 mm
- Package height: 895 mm
- Package net weight: 8.95 kg
- Package weight: 9 kg
Other features
- Minimum weight: 1 kg
Logistics data
- Master (outer) case width: 910 mm
- Master (outer) case length: 470 mm
- Master (outer) case height: 170 mm
- Master (outer) case gross weight: 9 kg
- Products per master (outer) case: 2 pc(s)
- Country of origin: China
- Master (outer) case net weight: 9 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 22 pc(s)
