Description

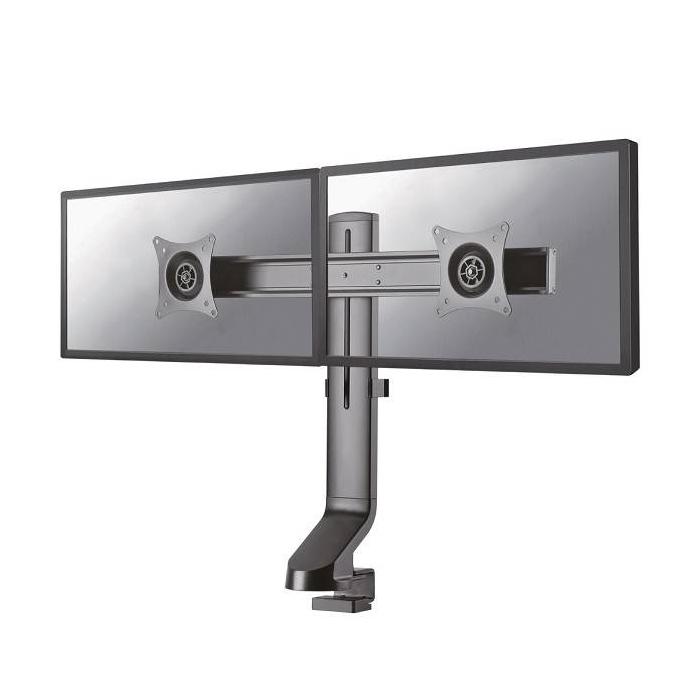

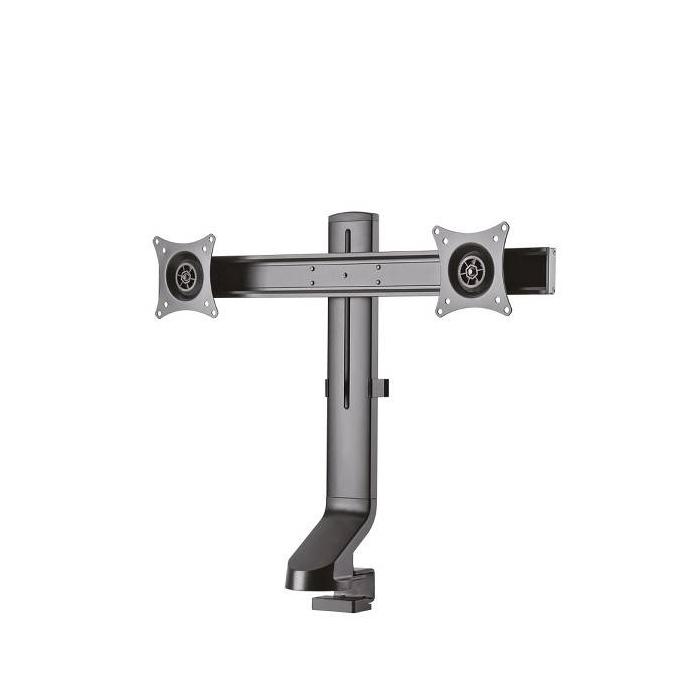

Desktop monitor arm from the brand NewStar, model FPMA-D860DBLACK, in black and weighing 3.21 kg. It is installed by means of a clamp or screwed and is designed for two screens of between 25.4 cm (10") and 68.6 cm (27"), with a maximum capacity of 7 kg per display. The panel mounting interface is 75 x 75 mm, and it supports mounting compatibilities of between 75 x 75 mm and 100 x 100 mm. It allows the height to be adjusted between 240 and 470 mm, as well as regulating the depth between 0 and 50 mm to move the screens closer or further away. It also offers tilt, rotation and swivel adjustment with an angle of 20°, so that you can orient each monitor according to your working posture. It incorporates cable management so that the connections remain tidy and the desk stays clear. The desk mounting system supports a maximum worktop thickness of 2.5 cm.
Specifications
Mounting
- Minimum screen size: 25.4 cm (10")
- Number of displays supported: 2
- Maximum weight capacity (per display): 7 kg
- Maximum screen size: 68.6 cm (27")
- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 75 x 75 mm
- Desk thickness (max): 2.5 cm
Ergonomics
- Height adjustment: Yes
- Height adjustment type: Manual
- Height adjustment range: 240 - 470 mm
- Depth adjustment range: 0 - 50 mm
- Tilt adjustment: Yes
- Tilt angle range: -10 - 10°
- Swivelling: Yes
- Swivel angle: 20°
- Swivel angle range: -10 - 10°
- Rotating: Yes
- Angle of rotation: 360°
- Number of pivot points: 1
- Cable management: Yes
- Pivot angle: -180 - 180°
Design
- Housing material: Aluminium
- Product colour: Black
Weight & dimensions
- Depth: 50 mm
- Height: 470 mm
- Weight: 3.21 kg
Packaging data
- Package width: 145 mm
- Package depth: 90 mm
- Package height: 745 mm
- Package weight: 3.8 kg
Logistics data
- Master (outer) case width: 540 mm
- Master (outer) case length: 320 mm
- Master (outer) case height: 445 mm
- Master (outer) case gross weight: 12.5 kg
- Products per master (outer) case: 4 pc(s)
- Country of origin: China
- Master (outer) case net weight: 10 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 88 pc(s)
