Description

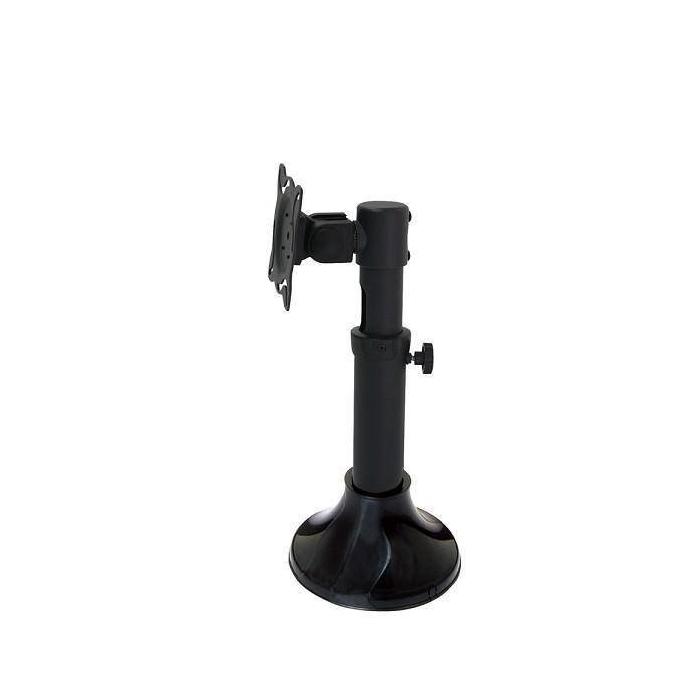

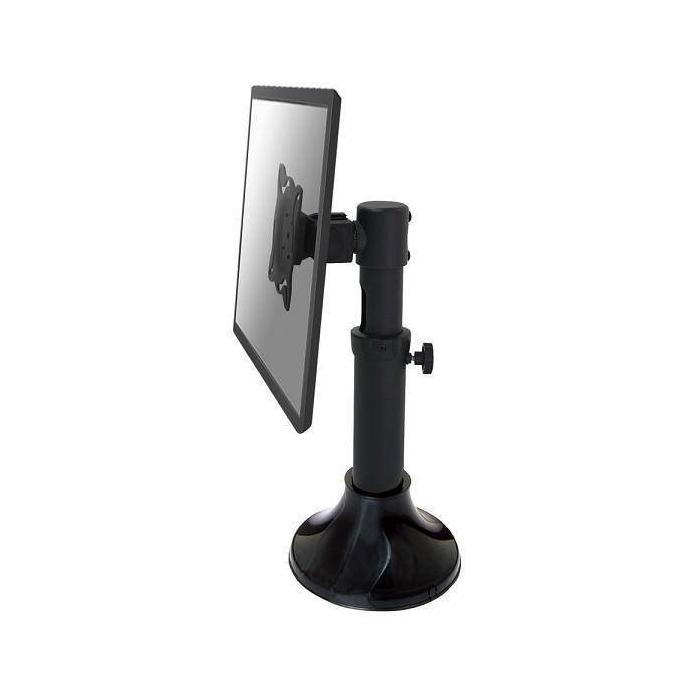

The NewStar FPMA-D025BLACK monitor arm, in black, is designed to hold a single screen measuring between 25.4 cm (10") and 76.2 cm (30"). It is installed on the desktop by means of a grommet mount and supports a maximum weight capacity of 12 kg. Its panel mounting interface is 75 x 75 mm, with compatibility both minimum of 75 x 75 mm and maximum of 100 x 100 mm. The tilt is adjustable between 0 and 180°, while the rotation reaches 360°. It offers manual height adjustment in a range of 370 to 470 mm, as well as a depth adjustment range of 0 to 50 mm. The housing is made of steel and the assembly weighs 2.28 kg.
Specifications
Mounting
- Maximum weight capacity: 12 kg
- Minimum screen size: 25.4 cm (10")
- Number of displays supported: 1
- Maximum screen size: 76.2 cm (30")
- Mounting: Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 75 x 75 mm
- Maximum weight capacity (per display): 12 kg
Ergonomics
- Height adjustment: Yes
- Height adjustment type: Manual

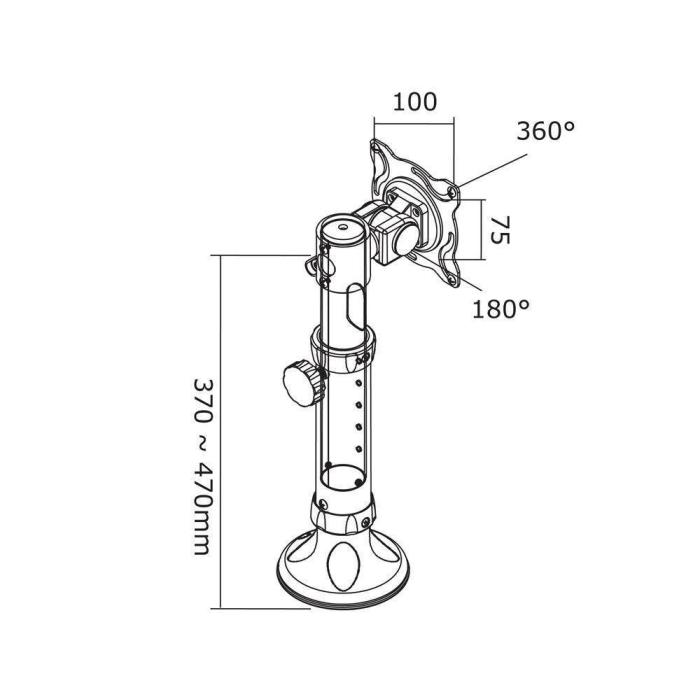

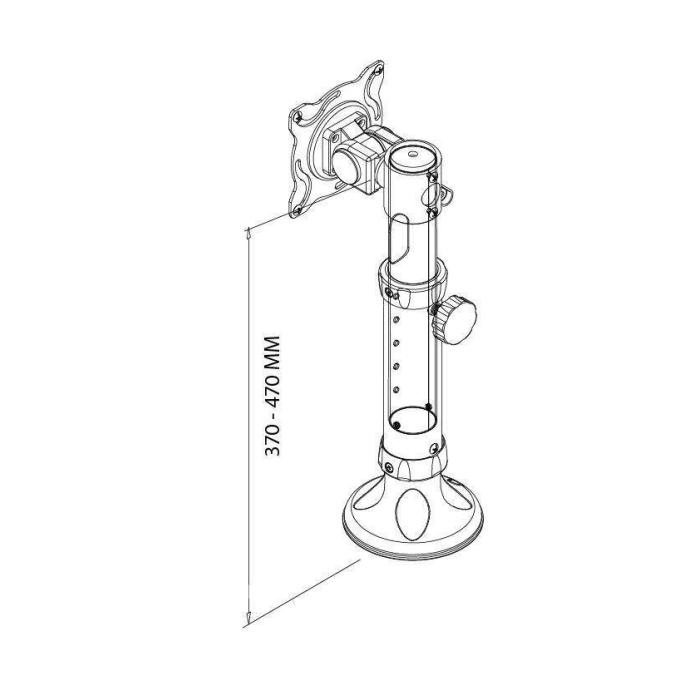

- Height adjustment range: 370 - 470 mm
- Depth adjustment range: 0 - 50 mm
- Tilt adjustment: Yes
- Tilt angle range: 0 - 180°
- Angle of rotation: 360°
Design
- Housing material: Steel
- Product colour: Black
Weight & dimensions
- Depth: 50 mm
- Height: 470 mm
- Weight: 2.28 kg
Packaging data
- Package width: 403 mm
- Package depth: 182 mm
- Package height: 191 mm
- Package weight: 2.8 kg
Logistics data
- Master (outer) case width: 590 mm
- Master (outer) case length: 437 mm
- Master (outer) case height: 240 mm
- Master (outer) case gross weight: 10.5 kg
- Products per master (outer) case: 3 pc(s)
- Country of origin: Taiwan
- Master (outer) case net weight: 9.3 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 84 pc(s)
