Description

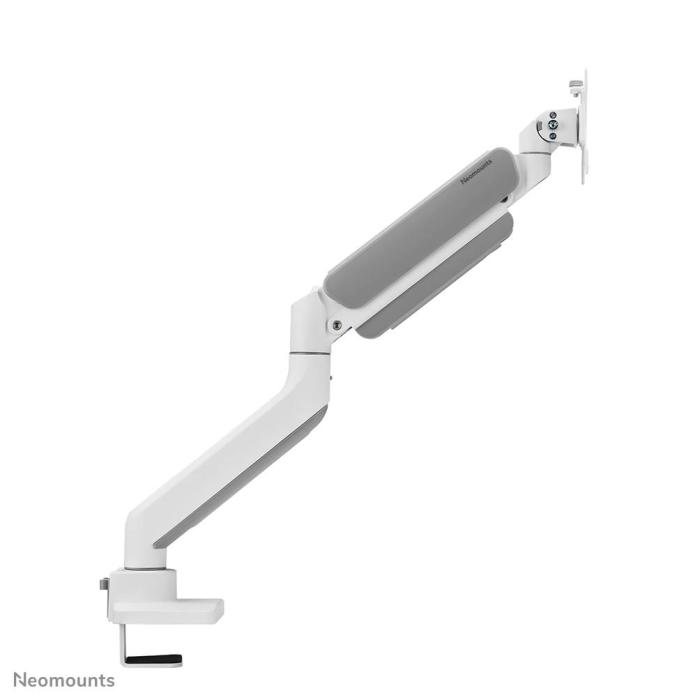

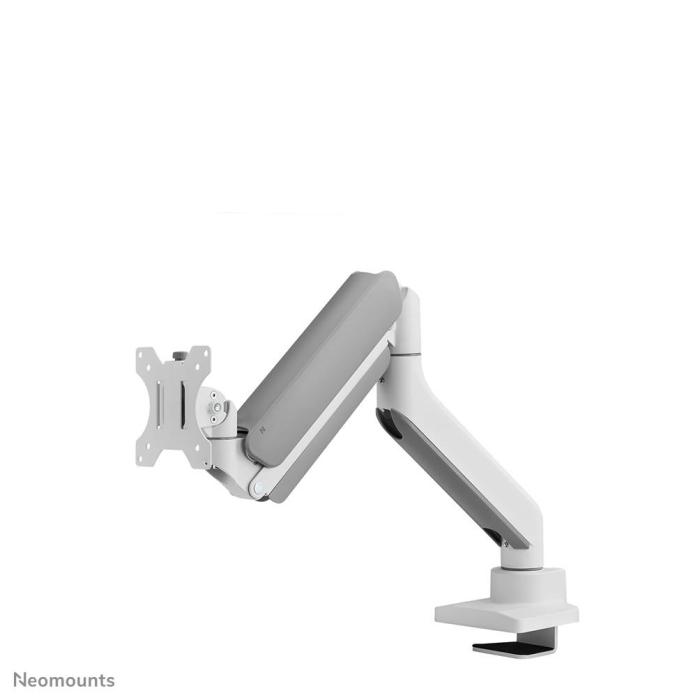

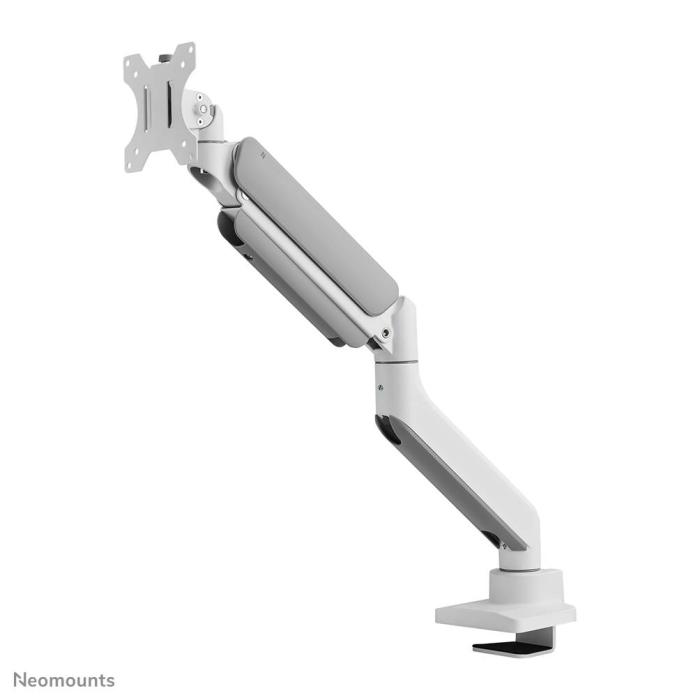

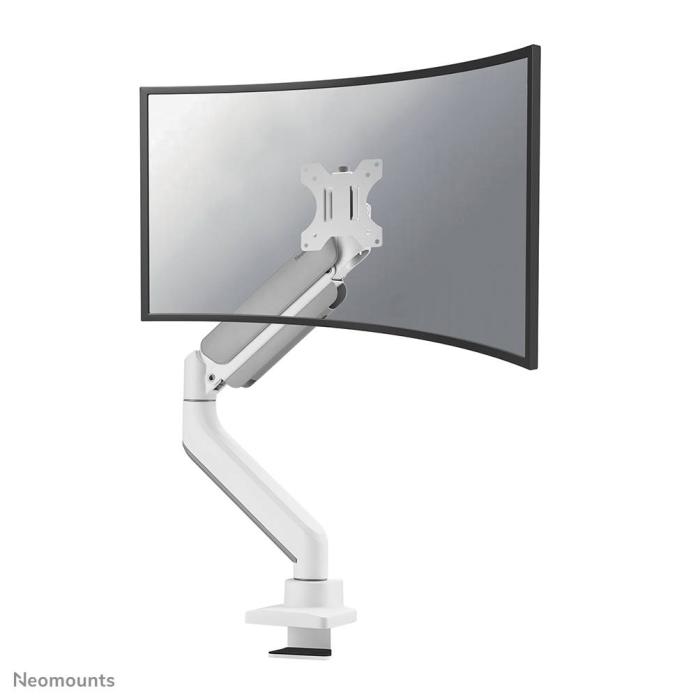

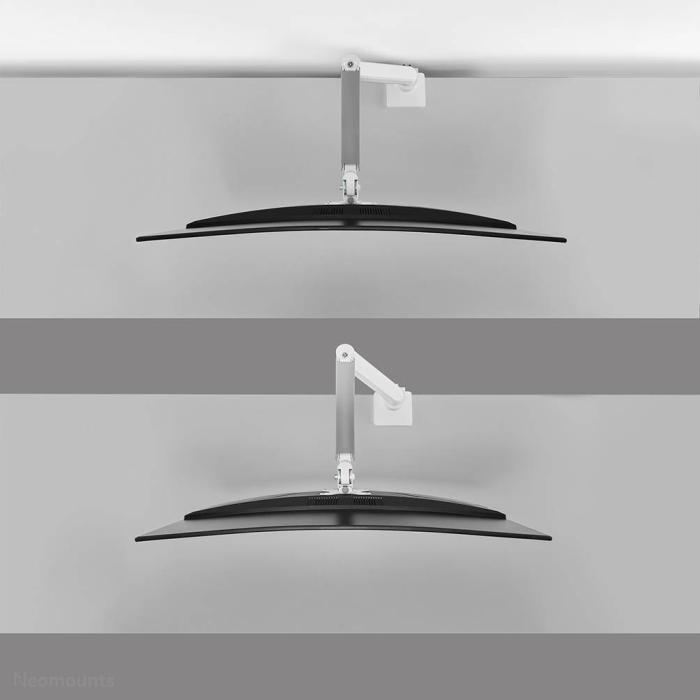

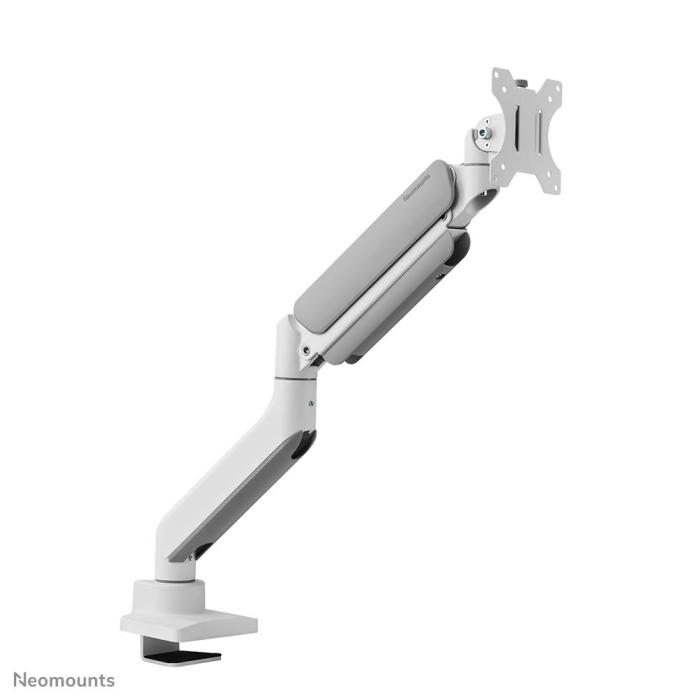

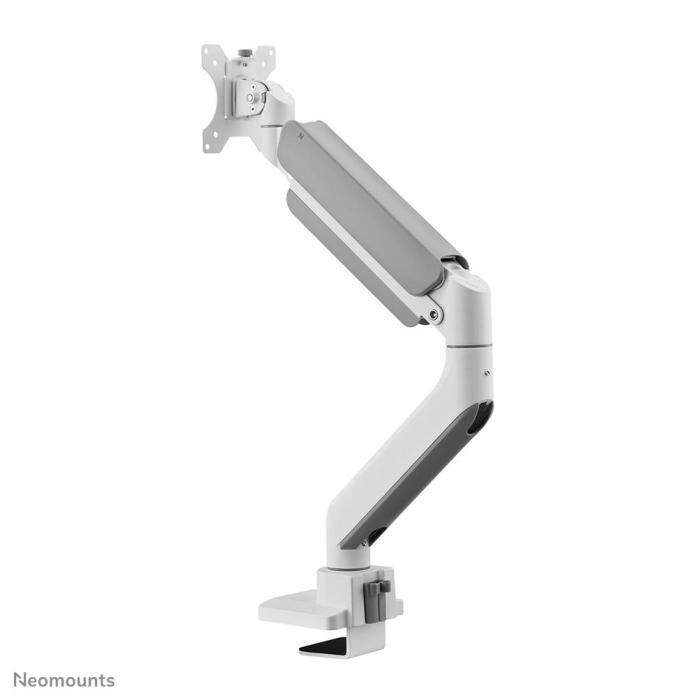

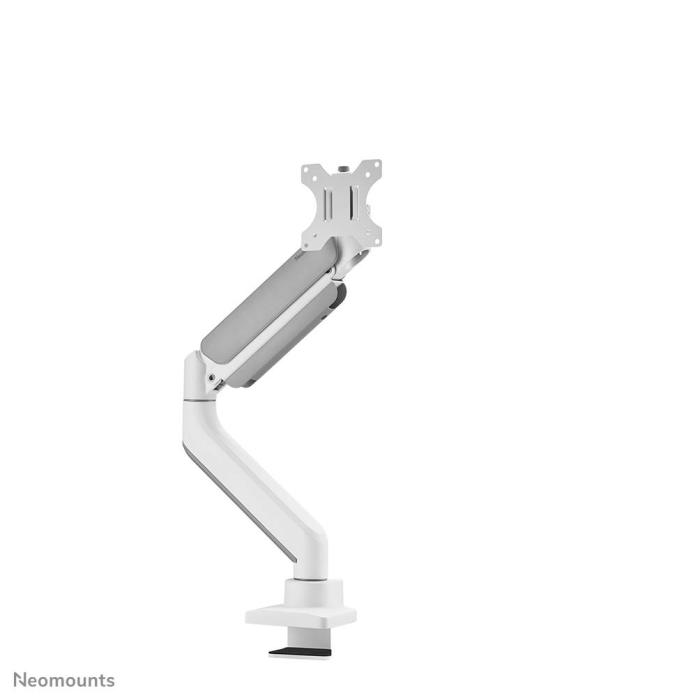

The Neomounts DS70PLUS-450WH1 monitor arm with gas spring and Topfix mechanism supports screens from 17 to 49 inches and up to 18 kg, with a swivel angle of -90 to 90 degrees and a tilt of -45 to 45 degrees for complete flexibility. Compatible with mounting interfaces of 75x75 and 100x100 mm, it attaches to the desk via clamp or screw fitting, with a supported table thickness between 1 and 4.5 cm. Its distance from the wall ranges from 10.8 to 56.8 cm, allowing the depth to be adjusted as needed. This NEWSTAR mount features a 180-degree stop to protect the screen and facilitates a stable ergonomic position.
Specifications
Mounting
- Maximum weight capacity (per display): 18 kg
- Maximum weight capacity: 18 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 1
- Maximum weight capacity (per curved/ultra-wide display): 14 kg
- Maximum screen size: 124.5 cm (49")

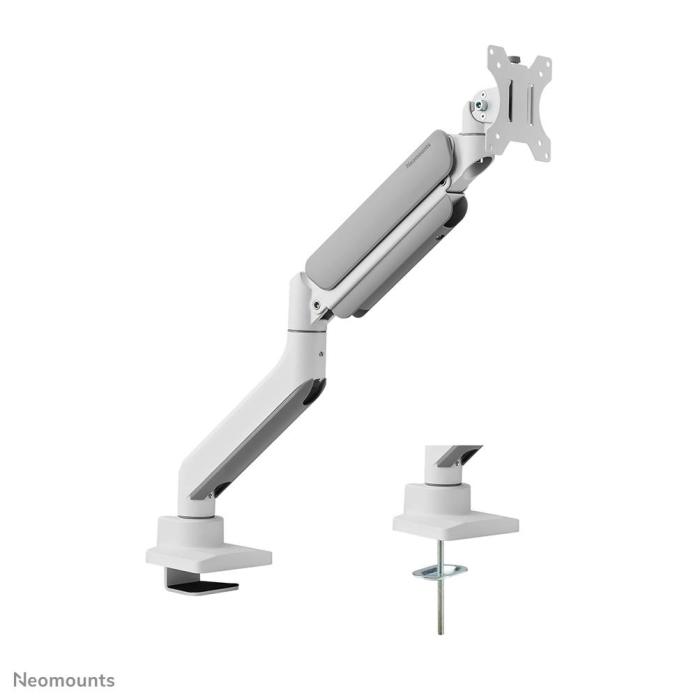

- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 4.5 cm

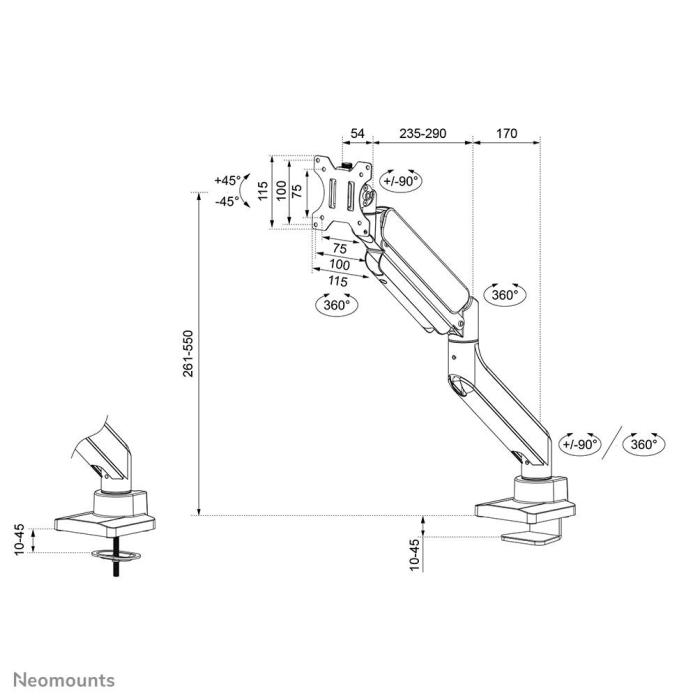

- Distance to the wall (min): 10.8 cm
- Distance to the wall (max): 56.8 cm
Ergonomics
- Width adjustment: 92 cm
- Pivot angle: -180 - 180°

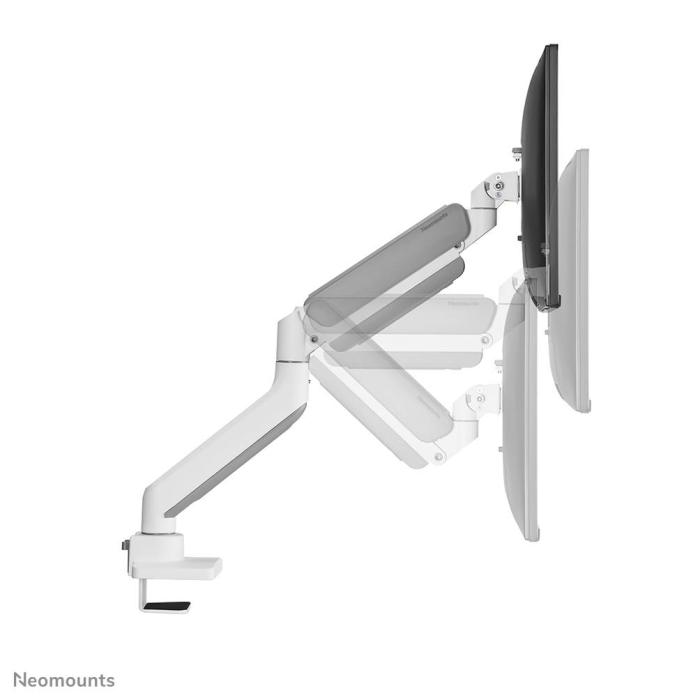

- Height adjustment: Yes

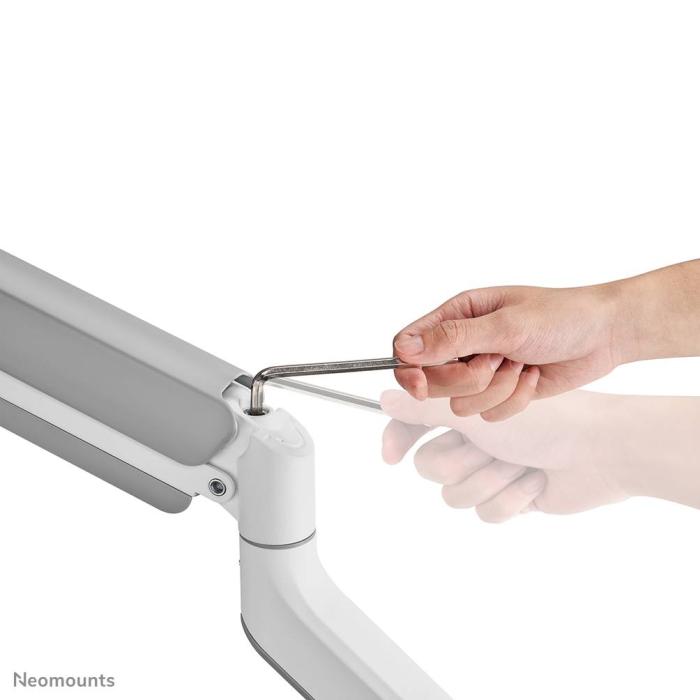

- Height adjustment type: Gas spring
- Height adjustment range: 261 - 555 mm
- Adjustable depth: Yes
- Depth adjustment range: 54 - 511 mm
- Tilt adjustment: Yes
- Tilt angle range: -45 - 45°
- Swivelling: Yes
- Swivel angle range: -90 - 90°
- Rotating: Yes
- Angle of rotation: 360°

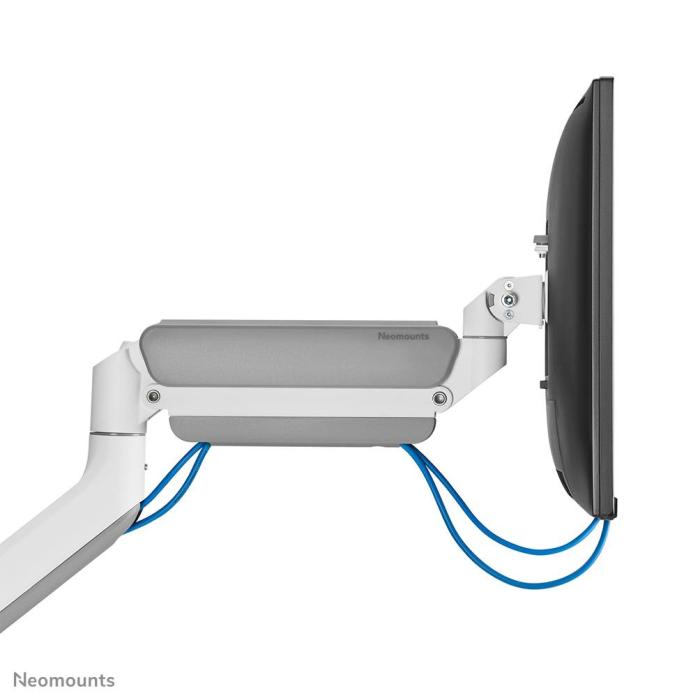

- Cable management: Yes
Design
- Housing material: Steel
- Product colour: White
Weight & dimensions
- Width: 120 mm
- Depth: 568 mm
- Height: 653 mm
- Weight: 3.98 kg

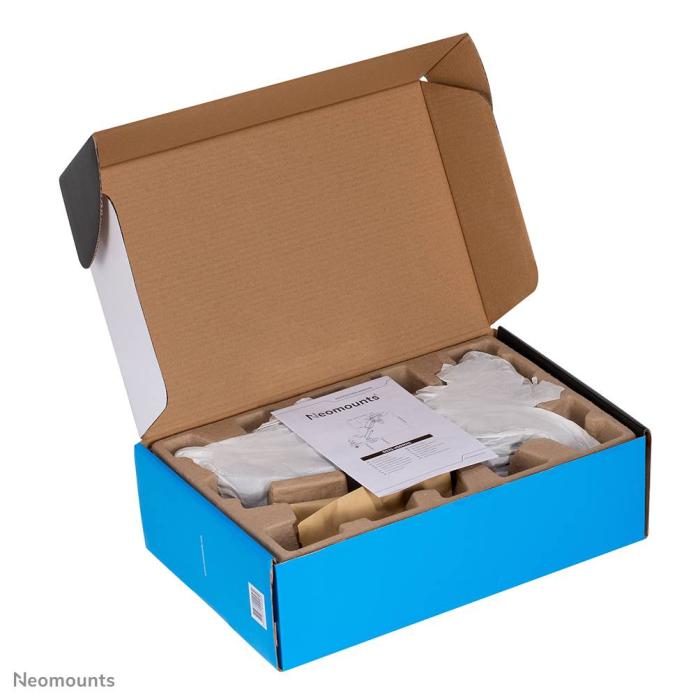

Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 280 mm
- Package depth: 127 mm
- Package height: 445 mm
- Package net weight: 5.1 kg
- Package weight: 5.1 kg
- Package type: Box
Other features
- Minimum weight: 1 kg
- Width adjustment range: 0 - 920 mm
Logistics data
- Master (outer) case width: 460 mm
- Master (outer) case length: 275 mm
- Master (outer) case height: 580 mm
- Master (outer) case gross weight: 20.5 kg
- Products per master (outer) case: 4 pc(s)
- Country of origin: China
- Master (outer) case net weight: 16 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 64 pc(s)
