Description

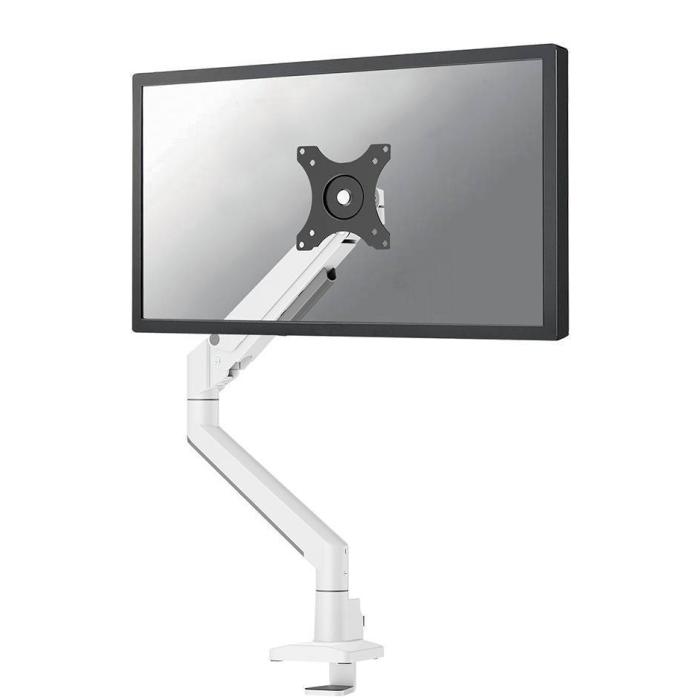

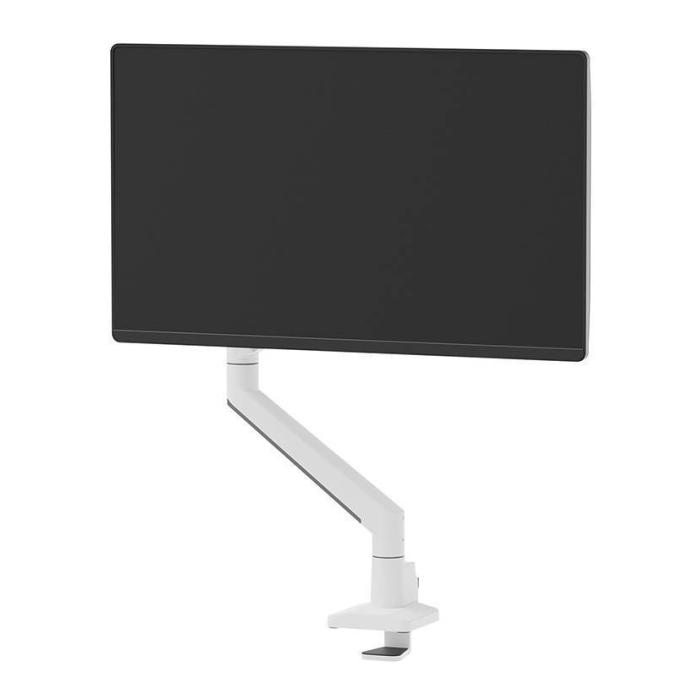

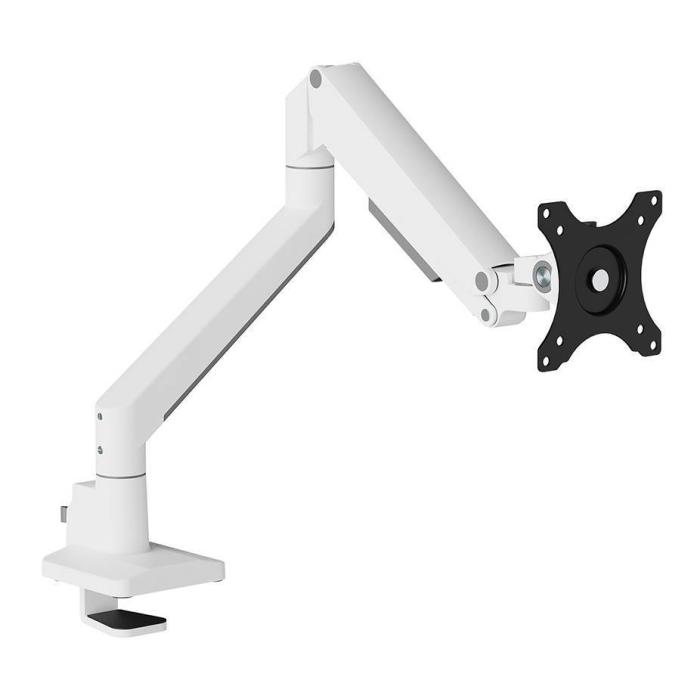

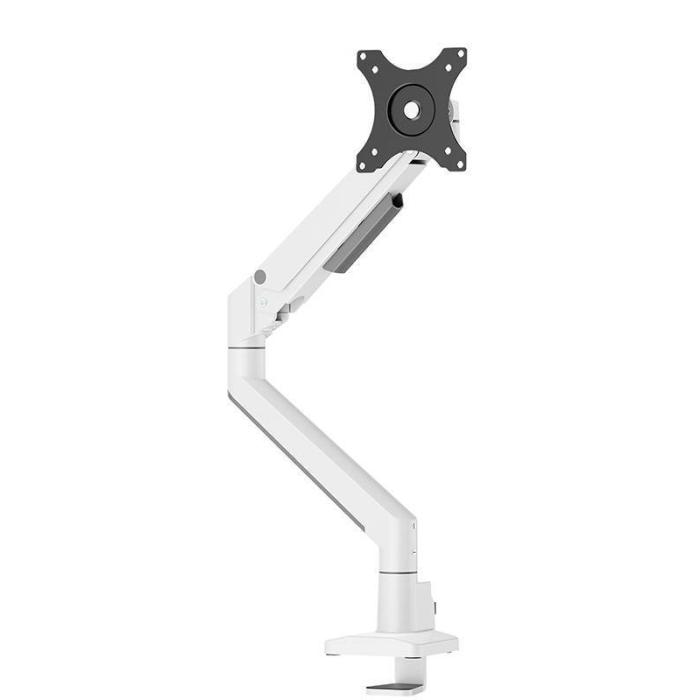

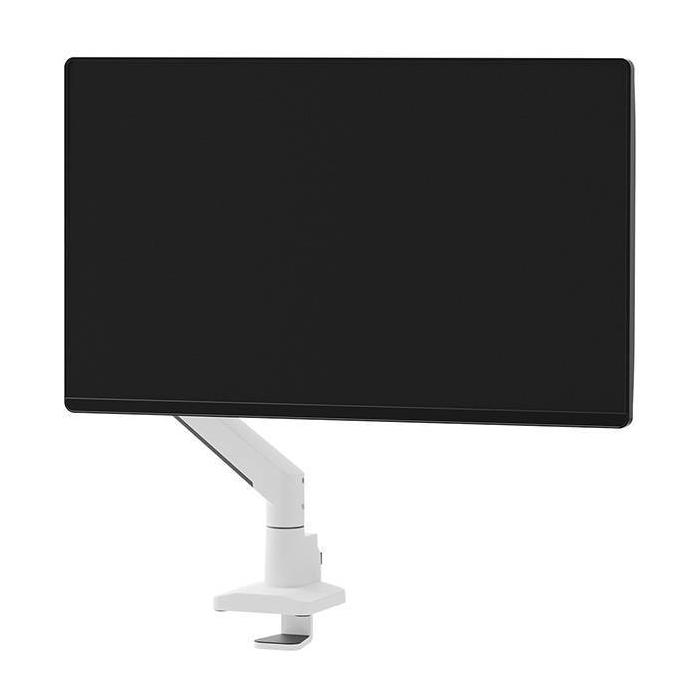

Supports screens from 17 to 35 inches with a maximum weight of 9 kg, and the DS70-250WH1 model from Newstar attaches to the desk via clamp or screw fitting, with a thickness range of 1 to 5 cm. Its gas spring mechanism allows smooth height and depth adjustment, with a variable distance from the wall between 12.5 and 58 cm. The arm offers swivel from -90 to 90 degrees, tilt from -45 to 45 degrees, and 180-degree stop rotation, compatible with VESA interfaces of 75x75 and 100x100 mm. This white-finished desk mount facilitates an ergonomic monitor position and frees up space in your work area.
Specifications
Mounting
- Maximum weight capacity (per display): 9 kg
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 1
- Maximum weight capacity (per curved/ultra-wide display): 8 kg
- Maximum screen size: 88.9 cm (35")
- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 5 cm
- Distance to the wall (min): 12.5 cm
- Distance to the wall (max): 58 cm
Ergonomics
- Width adjustment: 91 cm
- Pivot angle: -180 - 180°

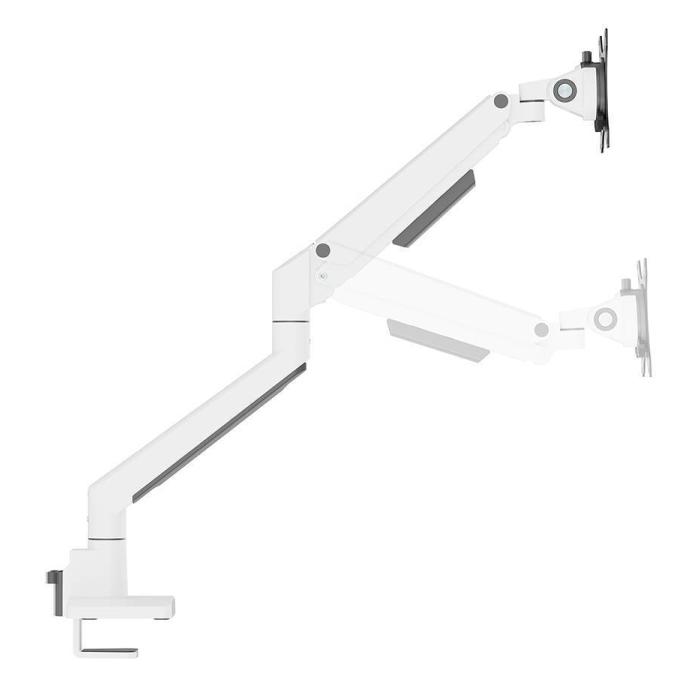

- Height adjustment: Yes

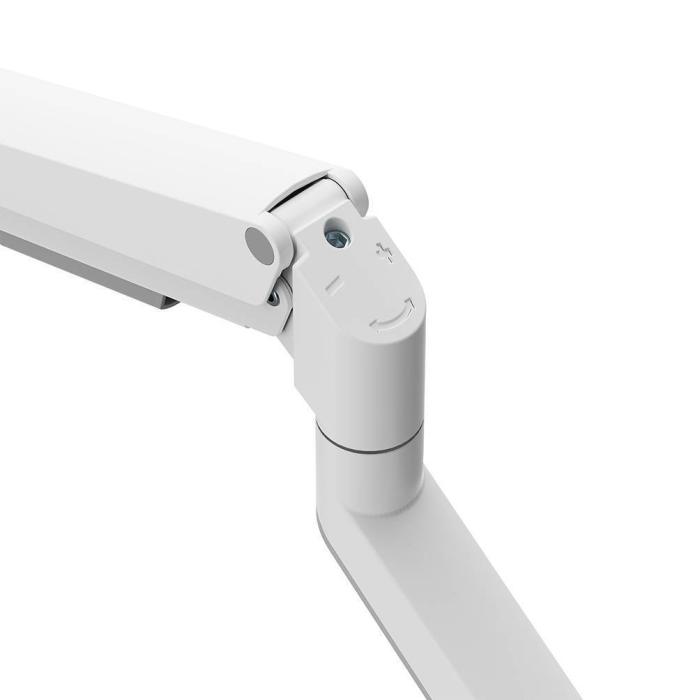

- Height adjustment type: Gas spring
- Height adjustment range: 215 - 495 mm
- Adjustable depth: Yes
- Depth adjustment range: 70 - 525 mm
- Tilt adjustment: Yes

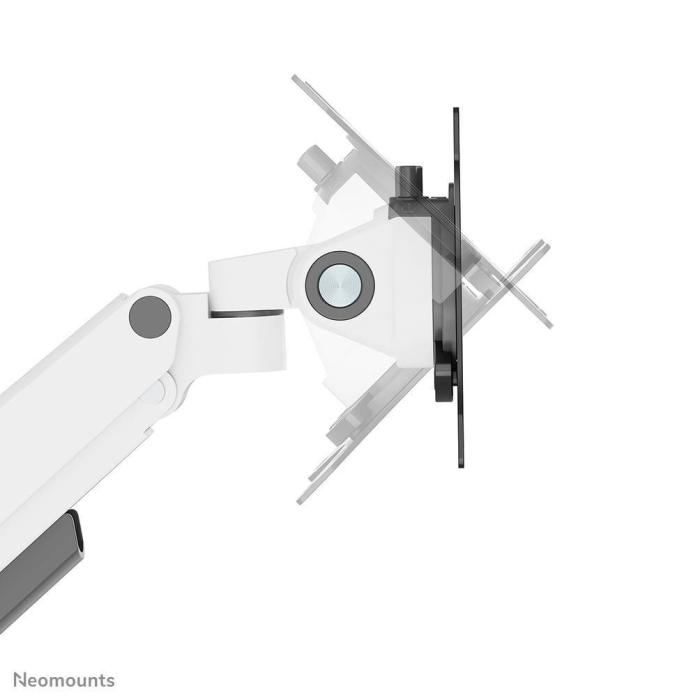

- Tilt angle range: -45 - 45°
- Swivelling: Yes

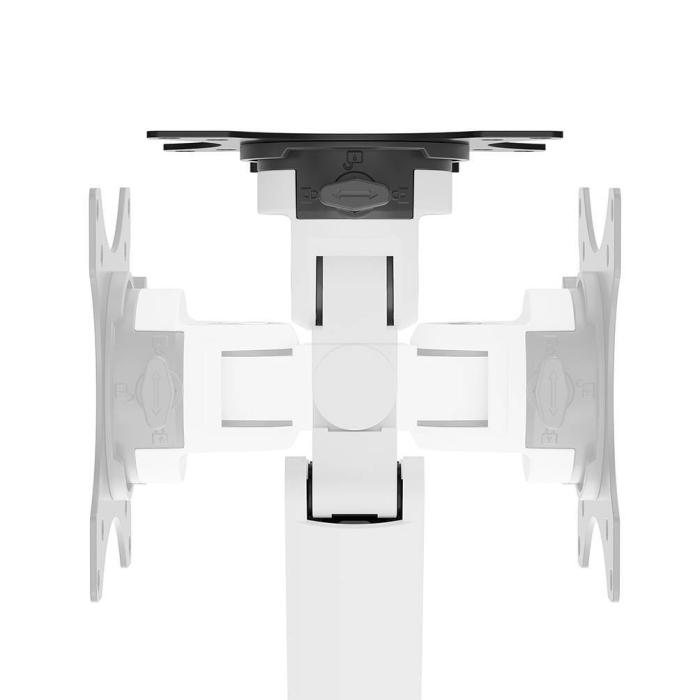

- Swivel angle range: -90 - 90°

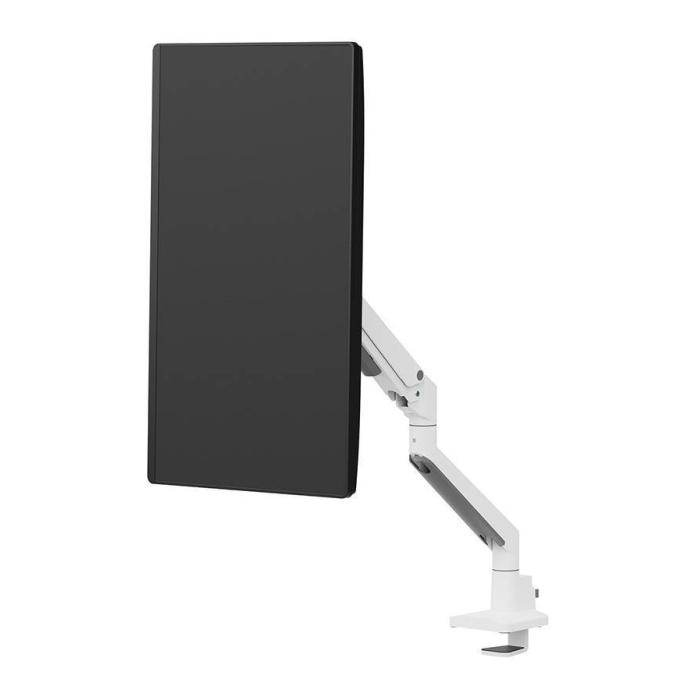

- Rotating: Yes
- Angle of rotation: 360°
- Cable management: Yes
Design
- Housing material: Aluminium
- Product colour: White
- Accepts padlock: No
Weight & dimensions
- Width: 114 mm
- Depth: 580 mm
- Height: 552 mm
- Weight: 2.3 kg

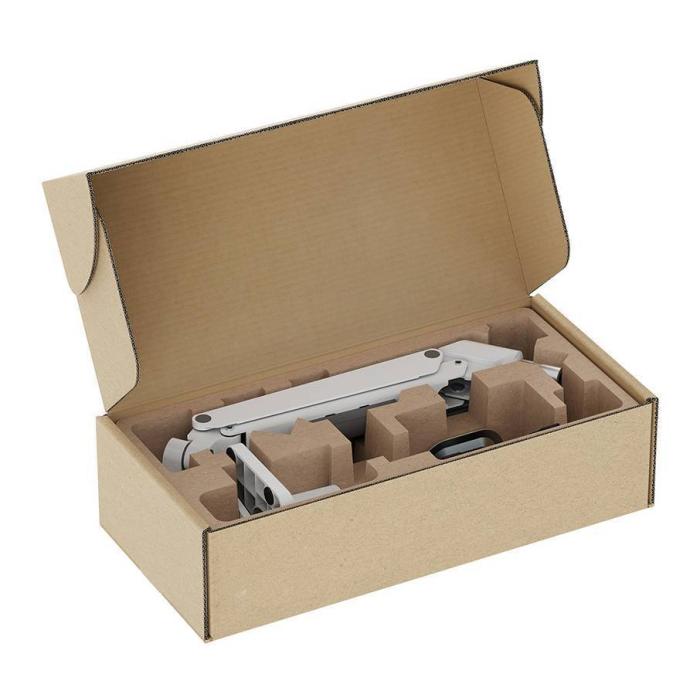

Packaging data
- Package width: 198 mm
- Package depth: 108 mm
- Package height: 428 mm
- Package weight: 2.9 kg
Other features
- Minimum weight: 1 kg
- Width adjustment range: 0 - 910 mm
- Warranty period: 5 year(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 345 mm
- Master (outer) case height: 445 mm
- Master (outer) case gross weight: 18.3 kg
- Products per master (outer) case: 6 pc(s)
- Country of origin: China
- Master (outer) case net weight: 13.8 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 84 pc(s)
