Description

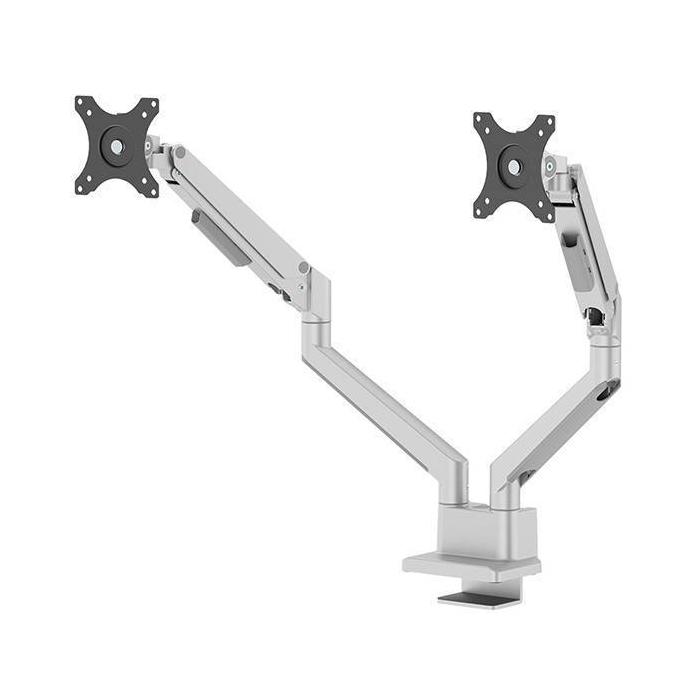

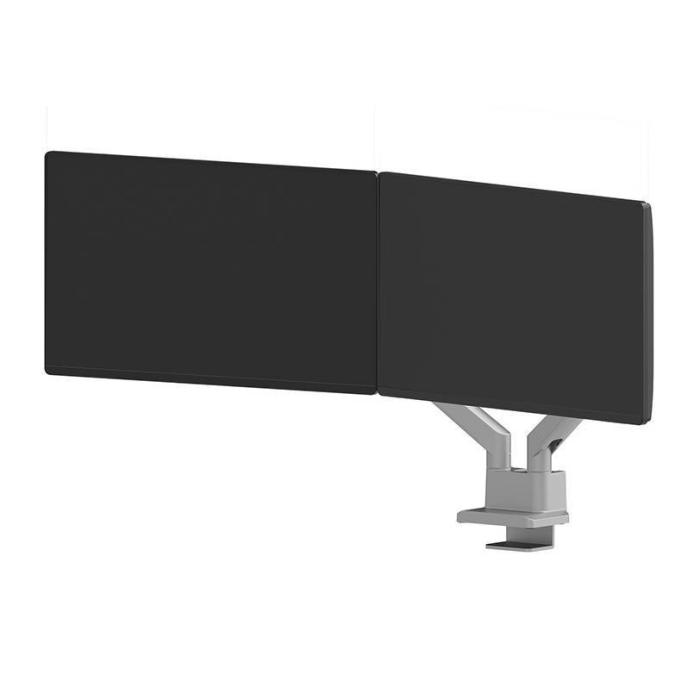

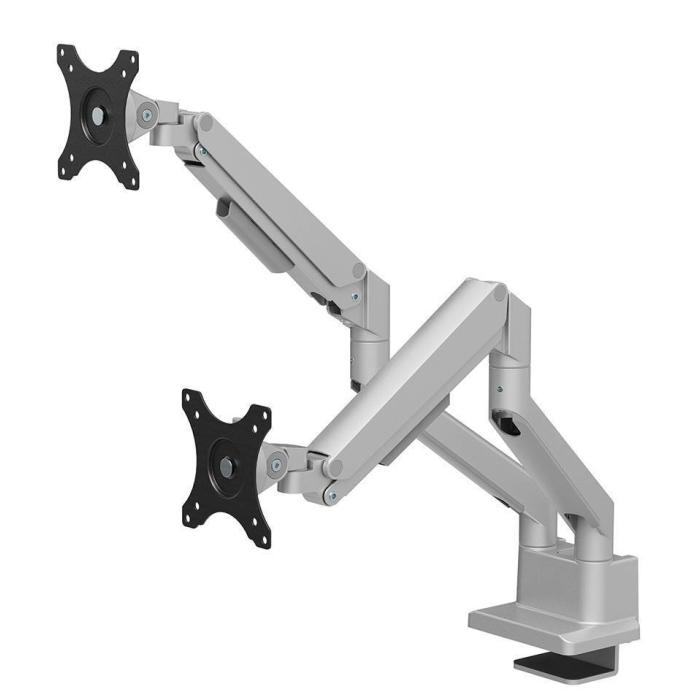

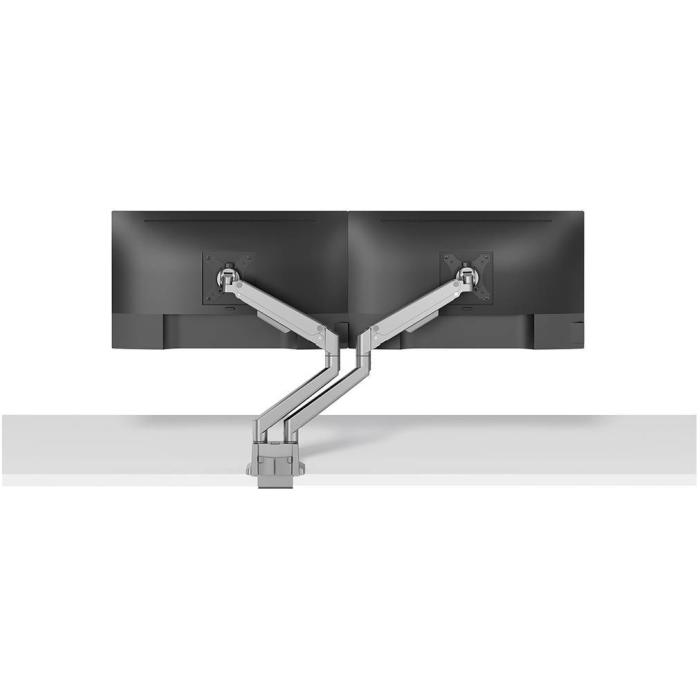

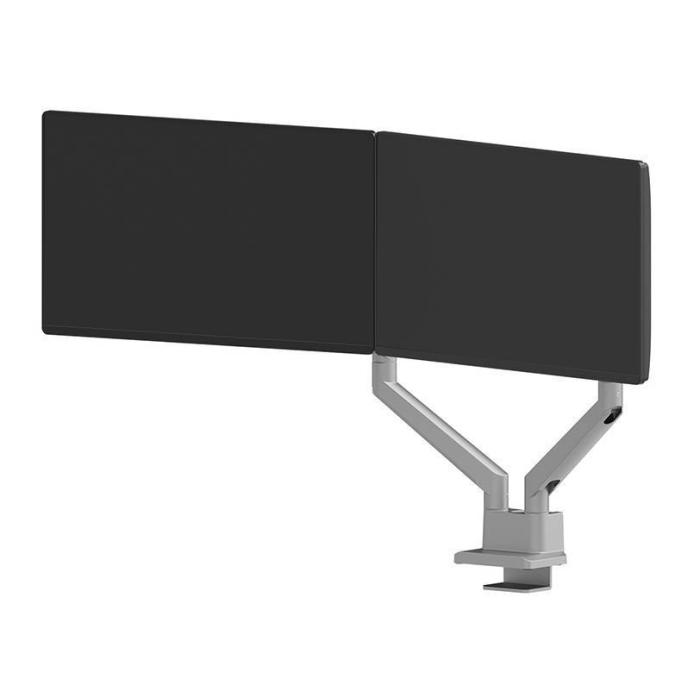

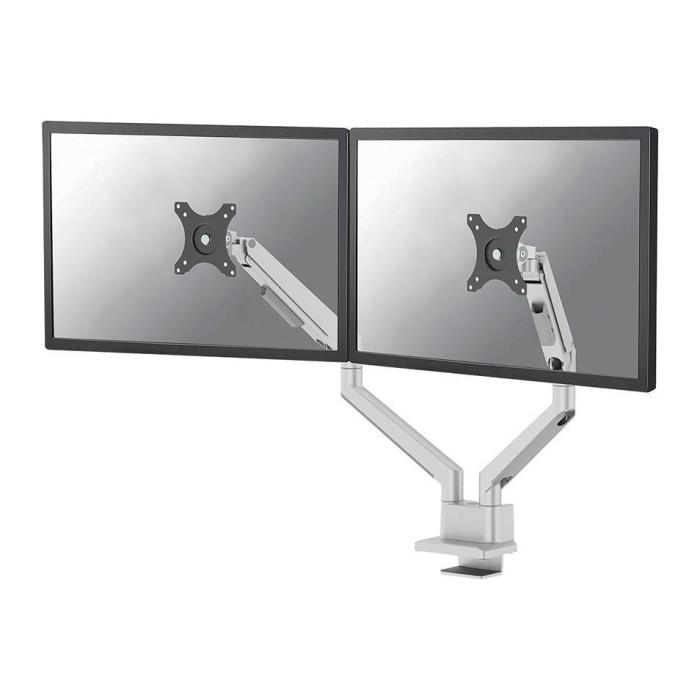

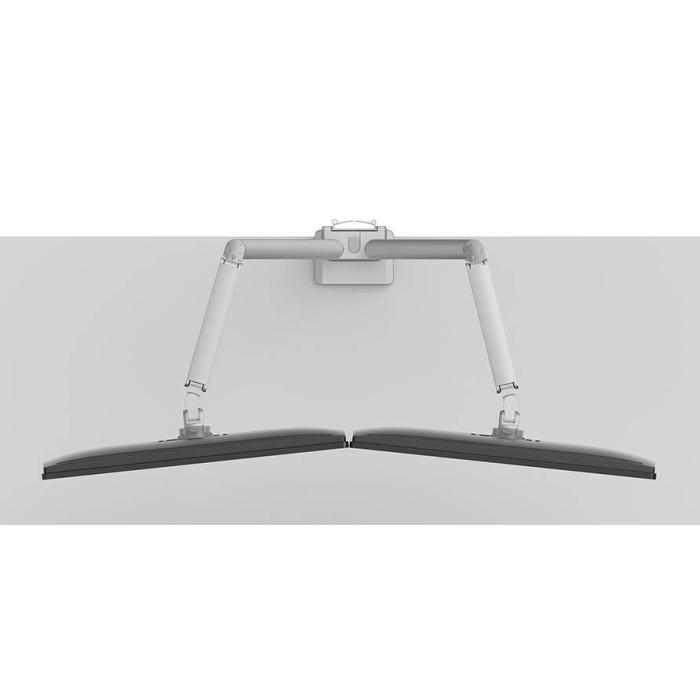

Supports two 17 to 32-inch screens with the Neomounts DS70-250SL2 monitor arm, which attaches to the desk via clamp or screw fixing and accommodates thicknesses between 1 and 5 cm. Its gas spring mechanism allows height and tilt adjustment of up to 90 degrees in each direction, with a maximum reach of 40.4 cm from the wall and a load capacity of up to 9 kg per display. This NEWSTAR model includes cable management to keep the space tidy, and its mounting interface is VESA compatible with 75x75 and 100x100 mm. The Topfix variant with a 180-degree stop facilitates screen rotation for sharing content or working in teams without needing to remove the mount.
Specifications
Mounting
- Maximum weight capacity (per display): 9 kg
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 2
- Maximum weight capacity (per curved/ultra-wide display): 8 kg
- Maximum screen size: 81.3 cm (32")
- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 5 cm
- Distance to the wall (min): 12 cm
- Distance to the wall (max): 40.4 cm
Ergonomics
- Width adjustment: 98.4 cm
- Pivot angle: -180 - 180°
- Height adjustment: Yes

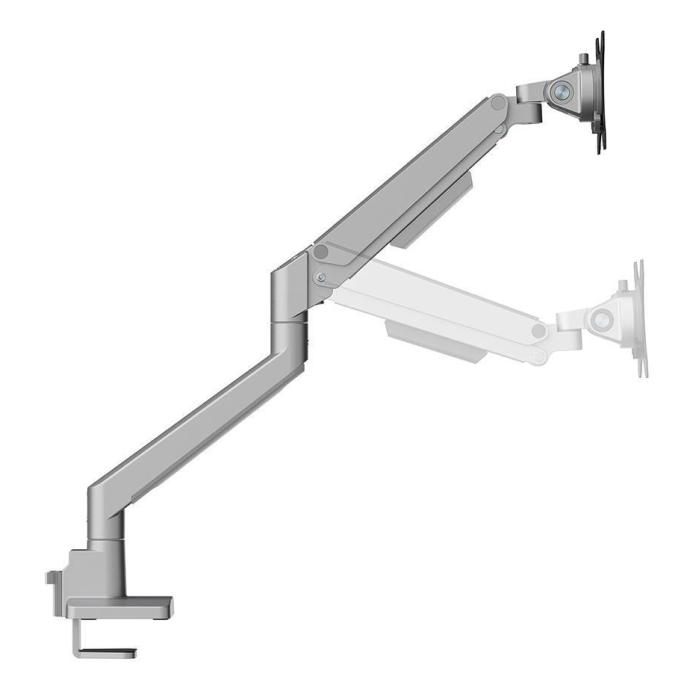

- Height adjustment type: Gas spring
- Height adjustment range: 215 - 495 mm
- Adjustable depth: Yes
- Depth adjustment range: 70 - 525 mm
- Tilt adjustment: Yes
- Tilt angle range: -45 - 45°
- Swivelling: Yes
- Swivel angle: 90°
- Swivel angle range: -90 - 90°
- Rotating: Yes
- Angle of rotation: 360°
- Cable management: Yes
Design
- Housing material: Aluminium
- Product colour: Silver

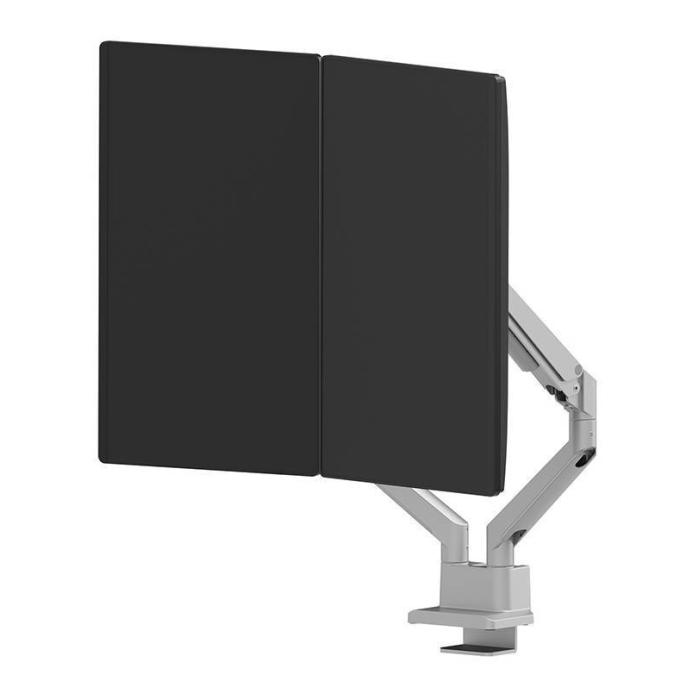

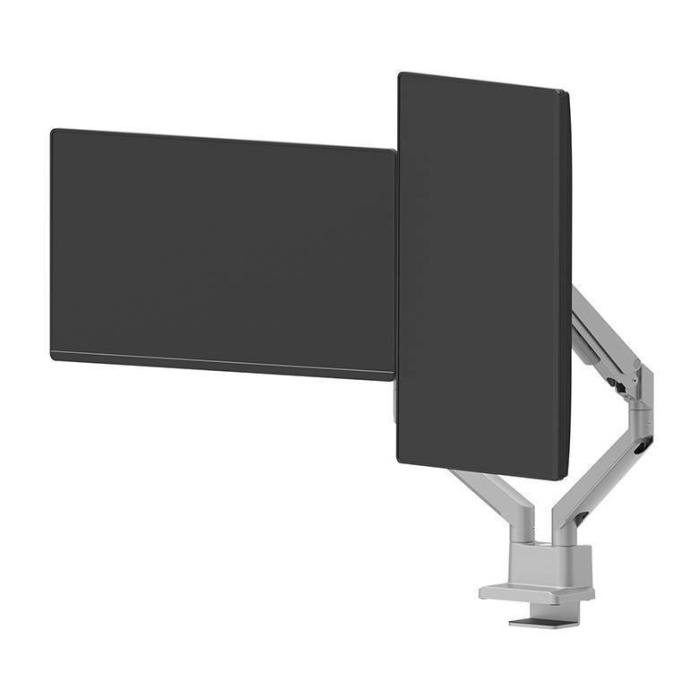

- Orientation: Landscape/Portrait
- Accepts padlock: No
Weight & dimensions
- Width: 114 mm
- Depth: 580 mm
- Height: 552 mm
- Weight: 4.35 kg

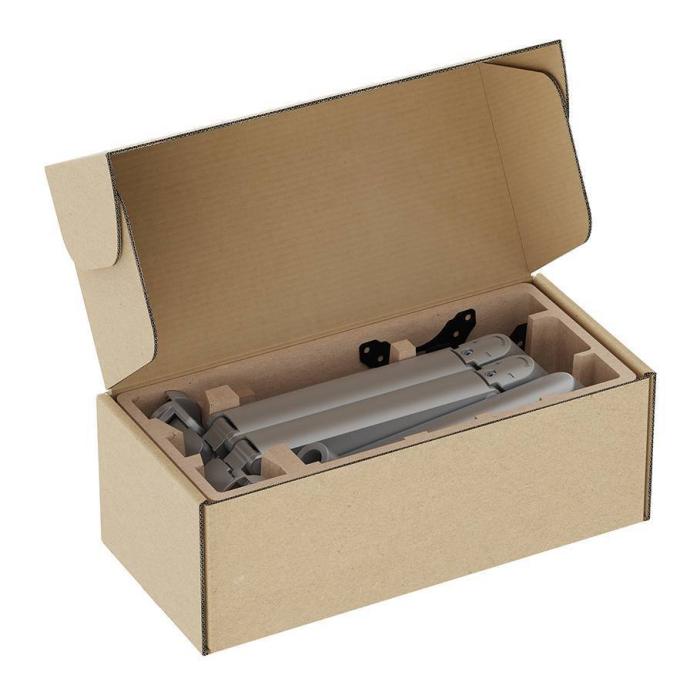

Packaging data
- Package width: 192 mm
- Package depth: 147 mm
- Package height: 430 mm
- Package weight: 4.9 kg
Other features
- Minimum weight: 1 kg
- Width adjustment range: 0 - 984 mm
- Warranty period: 5 year(s)
Logistics data
- Master (outer) case width: 405 mm
- Master (outer) case length: 310 mm
- Master (outer) case height: 445 mm
- Master (outer) case gross weight: 20.7 kg
- Products per master (outer) case: 4 pc(s)
- Country of origin: China
- Master (outer) case net weight: 17.4 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 80 pc(s)
