Description

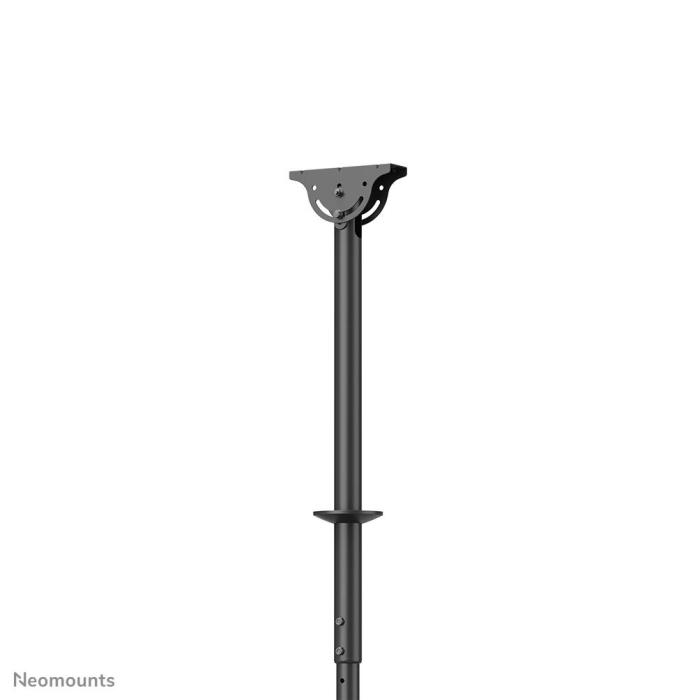

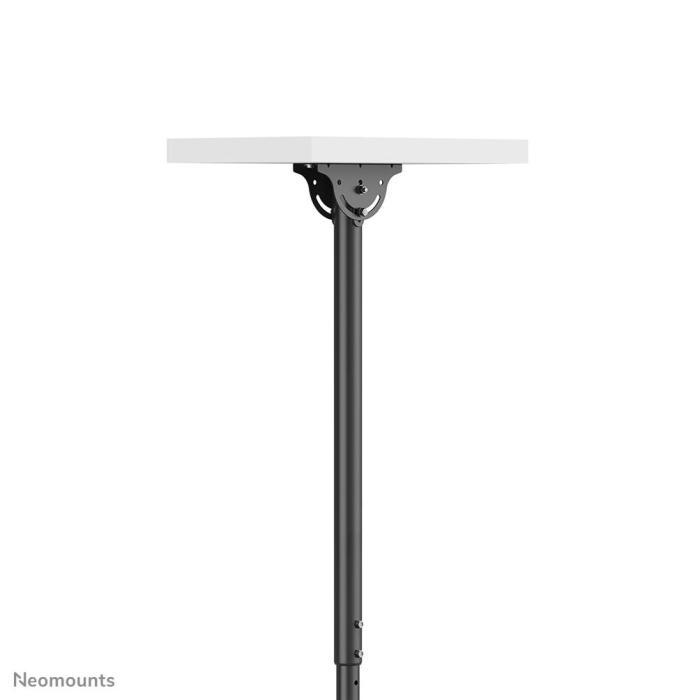

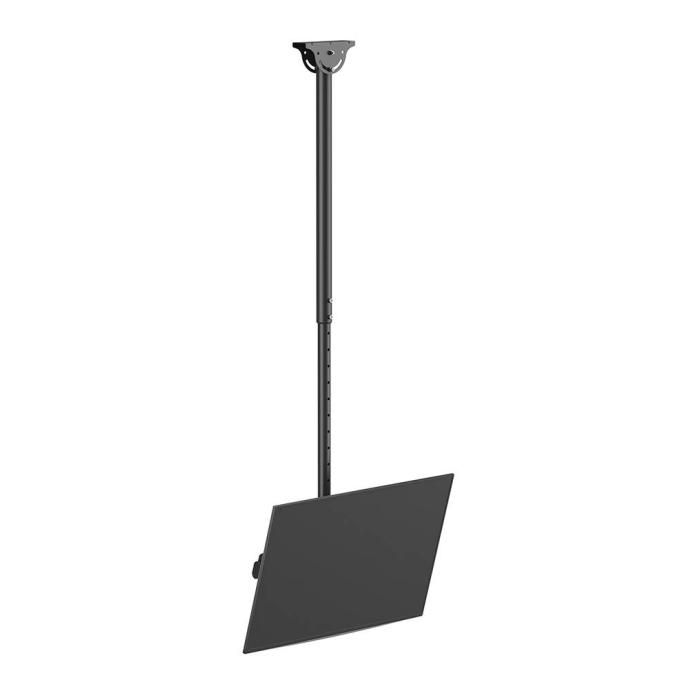

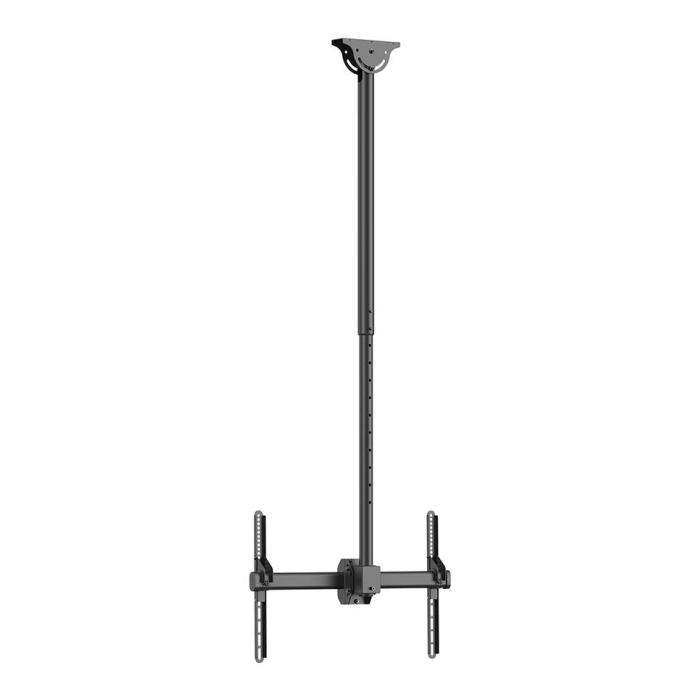

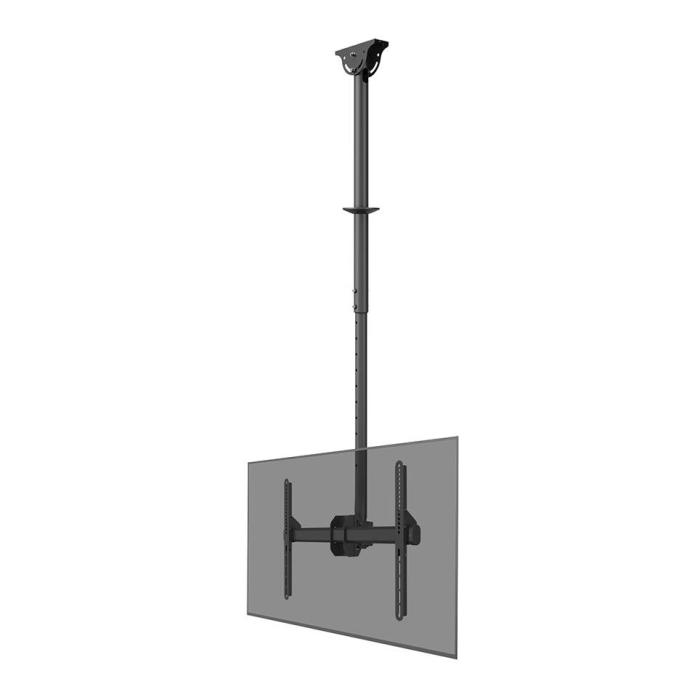

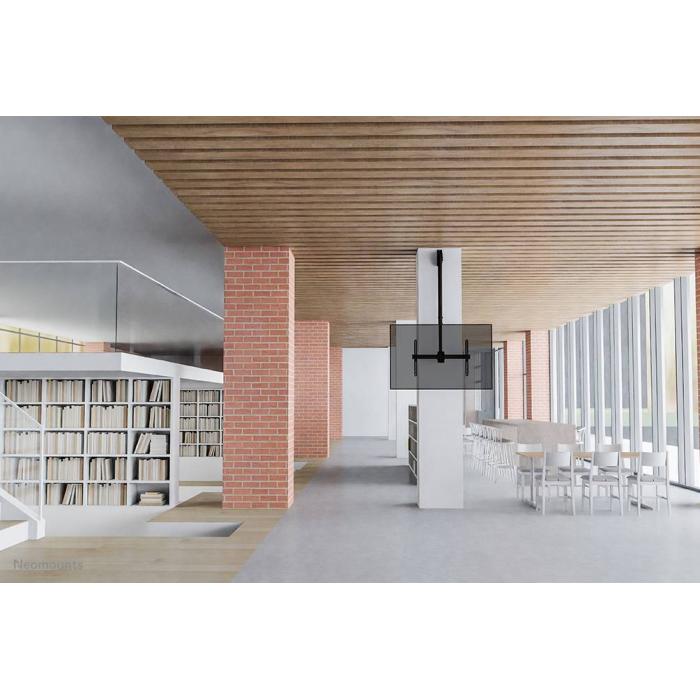

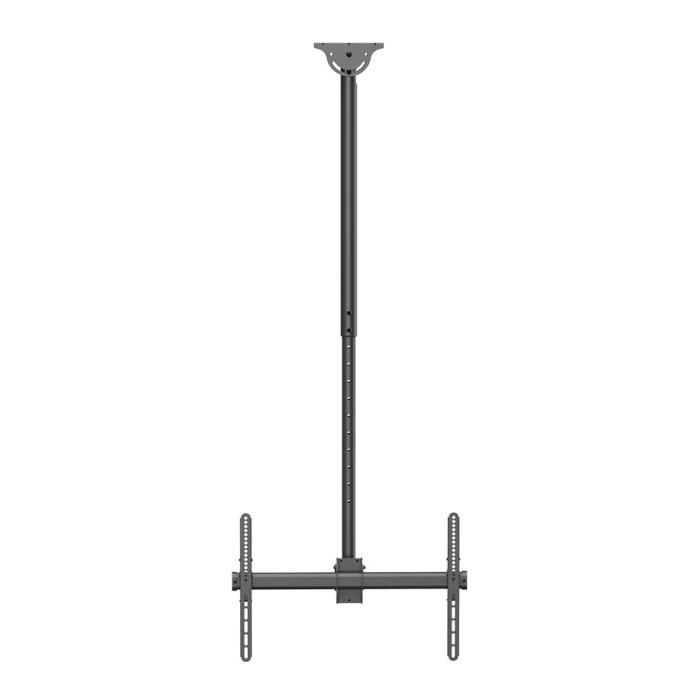

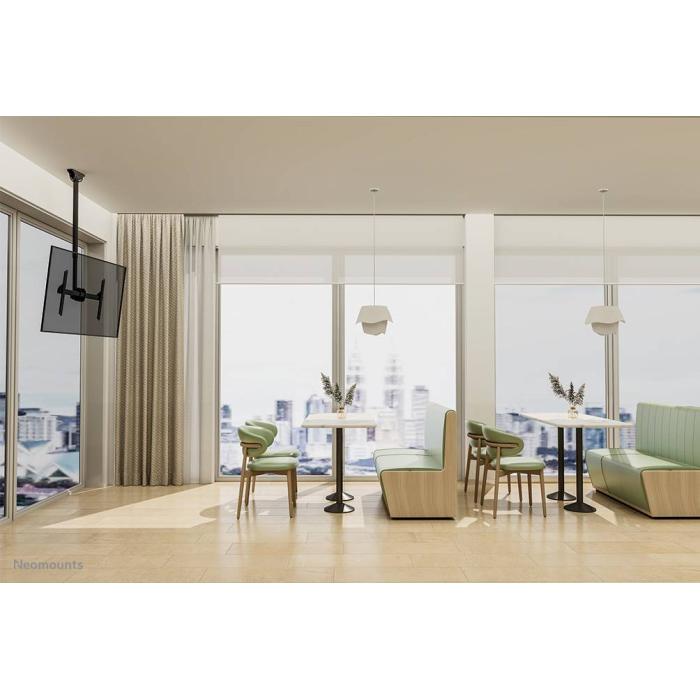

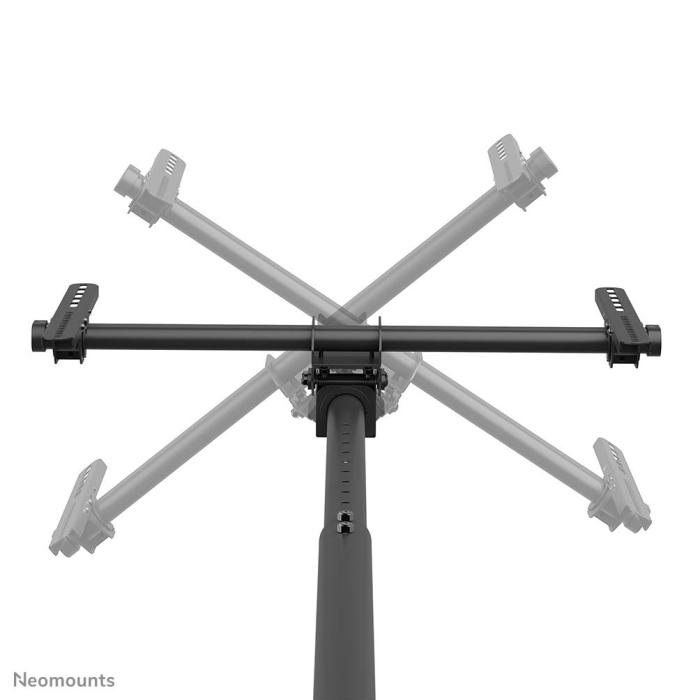

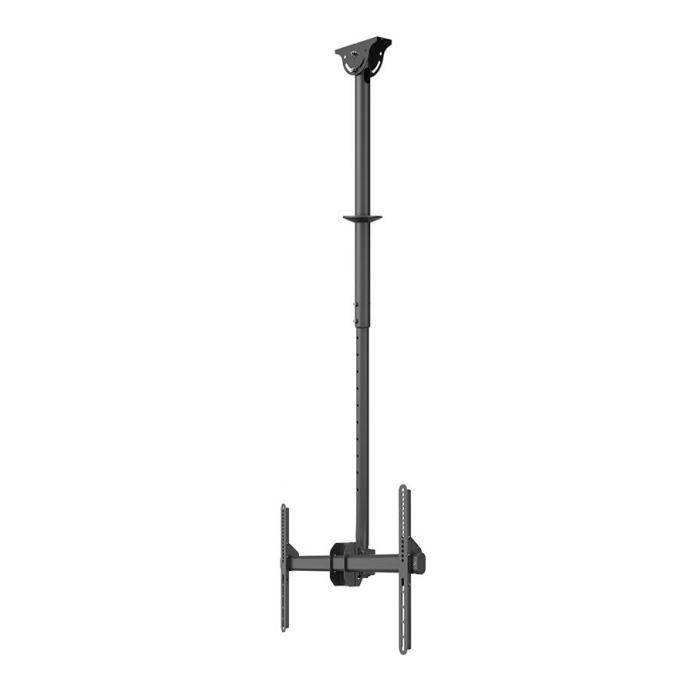

The Neomounts CL35-440BL16L ceiling mount from NEWSTAR secures a monitor or TV from 37 to 70 inches with a maximum weight of 50 kg, keeping the screen at a manually adjustable height between 106 and 156 cm. Its compatible interface covers VESA patterns from 150x200 mm to 600x400 mm, and the head includes 6° rotation, ±180° swivel, and -25° to 0° tilt for orienting the image from the ceiling. The side pivot oscillates between -3° and 3°, while the integrated cable management keeps connections tidy. This single-display model adjusts in height without special tools, offering versatility for spaces where you don't want to occupy the floor.
Specifications
Mounting
- Maximum weight capacity: 50 kg
- Minimum screen size: 94 cm (37")
- Number of displays supported: 1
- Maximum screen size: 177.8 cm (70")
- Minimum VESA mount: 150 x 200 mm
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 150 x 200, 200 x 100, 200 x 150, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 3

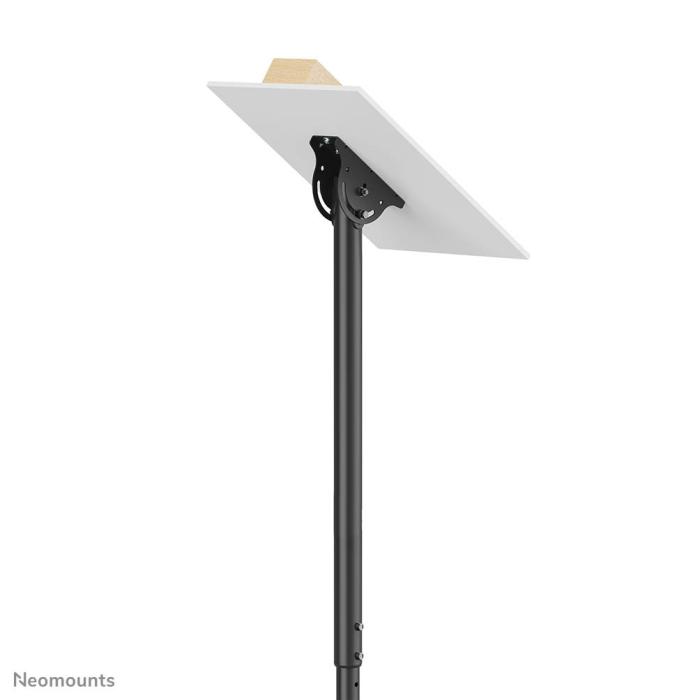

- Mounting type: Ceiling
- Maximum weight capacity (per display): 50 kg
Ergonomics

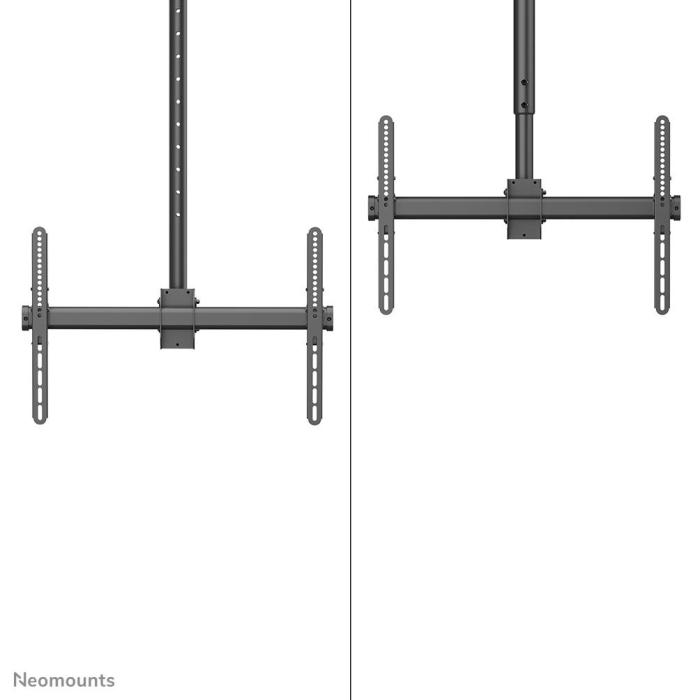

- Height adjustment: Yes
- Height adjustment type: Manual

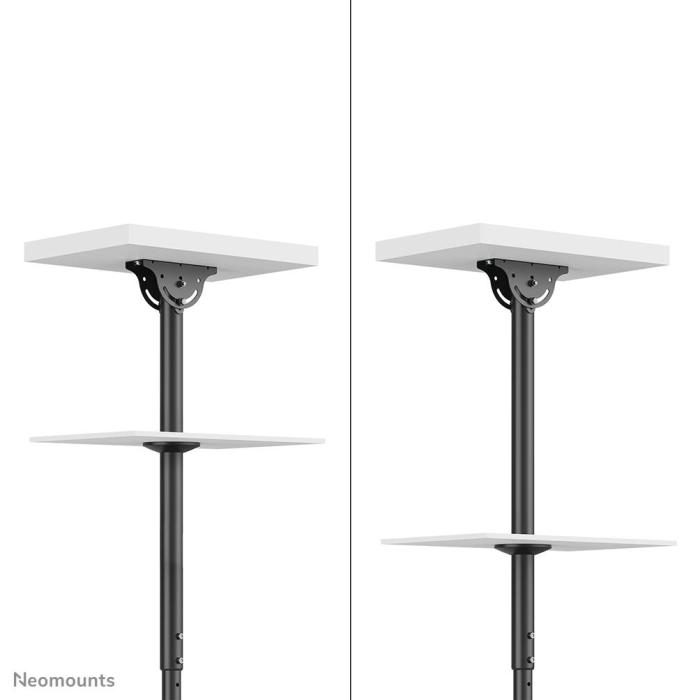

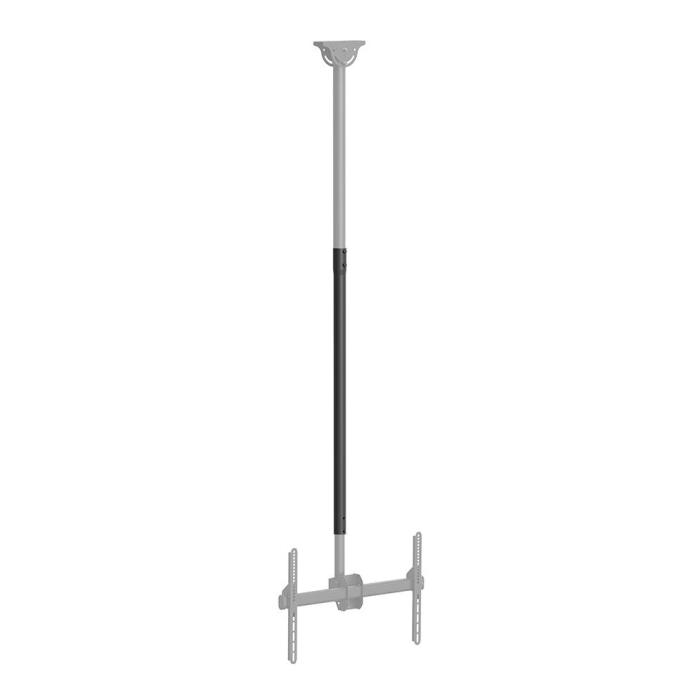

- Height adjustment range: 1060 - 1560 mm
- Tilt adjustment: Yes

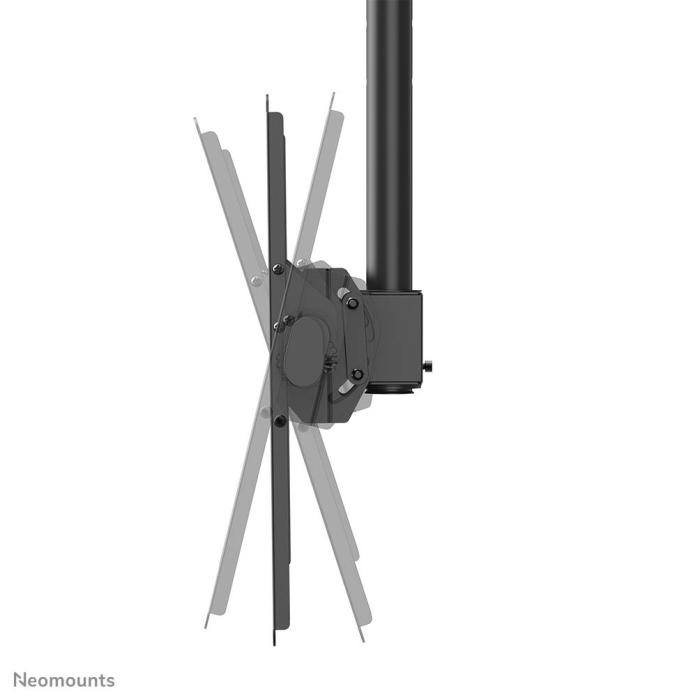

- Tilt angle range: -25 - 0°
- Swivelling: Yes
- Swivel angle range: -180 - 180°
- Rotating: Yes
- Angle of rotation: 6°

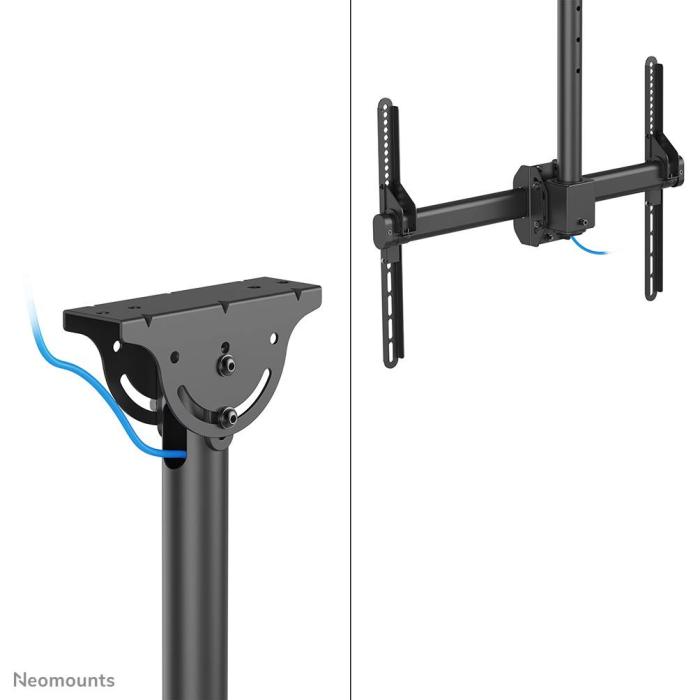

- Cable management: Yes

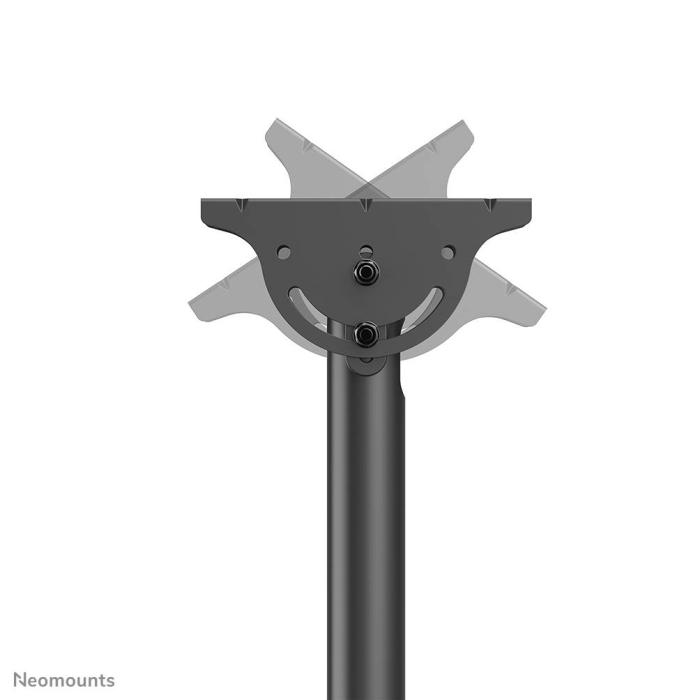

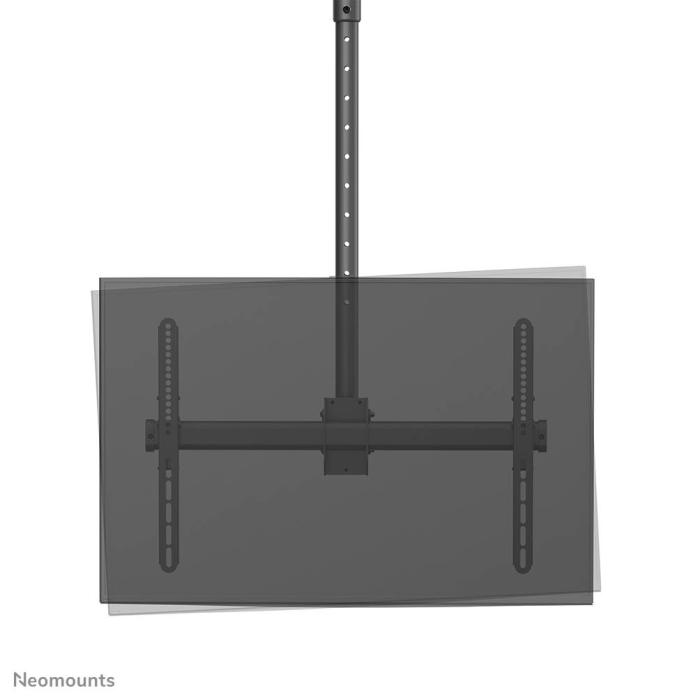

- Pivot angle: -3 - 3°
Design
- Product colour: Black
- Housing material: Steel
Technical details
- Country of origin: China
- Warranty period: 5 year(s)

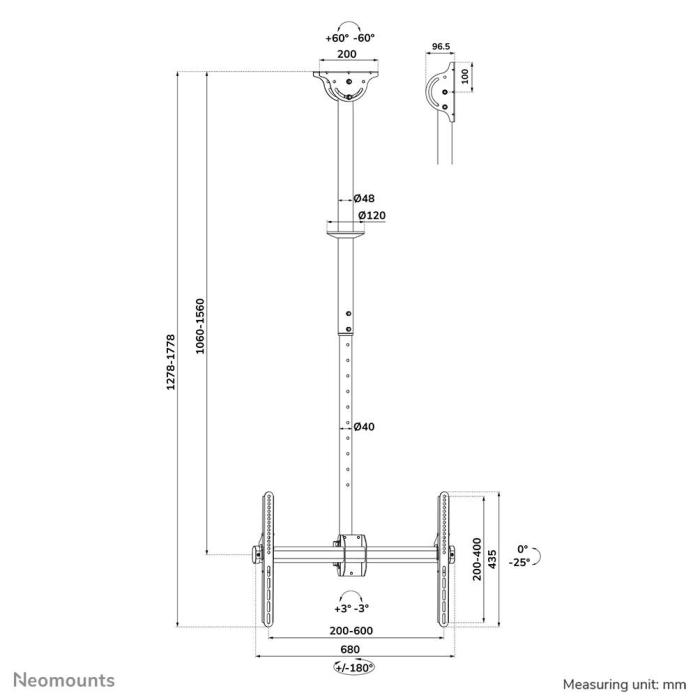

Weight & dimensions
- Width: 680 mm
- Depth: 138 mm
- Depth (max): 13.8 cm
- Height: 1780 mm
- Weight: 6.36 kg
Packaging data
- Package width: 310 mm
- Package depth: 145 mm
- Package height: 935 mm
- Package weight: 7.8 kg
Logistics data
- Master (outer) case width: 330 mm
- Master (outer) case length: 310 mm
- Master (outer) case height: 955 mm
- Master (outer) case gross weight: 16.6 kg
- Master (outer) case net weight: 15.6 kg
- Products per master (outer) case: 2 pc(s)
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 20 pc(s)
