Description

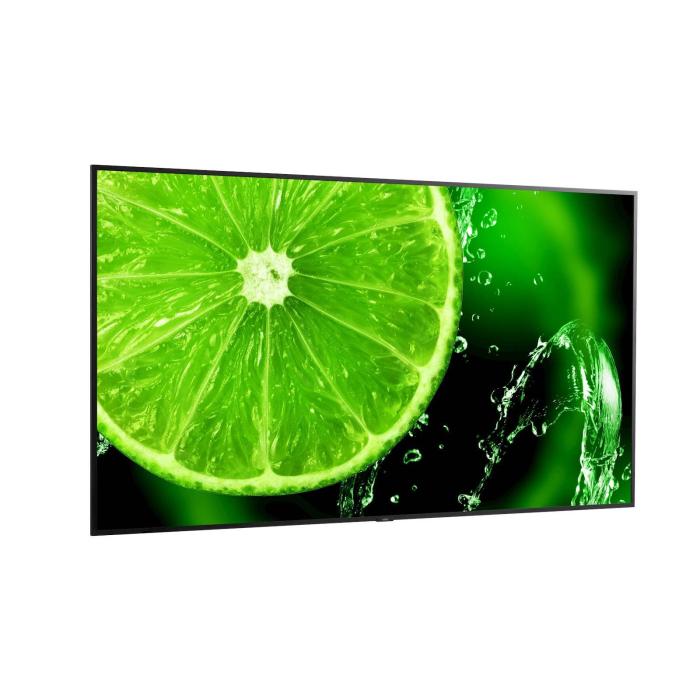

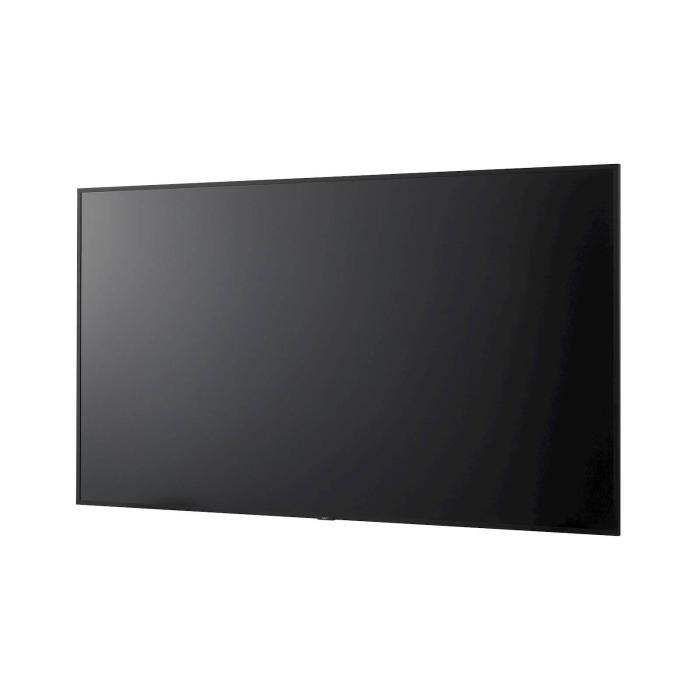

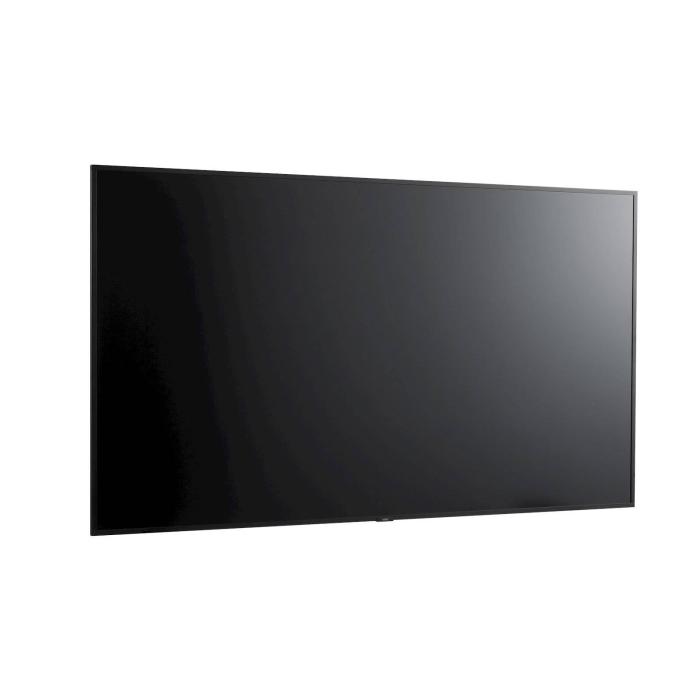

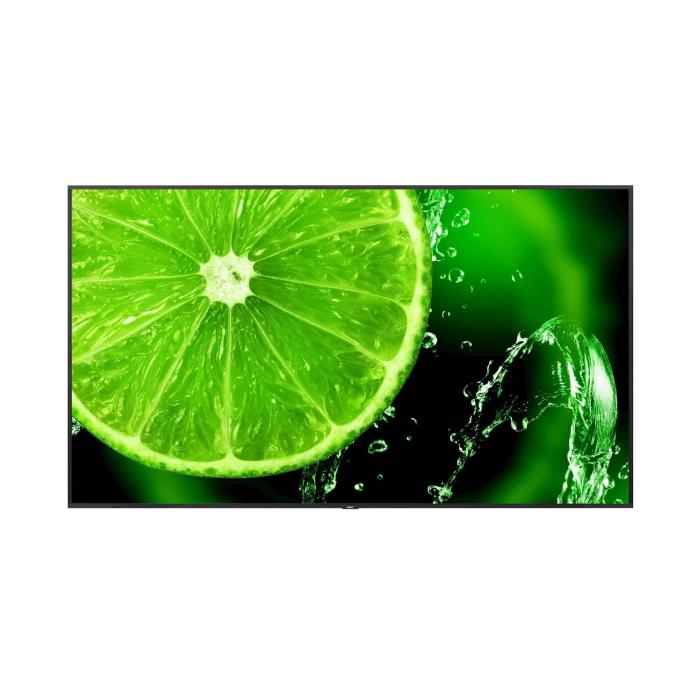

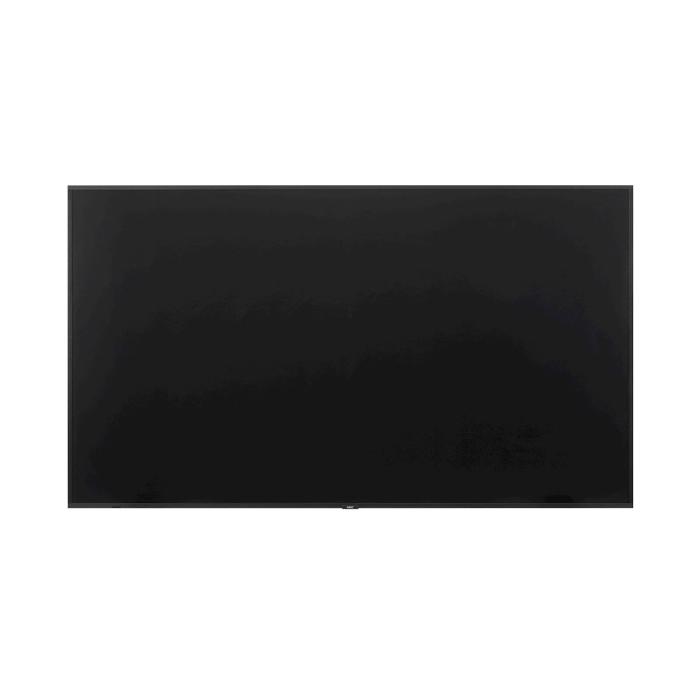

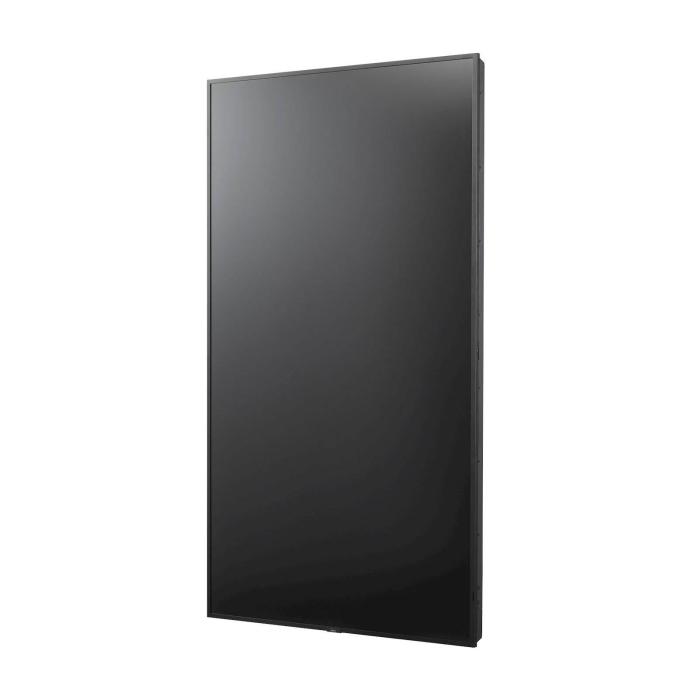

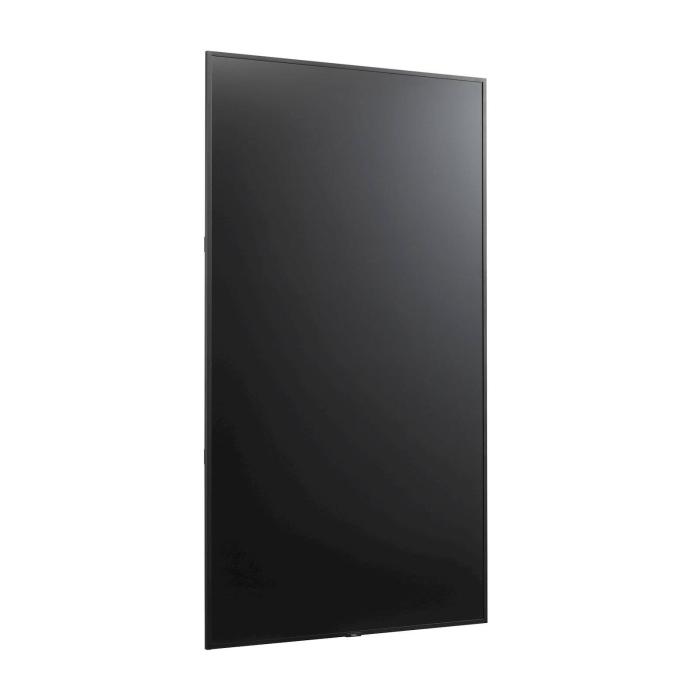

The NEC MultiSync E868 screen is a black digital signage flat panel with LED technology and IPS panel type. Its 2.17 m (85.6") diagonal offers 4K Ultra HD resolution and an active display area of 1895.04 x 1065.96 mm. It features high dynamic range with Hybrid Log-Gamma technology, a native refresh rate of 60 Hz and an 8 ms response time. The Direct-LED backlight reaches 350 cd/m² and a typical contrast ratio of 8000:1. It covers 1.073 billion colours and maintains viewing angles of 178° both horizontally and vertically. The pixel pitch is 0.49 x 0.49 mm and the haze rate is 25%. Its scanning frequencies are 15 to 136 kHz horizontally and 24 to 75 Hz vertically.
Specifications
Display
- Panel type: IPS
- LED backlighting type: Direct-LED
- Display diagonal: 2.17 m (85.6")
- Display technology: LED
- Display resolution: 3840 x 2160 pixels
- Display brightness: 350 cd/m²
- HD type: 4K Ultra HD
- Native aspect ratio: 16:9
- Response time: 8 ms
- Contrast ratio (typical): 8000:1
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Display number of colours: 1.073 billion colours
- Pixel pitch: 0.49 x 0.49 mm
- Active display area (W x H): 1895.04 x 1065.96 mm
- Display diagonal (metric): 217.43 cm
- Horizontal scan range: 15 - 136 kHz
- Vertical scan range: 24 - 75 Hz
- High Dynamic Range (HDR) supported: Yes
- High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
- Native refresh rate: 60 Hz
- Haze rate: 25%

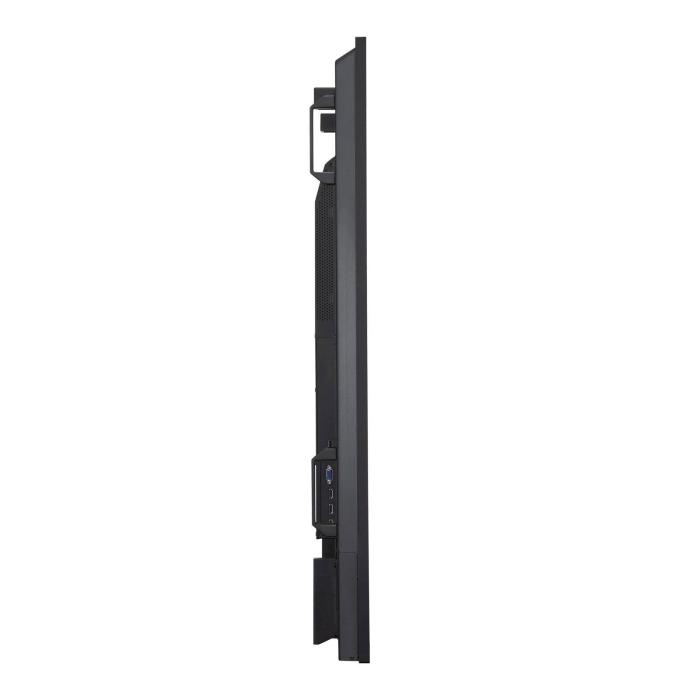

Ports & interfaces
- HDMI ports quantity: 3
- HDMI input ports quantity: 3
- DVI port: No
- VGA (D-Sub) input ports: 1
- USB port: Yes
- USB ports quantity: 2
- USB version: 2.0
- USB connector type: USB Type-A, USB Type-C
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100 Mbit/s
- PC Audio in: Yes
- RS-232C: Yes
- Digital audio optical out: 1
- PC Audio out: Yes
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 20 W
Design
- Product design: Digital signage flat panel
- Placement supported: Indoor

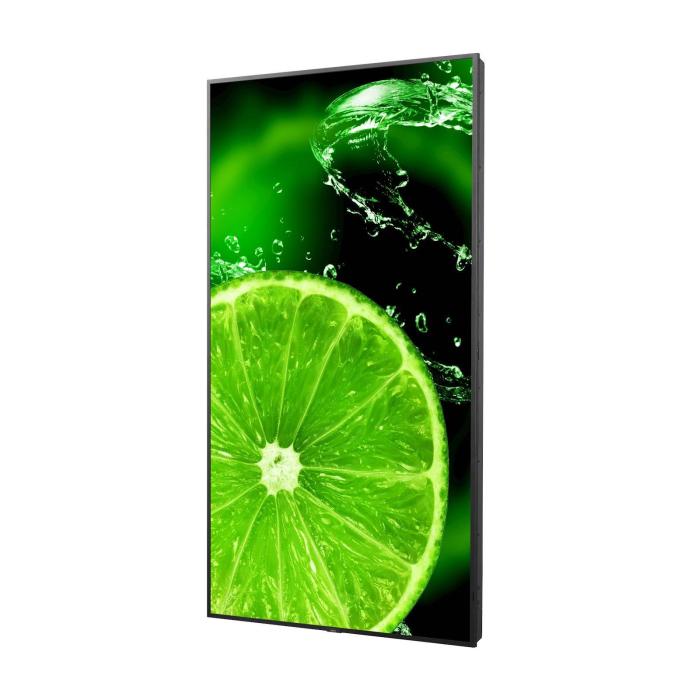

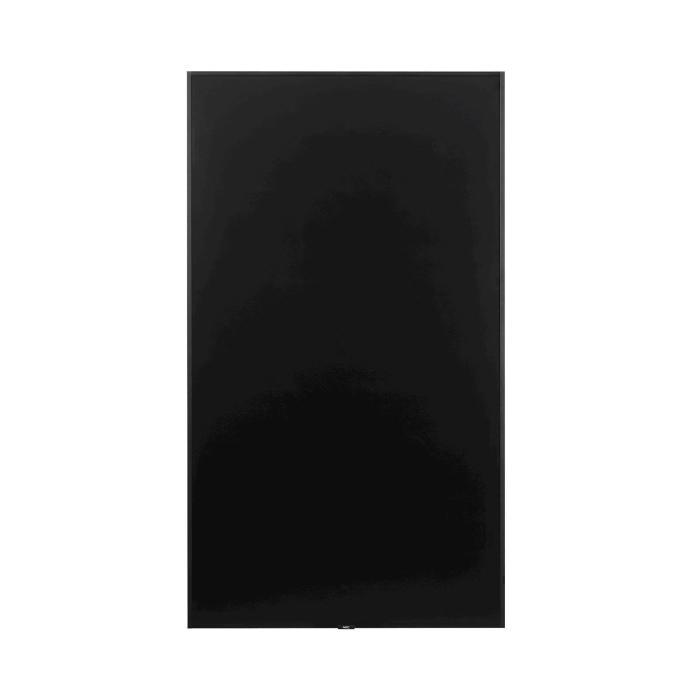

- Orientation: Horizontal/Vertical
- Product colour: Black
- VESA mounting: Yes

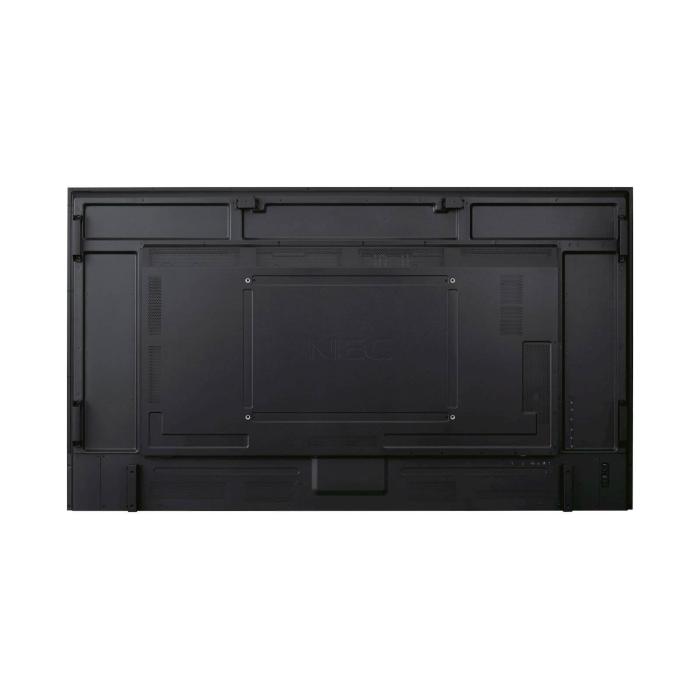

- Panel mounting interface: 600 x 400 mm
- Bezel width (bottom): 1.48 cm
- Bezel width (side): 1.43 cm
- Bezel width (top): 1.43 cm
Performance
- Ambient light sensor: Yes
- Operating hours (hours/days): 18/7
Power
- Power consumption (typical): 250 W
- Power consumption (standby): 2 W
- Energy efficiency class (SDR): G
- Energy efficiency class (HDR): G
- Energy consumption (SDR) per 1000 hours: 176 kWh
- Energy consumption (HDR) per 1000 hours: 161 kWh
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Display width: 1927.6 mm

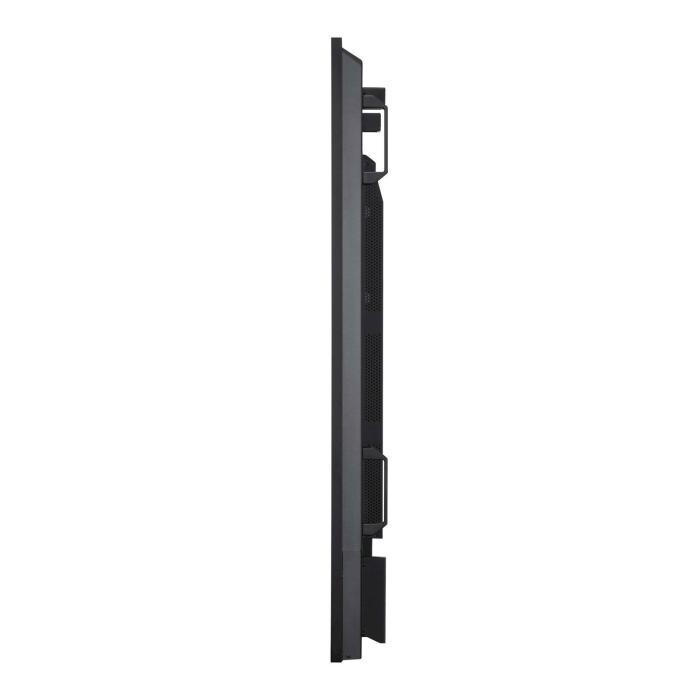

- Display depth: 83.2 mm
- Display height: 1099.1 mm
- Display weight: 46 kg
Packaging content
- Remote control included: Yes
- Batteries included: Yes
- Cables included: AC, HDMI
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 90%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 3000 - 12192 m
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Manual: Yes
- Screws included: Yes
- Tuner type: SB-11TM
- Digital tuner: Yes
- Dimensions (W x D x H) with stand: 1587 x 956.8 x 606 mm
