Description

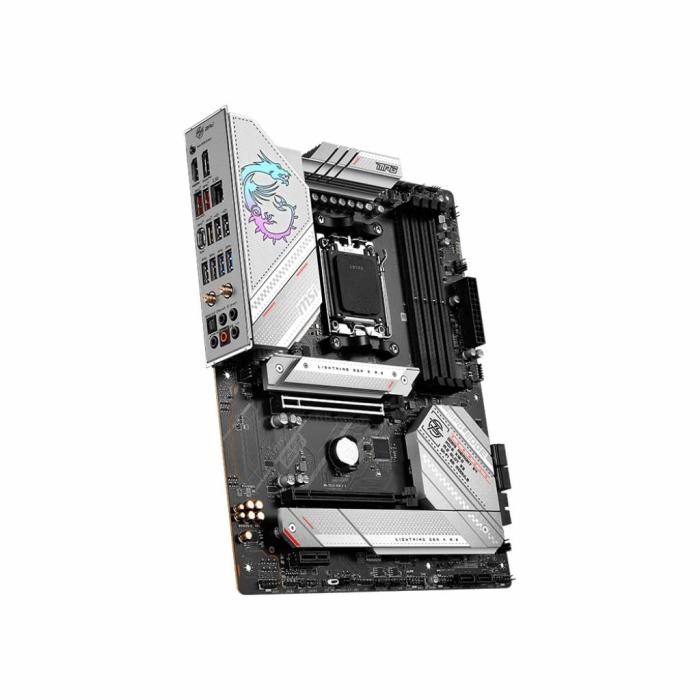

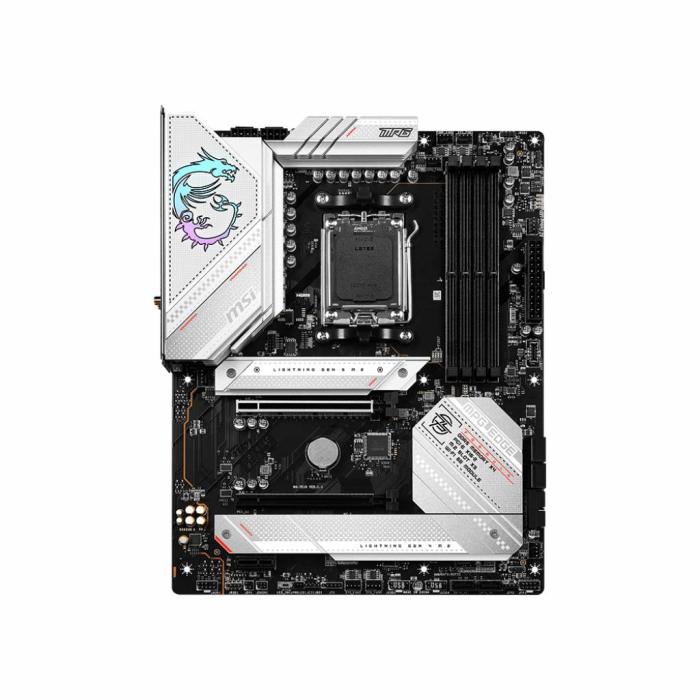

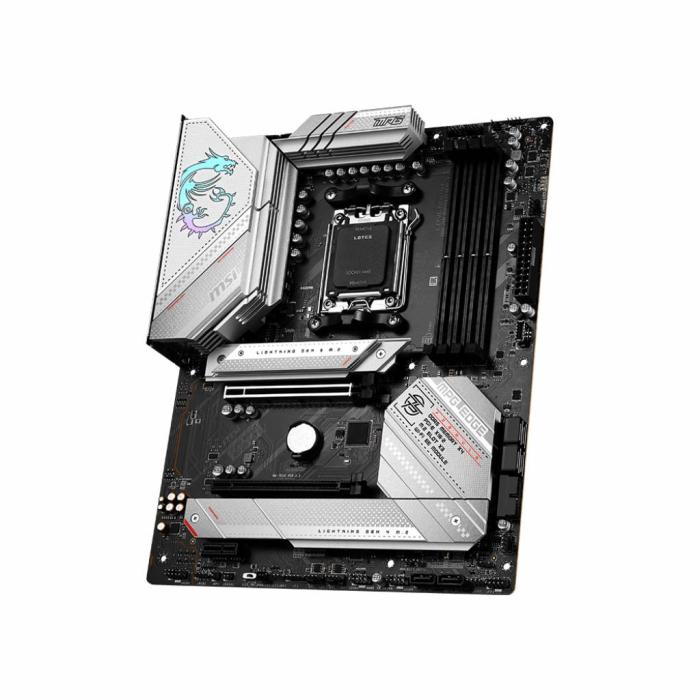

The MSI MPG B650 EDGE WIFI motherboard, in black and silver, is designed for building systems with AMD Ryzen 7000 Series processors on the AM5 socket. It features four DDR5-SDRAM memory slots with support for clock speeds of 4800, 5000, 5200, 5400, 5600 and 5800, and supports a maximum internal memory of 128 GB in non-ECC configuration. For storage it offers M.2 and SATA interfaces, with six SATA III connectors, and is compatible with RAID at levels 0, 1 and 10. Internally it has a 24-pin ATX power connector, front panel connector, CPU fan connector and two USB 3.2 Gen 1 connectors. Its ATX form factor fits standard desktop cases and the whole makes it suitable for building a high-performance system with the latest generation components.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MHz
- Maximum internal memory: 128 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 6
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes

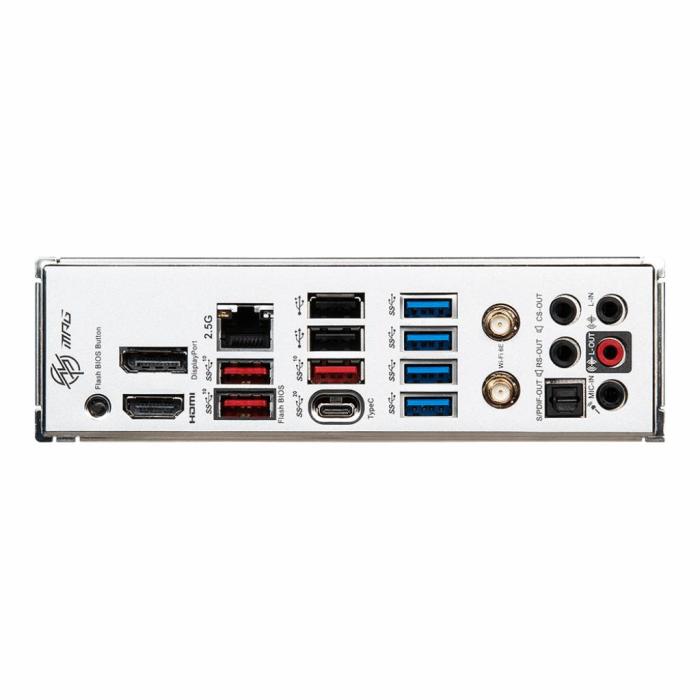

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125-BG
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC4080
- Audio output channels: 7.1 channels
- Product colour: Black, Silver
- PC health monitoring: Fan
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 3
Weight & dimensions
- Width: 304.8 mm
- Depth: 243.8 mm
