Description

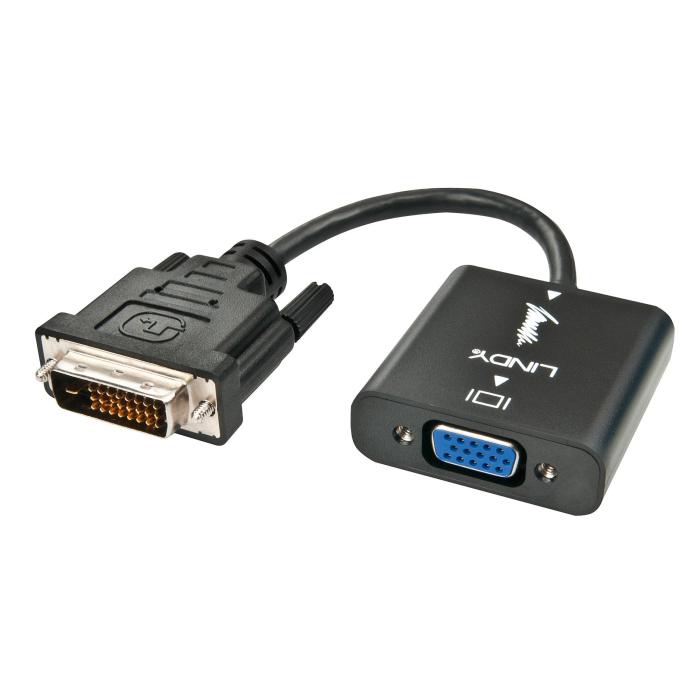

The Lindy 38189 video adapter is a 0.1 m cable with a DVI-D male connector and a VGA (D-Sub) female connector, in black. It supports a maximum resolution of 1920 x 1200 pixels and 1080p video modes, with compatible graphics resolutions of 1920 x 1080 (HD 1080) and 1920 x 1200 (WUXGA). It reaches a data transfer rate of 4.95 Gbit/s and incorporates the CH7101 chipset. The cable jacket is made of polyvinyl chloride (PVC), with a diameter of 5.5 mm and a minimum bend radius of 5.5 cm, and the connector coating is also made of polyvinyl chloride (PVC). Both connectors are straight format: connector 1 measures 40 x 52.25 x 16.5 mm and connector 2, 44 x 45 x 15 mm. It supports an operating temperature range of -20 to 80 °C and an operating relative humidity of 20 to 90%. The adapter weighs 62 g.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 0.1 m
- Connector 1: DVI-D
- Connector 2: VGA (D-Sub)
- Connector 1 gender: Male
- Connector 2 gender: Female
- HDCP: No
- Dual Link DVI: No
- Maximum resolution: 1920 x 1200 pixels
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes: 1080p
- Data transfer rate: 4.95 Gbit/s
- Bend radius (min): 5.5 cm
- Product colour: Black
- Chipset: CH7101
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Polyvinyl chloride (PVC)
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -20 - 80 °C
- Operating relative humidity (H-H): 20 - 90%
Certificates
- Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
- Cable diameter: 5.5 mm
- Connector 1 dimensions (WxDxH): 40 x 52.25 x 16.5 mm
- Connector 2 dimensions (WxDxH): 44 x 45 x 15 mm
- Weight: 62 g
Packaging data
- Package width: 160 mm
- Package depth: 160 mm
- Package height: 20 mm
- Package weight: 77 g
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
