Description

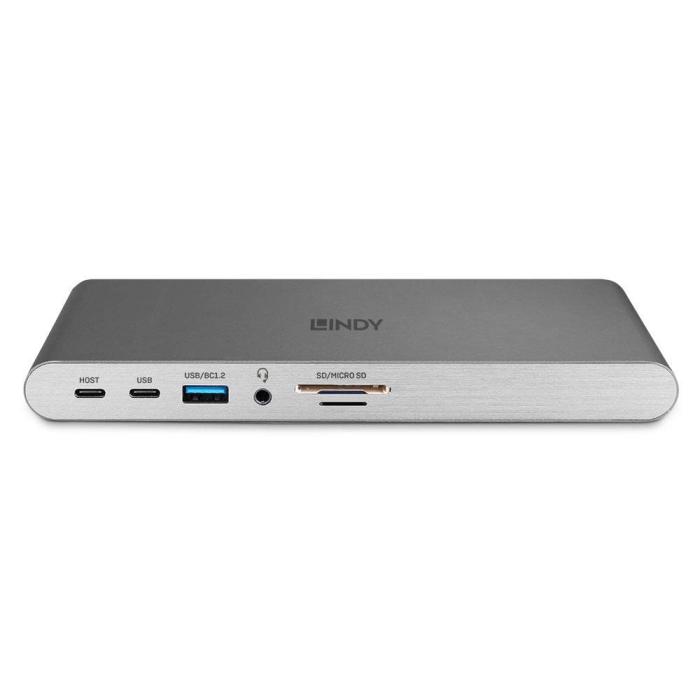

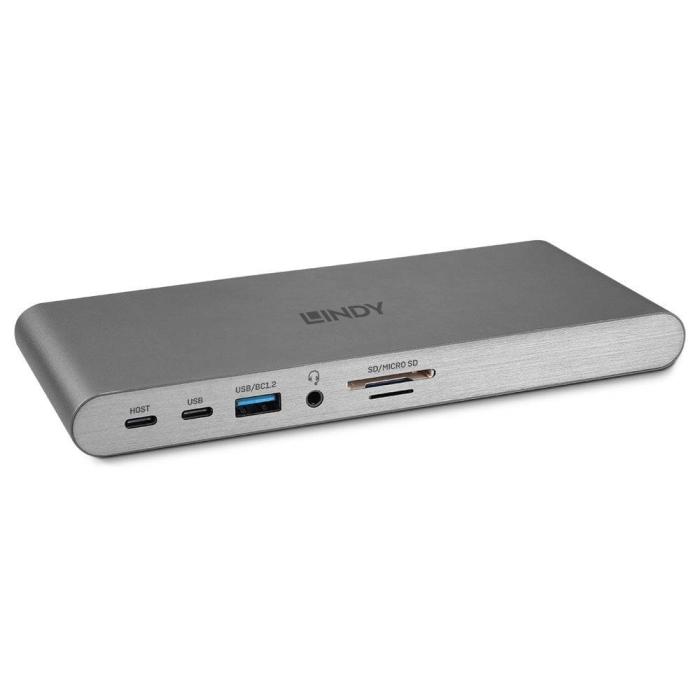

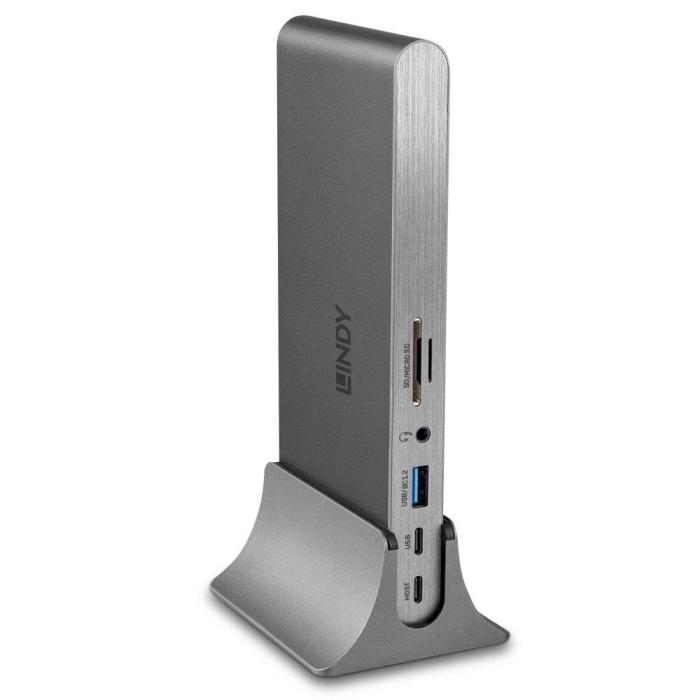

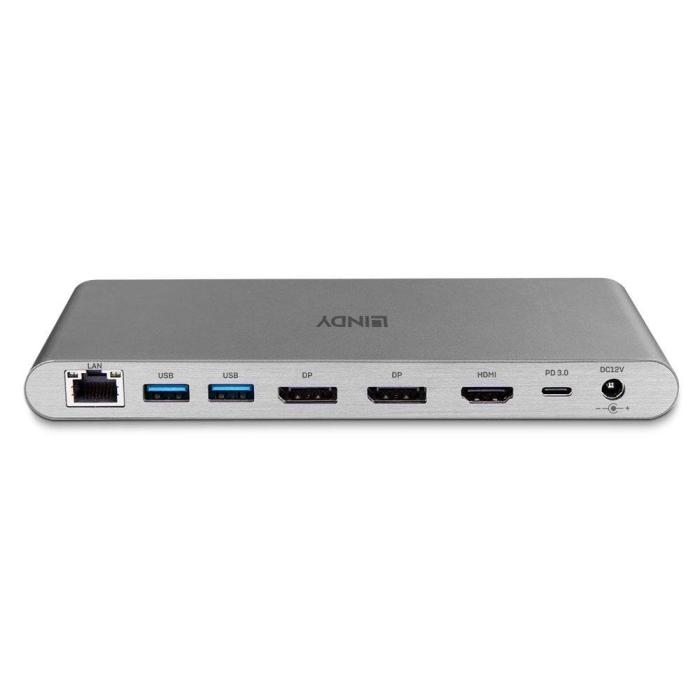

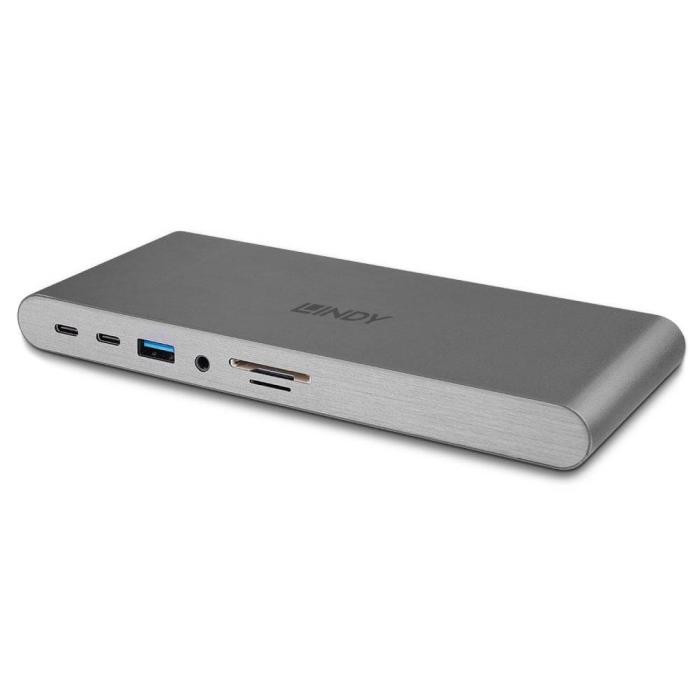

The Lindy 43349 laptop dock and port replicator, in silver, expands your device's connectivity via a single USB 3.2 Gen 1 Type-C connection. It features two DisplayPort 1.4 ports, one HDMI 2.0 port, three USB Type-A ports and one USB Type-C port, all of them USB 3.2 Gen 1. Video output supports HDCP 2.2 and DisplayPort Alt Mode over USB Type-C. It offers USB Power Delivery 3.0 of up to 100 W and USB power supply to power connected devices. It includes an RJ-45 Ethernet port with transfer speeds of 10, 100 and 1000 Mbit/s, as well as a headphone and microphone combo output. Connection to the host is wired, with a USB 3.2 Gen 1 Type-C interface. With dimensions of 180 x 18 x 77 mm and a weight of 439 g, it is a compact solution for your workplace.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- HDMI version: 2.0
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Combo headphone/mic port: Yes
- HDCP: Yes
- HDCP version: 2.2
- USB Type-C DisplayPort Alternate Mode: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Wake-on-LAN ready: Yes
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), SD
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 7680 x 4320 pixels
- Maximum refresh rate: 60 Hz
- Product colour: Silver
- Plug and Play: Yes
- Housing material: Aluminium
Power
- Power source type: DC
- Power connector: USB Type-C
- Output voltage: 20 V
- Output current: 5 A
- Power consumption (max): 24 W
Operational conditions
- Operating temperature (T-T): -20 - 40 °C
- Storage temperature (T-T): -40 - 80 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Depth: 77 mm
- Height: 18 mm
- Weight: 439 g
- Width: 180 mm
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 200 mm
- Package depth: 120 mm
- Package height: 70 mm
- Package weight: 780 g
Packaging content
- Cables included: USB Type-C
- Manual: Yes
Technical details
- Compliance certificates: CE, REACH, RoHS
