Description

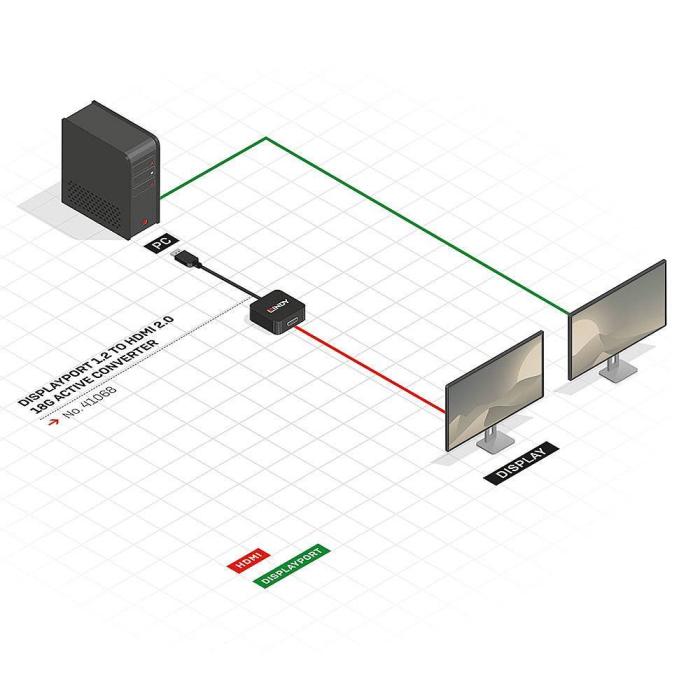

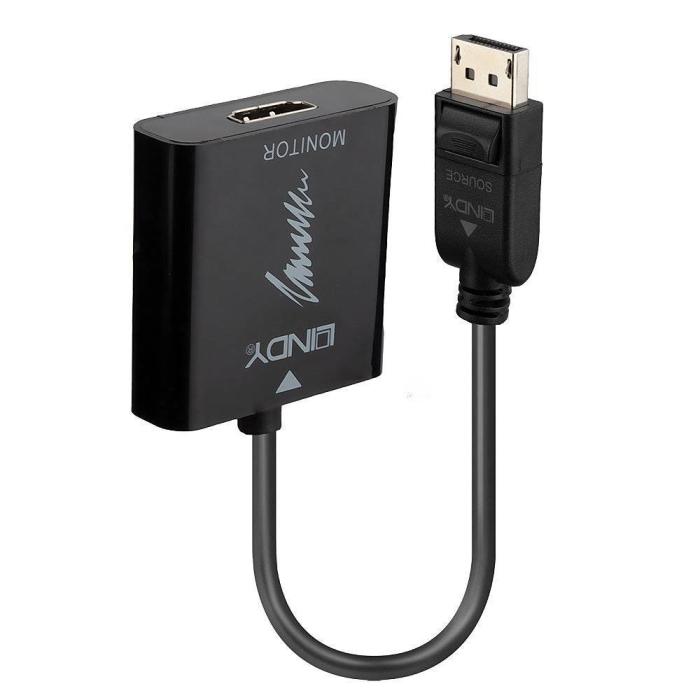

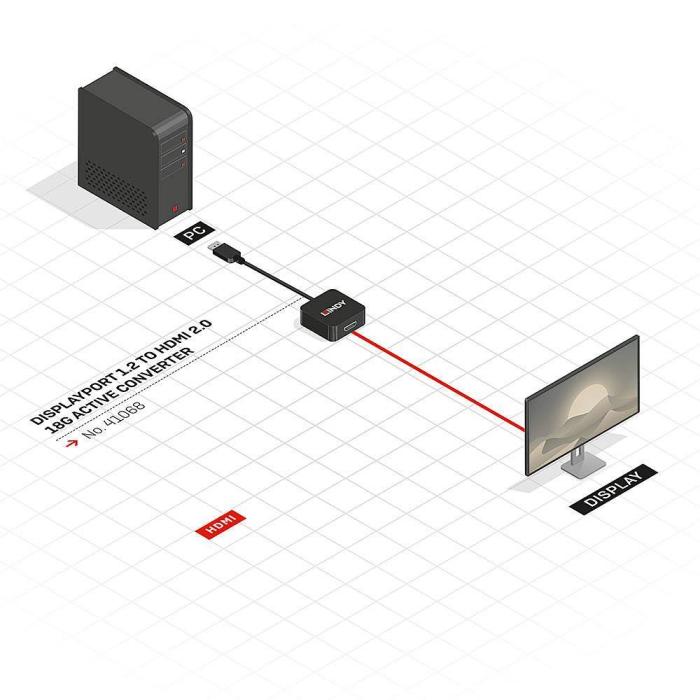

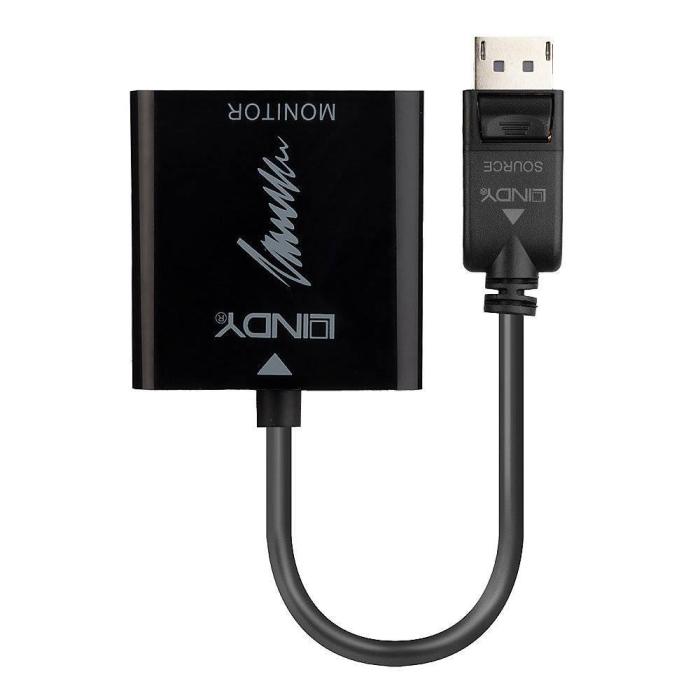

Connect a DisplayPort-equipped device to an HDMI type A monitor or projector with this LINDY cable adapter. Model 41068 is an active video converter, with PS176 chipset, that supports DisplayPort version 1.2 on the source connector and HDMI version 2.0a on the destination connector, with straight male and female connectors. It offers a data transfer rate of 18 Gbit/s, 8-bit colour depth and compatibility with video modes up to 2160p, as well as supporting HDCP version 2.2. The cable is 1.5 m long and its minimum bend radius is 5.5 cm, making it easy to install in tight spaces. It comes in black and weighs 20 g, so it barely adds any load to the device you connect it to.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Cable length: 1.5 m
- Connector 1: DisplayPort
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Female
- HDMI version: 2.0a
- HDCP: Yes
- HDCP version: 2.2
- DisplayPort version: 1.2
- Maximum resolution: 3840 x 2160 pixels
- Supported video modes: 2160p
- Data transfer rate: 18 Gbit/s
- Bend radius (min): 5.5 cm
- Product colour: Black
- Chipset: PS176
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Thermoplastic elastomer (TPE)
- Colour depth: 8 bit
- Colour sampling: 4:4:4
- Converter type: Active video converter
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Certificates
- Compliance certificates: RoHS
- Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
- Cable diameter: 5 mm
- Connector 1 dimensions (WxDxH): 31.5 x 20 x 9 mm
- Connector 2 dimensions (WxDxH): 45 x 45 x 15 mm
- Weight: 20 g
Packaging data
- Package width: 160 mm
- Package depth: 160 mm
- Package height: 20 mm
- Package weight: 45 g
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
