Description

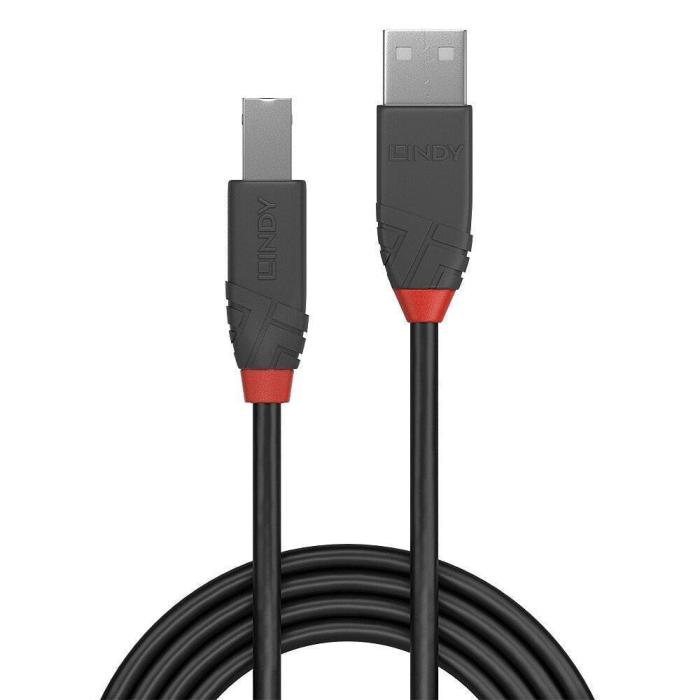

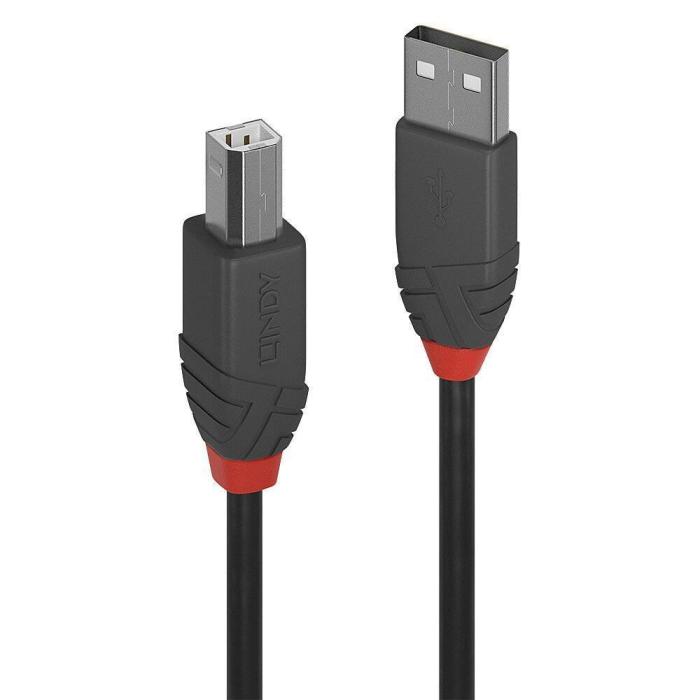

Lindy 36676 USB cable, 7.5 m, with USB A and USB B connectors, black. This is a USB 2.0 cable with a maximum data transfer speed of 480 Mbit/s, equivalent to a maximum transfer rate of 0.48 Gbit/s. Both connectors are male and straight, with a nickel connector material and copper contacts. The cable is round, with a diameter of 5 mm, a minimum bending radius of 1.6 cm and an AWG gauge of 28/24. The cable sheath is polyvinyl chloride (PVC), the conductor is tinned copper and the connector shielding is aluminium. The dimensions of connector 1 are 15.5 x 35 x 7.8 mm, while those of connector 2 are 11.8 x 35 x 10.2 mm. It has a nominal attenuation of 5.8 db/km and the connector features shielding.
Specifications
Features
- Connector shielding: Yes
- Connector shield material: Aluminium
- Connector housing material: Polyvinyl chloride (PVC)
- Maximum data transfer rate: 0.48 Gbit/s
- Product colour: Black
- Cable type: Round cable
- Nominal attenuation: 5.8db/km
- USB version: USB 2.0
- Connector 1: USB A
- Connector 2: USB B
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 28/24
- Connector material: Nickel
- Contact material: Copper
- Connector contacts plating: Nickel
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
Weight & dimensions
- Cable length: 7.5 m
- Cable diameter: 5 mm
- Bend radius (min): 1.6 cm
- Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
- Connector 2 dimensions (WxDxH): 11.8 x 35 x 10.2 mm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): 0 - 60 °C
Certificates
- Certification: RoHS, REACH, UL
Logistics data
- Harmonized System (HS) code: 84733080
