Description

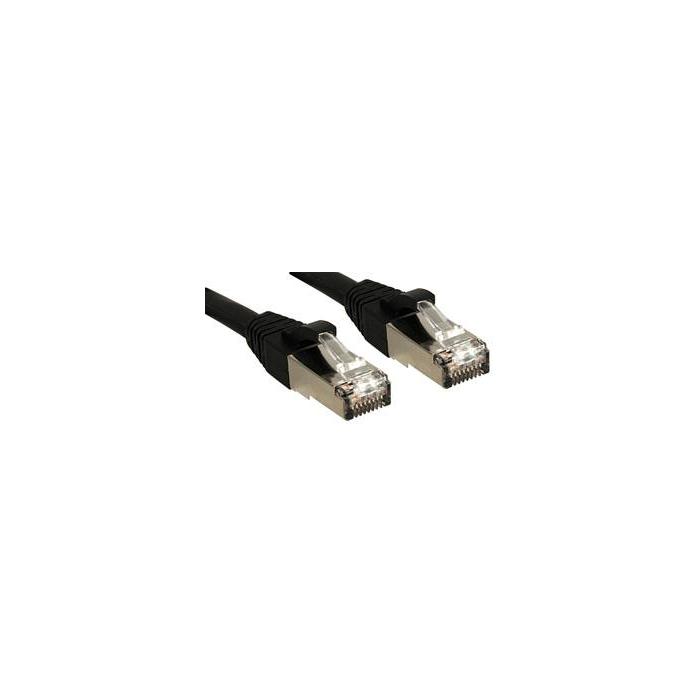

The Lindy 45603 networking cable, in black and 2 metres in length, is designed for Cat6 Ethernet connections with male-to-male RJ-45 connectors. It features S/FTP (S-STP) shielding and shielded connectors with nickel- and gold-plated contacts, along with 26 AWG copper conductors. Its halogen-free (LSZH) sheath and aluminium/polyester connector shielding offer a robust construction, with a minimum bend radius of 1.86 cm and support for frequencies up to 250 MHz. This model operates and stores within a temperature range of -25 to 60 °C, making it suitable for standard network environments.
Specifications
Features
- Cable standard: Cat6
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector contacts plating: Nickel/Gold
- Connector shielding: Yes
- Connector shield material: Aluminium/Polyester
- Jacket material: Low smoke zero halogen (LSZH)
- Conductor material: Copper
- AWG wire size: 26
- Frequency: 250 MHz
- Bend radius (min): 1.86 cm
- Product colour: Black
- Cable length: 2 m
- Connector 1 gender: Male
- Connector 2 gender: Male
Operational conditions
- Operating temperature (T-T): -25 - 60 °C
- Storage temperature (T-T): -25 - 60 °C
Certificates
- Certification: RoHS, REACH, UL
Weight & dimensions
- Outer diameter: 6.2 mm
- Connector 1 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
- Connector 2 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
Packaging data
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
