Description

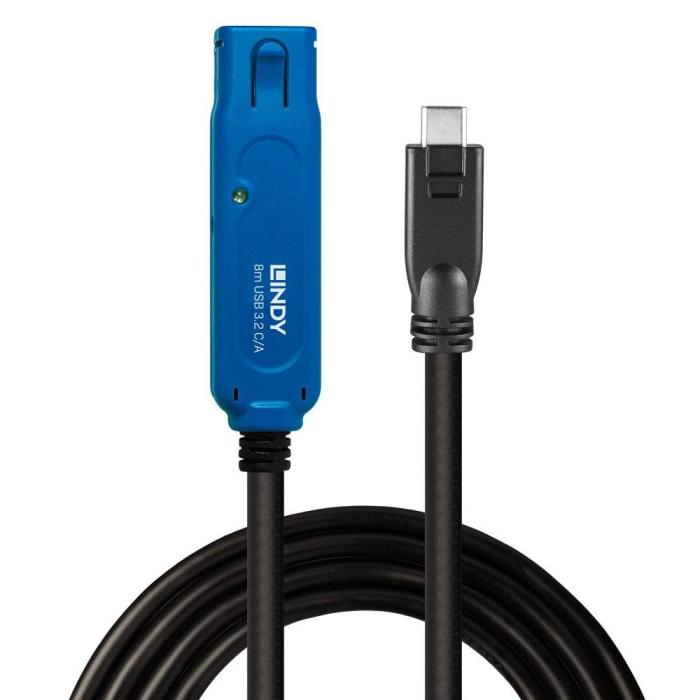

Connects devices with the LINDY USB cable, an 8 m cable that joins a male USB C connector and a female USB A connector, both of straight form factor. This round black and blue cable is designed to link equipment and peripherals comfortably thanks to its length, and its construction uses tinned copper conductors with 24/24/20 gauge and a polyvinyl chloride (PVC) jacket. It offers a transfer speed of up to 5 Gbit/s under the USB 3.2 Gen 1 (3.1 Gen 1) standard, which speeds up the movement of data between connected devices. Its contacts are nickel-plated and gold-plated, a detail that helps maintain a stable connection with every use. With a weight of 630 g, it is manageable when laying or coiling it. The power note includes a 2.5/0.7 mm DC connector, so it can power the installation when additional energy is required.
Specifications
Features
- Connector 1: USB C
- Connector 2: USB A
- Connector 1 gender: Male
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 24/24/20
- Connector contacts plating: Nickel/Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Maximum data transfer rate: 5 Gbit/s
- Product colour: Black, Blue
- Cable type: Round cable
- Nominal attenuation: 0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz
- USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Power
- Power note: 2.5/0.7mm DC Connector
Weight & dimensions
- Cable length: 8 m
- Cable diameter: 7 mm
- Weight: 630 g
- Bend radius (min): 7 cm
- Connector 1 dimensions (WxDxH): 14 x 43.65 x 11.2 mm
- Connector 2 dimensions (WxDxH): 20 x 80 x 13 mm
Packaging data
- Package type: Box
- Package width: 230 mm
- Package depth: 198 mm
- Package height: 63 mm
- Package weight: 830 g
Packaging content
- Quantity per pack: 1 pc(s)
Sustainability
- Sustainability compliance: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
