Description

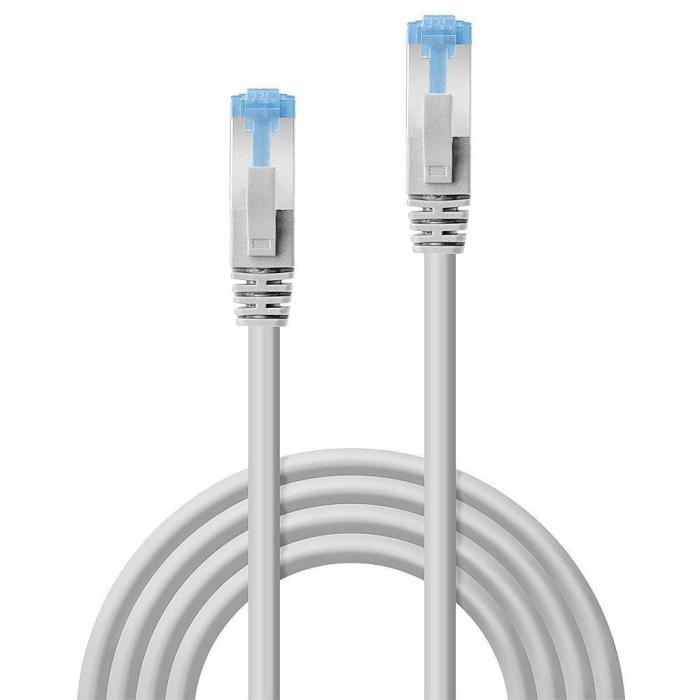

Connect equipment with the LINDY 47134 network cable, a 2 m grey cable designed for Cat6a installations. Its two male RJ-45 connectors feature gold-plated contacts and aluminium shielding, which strengthens continuity at each end. S/FTP (S-STP) shielding protects the signal against interference in high-traffic environments, and Class Ea with 500 MHz frequency allows working with data transfer speeds of up to 1000 Mbit/s. The conductor is copper and the cable gauge is 27 AWG, with a round shape that makes it easier to run through conduits and cabinets. The jacket is halogen-free (LSZH), a relevant detail when cabling runs through areas where limiting smoke emission is advisable. The nominal attenuation is 49.3 dB/100 m at 500 MHz, a value that helps assess the patch lead's performance over long runs.
Specifications
Features
- Product colour: Grey
- Cable length: 2 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector contacts plating: Gold
- Connector shielding: Yes
- Connector shield material: Aluminium
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor material: Copper
- Cable class: Ea
- Cabling technology: 10/100/1000Base-T(X)
- AWG wire size: 27
- Data transfer rate: 1000 Mbit/s
- Frequency: 500 MHz
- Bend radius (min): 7.2 cm
- Plug and Play: Yes
- Nominal attenuation: 49.3dB/100m @ 500MHz
Operational conditions
- Operating temperature (T-T): -10 - 60 °C
- Storage temperature (T-T): -20 - 75 °C
Certificates
- Certification: RoHS, REACH, UL, California Proposition 65
Weight & dimensions
- Outer diameter: 6 mm
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data

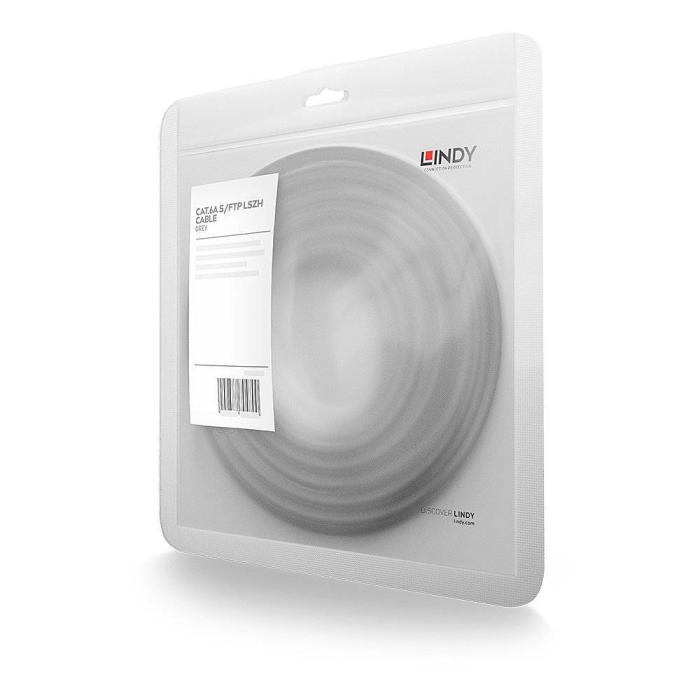

- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
