Description

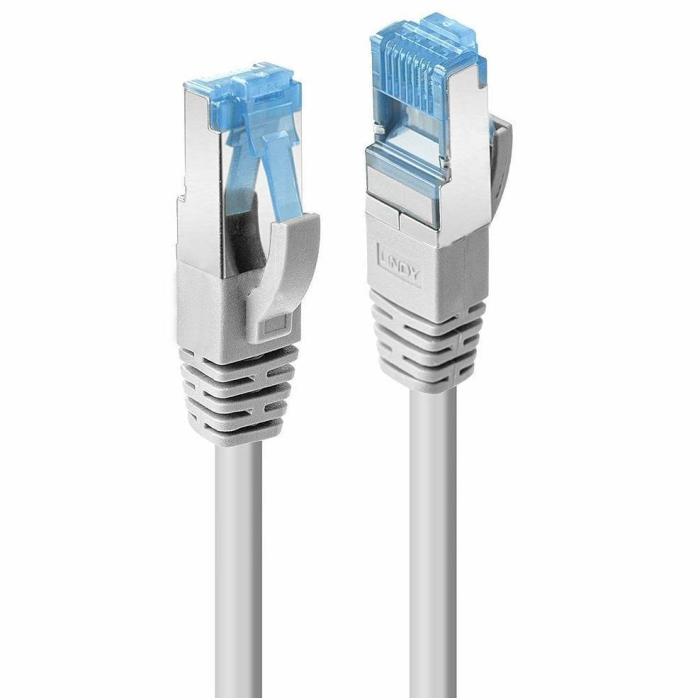

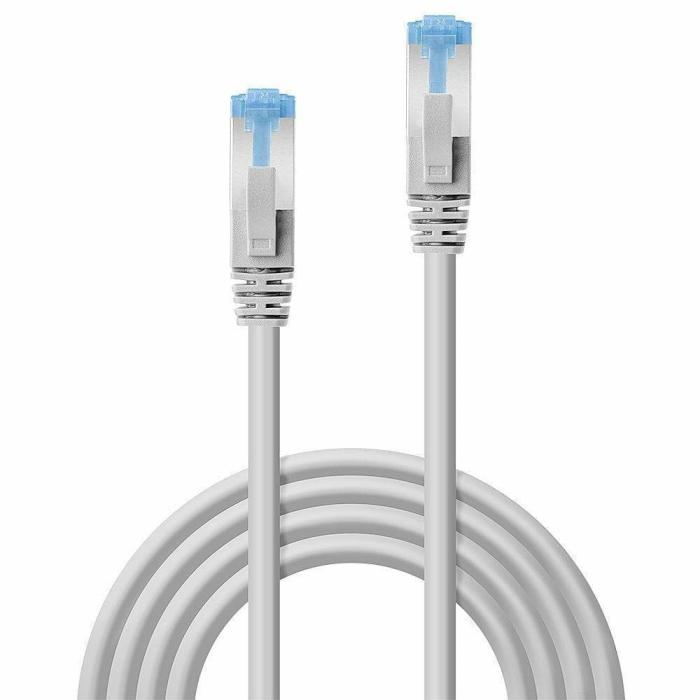

Lindy 47611 network cable, 0.3 m, grey, Cat6a category and S/FTP (S-STP) shielding. Its two male RJ-45 connectors are straight and feature nickel- and gold-plated contacts, on a polycarbonate coating and aluminium shielding. The conductor is copper, with AWG 26 gauge and a round, halogen-free (LSZH) jacket. It reaches a frequency of 500 MHz and is designed for 10GBase-T cabling technology. It has an outer diameter of 5.8 mm and a minimum bend radius of 6.9 cm, with dimensions of 11.6 x 8.3 x 22.8 mm (width x height x depth).
Specifications
Features
- Cable length: 0.3 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel/Gold
- Connector shielding: Yes
- Connector shield material: Aluminium
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor material: Copper
- Connector housing material: Polycarbonate (PC)
- Cabling technology: 10GBase-T
- AWG wire size: 26
- Frequency: 500 MHz
- Bend radius (min): 6.9 cm
- Product colour: Grey
Operational conditions
- Operating temperature (T-T): -10 - 60 °C
- Storage temperature (T-T): -20 - 75 °C
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: REACH, RoHS, UL
- Certification: RoHS, REACH, UL, California Proposition 65
Weight & dimensions
- Width: 11.6 mm
- Depth: 22.8 mm
- Height: 8.3 mm
- Outer diameter: 5.8 mm
Packaging content
- Quantity per pack: 1 pc(s)
- Manual: Yes
Packaging data
- Package type: Polybag
Logistics data
- Warranty period: 10 year(s)
Technical details
- Sustainability compliance: Yes
