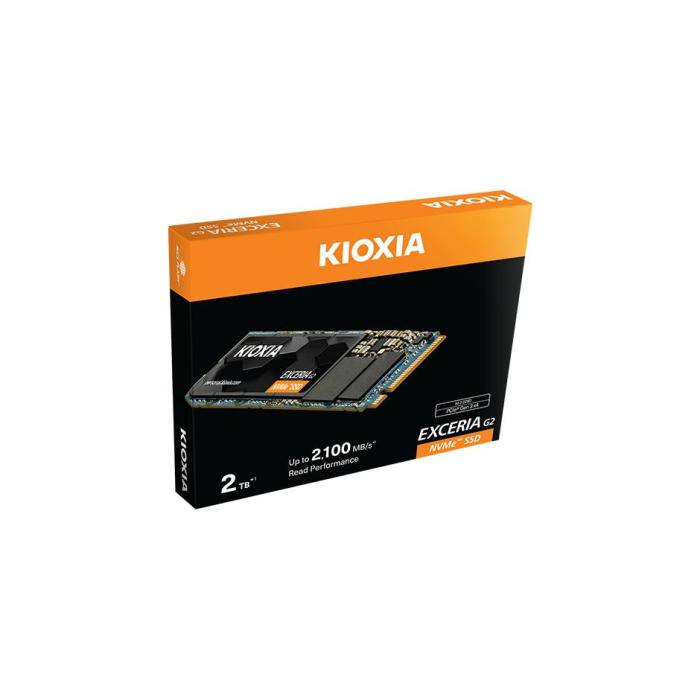

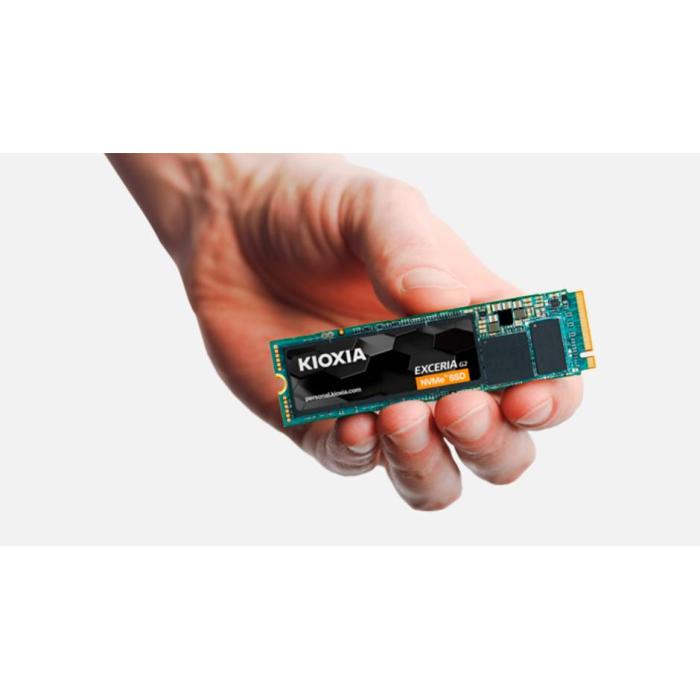

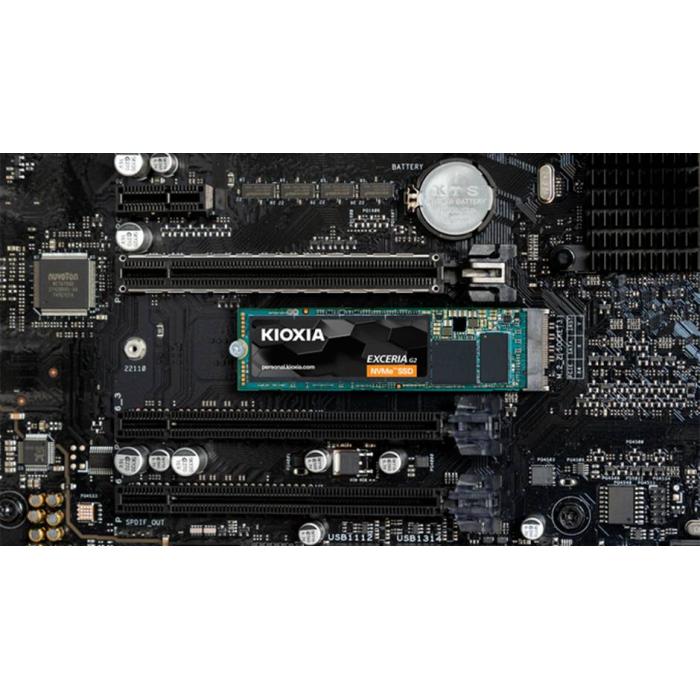

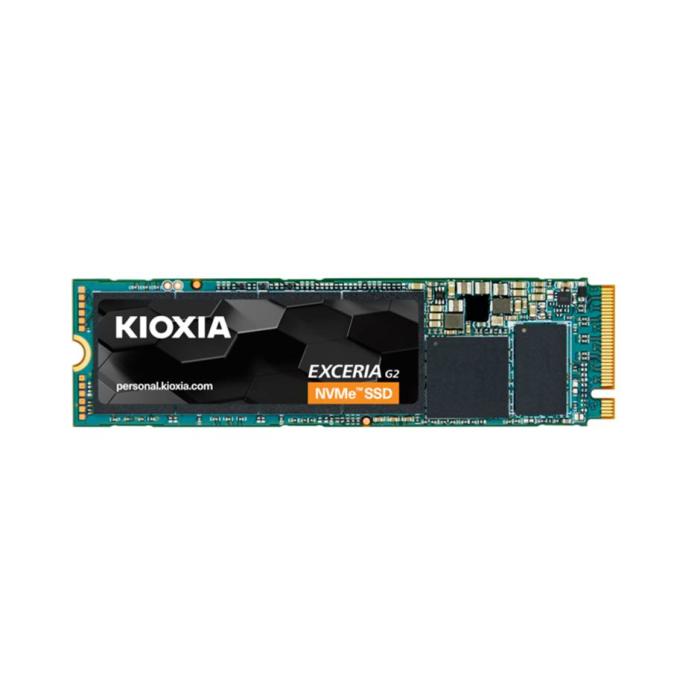

Kioxia EXCERIA G2 500 GB M.2 PCI Express 3.1 NVMe BiCS FLASH TLC

Not avaliable

More info

Brand: KIOXIA
SKU: 112511 PRC: 517462 EAN: 4582563853980 PN: lrc20z500gg8

Description

Specifications

Features

  • NVMe version: 1.3c
  • SSD capacity: 500 GB
  • SSD form factor: M.2
  • Interface: PCI Express 3.1
  • NVMe: Yes
  • Memory type: BiCS FLASH TLC
  • Component for: PC/Laptop
  • M.2 SSD size: 2280 (22 x 80 mm)
  • Target workload: Mixed Use (MU)
  • Data transfer rate: 32 Gbit/s
  • Random read (4KB): 400000 IOPS
  • Random write (4KB): 400000 IOPS
  • Sequential read speed (ATTO): 2100 MB/s
  • Sequential write speed (ATTO): 1700 MB/s
  • M.2 key ID: M
  • PCI Express interface data lanes: x4
  • PCI Express CEM revision: 3.1
  • TRIM support: Yes
  • Mean time between failures (MTBF): 1500000 h
  • TBW rating: 200

Power

  • Operating voltage: 3.3 V
  • Power consumption (average): 3.5 W

Weight & dimensions

  • Width: 22 mm
  • Depth: 80 mm
  • Height: 2.23 mm
  • Weight: 6.8 g

Operational conditions

  • Operating temperature (T-T): 0 - 85 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating vibration: 20 G
  • Operating shock: 1000 G

Sustainability

  • Sustainability compliance: Yes

Other features

  • Compliance certificates: RoHS
