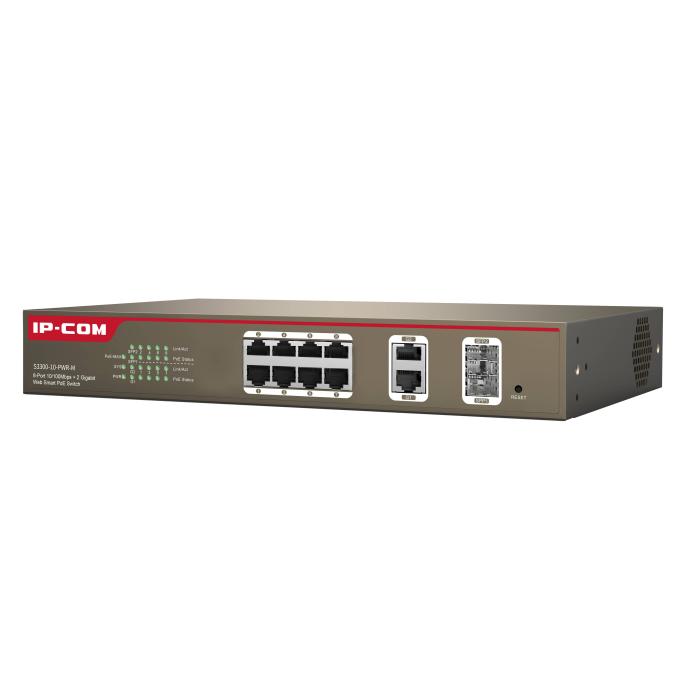

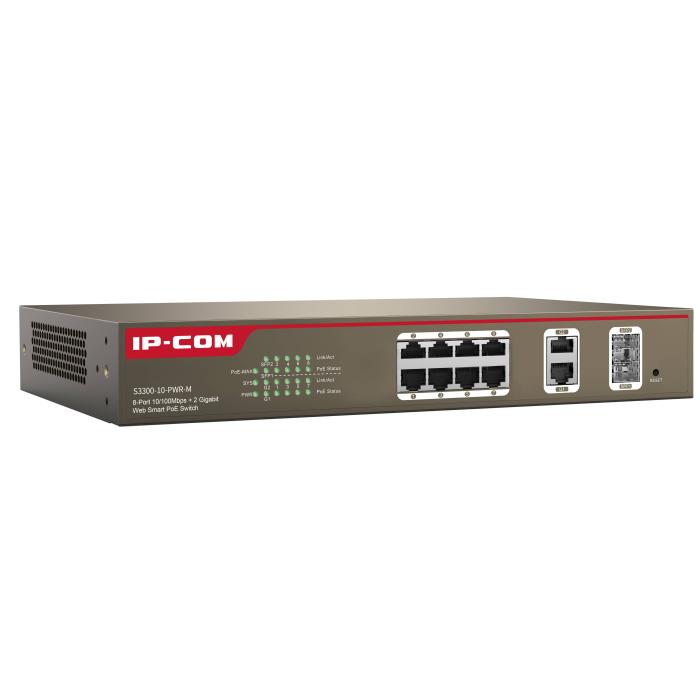

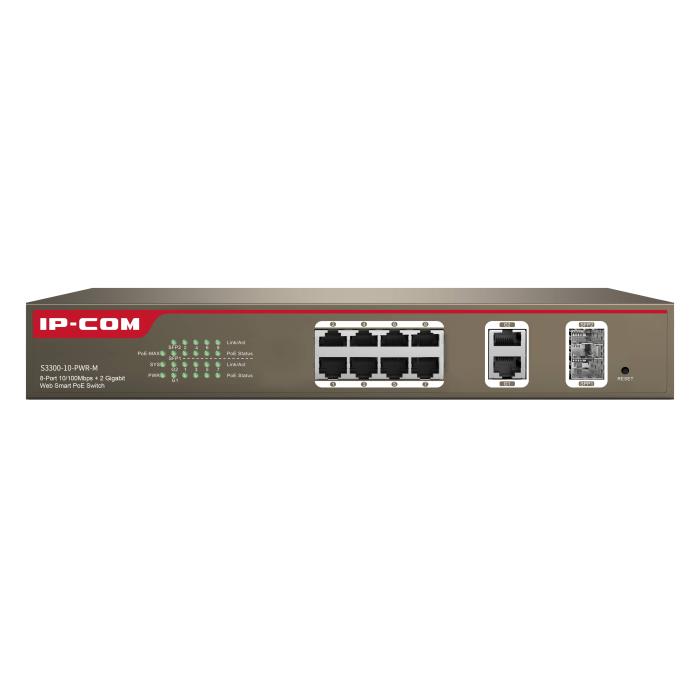

IP-COM Networks S3300-10-PWR-M network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
More info
Brand: IP-COM NETWORKS
62.00 €Stock available: 0 units.
Unavailable
SKU:
85747
PRC:
296994
EAN:
6932392831273
PN:
s3300-10-pwr-m
Description
IP-COM Networks S3300-10-PWR-M managed switch with 12 basic RJ-45 ports, of which 8 are Fast Ethernet (10/100) and 2 Gigabit Ethernet, plus 2 SFP modules for fibre uplinks in its grey housing. Designed for small office or branch networks, this L2 layer device offers web-based management and Quality of Service (QoS) support to prioritise critical traffic. It includes advanced features such as port mirroring, link aggregation (up to 4 links) and MAC address filtering, with a table of 4000 entries and switching capacity of 5.6 Gbit/s. Its throughput of 4.22 Mpps ensures agile data flow in work environments with multiple connected devices.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 12
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity: 8
- Gigabit Ethernet (copper) ports quantity: 2
- Installed SFP modules quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
- Port mirroring: Yes
- Link aggregation: Yes
Data transmission
- Switching capacity: 5.6 Gbit/s
- Throughput: 4.22 Mpps
- MAC address table: 4000 entries
- Number of trunks: 4
Security
- IGMP snooping: Yes
- MAC address filtering: Yes
Protocols
- Management protocols: SNMP v1/v2
Design
- Rack mounting: No
- Stackable: No
- Product colour: Grey
- Housing material: Metal
- Reset button: Yes
- LED indicators: Activity, Link, PoE, Power, Status, System
Performance
- Mean time between failures (MTBF): 100000 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 123 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 2
- Power over Ethernet (PoE) power per port: 130 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
Weight & dimensions
- Width: 294 mm
- Depth: 178.8 mm
- Height: 44 mm
Packaging content
- Manual: Yes
Packaging data
- Package type: Box
