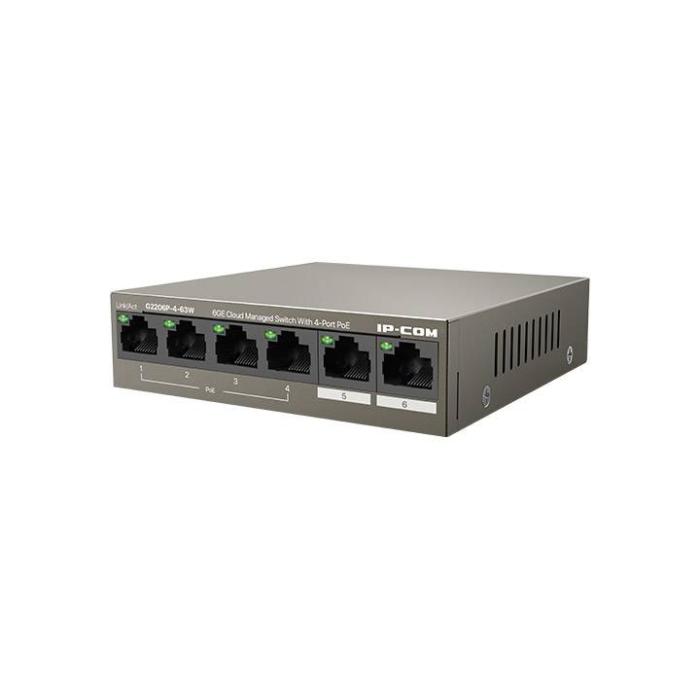

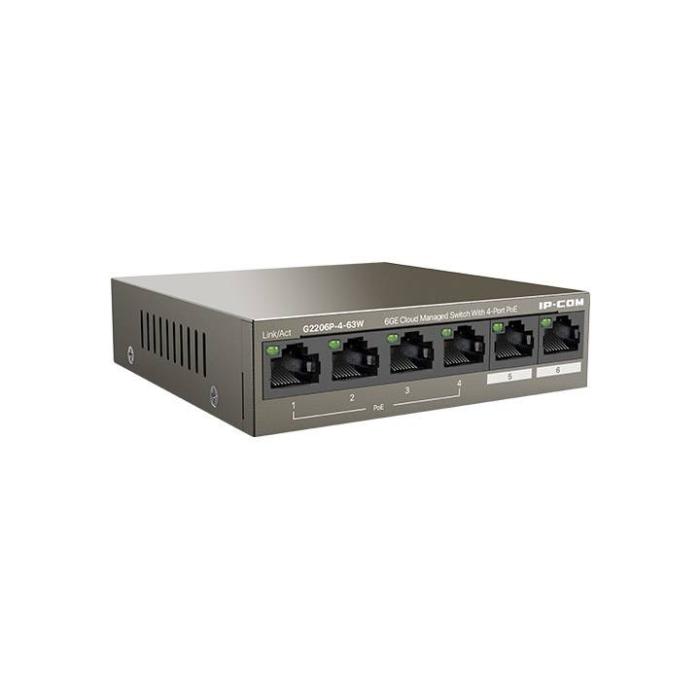

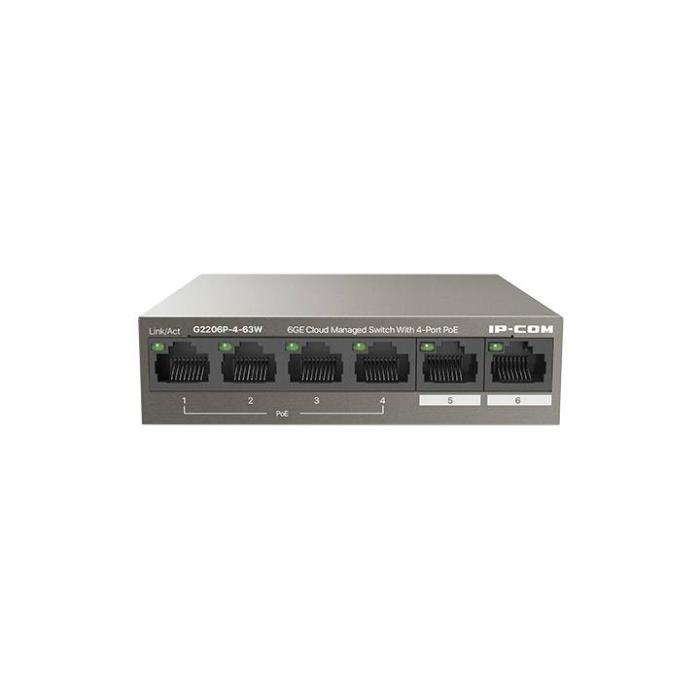

IP-COM Networks G2206P-4-63W network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
More info
Brand: IP-COM NETWORKS
45.08 €Stock available: 0 units.
Unavailable
SKU:
106913
PRC:
519950
EAN:
6932392835318
PN:
g2206p-4-63w
Description
IP-COM Networks G2206P-4-63W managed Gigabit Ethernet switch with four Gigabit RJ-45 ports (10/100/1000) and Power over Ethernet (PoE), ideal for deploying small networks with power supplied through the cable. Its web-based and cloud management allows configuration control both remotely and locally, with VLAN support, flow control, and IP-MAC port binding to enhance security. It includes DHCP client and DHCP snooping functions, a MAC address table of 2000 entries, a switching capacity of 12 Gbit/s, and a forwarding rate of 8.9 Mpps. With half-duplex and full-duplex transmission, and compliance with IEEE 802.3af/at standards for PoE, it offers stable and efficient operation for office or small business environments.
Specifications
Management features
- Switch type: Managed
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- Forwarding rate: 8.9 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
Security
- DHCP features: DHCP client, DHCP snooping
- Loop protection: Yes
- IP-MAC-Port binding: Yes
Design
- Rack mounting: No
- Stackable: No
- LED indicators: Link, Power, System
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 63 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) power per port: 4 W
- Total Power over Ethernet (PoE) budget: 58 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 100 mm
- Depth: 100 mm
- Height: 26 mm
Certificates
- Certification: FCC, CE, RoHS
